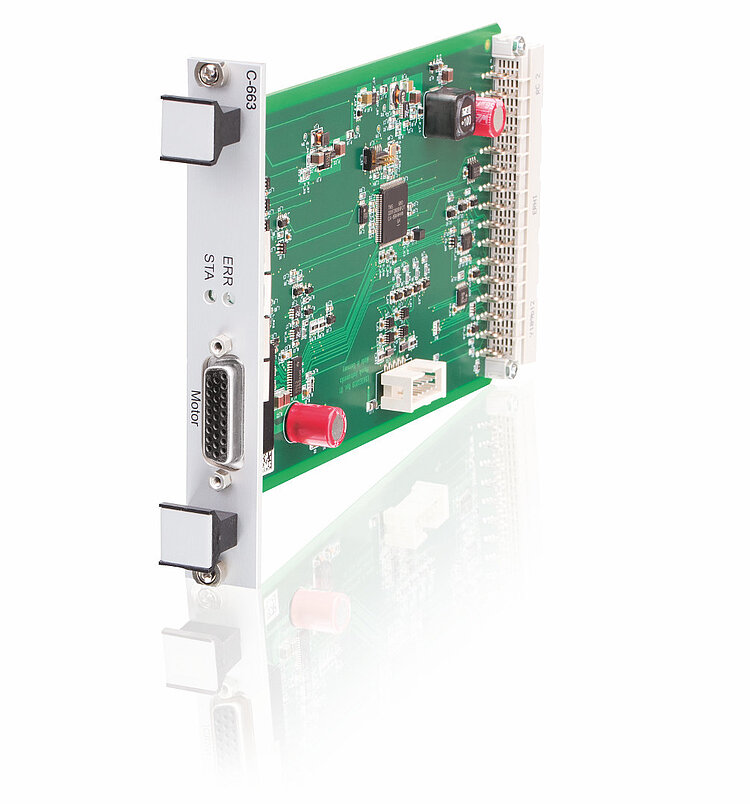

C-663.12C885 Mercury Step Stepper Motor Controller Module

For the C-885 PIMotionMaster Modular Controller System

  • High microstep resolution
  • Fast-running motor (output voltage 48 V, even at lower operating voltage)
  • Closed-loop operation of 2-phase stepper motors
  • Support for external sensors
  • ID chip detection for fast startup
C-663.12C885 Mercury Step Stepper Motor Controller Module
Product Description Specifications Downloads Quote / Order

Mercury Step controller module for 2-phase stepper motors

1 axis. Microstep resolution: 1/2048 full step. Closed-loop operation. Point-to-point motion, trapezoidal velocity profile. Fast-running motor, even at lower operating voltage.

Extensive functionality

Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone operation with autostart macro. Data recorder. ID chip for fast startup. Parameter changing during operation. Extensive software support, e.g., for LabVIEW, dynamic libraries for Windows and Linux.

Interfaces

Differential signal transmission for digital (A/B) encoder signals. TTL inputs for limit and reference point switches. Input for RS-422 signals for index switch. I/O lines (analog/digital) for automation.

Plug-and-play installation in the C-885 PIMotionMaster

Can be inserted in any free slot. Automatic detection and external communication (USB, Ethernet) by the processor and interface module of the C-885. Can be expanded with optional digital inputs and outputs. Power via the power supply of the C-885.

Specifications

Datasheet

Datasheet C-663.12C885

Version / Date
2018-02-15
pdf - 108 KB
Version / Date
2018-02-15
pdf - 111 KB
Version / Date
2018-03-29
pdf - 529 KB

Downloads

Datasheet

Datasheet

Datasheet C-663.12C885

Version / Date
2018-02-15
pdf - 108 KB
Version / Date
2018-02-15
pdf - 111 KB
Version / Date
2018-03-29
pdf - 529 KB

Documentation

Documentation

User Manual C663T0004

C-663.12C885 Motion Controller Module for Stepper Motors, for C-885 PIMotionMaster

Version / Date
20201-01-13
pdf - 685 KB
Version / Date
20201-01-13
pdf - 690 KB
Documentation

User Manual MS241

C-663.12 Mercury Step Stepper Motor Controller

Version / Date
1.5.0 2023-07-07
pdf - 6 MB
Version / Date
1.5.0 2023-07-07
pdf - 6 MB
Documentation

User Manual C663T0005

Parameter Handling when Upgrading to C-663.12 Controllers

Version / Date
2020-01-14
pdf - 274 KB
English

General Software Documentation

General Software Documentation

User Manual SM164E

Updating controller firmware with PIFirmwareManager

Version / Date
12.12.2023 1.0.0
pdf - 819 KB
English

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

C-663.12C885
Mercury Step stepper motor controller module, 1 axis, HD Sub-D 26, for PIMotionMaster , 1 axis, closed-loop and open-loop operation, support of external sensors
