L-505.011200
Compact linear stage; 2-phase stepper motor; 13 mm travel range; 30 N load capacity; 10 mm/s maximum velocity; fine-threaded spindle; 0.5 m cable length; 36 mm width
L-505 Compact Linear Stage
With DC or Stepper Motor
- Travel ranges 13 or 26 mm
- Stepper motor or DC servo motor with and without gearhead
- Velocity to 15 mm/s
- Load capacity to 30 N
- Integrated reference and limit switches

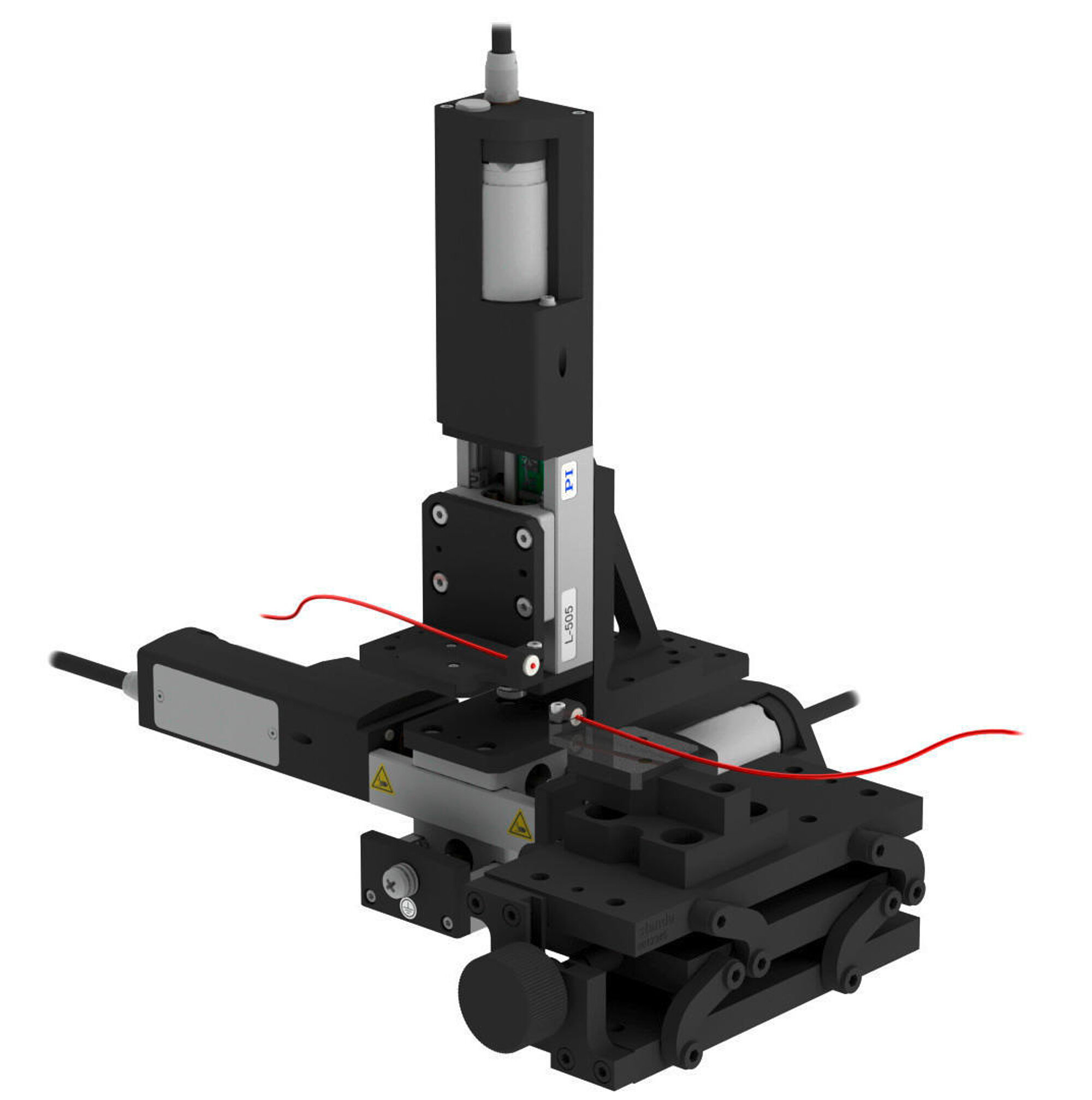

XYZ assembly for fiber alignment consisting of three L-505.023212F linear stages
Exploded view of an XYZ assembly consisting of three L-505.023212F linear stages and L-505.AP1 adapter bracket
XYZ assembly for fiber alignment consisting of three L-505.023212F linear stages
XYZ assembly for fiber alignment consisting of three L-505.023212F linear stages
XYZ assembly consisting of three L-505.023212F linear stages and L-505.AP1 adapter bracket

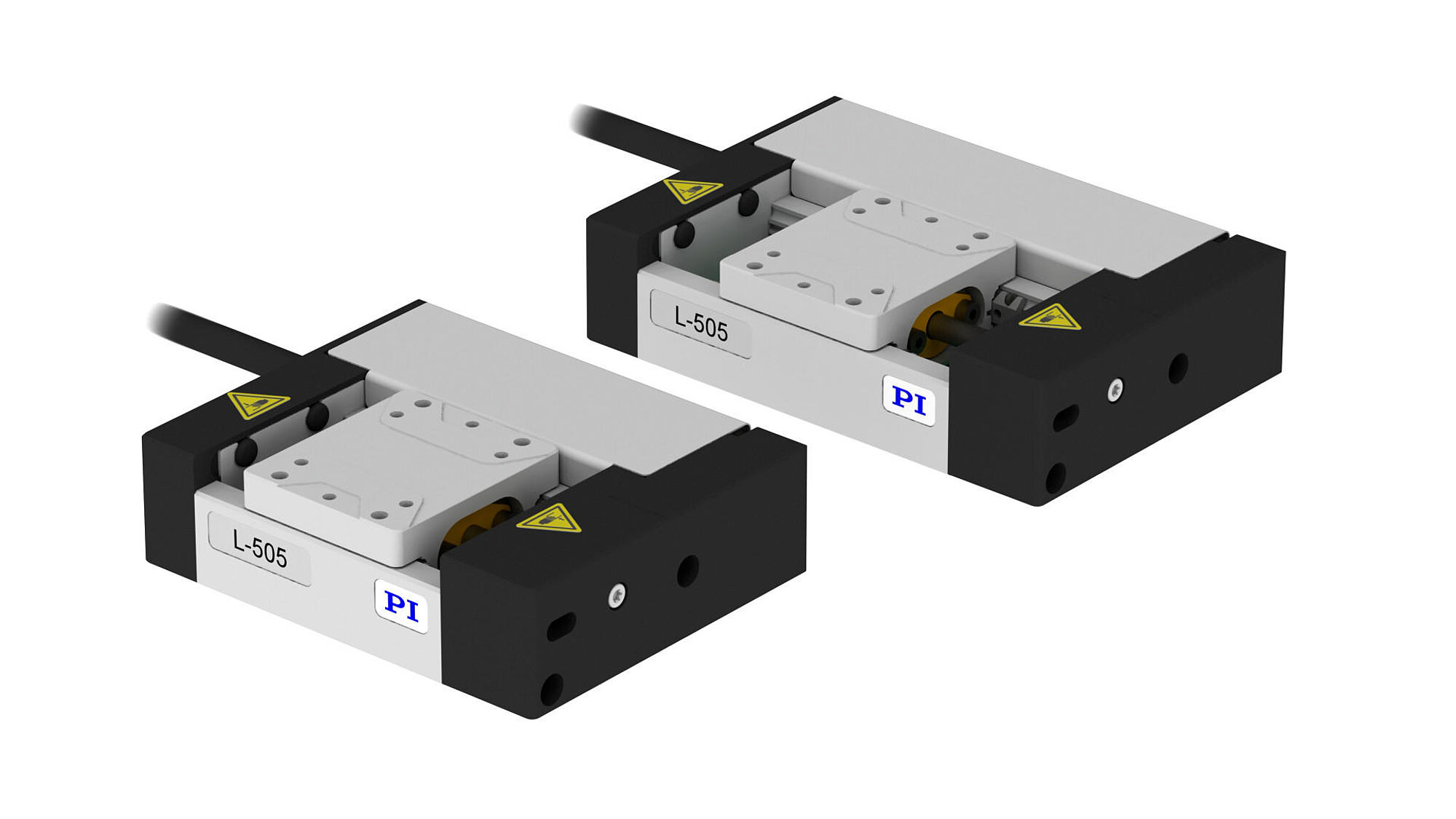

Comparison of the travel ranges: L-505.013212F (left) - 13 mm; L-505.023212F (right) - 26 mm

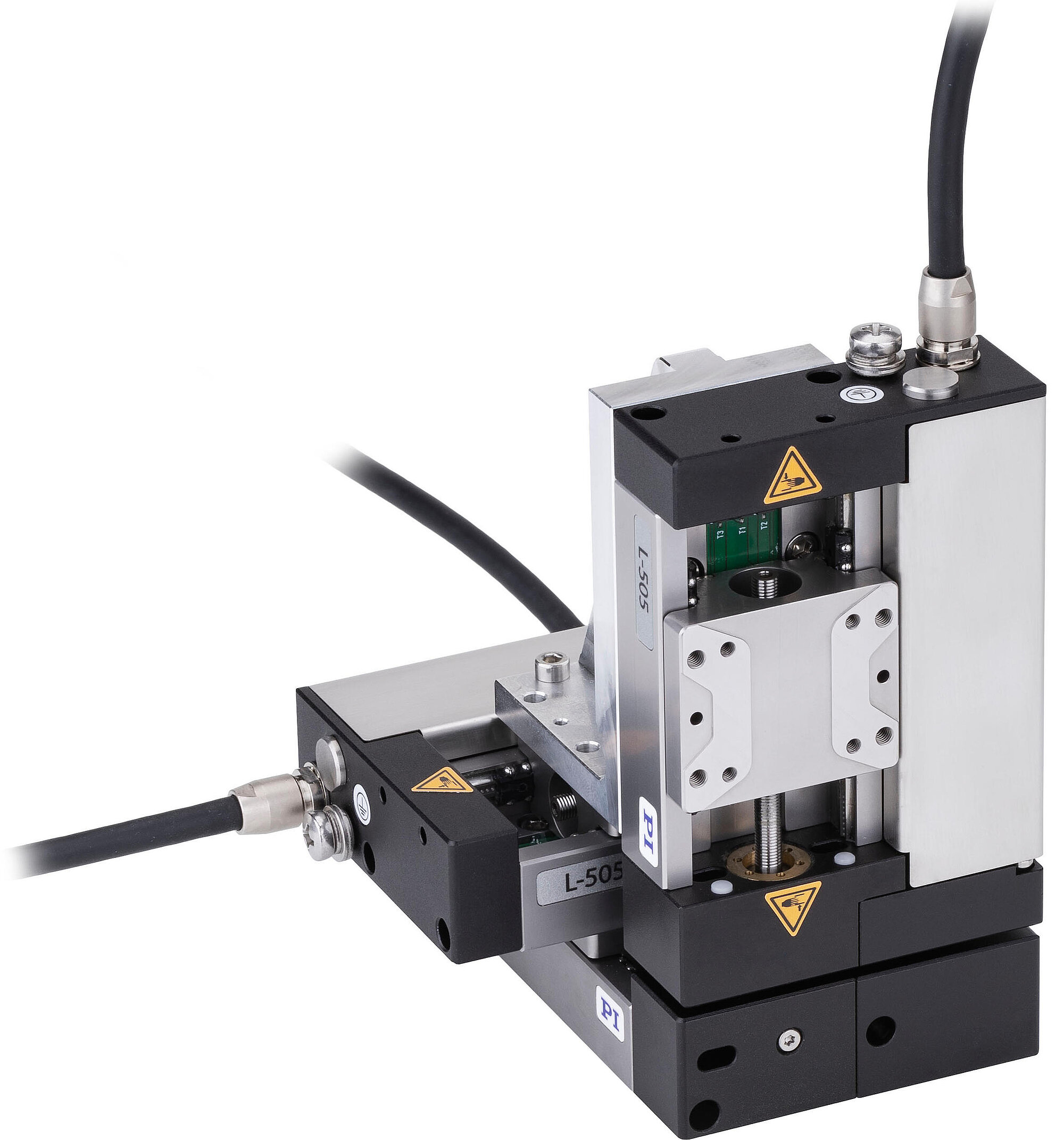

XYZ assembly consisting of three L-505.023212F linear stages

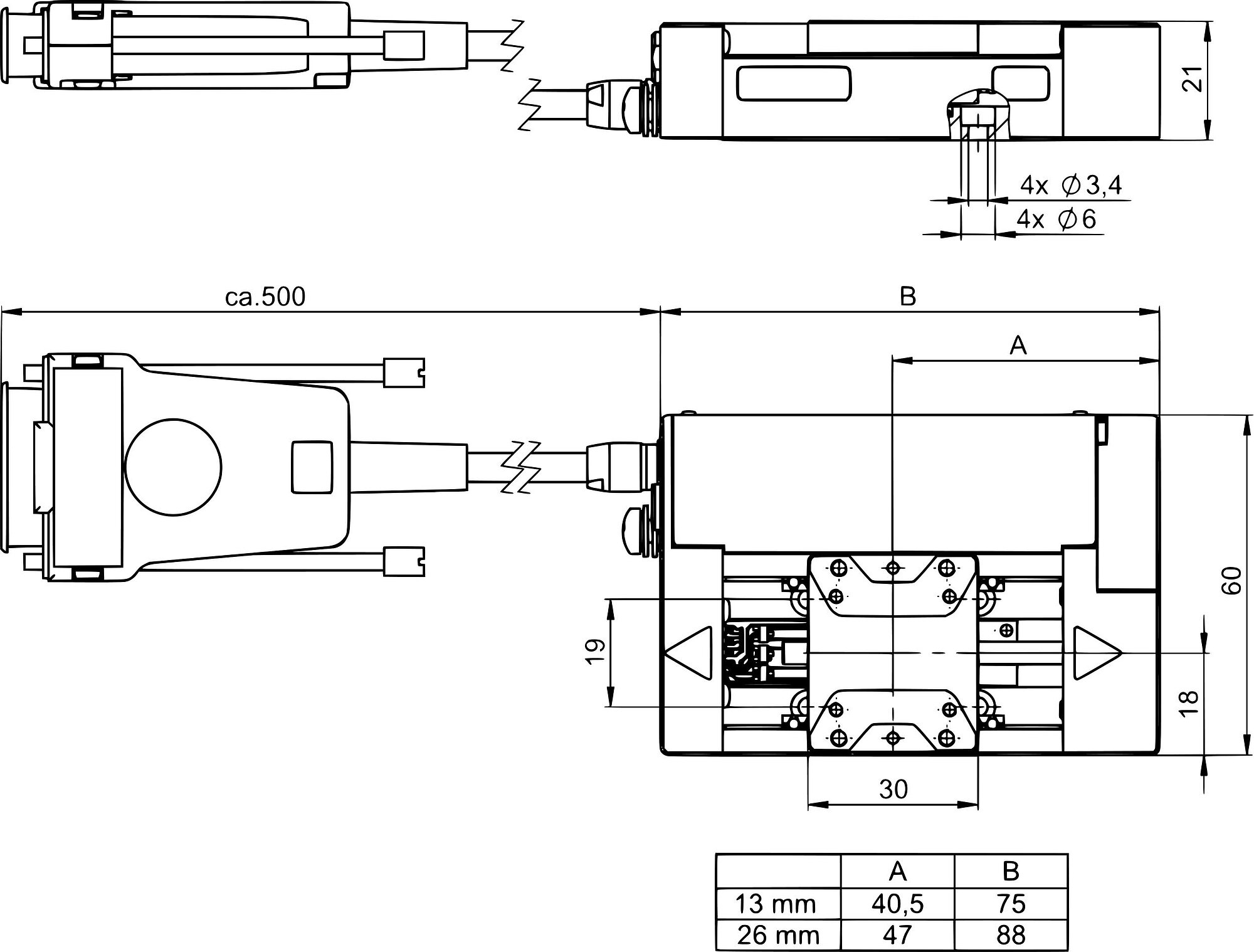

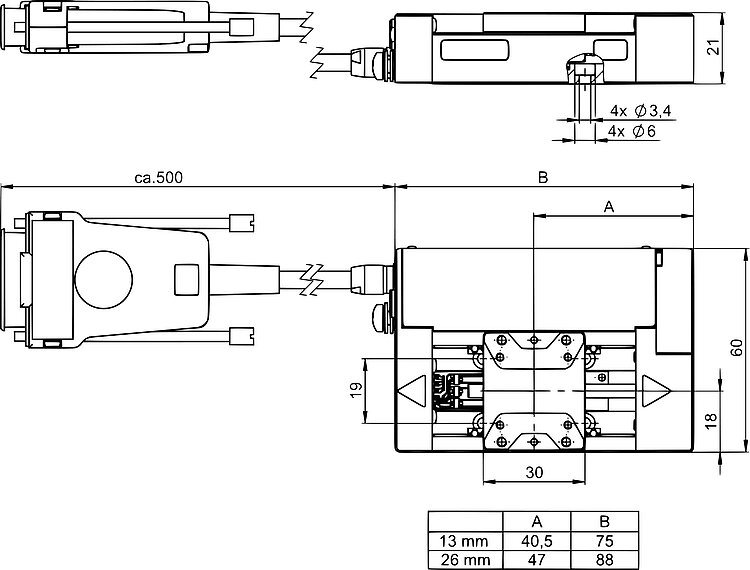

L-505 with belt drive, dimensions in mm

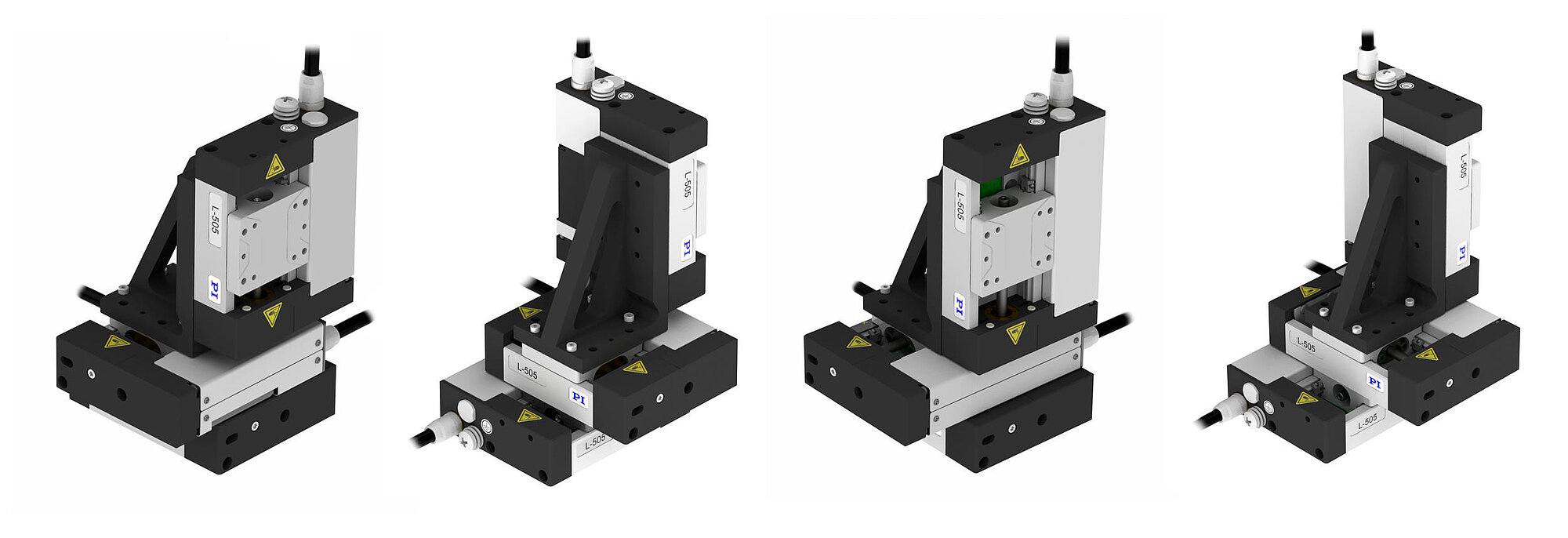

Comparison of XYZ assemblies consisting of three linear stages: L-505.013212F (left) and L-505.023212F (right)

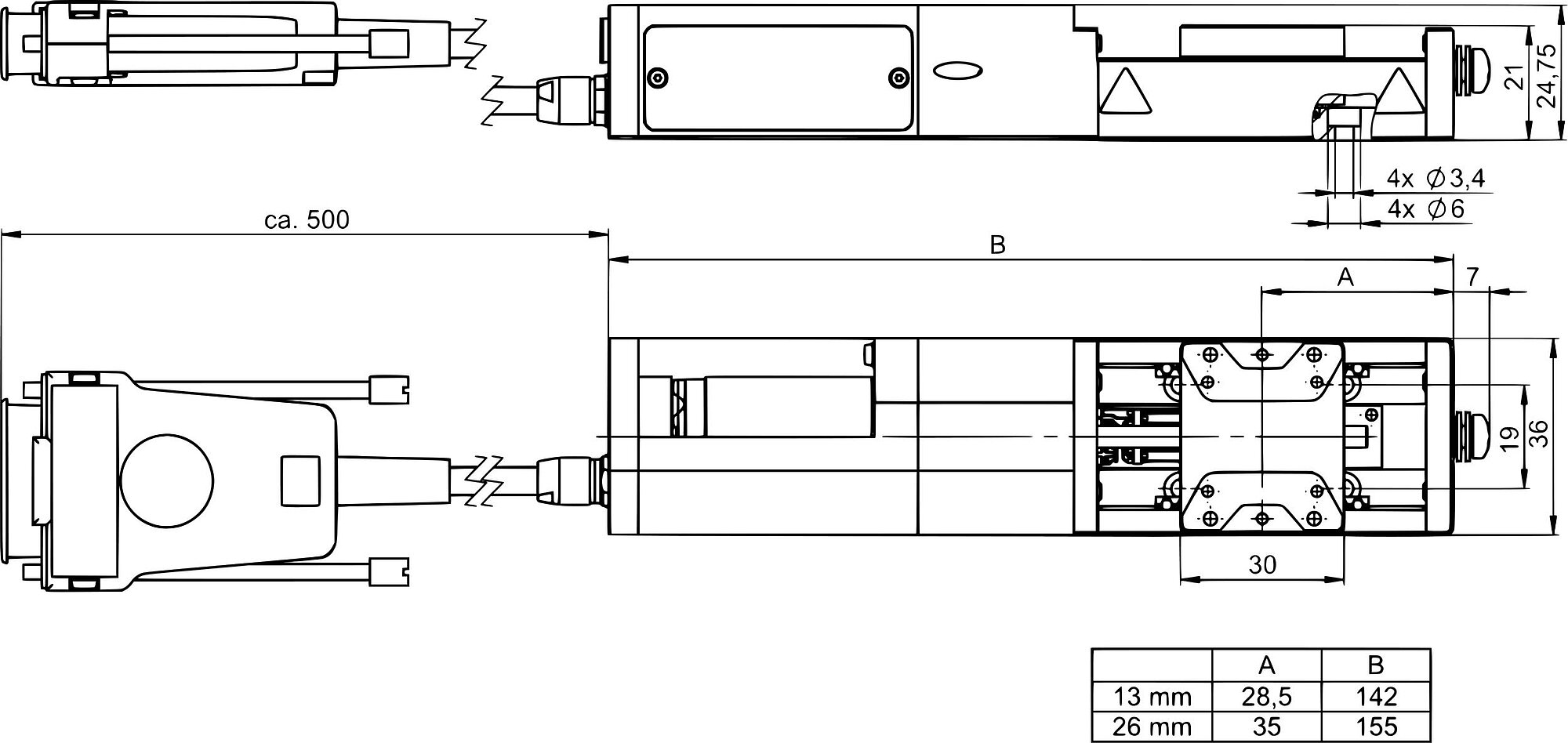

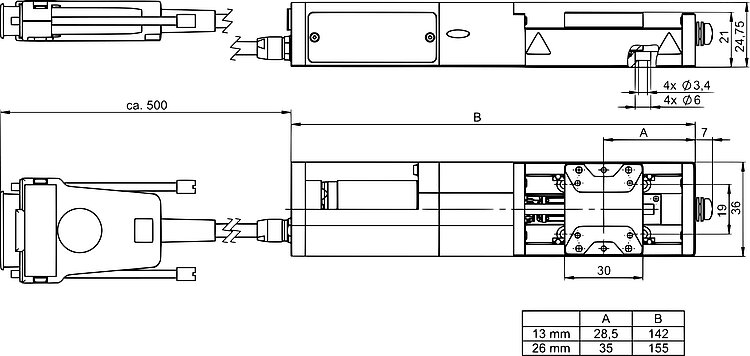

L-505 with direct fixed drive and DC motor, dimensions in mm
Exploded view of an XYZ assembly consisting of three L-505.023212F linear stages and L-505.AP1 adapter bracket

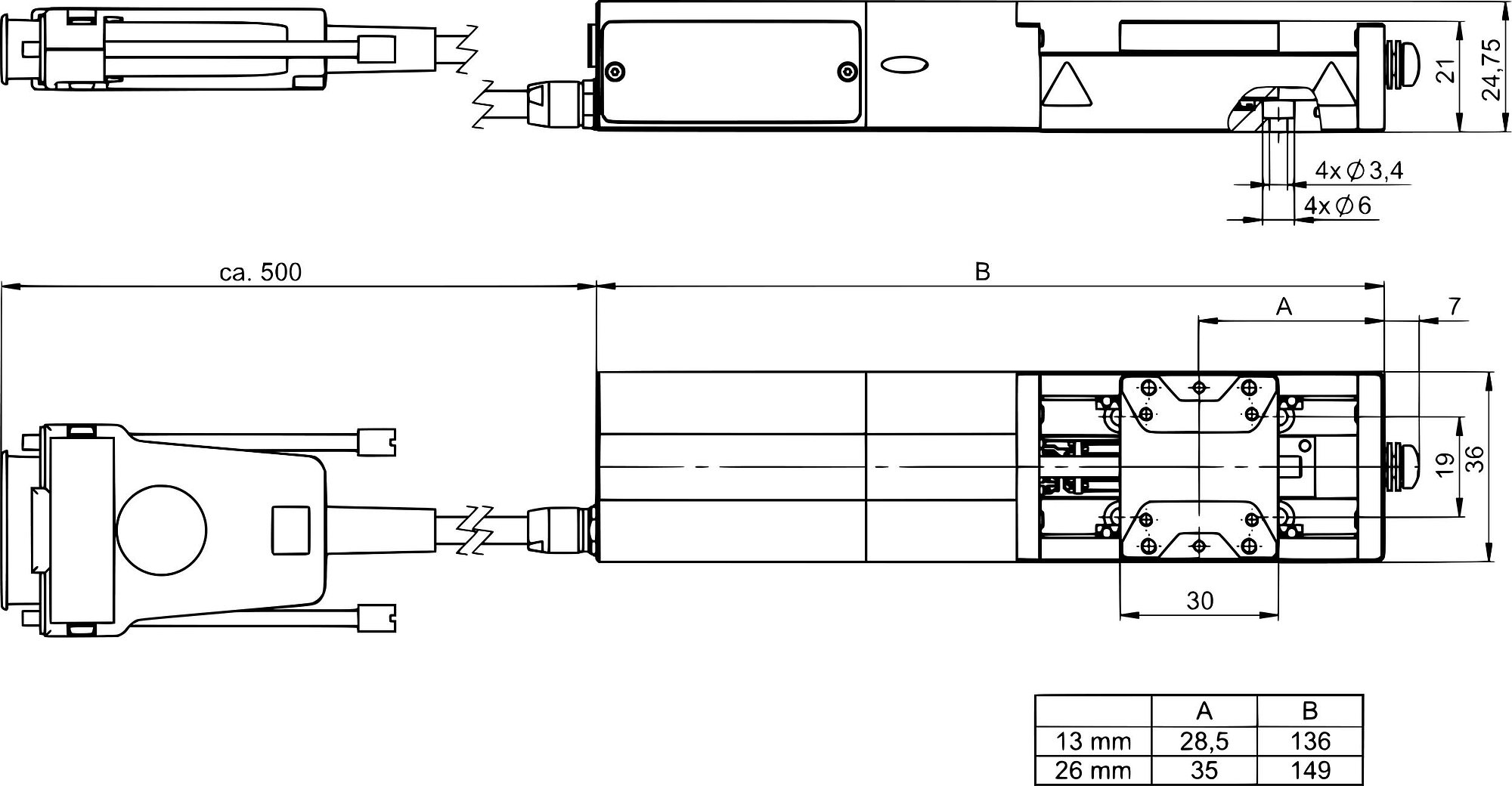

L-505 with direct fixed drive and stepper motor, dimensions in mm
Comparison of XYZ assemblies consisting of three linear stages: L-505.013212F (left) and L-505.023212F (right)
L-505 Compact Linear Stage
Product Description
Specifications
Downloads
Quote / Order
At the moment only a limited selection of product variants is available.
Please note that at the moment only a limited selelction of variants of this product family is available. If you require further information contact us via info@pi.ws.
Product overview
Compact linear stage with low-backlash drive spindle and ball guides. Directly mountable XY combination. Integrated reference and limit switches: Hall effect.

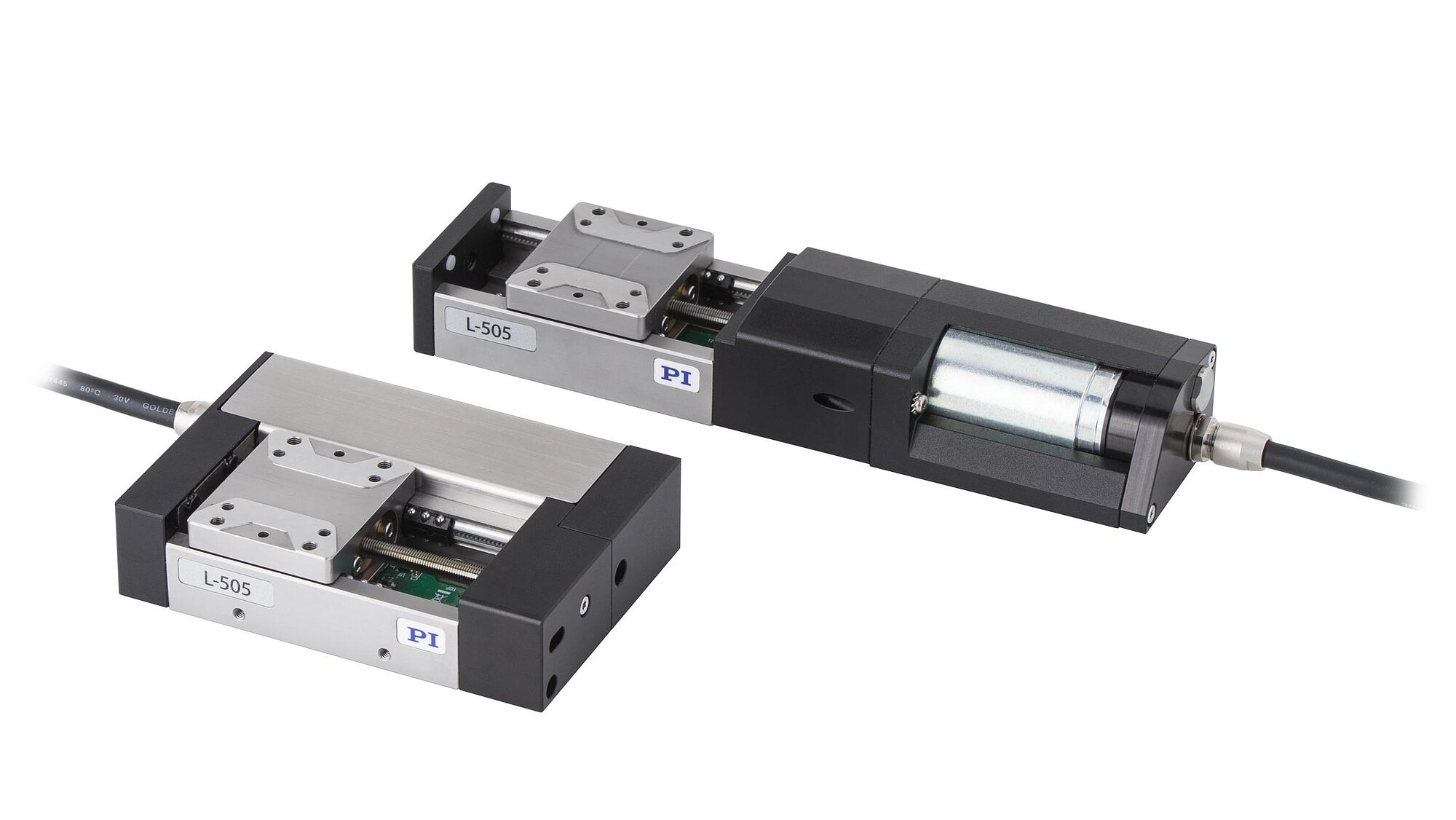

The linear stage is available in two design variants:
- Narrow, long variant with direct fixed drive (flange motor).
- Wide, compact variant with belt drive (folded drivetrain). These variants are marked by an "F" at the end of the item number.
Drive types
- DC motor with or without gearhead
- Stepper motor with or without gearhead
Variants with DC motor are equipped with an incremental linear encoder. This is optional in the case of stepper motor variants. Folded variants with DC motor without gearhead are equipped with a ball screw.
Highly accurate position measuring with incremental linear encoder
Noncontact optical linear encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement.
Application fields
Medical industry. Autofocus. Precision microassembly. Biotechnology. Automation.
Specifications
Specifications
Select a travel range:
| Motion | L-505.011200 | L-505.021200 | L-505.021200F | L-505.01A200F | L-505.023212 | Tolerance |
|---|---|---|---|---|---|---|
| Active axes | X | X | X | X | X | |
| Travel range in X | 13 mm | 26 mm | 26 mm | 13 mm | 26 mm | |
| Maximum velocity in X, unloaded | 10 mm/s | 10 mm/s | 7.5 mm/s | 0.75 mm/s | 15 mm/s | |
| Straightness error E_YX (straightness) | ± 0.5 µm | ± 1 µm | ± 1 µm | ± 0.5 µm | ± 1 µm | typ. |
| Straightness error E_ZX (flatness) | ± 0.5 µm | ± 1 µm | ± 1 µm | ± 0.5 µm | ± 1 µm | typ. |
| Angular error E_BX (pitch) | ± 50 µrad | ± 75 µrad | ± 75 µrad | ± 50 µrad | ± 75 µrad | typ. |
| Angular error E_CX (yaw) | ± 50 µrad | ± 75 µrad | ± 75 µrad | ± 50 µrad | ± 75 µrad | typ. |
| Positioning | L-505.011200 | L-505.021200 | L-505.021200F | L-505.01A200F | L-505.023212 | Tolerance |
| Minimum incremental motion in X | 0.1 µm | 0.1 µm | 0.2 µm | 0.2 µm | 0.1 µm | typ. |
| Unidirectional repeatability in X | ± 0.15 µm | ± 0.15 µm | ± 0.15 µm | ± 0.15 µm | ± 0.05 µm | typ. |
| Bidirectional repeatability in X | 5 µm | 5 µm | 5 µm | 5 µm | 0.3 µm | typ. |
| Reference switch | Hall effect | Hall effect | Hall effect | Hall effect | Hall effect | |
| Reference switch repeatability | 4 µm | 4 µm | 4 µm | 4 µm | 4 µm | max. |
| Limit switches | Hall effect | Hall effect | Hall effect | Hall effect | Hall effect | |
| Integrated sensor | — | — | — | — | Incremental linear encoder | |
| Sensor signal | — | — | — | — | A/B quadrature, RS-422 | |
| Sensor resolution | — | — | — | — | 50 nm | |
| Drive Properties | L-505.011200 | L-505.021200 | L-505.021200F | L-505.01A200F | L-505.023212 | Tolerance |
| Drive type | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor | 2-phase stepper motor with gearhead | DC motor | |
| Nominal voltage | 24 V | 24 V | 24 V | 24 V | 12 V | |
| Nominal current, RMS | 0.6 A | 0.6 A | 0.6 A | 0.25 A | 0.46 A | typ. |
| Maximum power consumption | 4 W | 4 W | 4 W | 1 W | 7 W | |
| Motor resolution | 200 Full steps/rev. | 200 Full steps/rev. | 200 Full steps/rev. | 24 Full steps/rev. | — | |
| Drive force in positive direction of motion in X | 20 N | 20 N | 20 N | 65 N | 20 N | typ. |
| Drive force in negative direction of motion in X | 20 N | 20 N | 20 N | 65 N | 20 N | typ. |
| Mechanical Properties | L-505.011200 | L-505.021200 | L-505.021200F | L-505.01A200F | L-505.023212 | Tolerance |
| Permissible push force in Y | 30 N | 30 N | 30 N | 30 N | 30 N | max. |
| Permissible push force in Z | 30 N | 30 N | 30 N | 30 N | 30 N | max. |
| Permissible torque in θX | 7 N·m | 9 N·m | 9 N·m | 7 N·m | 9 N·m | max. |
| Permissible torque in θY | 6 N·m | 8 N·m | 8 N·m | 6 N·m | 8 N·m | max. |
| Permissible torque in θZ | 6 N·m | 8 N·m | 8 N·m | 6 N·m | 8 N·m | max. |
| Holding force in X, passive | 20 N | 20 N | 20 N | 20 N | — | |
| Moved mass in X, unloaded | 0.07 g | 0.07 g | 0.07 g | 0.07 g | 0.07 g | |
| Drive screw type | Fine-threaded spindle | Fine-threaded spindle | Fine-threaded spindle | Fine-threaded spindle | Fine-threaded spindle | |
| Drive screw pitch | 0.5 mm | 0.5 mm | 0.5 mm | 0.5 mm | 0.5 mm | |
| Gear ratio i | — | — | — | 28,444 | — | |
| Guide | Ball guide | Ball guide | Ball guide | Ball guide | Ball guide | |
| Overall mass | 400 g | 400 g | 400 g | 400 g | 400 g | |
| Material | Anodized aluminum, stainless steel | Anodized aluminum, stainless steel | Anodized aluminum, stainless steel | Anodized aluminum, stainless steel | Anodized aluminum, stainless steel | |
| Miscellaneous | L-505.011200 | L-505.021200 | L-505.021200F | L-505.01A200F | L-505.023212 | Tolerance |
| Operating temperature range | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | 5 to 40 °C | |
| Connector | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) | |
| Cable length | 0.5 m | 0.5 m | 0.5 m | 0.5 m | 0.5 m | |
| Recommended controllers / drivers | C-663.12 G-901 G-910 ACS modular controller | C-663.12 G-901 G-910 ACS modular controller | C-663.12 G-901 G-910 ACS modular controller | C-663.12 G-901 G-910 ACS modular controller | C-863 C-884 G-901 G-910 ACS modular controller |
At PI, technical data is specified at 22 ±3 °C. Unless otherwise stated, the values are for unloaded conditions. Some properties are interdependent. The designation "typ." indicates a statistical average for a property; it does not indicate a guaranteed value for every product supplied. During the final inspection of a product, only selected properties are analyzed, not all. Please note that some product characteristics may deteriorate with increasing operating time.
