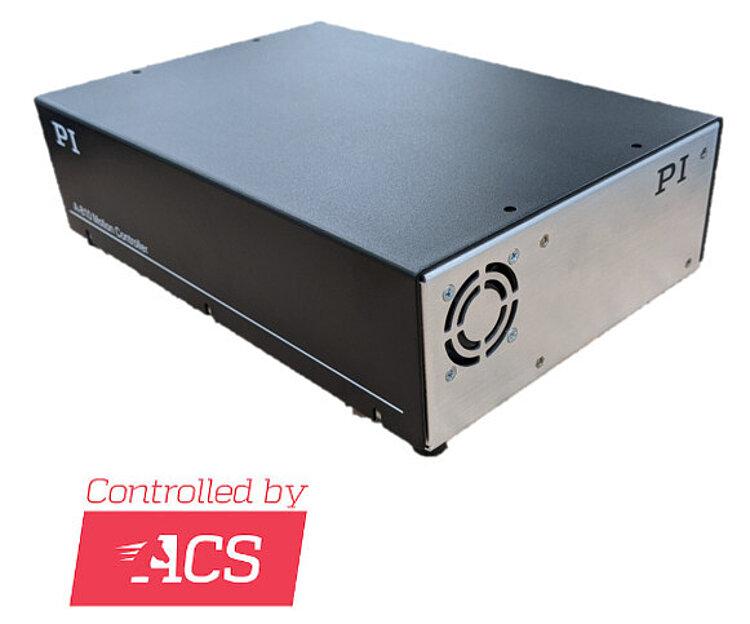

Function
|
ACS ECMsa controller and servo drive, closed-loop servo control option, parameter change in operation
|
|
Design
|
Benchtop housing
|
|
Motor types
|
Brushless DC motors, brushed DC motors, voice coil motors
|
|
Number of drive axes
|
1
|
|
Motion and control
|
A-811.CED0x
|
|
Controller type
|
Cascaded PIVFF controller structure with loop-shaping filters, advanced feedforward, good disturbance repression, gain scheduling, field-oriented servo control, and space vector modulation
|
|
Sampling rate current control
|
20 kHz
|
|
Type of servo drive
|
PWM
|
|
Encoder
|
Supported types:Incremental: Analog 1 Vpp sine/cosine with index, differential, 4 x up to 65536x (16 bit) interpolation, settings can be adjusted via softwareAbsolute: BiSS-C, EnDat 2.2
|
|
Max. velocity encoder impulses
|
Incremental: 500 kHzAbsolute: BiSS-C: 10 MHz, EnDat: 16 MHz
|
|
Limit switch
|
Incremental: 24 V DC, source or sink (preset on delivery); positive and negative limit switches; single-ended, opto-isolatedAbsolute: n/a
|
|
Functional safety
|
STO (safe torque off) inputSS1 (safe stop 1)
|
|
Interfaces and operation
|
A-811.CED0x
|
|
Digital I/O lines
|
2 × input, 24 V DC sinking (1 × usable as a MARK position lock)2 × output, 24 V DC sourcing or sinking (1 x usable as motor brake output)
|
|
Analog I/O lines
|
1 × input, differential, 16 bit1 × output, differential, 10 bit
|
|
Outputs for position event generator (PEG)
|
1 × RS-422 differential, 5 V high-speed output for position trigger
|
|
Motor brake output
|
1 × 24 V DC, 1 A max. sourcing (connected with 2nd DOUT)
|
|
Communication interfaces
|
Ethernet: TCP/IP (100/1000 Mbps), EtherNet/IP
|
|
User software
|
ACS SPiiPlus MMI Application Studio (included in the scope of delivery)
|
|
Command set
|
ACS SPiiPlus ACSPL+ command set (included in the scope of delivery)
|
|
Application programming interfaces
|
Programming libraries for C/C++, COM, .NET (included in the scope of delivery)
|
|
Control and EtherCAT clock rate
|
1 kHz
|
|
Electrical properties
|
A-811.CED0x
|
|
Output voltage
|
24 to 48 V, depending on the input voltage
|
|
Motor output current
|
5 A continuous operation, 10 A peak
|
|
Environment
|
A-811.CED0x
|
|
Input voltage
|
24 V DC to 48 V DC
|
|
Connectors
|
D-sub for motor and signal connections
|
|
Cooling
|
Side fan (continuous operation, constant speed)
|
|
Operating temperature range
|
5 °C to 40 °C
|
|
GND
|
1.7 kg
|
|

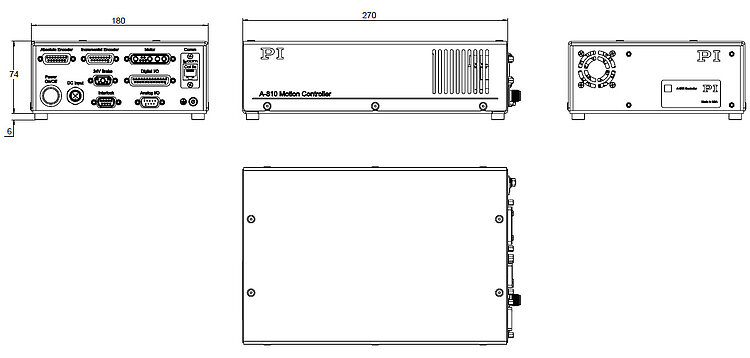

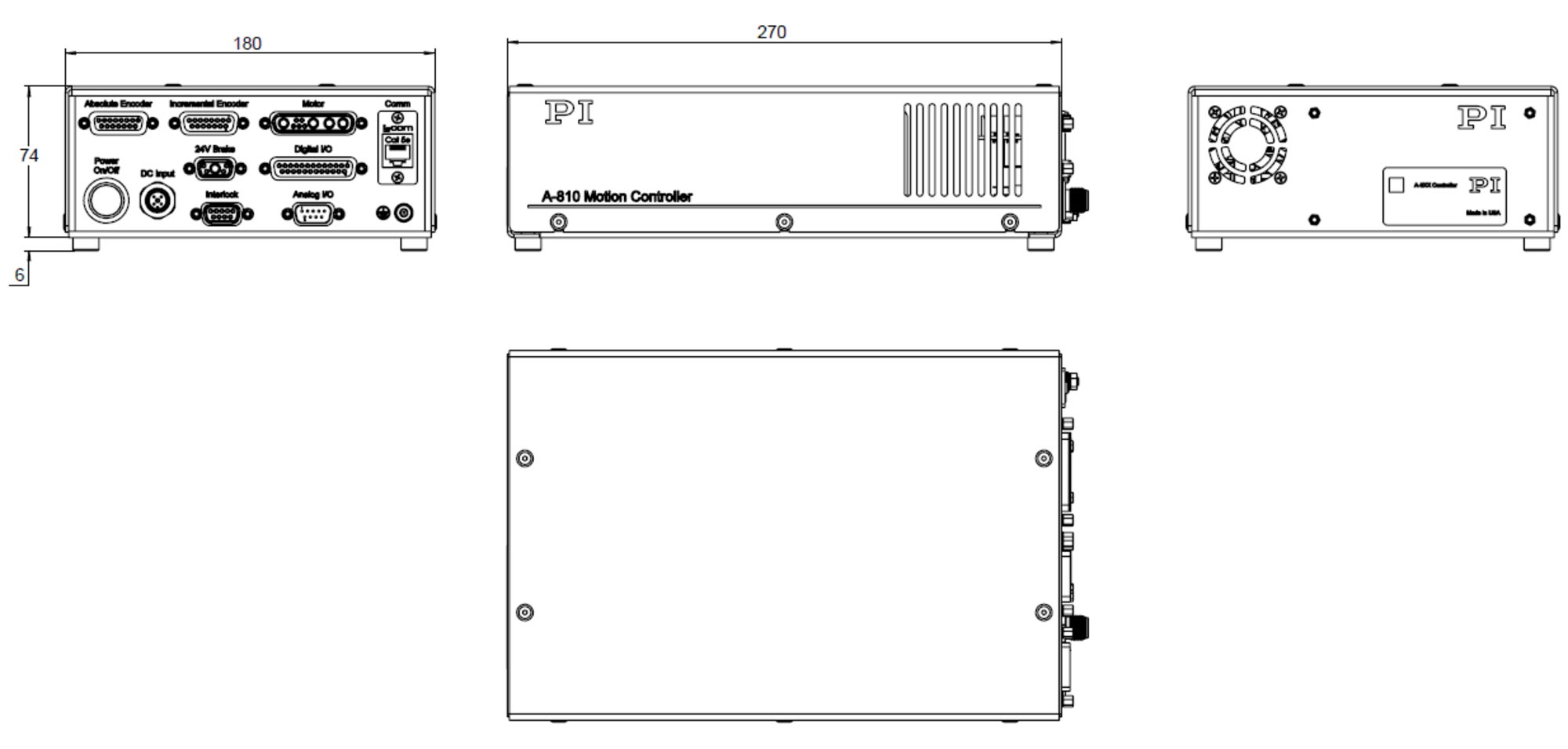

Dimensions
|
180 mm × 270 mm × 74 mm (W × L × H)
|
