- High-speed encoder input to 60 MHz
- PID controller, parameter changing during operation
- Powerful macro programming language, e.g., for stand-alone operation
- Data recorder
- Nonvolatile EEPROM for macros and parameters
- Extensive software support

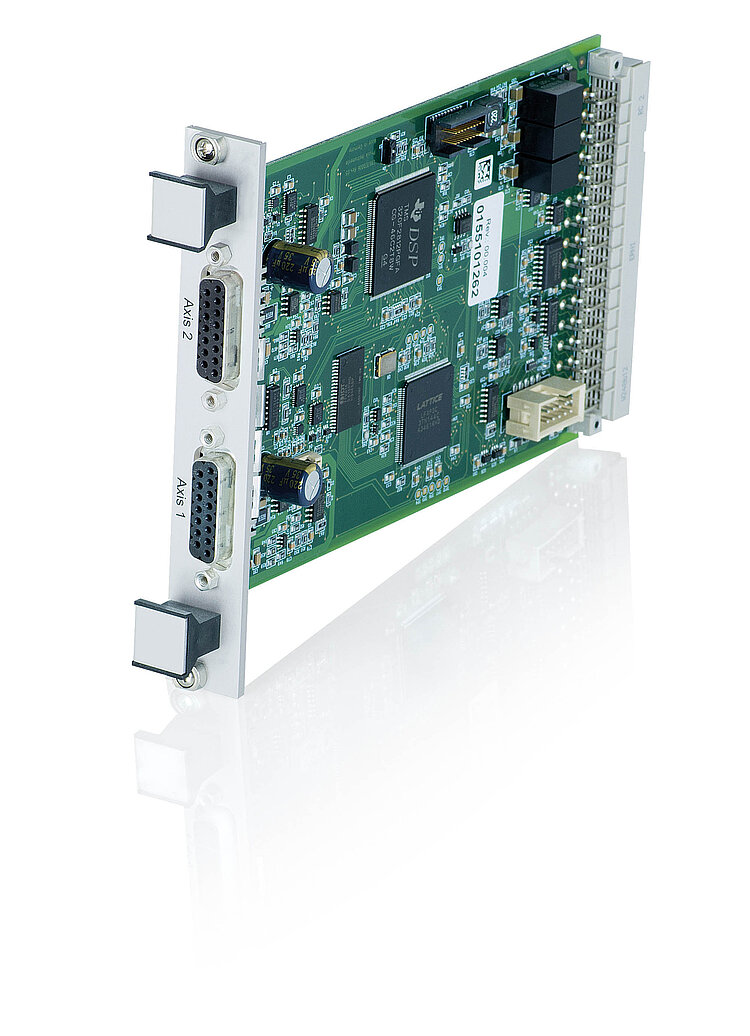

Digital motion controller for DC servo motors
2 axes. Motion control of PI positioning systems with DC motors: Direct motor control; PWM control for fast PI stages with integrated ActiveDrive amplifiers or with brushless motors and integrated block commutation. PID controller. Supports motor brake.
Extensive functions, software support
Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone operation with autostart macro. Data recorder. PID controller, parameter changing during operation. Extensive software support, e.g., for LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.
Plug-and-play installation in the C-885 PIMotionMaster
Can be inserted in any free slot. Automatic detection and external communication (USB, Ethernet) by the processor and interface module of the C-885. Can be expanded with optional digital inputs and outputs. Power via the power supply of the C-885.
User Manual MS205
C-863.11 Mercury DC Motor Controller
User Manual C863T0005
C-863.20C885 Motion Controller Module for DC Motors, for C-885 PIMotionMaster
