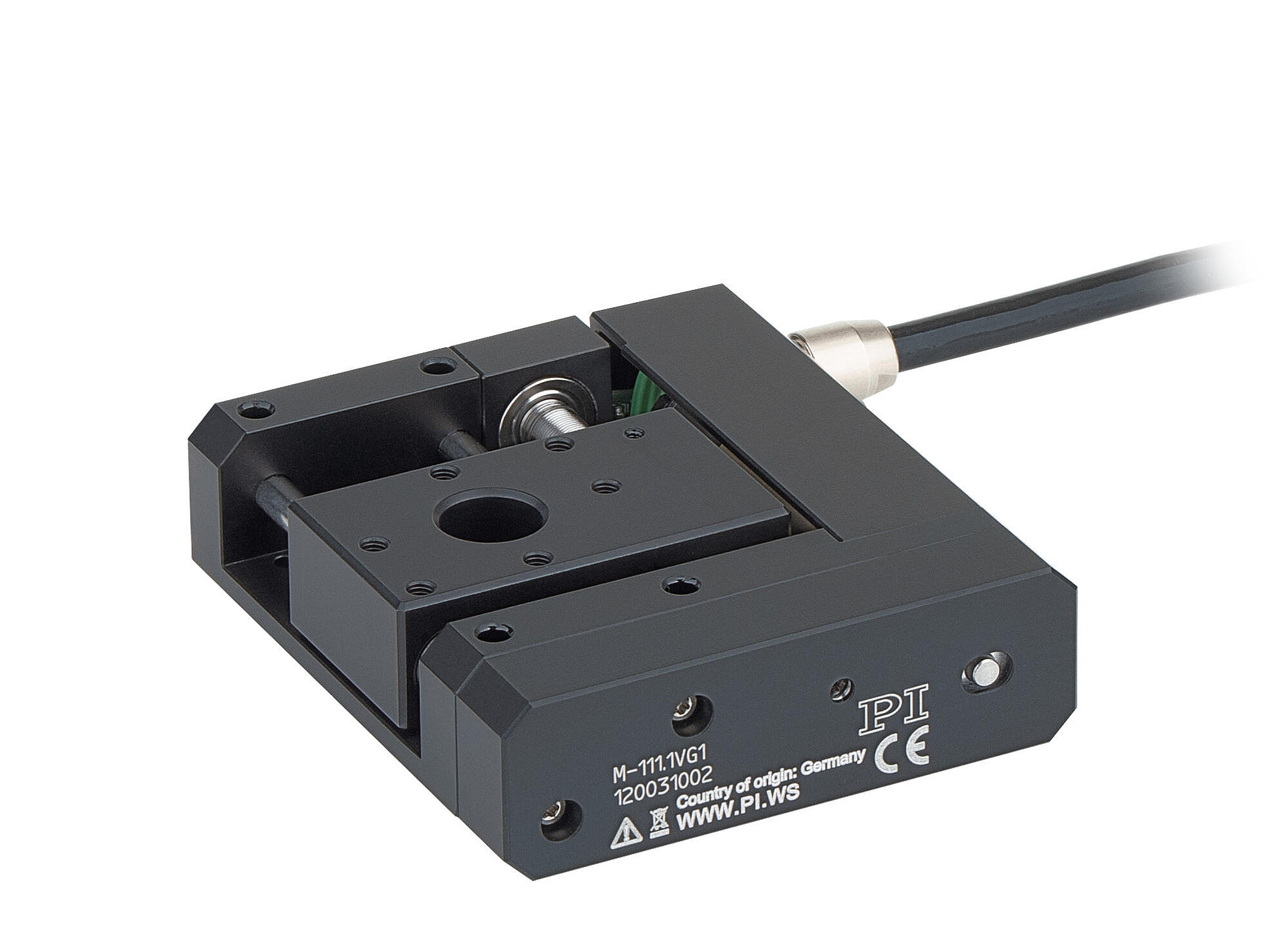

M-110 • M-111 • M-112 V6 Vacuum-Compatible Compact Linear Stage

XY(Z) Combinations with DC Gear Motor, Various Travel Range Variants

Suitable for vacuum up to 10^-6 hPa
Very compact due to folded drive
Closed-loop DC motors
Travel ranges: 5, 15, and 25 mm
Noncontact reference and limit switches
XY setups can be mounted directly

quote / order

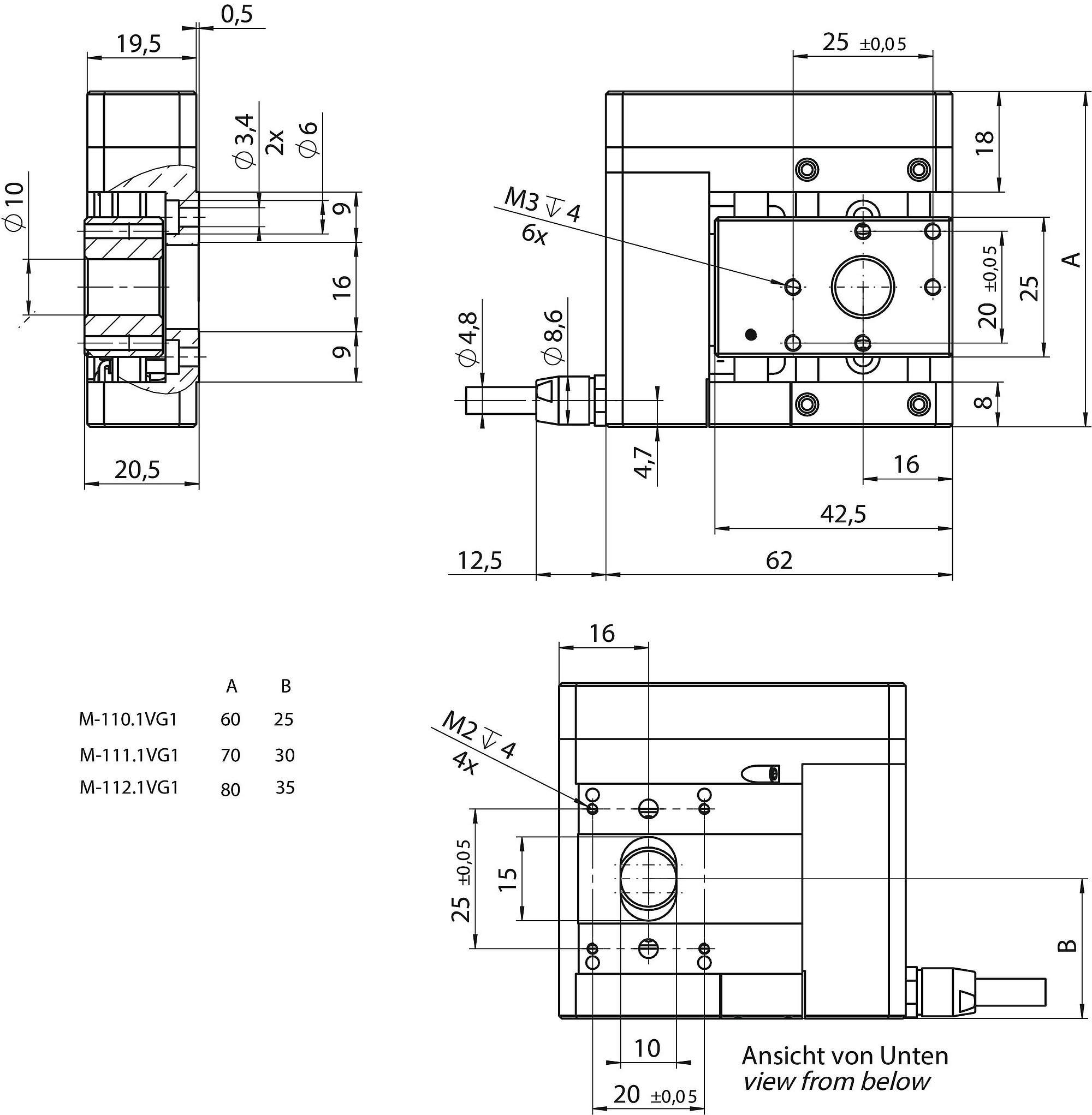

M-11x.1VG1, dimensions in mm. Note that a comma is used in the drawing instead of a decimal point.

Compact linear stage, versatile in use

Linear stage with compact size due to folded drive with belt drive. Clear aperture with 10 mm Ø. XY setups can be mounted directly without adapter plate.

Reduced outgassing especially for use in vacuum environments

Most notably, for the lubrication of the guides and the spindle a material with particularly low outgassing is used. This allows a bakeout temperature of up to 80° C. With this and other modifications of the PI V6 vacuum class, this positioner can be used up to 10^-6hPa.

Drive

Closed-loop DC gear motor
Backlash-compensated threaded spindle

Position measuring

Rotary encoder on the motor shaft
Noncontact Hall effect reference and limit switches

Application fields

Vacuum chambers. Research. Beamline instrumentation. Microscopy. Electronics assembly and inspection.

Download datasheet specifications quote / order

Datasheet

Version / Date

2025-01-21

pdf - 533 KB

Version / Date

2025-01-21

pdf - 534 KB

Version / Date

2025-01-30

pdf - 828 KB

Download

Select a travel range:

Motion	M-110.1VG1	M-111.1VG1	M-112.1VG1	Tolerance
Active axes	X	X	X
Travel range in X	5 mm	15 mm	25 mm
Maximum velocity in X, unloaded	1 mm/s	1.5 mm/s	1.5 mm/s
Positioning	M-110.1VG1	M-111.1VG1	M-112.1VG1	Tolerance
Minimum incremental motion in X	0.05 µm	0.05 µm	0.05 µm	typ.
Unidirectional repeatability in X	± 0.125 µm	± 0.125 µm	± 0.125 µm	typ.
Bidirectional repeatability in X	4 µm	4 µm	4 µm	typ.
Backlash in X	3 µm	3 µm	3 µm	typ.
Reference switch	Hall effect	Hall effect	Hall effect
Limit switches	Hall effect	Hall effect	Hall effect
Motor encoder	Incremental rotary encoder	Incremental rotary encoder	Incremental rotary encoder
Motor encoder: Sensor signal	A/B quadrature, RS-422	A/B quadrature, RS-422	A/B quadrature, RS-422
Resolution, motor encoder	2048 Cts./rev.	2048 Cts./rev.	2048 Cts./rev.
Drive Properties	M-110.1VG1	M-111.1VG1	M-112.1VG1	Tolerance
Drive type	DC gear motor	DC gear motor	DC gear motor
Nominal voltage	12 V	12 V	12 V
Nominal current, RMS	0.16 A	0.32 A	0.32 A	typ.
Drive force in positive direction of motion in X	10 N	10 N	10 N	typ.
Drive force in negative direction of motion in X	10 N	10 N	10 N	typ.
Mechanical Properties	M-110.1VG1	M-111.1VG1	M-112.1VG1	Tolerance
Permissible push force in Y	15 N	10 N	10 N	max.
Permissible push force in Z	30 N	30 N	20 N	max.
Permissible torque in θX	0.15 N·m	0.15 N·m	0.15 N·m	max.
Permissible torque in θY	0.15 N·m	0.15 N·m	0.15 N·m	max.
Permissible torque in θZ	0.15 N·m	0.15 N·m	0.15 N·m	max.
Holding force in X, passive	10 N	10 N	10 N
Moved mass in X, unloaded	11 g	11 g	11 g
Drive screw type	Fine-threaded spindle	Fine-threaded spindle	Fine-threaded spindle
Drive screw pitch	0.4 mm	0.4 mm	0.4 mm
Gear ratio i	29791 : 729	29791 : 729	29791 : 729
Guide	Ball guide	Ball guide	Ball guide
Overall mass	250 g	270 g	300 g
Material	Anodized aluminum	Anodized aluminum	Anodized aluminum
Miscellaneous	M-110.1VG1	M-111.1VG1	M-112.1VG1	Tolerance
Operating temperature range	-20 to 65 °C	-20 to 65 °C	-20 to 65 °C
Vacuum class	10⁻⁶ ǀ hPa	10⁻⁶ ǀ hPa	10⁻⁶ ǀ hPa
Connector	HD D-sub 26 (m)	HD D-sub 26 (m)	HD D-sub 26 (m)
Cable length	0.5 m	0.5 m	0.5 m
Recommended controllers / drivers	C-863 C-884 G-901 G-910 ACS modular controller	C-863 C-884 G-901 G-910 ACS modular controller	C-863 C-884 G-901 G-910 ACS modular controller

Note on minimum incremental motion: Values are achieved with the recommended controller

Note on nominal current: Values apply per phase

At PI, technical data is specified at 22 ±3 °C. Unless otherwise stated, the values are for unloaded conditions. Some properties are interdependent. The designation "typ." indicates a statistical average for a property; it does not indicate a guaranteed value for every product supplied. During the final inspection of a product, only selected properties are analyzed, not all. Please note that some product characteristics may deteriorate with increasing operating time.

Download datasheet downloads quote / order

Datasheet

Version / Date

2025-01-21

pdf - 533 KB

Version / Date

2025-01-21

pdf - 534 KB

Version / Date

2025-01-30

pdf - 828 KB

Download

Documentation

M-110.xxx1 / M-111.xxx1 / M-112.xxx1 Microtranslation Stage

Version / Date

2023-07-25

pdf - 1 MB

Version / Date

2023-07-25

pdf - 1 MB

Documentation

Positioners with Electric Motors: M-06x, M-11x, M-12x, M-4xx, M-5xx

Version / Date

3.2.0 01/2021

pdf - 1 MB

Version / Date

3.2.0 01/2021

pdf - 1 MB

Download

3D Models

Version / Date

2020-03-30

zip - 5 MB

English

quote / order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

M-110.1VG1

Vacuum-compatible compact linear stage; DC gear motor; 5 mm travel range; 30 N load capacity; 1 mm/s maximum velocity; fine-threaded spindle; incremental rotary encoder, 2048 cts./rev. resolution, A/B quadrature, RS-422; vacuum compatible to 10^-6 hPa; 0.5 m cable length

Add to quote list Remove from quote list

M-111.1VG1

Vacuum-compatible compact linear stage; DC gear motor; 15 mm travel range; 30 N load capacity; 1.5 mm/s maximum velocity; fine-threaded spindle; incremental rotary encoder, 2048 cts./rev. resolution, A/B quadrature, RS-422; vacuum compatible to 10^-6 hPa; 0.5 m cable length

Add to quote list Remove from quote list

M-112.1VG1

Vacuum-compatible compact linear stage; DC gear motor; 25 mm travel range; 20 N load capacity; 1.5 mm/s maximum velocity; fine-threaded spindle; incremental rotary encoder, 2048 cts./rev. resolution, A/B quadrature, RS-422; vacuum compatible to 10^-6 hPa; 0.5 m cable length
