- CIPA certified
- Load capacity to 40 kg
- Travel ranges to ±50 mm / ±30°
- Repeatability to ±0.1 µm
- BLDC motors and variants with absolute encoders
- Works in any orientation

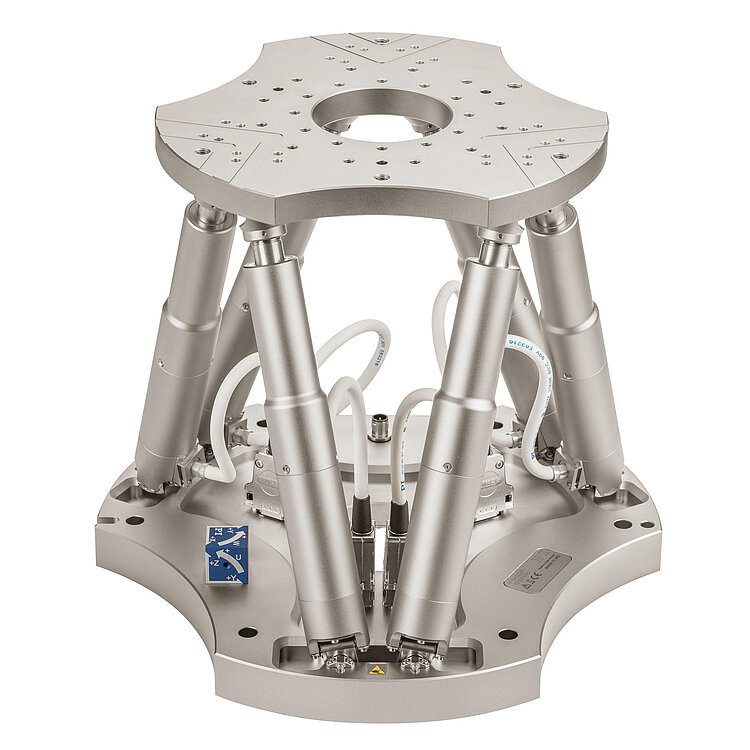

The H-840 hexapod series is universally applicable for tasks in precision positioning. Some variants are optimized for high dynamics and can for example, be used for simulating motion whereas models with gearhead support are suitable for heavier loads.
The parallel-kinematic design for six degrees of freedom makes it significantly more compact and stiffer than comparable serial kinematic systems. Their advantages over serial, i.e., stacked systems, are mainly the much better path accuracy and repeatability. In addition, the moved mass is lower and allows improved dynamics performance and is the same for all motion axes. Cable management is not a problem because cables are not moved.
Use of brushless DC motors (BLDC)
Brushless DC motors are particularly suitable for high rotational speeds. They can be controlled very accurately and ensure high precision. Because they dispense with sliding contacts, they run smoothly, are wear-free and therefore achieve a long lifetime.
Variants with absolute encoder
Absolute encoders supply explicit position information that enables immediate determination of the position. Therefore, no referencing is necessary when switching on and this increases efficiency and safety during operation.

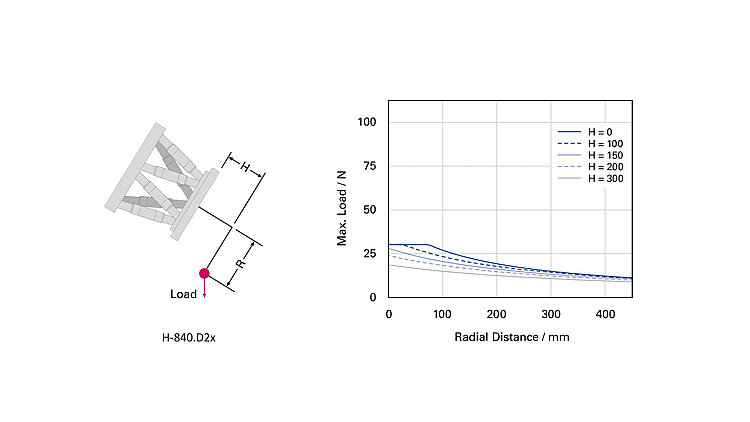

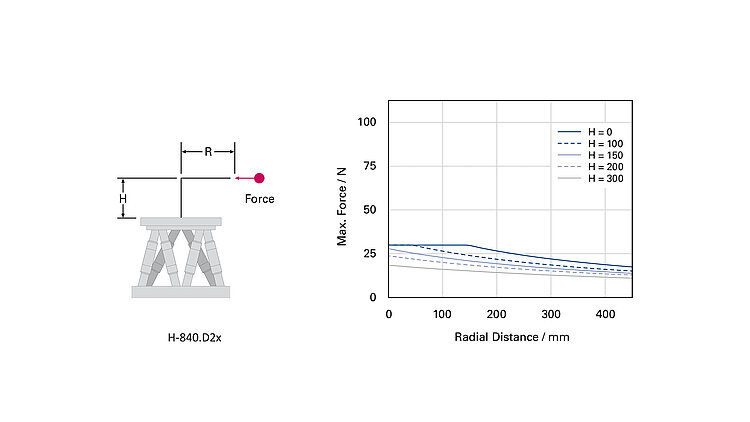

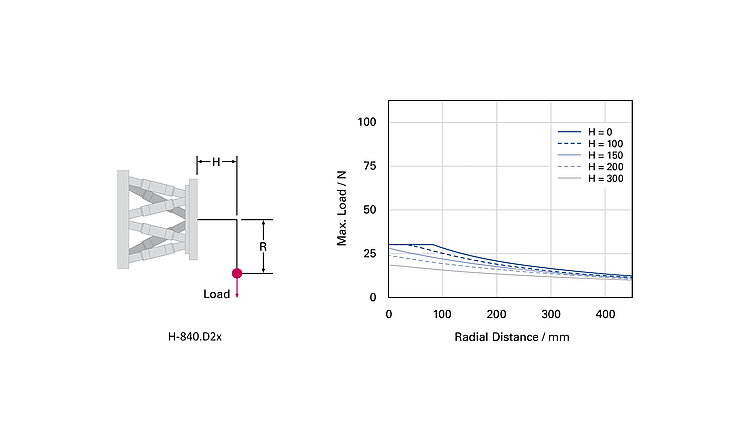

The simulation software simulates the limits of the workspace and load capacity of a hexapod. Therefore, even before making a purchase, you can check whether a particular hexapod model can handle the loads, forces, and torques occurring in an application. For this purpose, the simulation tool takes into account the position and motion of the hexapod as well as the pivot point and several reference coordinate systems.
Fields of application
Research and industry. For motion simulation (CIPA certified), tool inspection, life science, micromanufacturing, micromanipulation, industrial alignment systems.
Product Change Notification Hexapod Cables
Product Change Notification Motor Driven Products
Product Change Notification H-840.D2, H-840.G2
Product Change Notification H-206.x1x, H-8xx.x1x, H-8xx.xVx, F-206.S
User Manual C887T0017
C-887.5Bxx Drag-chain capable cable sets for connecting H-206 and most H-8xx hexapod standard models to C-887.5xx controller models
User Manual MS201
H-840 Hexapod Microrobot
Short Instructions MS247EK
Hexapod Systems: H-xxx Hexapod with C-887.5xx Controller
PI Certificate of Registration of Vibratory Apparatus H-840
Certificate of Registration of Vibratory Apparatus
H-840.x2x 3-D model
Hexapod Simulation Tool
Industrial Safety Device for Hexapods
How to Connect a Safety Light Barrier to a Hexapod System
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
