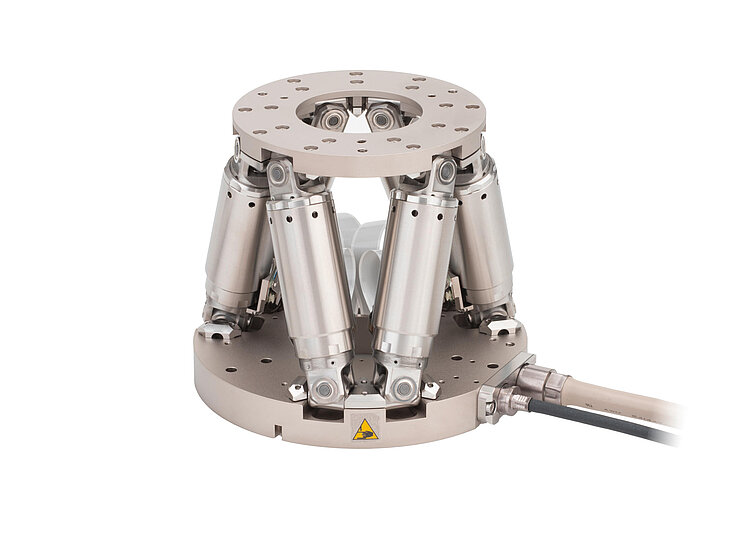

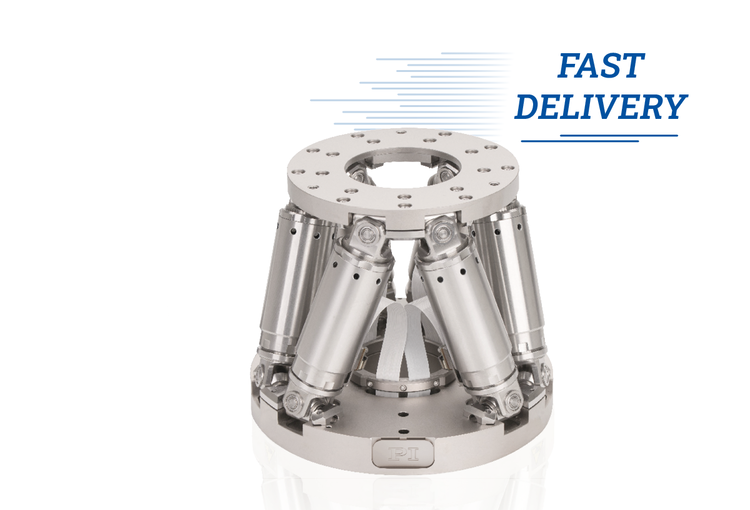

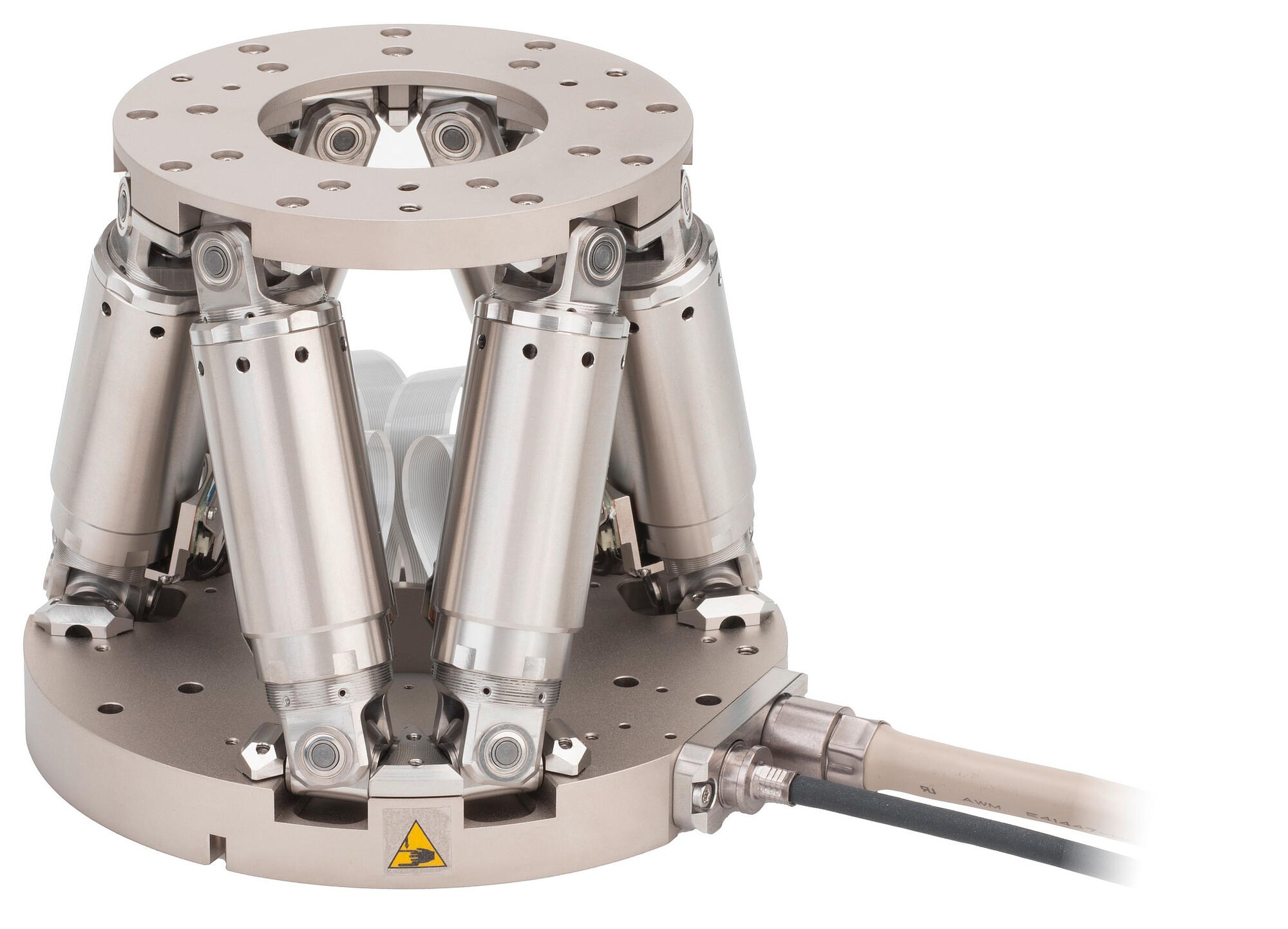

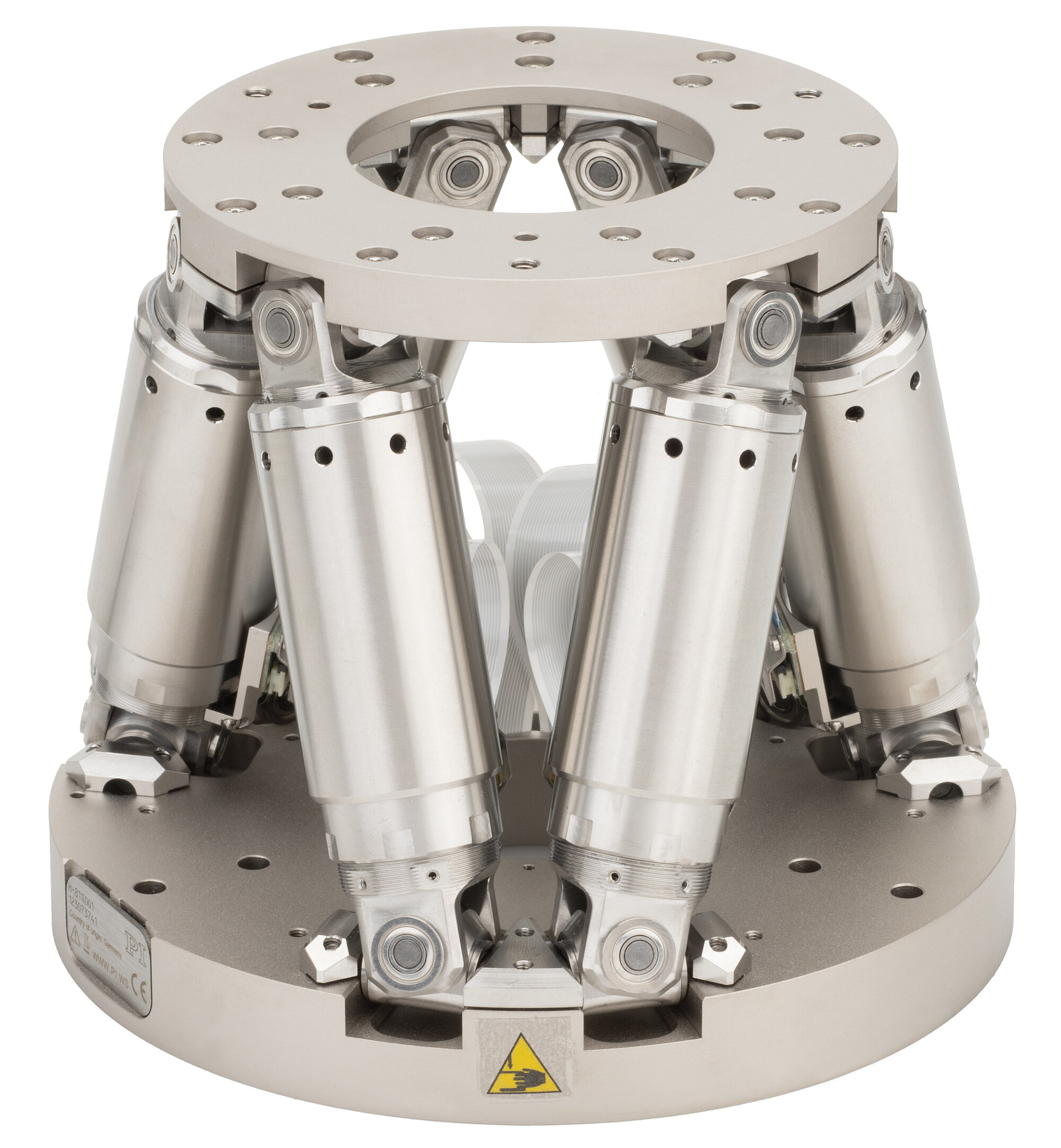

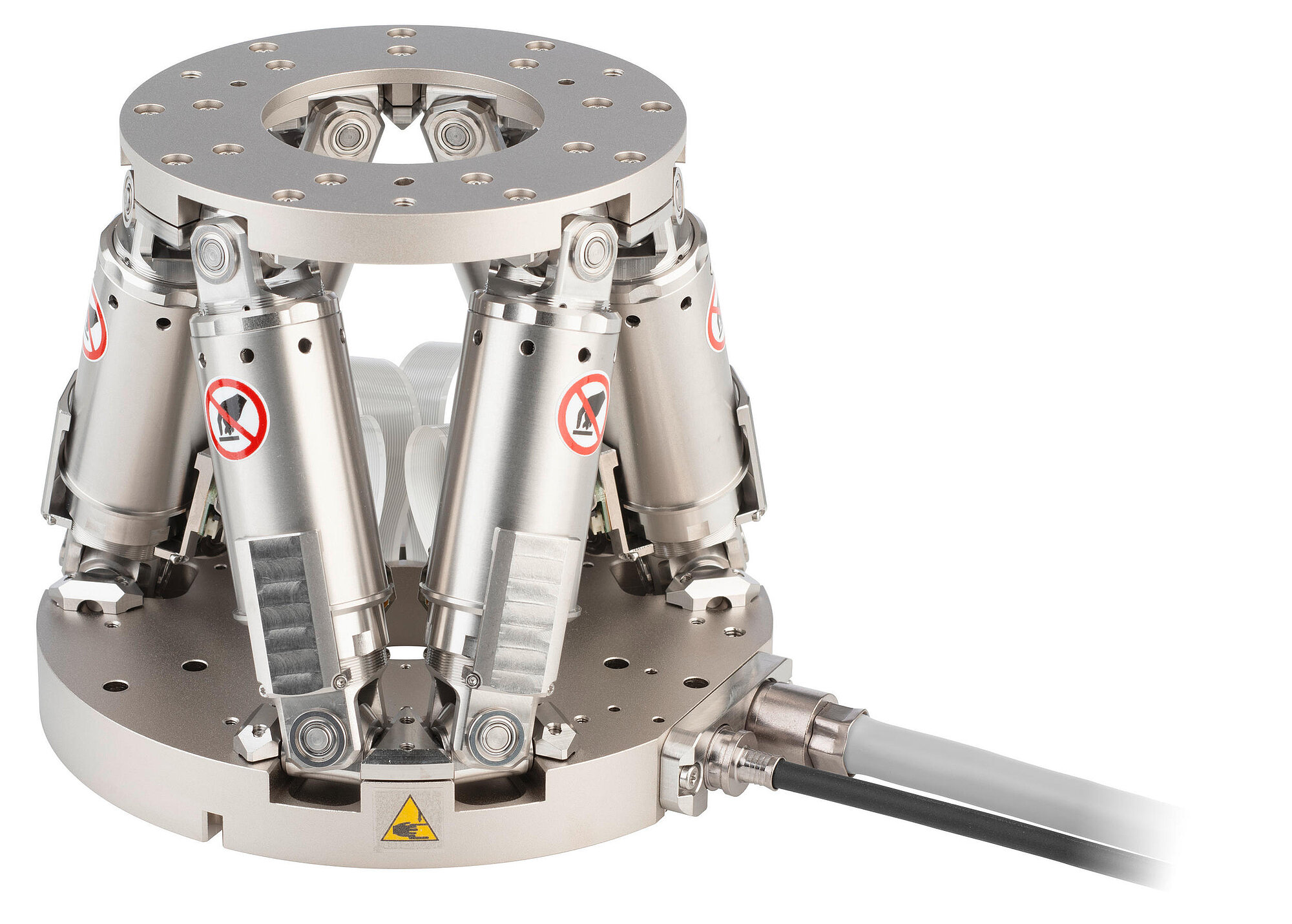

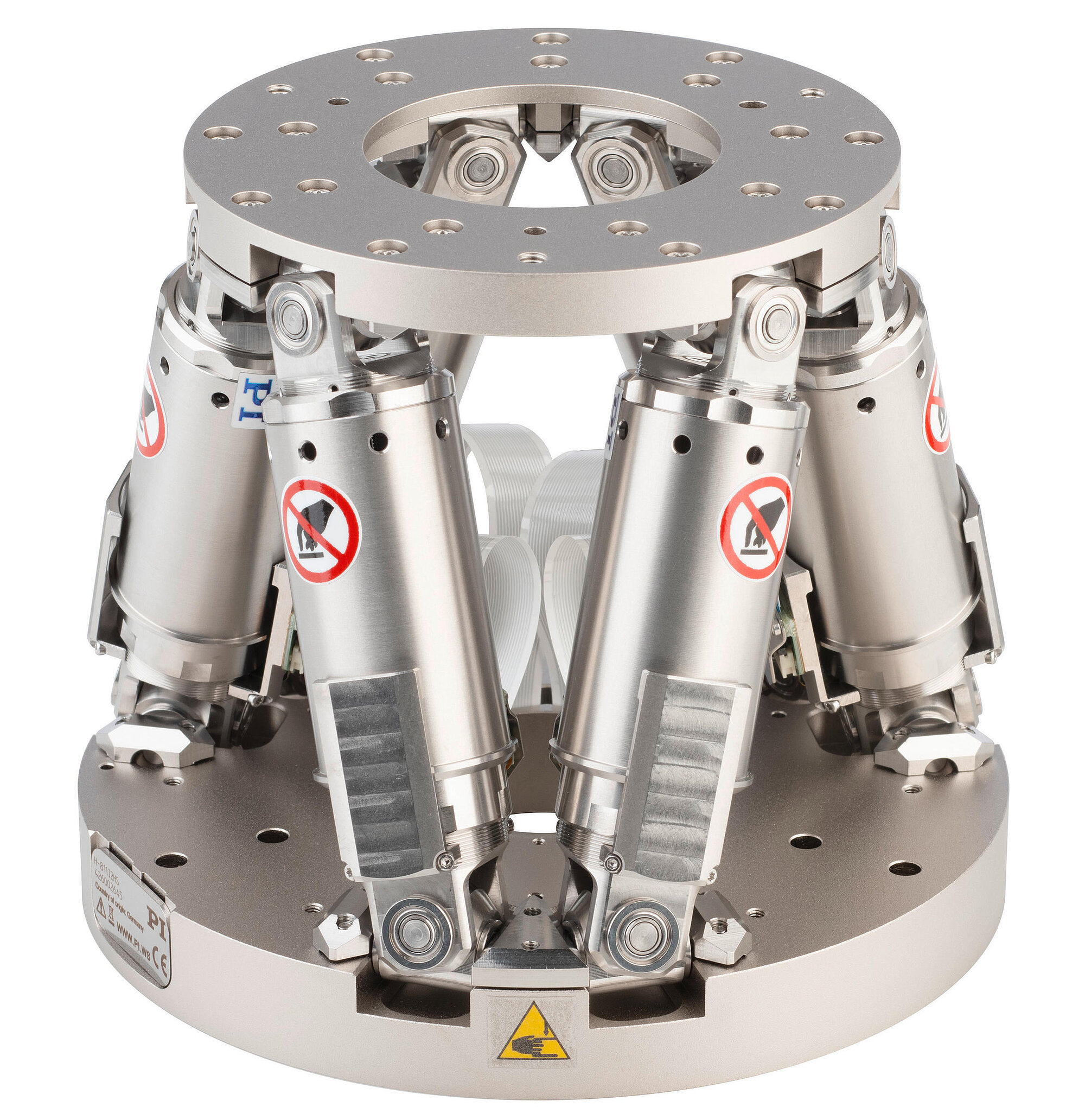

H-811.I2 6-Axis Miniature Hexapod

Fast, Compact, and Highly Precise

H-811.I2 6-Axis Miniature Hexapod
Product Description Specifications Downloads Quote / Order
  • Travel ranges to ±17 mm / ±21°
  • Load capacity to 5 kg
  • Repeatability to ±0.06 µm
  • Velocity to 10 mm/s
  • Vacuum-compatible version on request

Reference-class 6-axis positioning system

Parallel-kinematic design for six degrees of freedom making it significantly more compact and stiff than serial-kinematic systems, higher dynamic range, no moved cables: Higher reliability, reduced friction.

Brushless DC motor (BLDC)

Brushless DC motors are particularly suitable for high rotational speeds. They can be controlled very accurately and ensure high precision. Because they dispense with sliding contacts, they run smoothly, are wear-free and therefore achieve a long lifetime.

PI Hexapod Simulation Tool

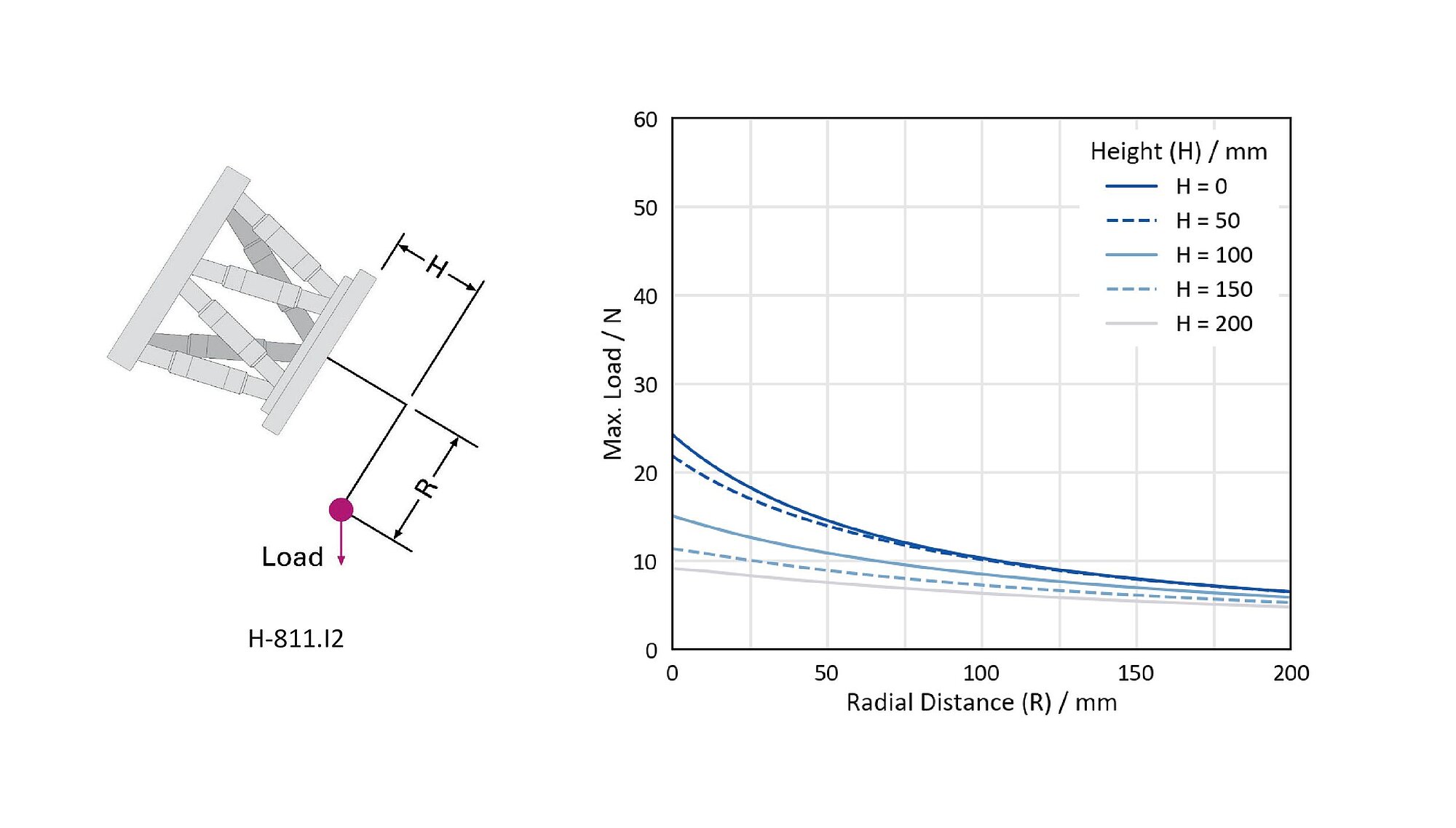

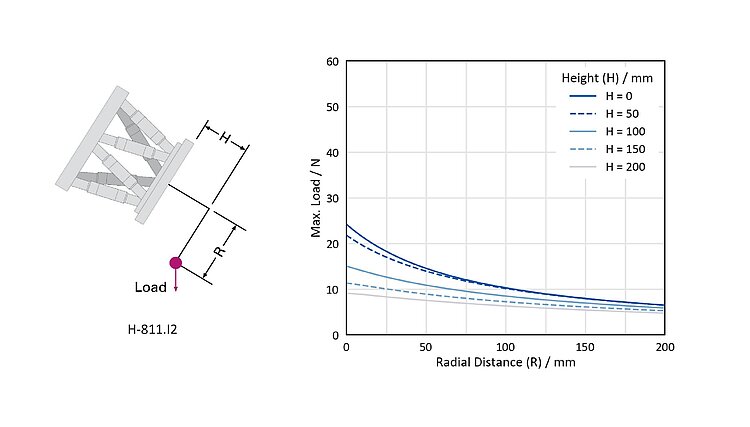

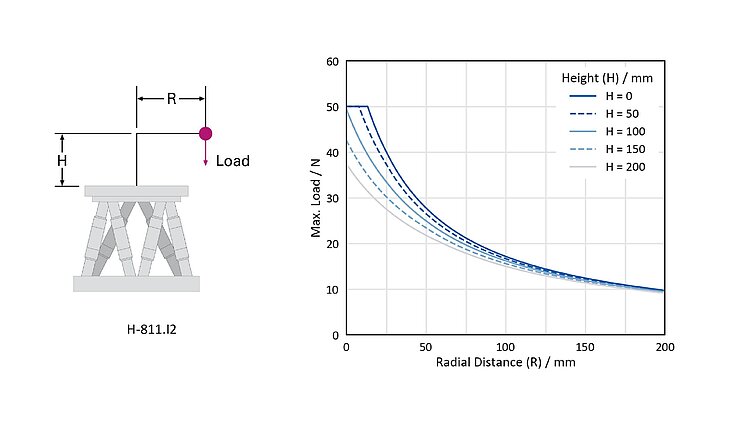

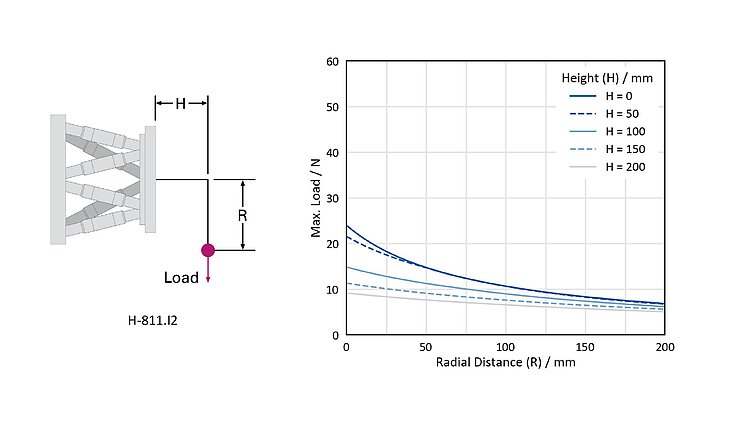

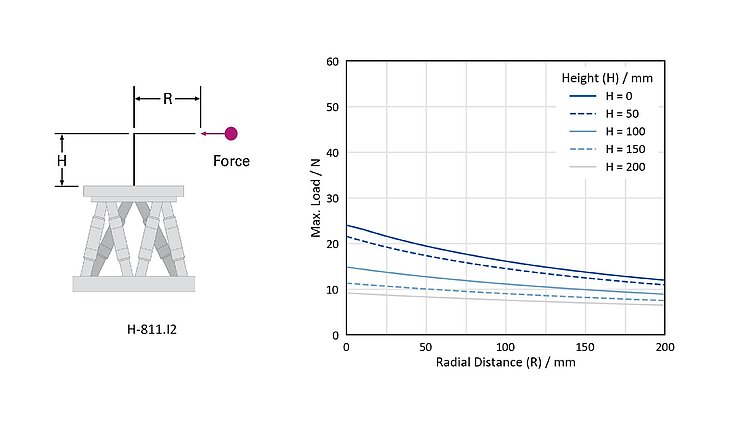

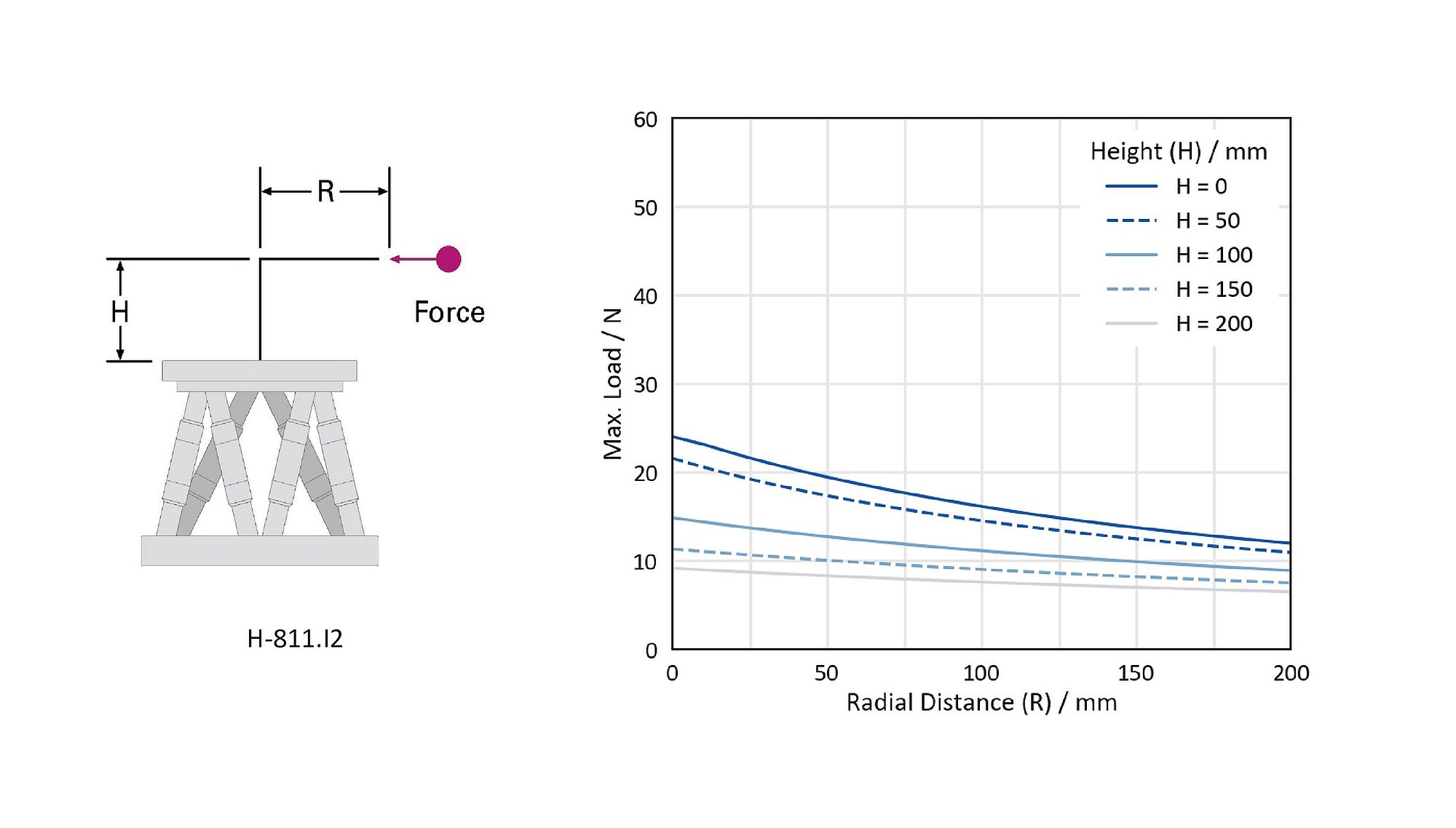

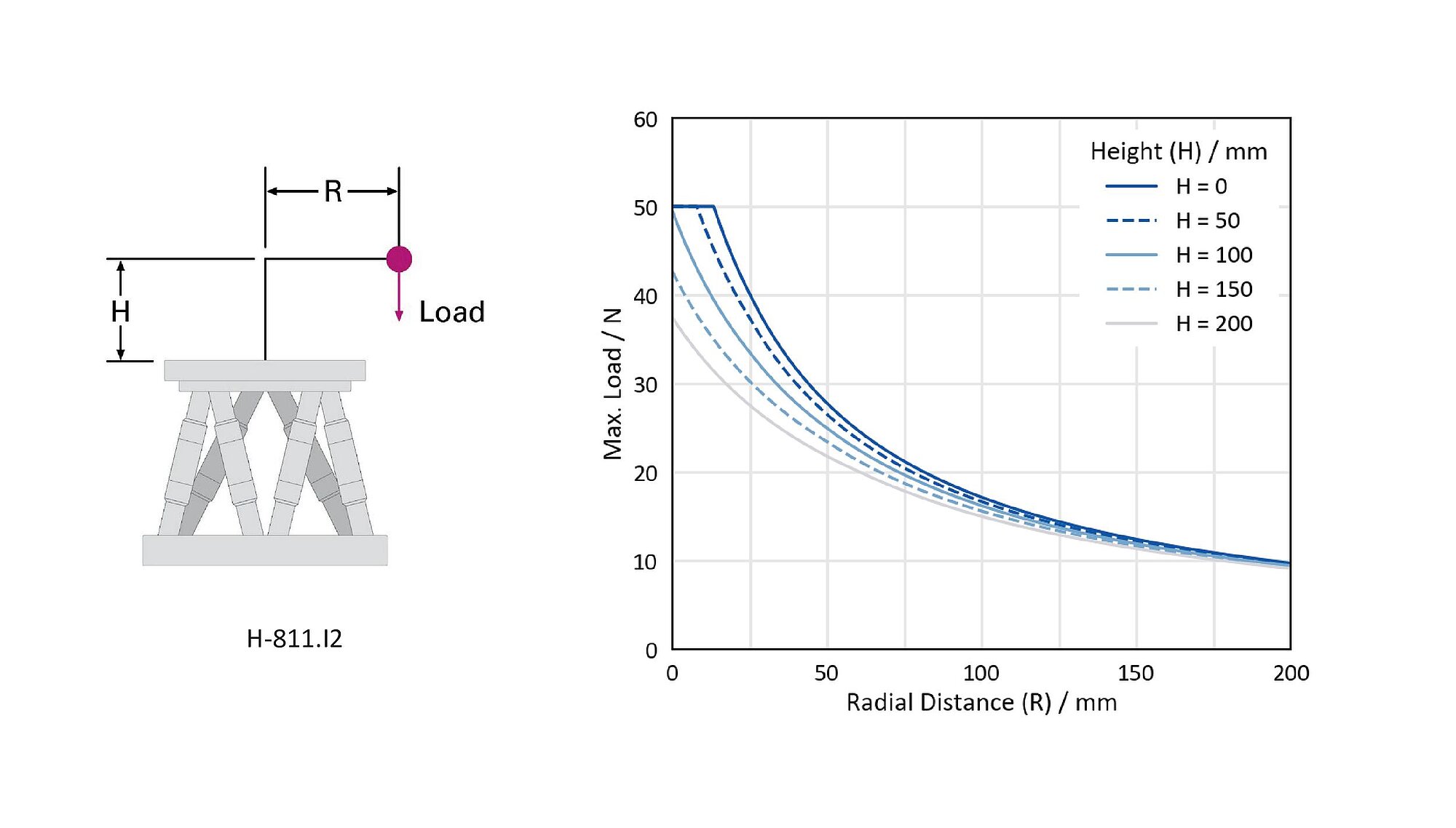

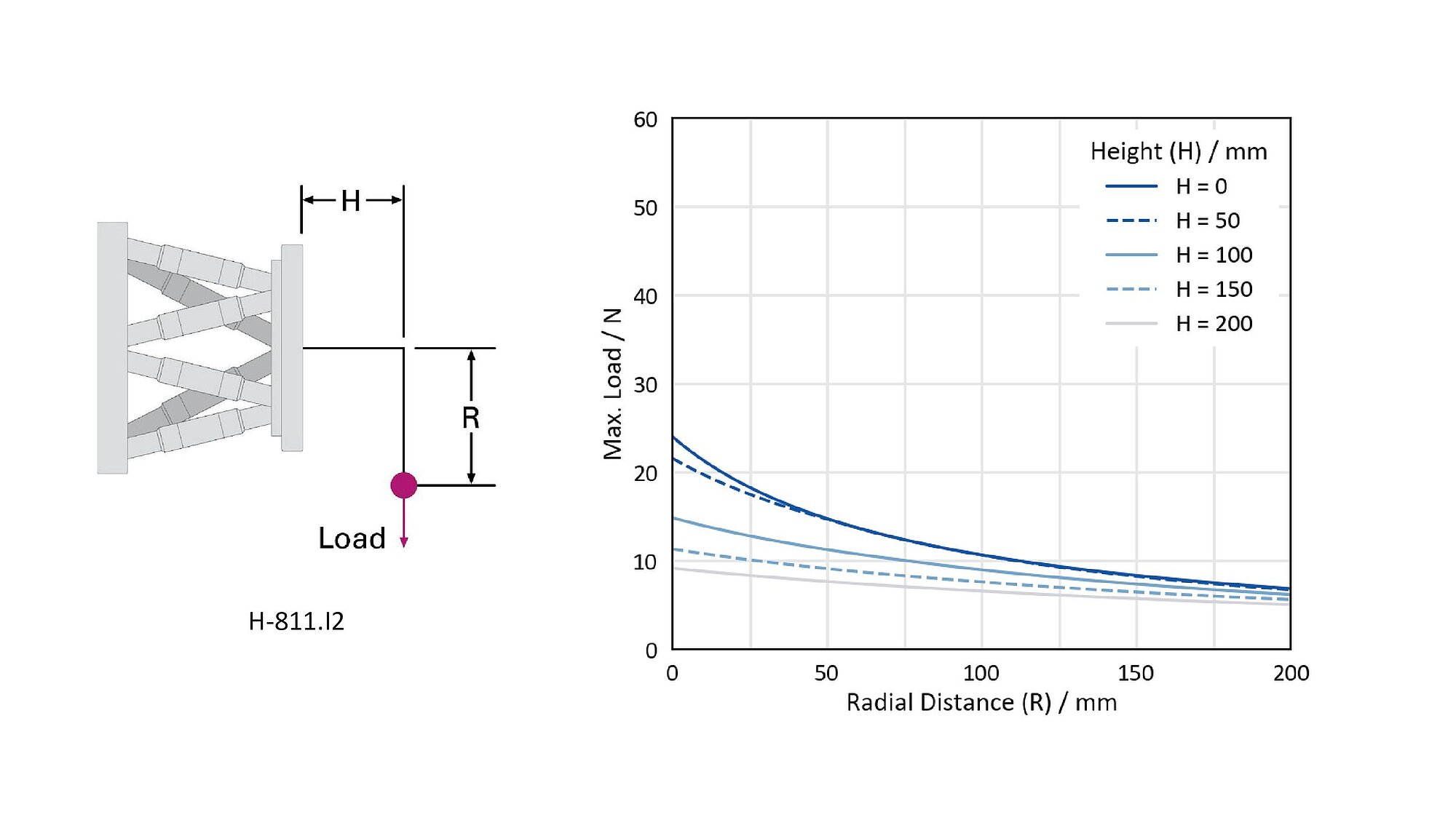

The simulation software simulates the limits of the workspace and load capacity of a hexapod. Therefore, even before making a purchase, you can check whether a particular hexapod model can handle the loads, forces, and torques occurring in an application. For this purpose, the simulation tool takes into account the position and motion of the hexapod as well as the pivot point and several reference coordinate systems.

Fields of application

Research and industry. For micromanufacturing, medical technology, tool inspection.
