L-310 Precision Z Stage

Compact Multi-Axis Combinations with Linear and Rotation Stages

L-310 Precision Z Stage
Product Description Specifications Downloads Quote / Order

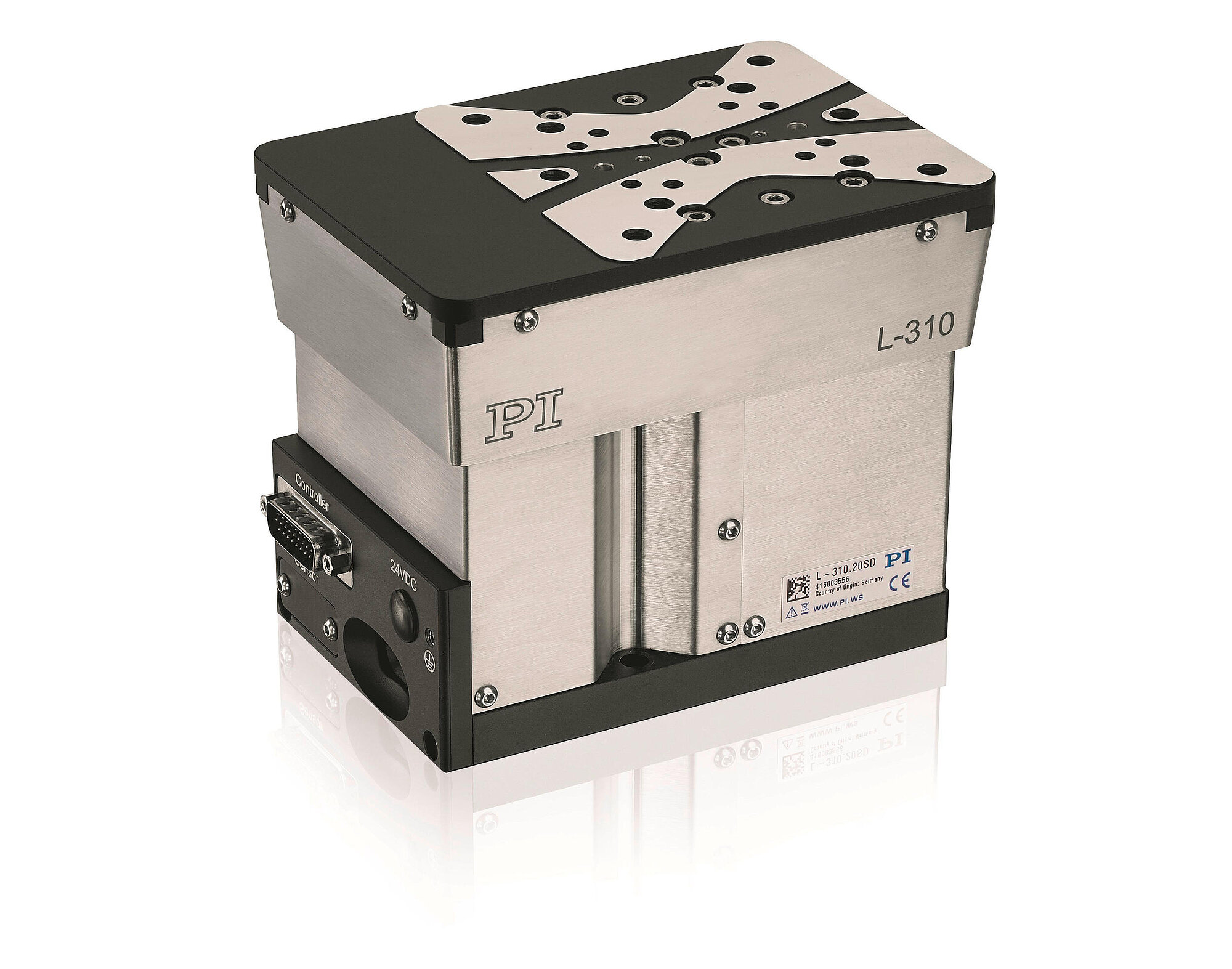

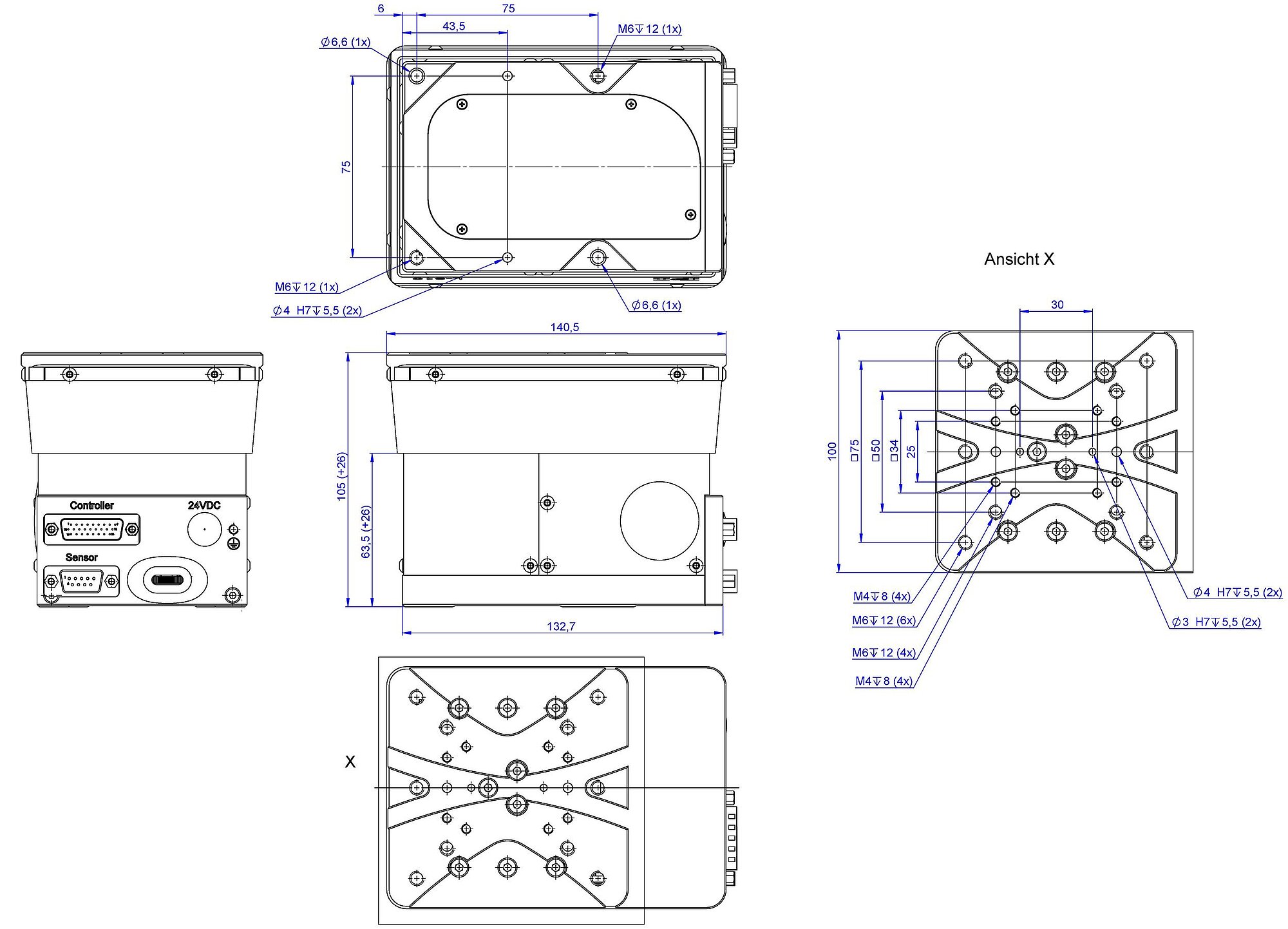

Precision-class Z stage

High guiding accuracy and stiffness due to ball screws and crossed roller guides. Stress-relieved aluminum base for high stability. Vacuum-compatible product variants on request. Noncontact limit and reference switches (Hall effect). Reference switch with direction sensing in the middle of the travel range.

Drive types

  • .xxSD variant: 2-phase stepper motor for high torque even at low velocities and high resolution.
  • .023xxx variant: DC servo motor
  • .025xxx variant: Brushless DC motor (BLDC) for high rotational velocity. Smooth running and low wear, therefore longer lifetime.

Position measuring

  • Versions with DC motor: Rotary encoder
  • Optional: Integrated linear encoder, installed centrically.

Highly accurate position measuring with incremental linear encoder

Noncontact optical linear encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement.

Minimum incremental motion and slow motion

In conjunction with an ACS controller (e.g., ECMsm-4B44T-NNNNN), versions with stepper motor and integrated linear encoder (L-310.xASD) achieve repeatable minimum incremental motion in the range of the sensor resolution. The same configuration achieves constant low velocities of a few sensor increments per second.

Application fields

Precision positioning in industry and research, high duty cycles.

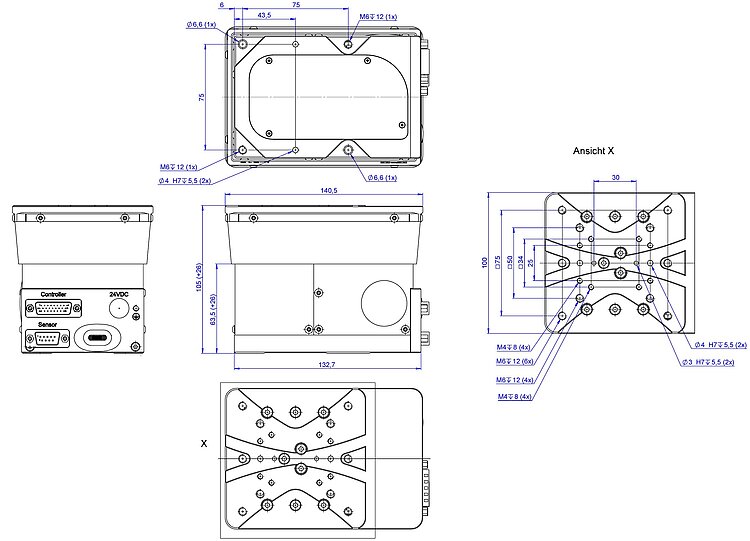

Specifications

Datasheet

Datasheet L-310

Version / Date
2022-02-18
pdf - 523 KB
Version / Date
2022-02-18
pdf - 576 KB
Version / Date
2021-01-14
pdf - 526 KB
Version / Date
2018-12-12
pdf - 755 KB

Downloads

Datasheet

Datasheet

Datasheet L-310

Version / Date
2022-02-18
pdf - 523 KB
Version / Date
2022-02-18
pdf - 576 KB
Version / Date
2021-01-14
pdf - 526 KB
Version / Date
2018-12-12
pdf - 755 KB

Documentation

Documentation

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / MTS-65 / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx

Version / Date
2.0.0 01/2020
pdf - 736 KB
Version / Date
2.0.0 01/2020
pdf - 749 KB
Documentation

User Manual MP157

L-310 Precision Z Stage

Version / Date
1.3 2020-06-29
pdf - 1 MB
Version / Date
1.3 2020-06-29
pdf - 1 MB

3-D Models

3-D Models

L-310 3-D model

Version / Date
2017-01-10
zip - 3 MB
Separate connection cable required for motor and sensor connection respectively.

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

L-310.025232

Precision Z stage; brushless DC motor; 26 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev sensor resolution, A/B quadrature, RS-422
