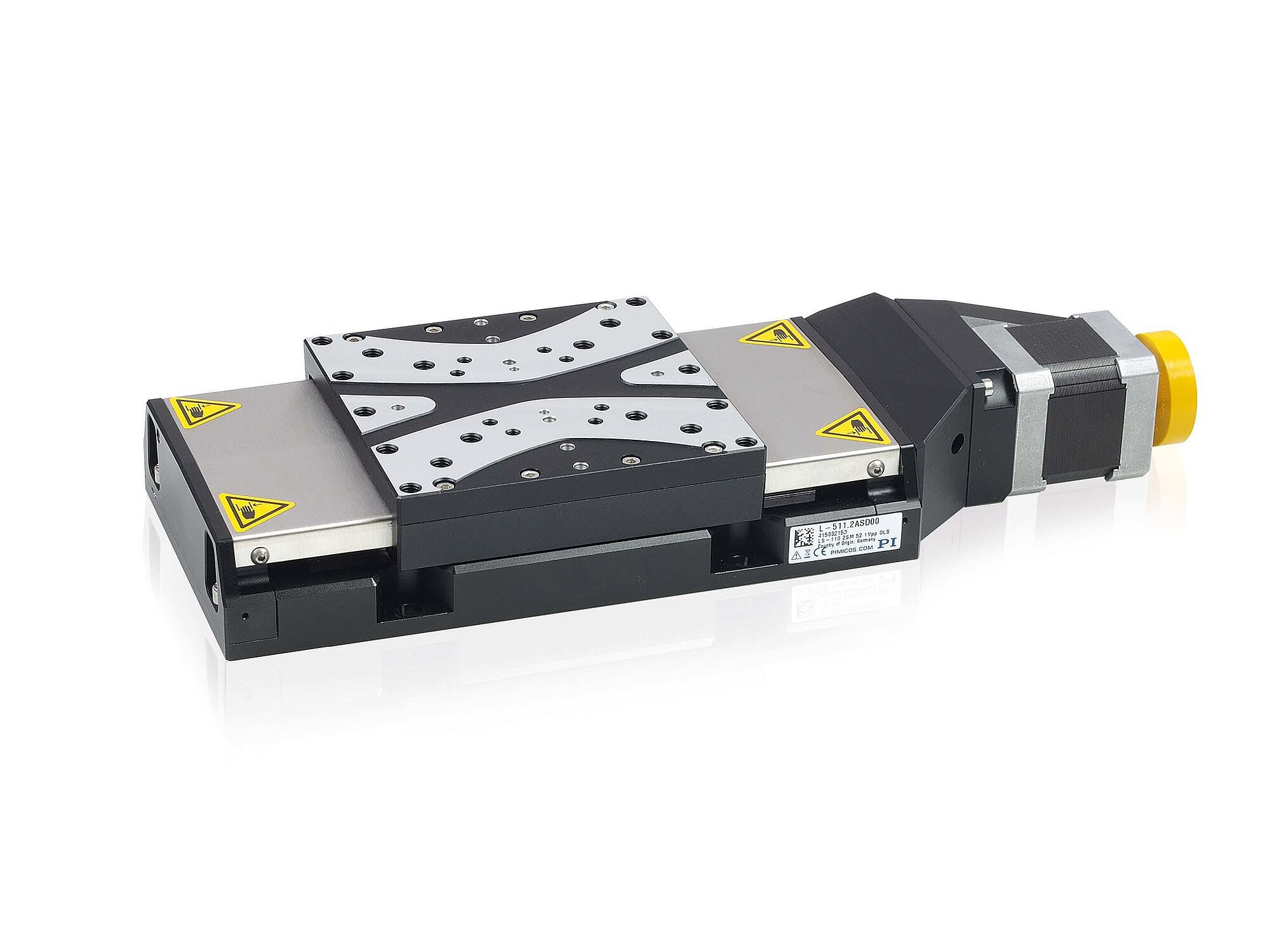

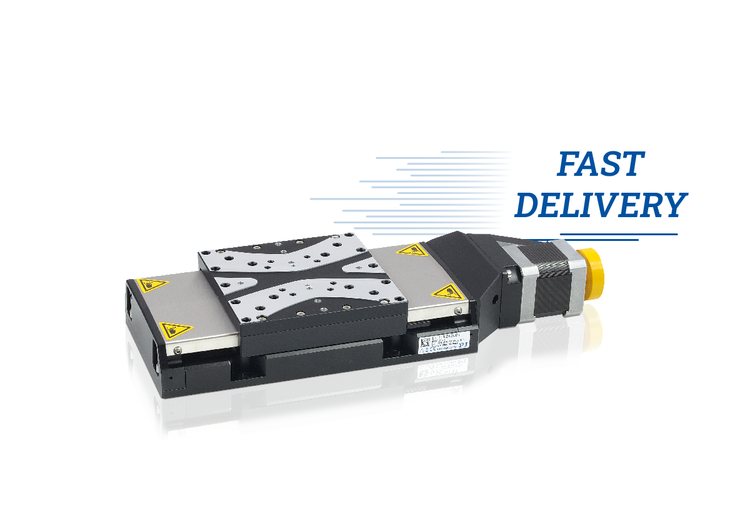

L-511 High-Precision Linear Stage

High Travel Accuracy

L-511 High-Precision Linear Stage
Product Description Specifications Downloads Quote / Order

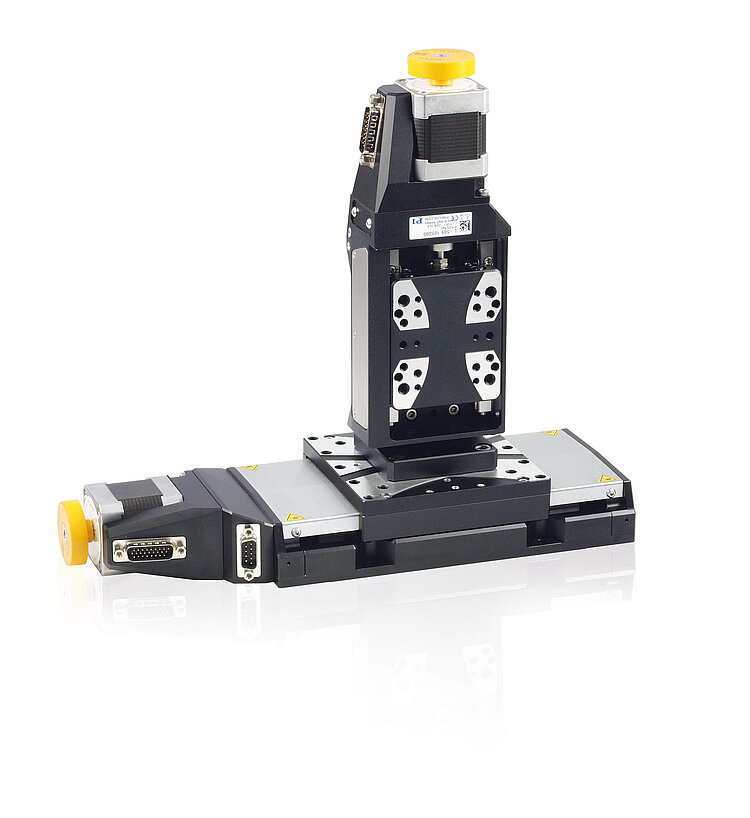

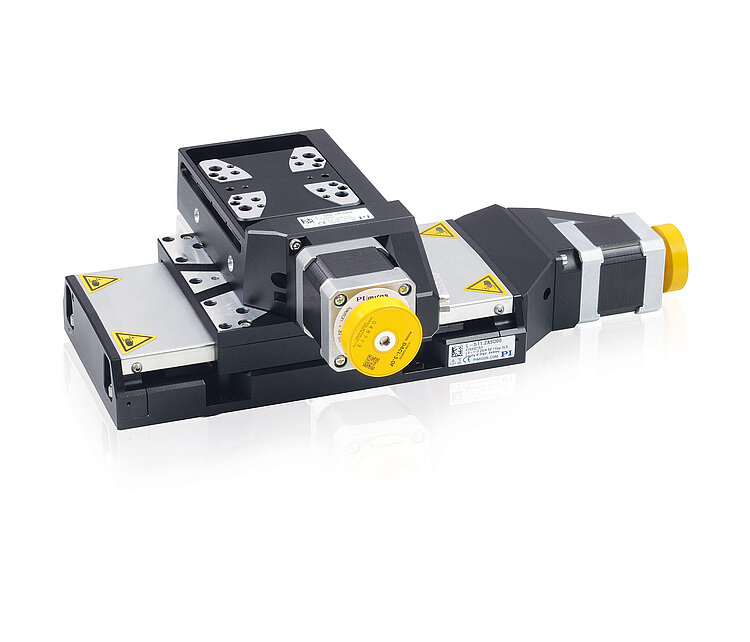

Reference-class linear stage

High travel accuracy and load capacity thanks to recirculating ball bearing guides. Precision ball screw with 2 mm pitch. Stress-relieved aluminum base for highest stability. Noncontact optical limit switches. Noncontact optical reference switch with direction sensing in the middle of the travel range.

Motor types available

  • ActiveDrive DC motor for high velocity: Control via pulse-width-modulated (PWM) signals, the operating voltage is achieved via an amplifier integrated in the motor housing
  • DC servo motor with gearhead for high torques and resolution at low motor power
  • Brushless DC motor: For applications with a high duty cycle. Use a controller with sine commutation for an exceptionally smooth synchronous motion and low vibrations even at a very low velocity.
  • 2-phase stepper motor for low velocity and high resolution

Types of position measuring

  • Without encoder (open loop)
  • Rotary encoder integrated on the motor shaft
  • Incremental linear encoder

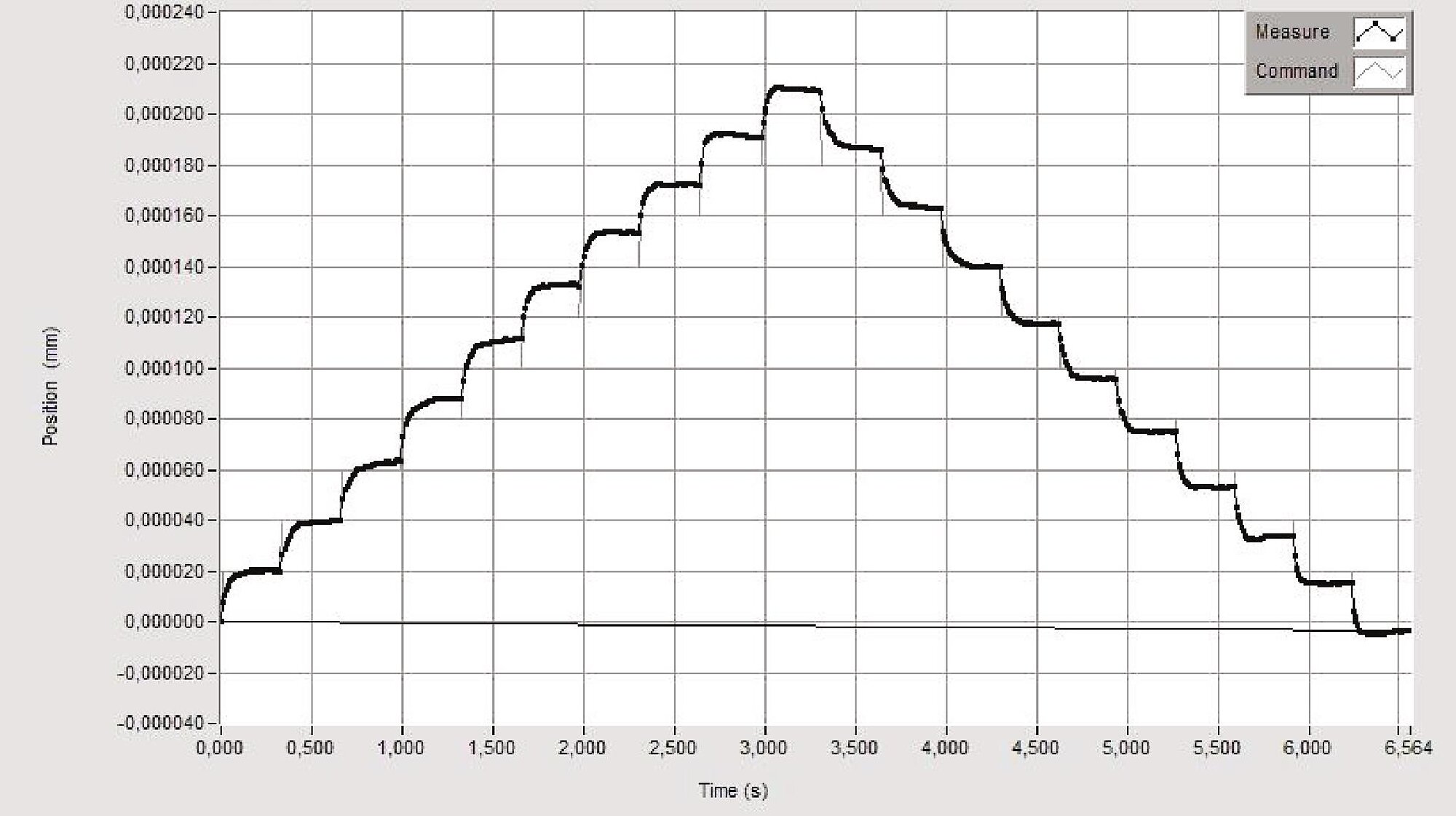

Highly accurate position measuring with incremental linear encoder

Noncontact optical encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement.

Application fields

Autofocus. Laser cutting. Research. Biotechnology. Automation. Vacuum. Optical alignment.

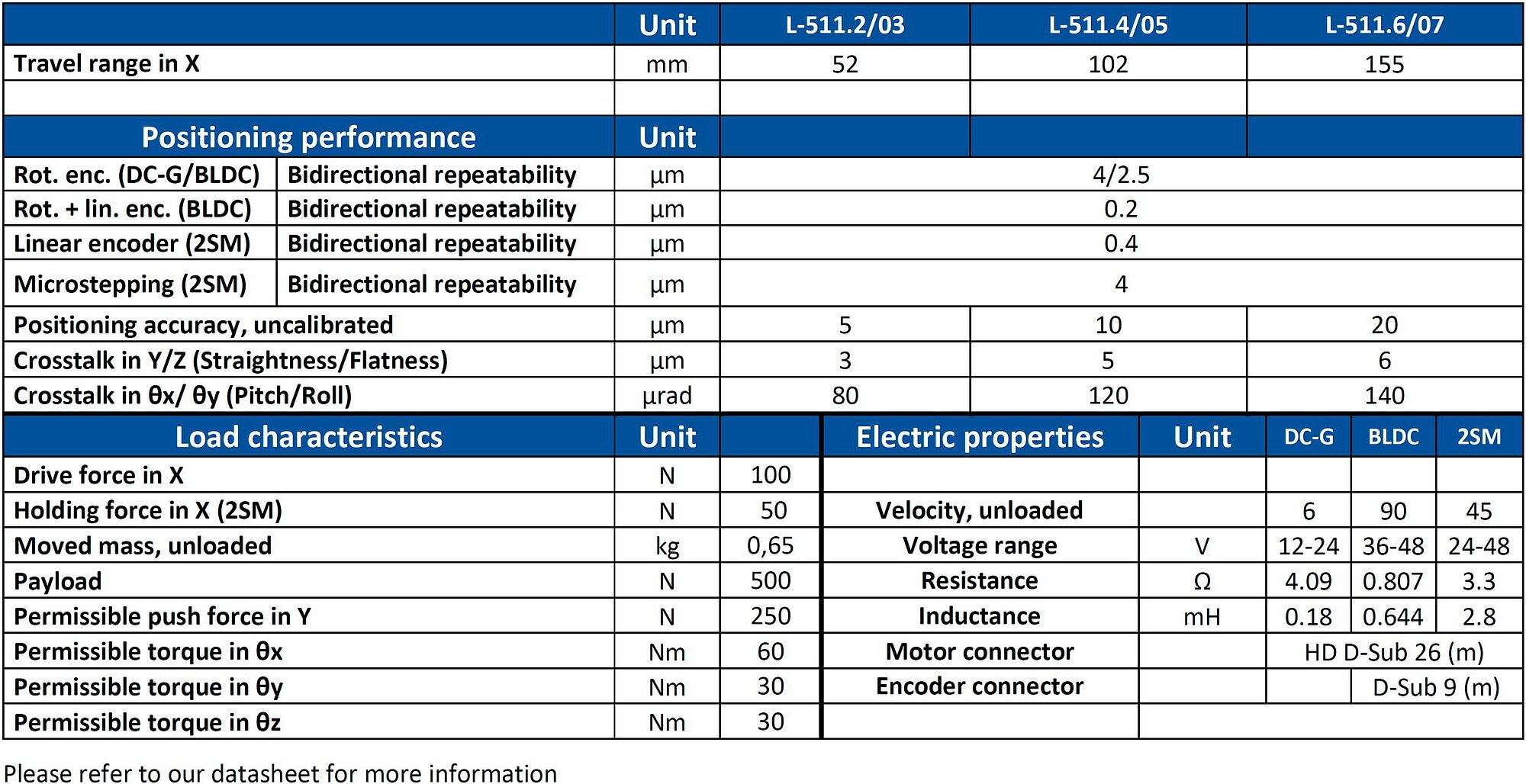

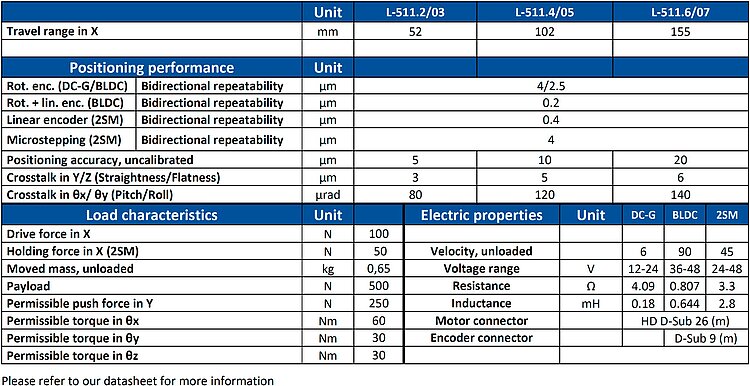

Specifications

Datasheet

Datasheet L-511

Version / Date
2020-01-27
Version / Date
2020-01-27
Version / Date
2018-11-27
Document language
pdf - 3 MB
pdf - 3 MB
pdf - 2 MB

Downloads

Datasheet

Datasheet

Datasheet L-511

Version / Date
2020-01-27
Version / Date
2020-01-27
Version / Date
2018-11-27
Document language
pdf - 3 MB
pdf - 3 MB
pdf - 2 MB

Documentation

Documentation

User Manual MP140

L-511 High-Precision Linear Stage
Version / Date
1.5.0 2020-02-18
Version / Date
1.5.0 2020-02-18
Document language
Documentation

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / MTS-65 / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx
Version / Date
1.5.0 October 2017
pdf - 395 KB

3-D Models

3-D Models

L-511 3-D model

Document language English
Request download link

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

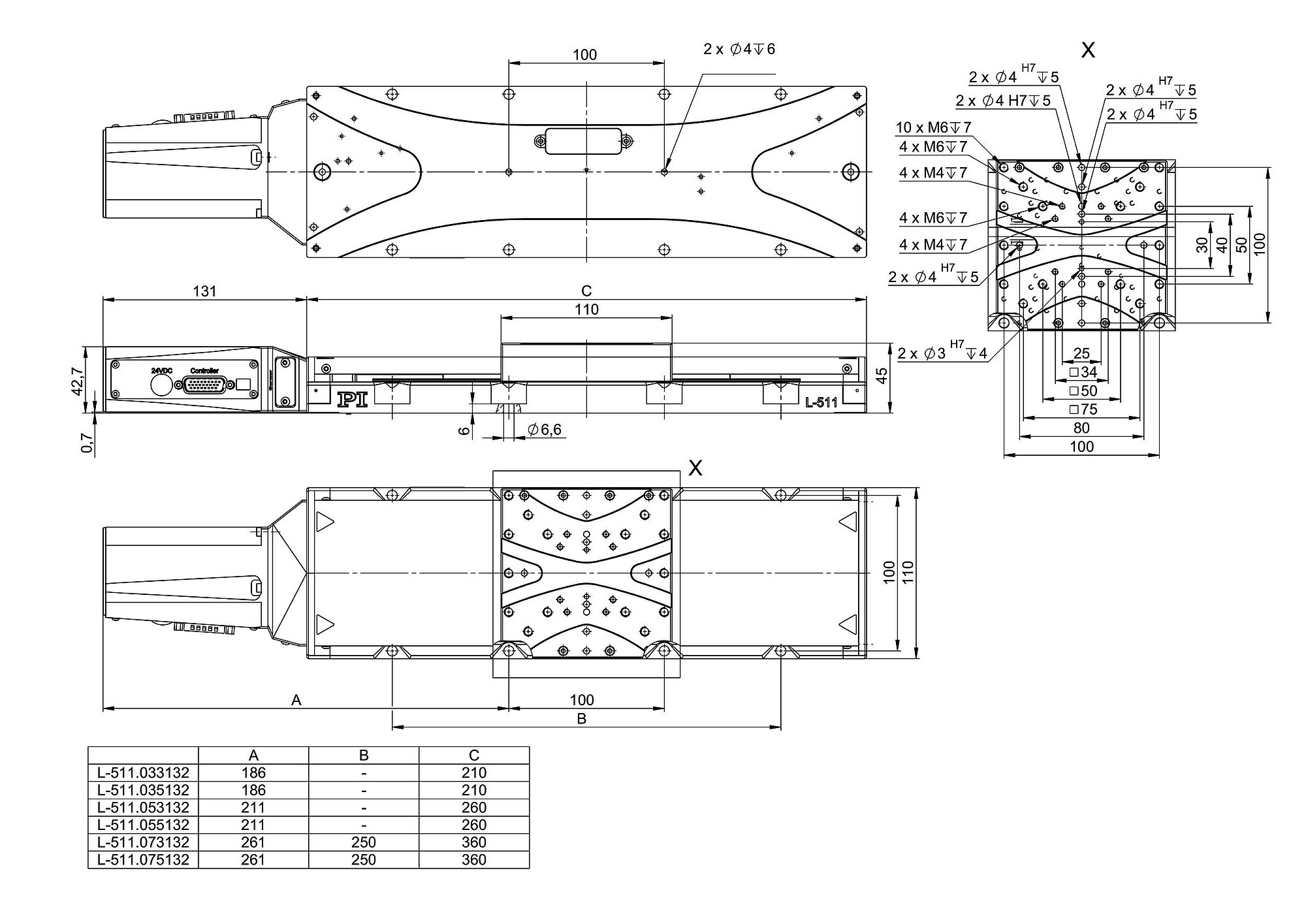

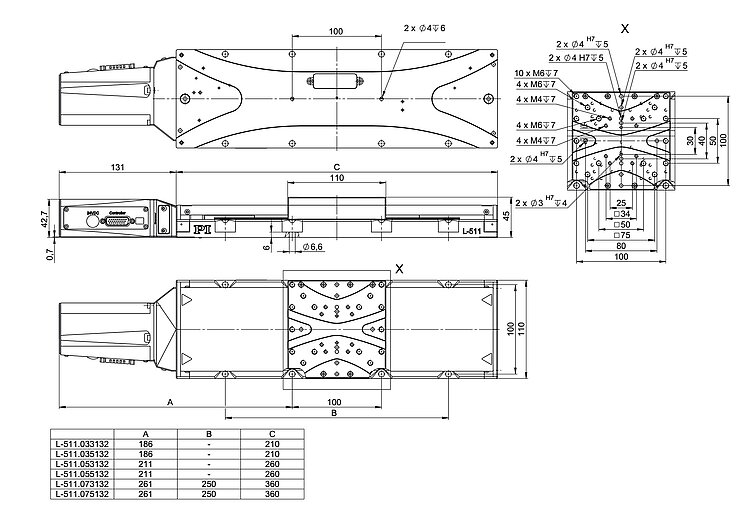

L-511.035132
Precision linear stage, 110 mm width, 52 mm travel range, brushless DC motor , including 3 m cable set when ordered with a controller from PI (exception: ACS controller)
L-511.055132
Precision linear stage, 110 mm width, 102 mm travel range, brushless DC motor , including 3 m cable set when ordered with a controller from PI (exception: ACS controller)
L-511.075132
Precision linear stage, 110 mm width, 155 mm travel range, brushless DC motor , including 3 m cable set when ordered with a controller from PI (exception: ACS controller)

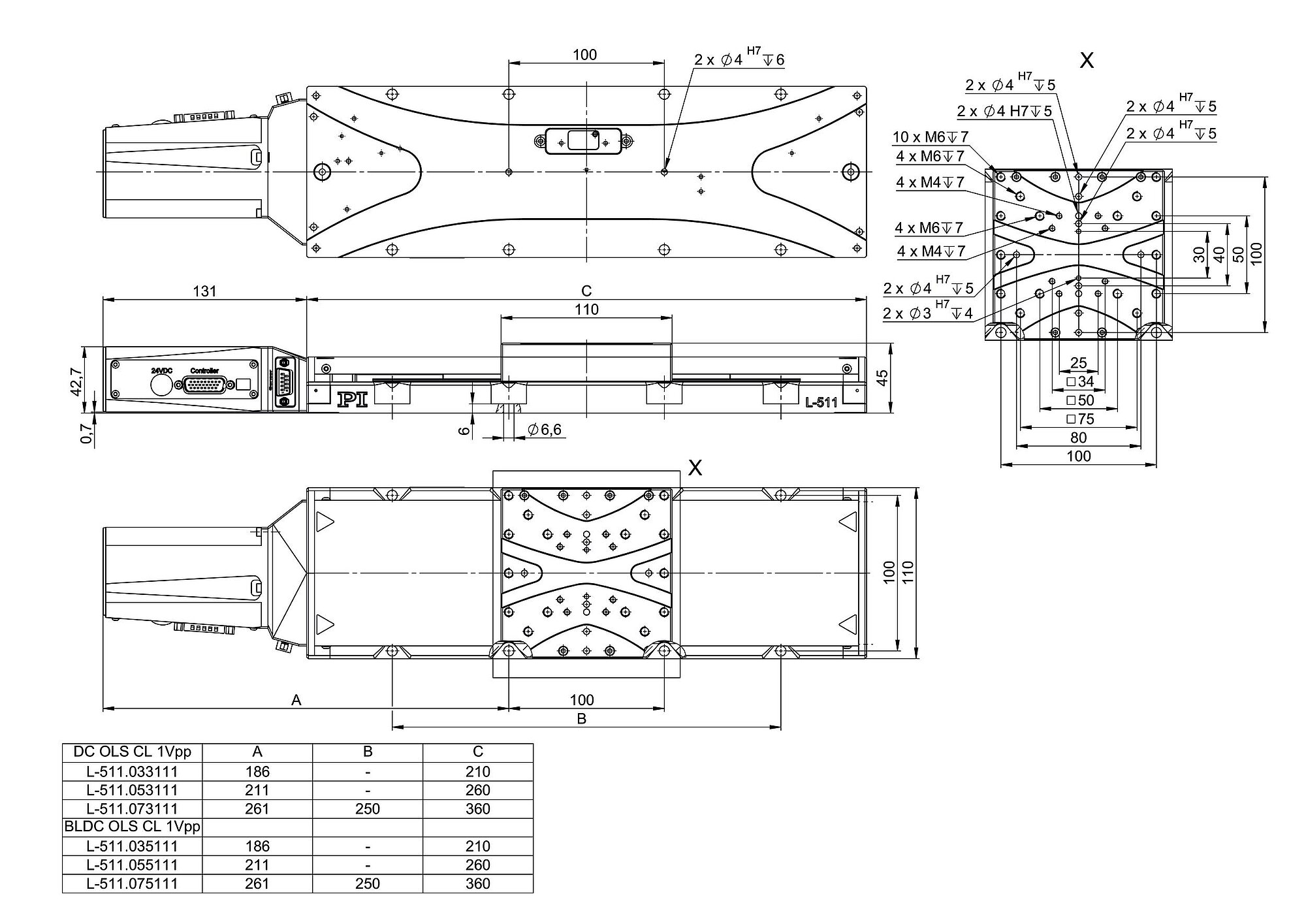

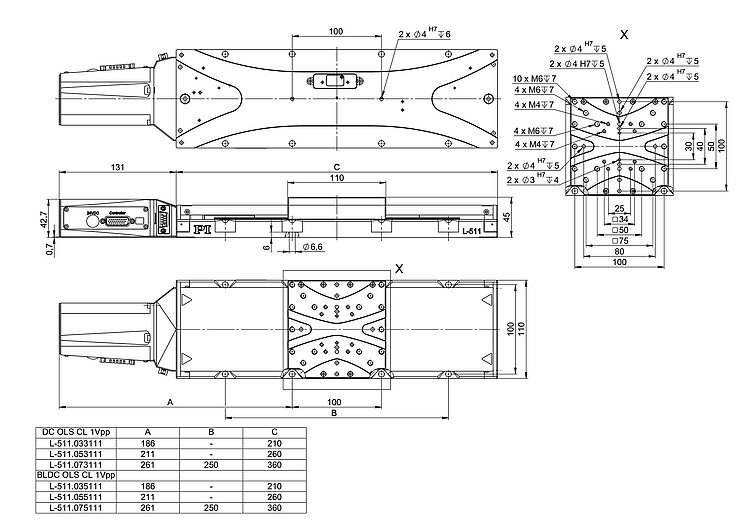

L-511.035111
Precision linear stage, 110 mm width, 52 mm travel range, brushless DC motor, linear encoder with sin/cos signal transmission , including 3 m cable set when ordered with a controller from PI (exception: ACS controller)
L-511.055111
Precision linear stage, 110 mm width, 102 mm travel range, brushless DC motor, linear encoder with sin/cos signal transmission , including 3 m cable set when ordered with a controller from PI (exception: ACS controller)
L-511.075111
Precision linear stage, 110 mm width, 155 mm travel range, brushless DC motor, linear encoder with sin/cos signal transmission , including 3 m cable set when ordered with a controller from PI (exception: ACS controller)

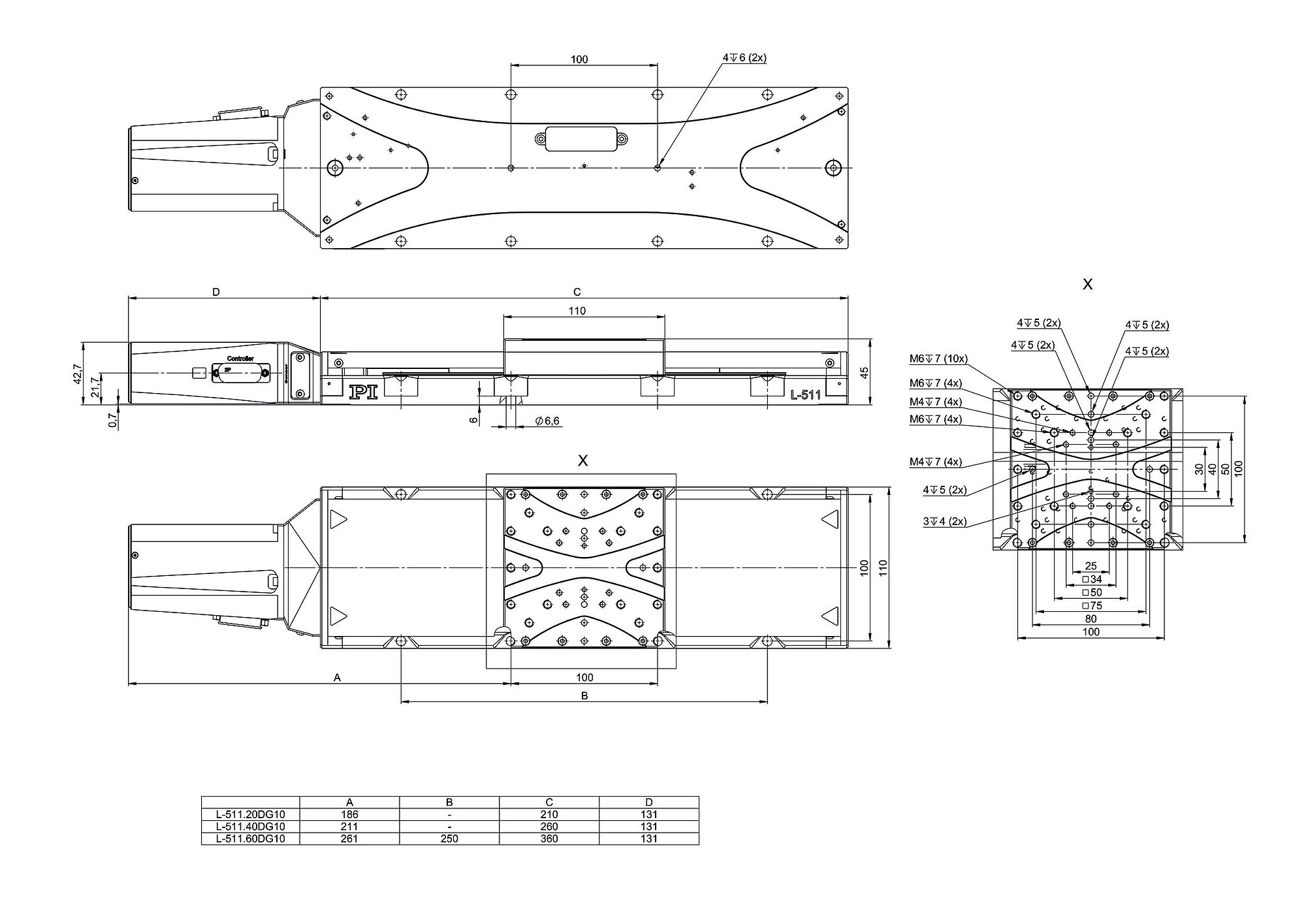

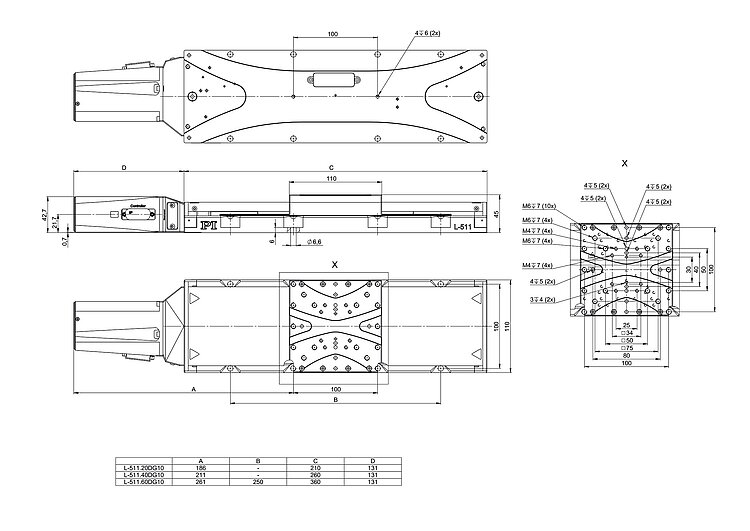

L-511.20DG10
Precision linear stage, 110 mm width, 52 mm travel range, DC gear motor , including 3 m cable set when ordered with a controller from PI (exception: ACS controller)
L-511.40DG10
Precision linear stage, 110 mm width, 102 mm travel range, DC gear motor , including 3 m cable set when ordered with a controller from PI (exception: ACS controller)
L-511.60DG10
Precision linear stage, 110 mm width, 155 mm travel range, DC gear motor , including 3 m cable set when ordered with a controller from PI (exception: ACS controller)
L-511.20AD10
Precision linear stage, 110 mm width, 52 mm travel range, ActiveDrive DC motor , including 3 m cable set when ordered with a controller from PI (exception: ACS controller)
L-511.40AD10
Precision linear stage, 110 mm width, 102 mm travel range, ActiveDrive DC motor , including 3 m cable set when ordered with a controller from PI (exception: ACS controller)
L-511.60AD10
Precision linear stage, 110 mm width, 155 mm travel range, ActiveDrive DC motor, rotary encoder , including 3 m cable set when ordered with a controller from PI (exception: ACS controller)
L-511.24AD00
Precision linear stage, 110 mm width, 52 mm travel range, ActiveDrive DC motor, linear encoder with A/B quadrature signal transmission , including 3 m cable set when ordered with a controller from PI (exception: ACS controller)
L-511.44AD00
Precision linear stage, 110 mm width, 102 mm travel range, ActiveDrive DC motor, linear encoder with A/B quadrature signal transmission , including 3 m cable set when ordered with a controller from PI (exception: ACS controller)
L-511.64AD00
Precision linear stage, 110 mm width, 155 mm travel range, ActiveDrive DC motor, linear encoder with A/B quadrature signal transmission , including 3 m cable set when ordered with a controller from PI (exception: ACS controller)

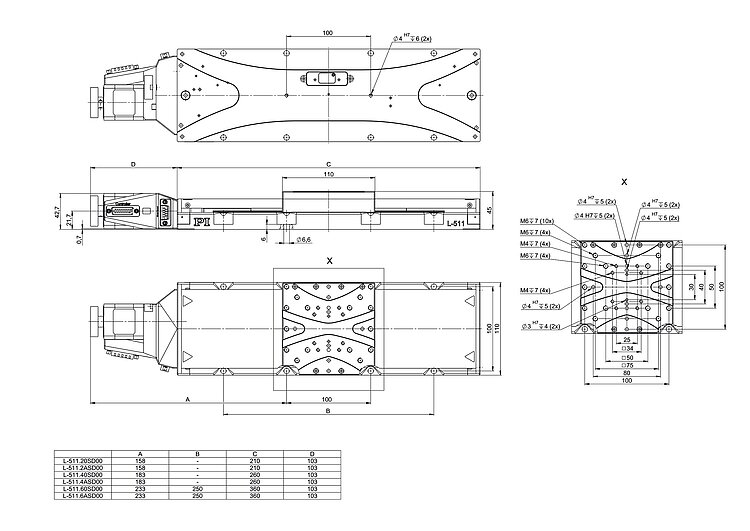

L-511.20SD00
Precision linear stage, 110 mm width, 52 mm travel range, stepper motor , including 3 m cable set when ordered with a controller from PI (exception: ACS controller)
L-511.40SD00
Precision linear stage, 110 mm width, 102 mm travel range, stepper motor , including 3 m cable set when ordered with a controller from PI (exception: ACS controller)
L-511.60SD00
Precision linear stage, 110 mm width, 155 mm travel range, stepper motor , including 3 m cable set when ordered with a controller from PI (exception: ACS controller)
L-511.2ASD00
Precision linear stage, 110 mm width, 52 mm travel range, stepper motor, linear encoder with sin/cos signal transmission , including 3 m cable set when ordered with a controller from PI (exception: ACS controller)
L-511.4ASD00
Precision linear stage, 110 mm width, 102 mm travel range, stepper motor, linear encoder with sin/cos signal transmission , including 3 m cable set when ordered with a controller from PI (exception: ACS controller)
L-511.6ASD00
Precision linear stage, 110 mm width, 155 mm travel range, stepper motor, linear encoder with sin/cos signal transmission , including 3 m cable set when ordered with a controller from PI (exception: ACS controller)
