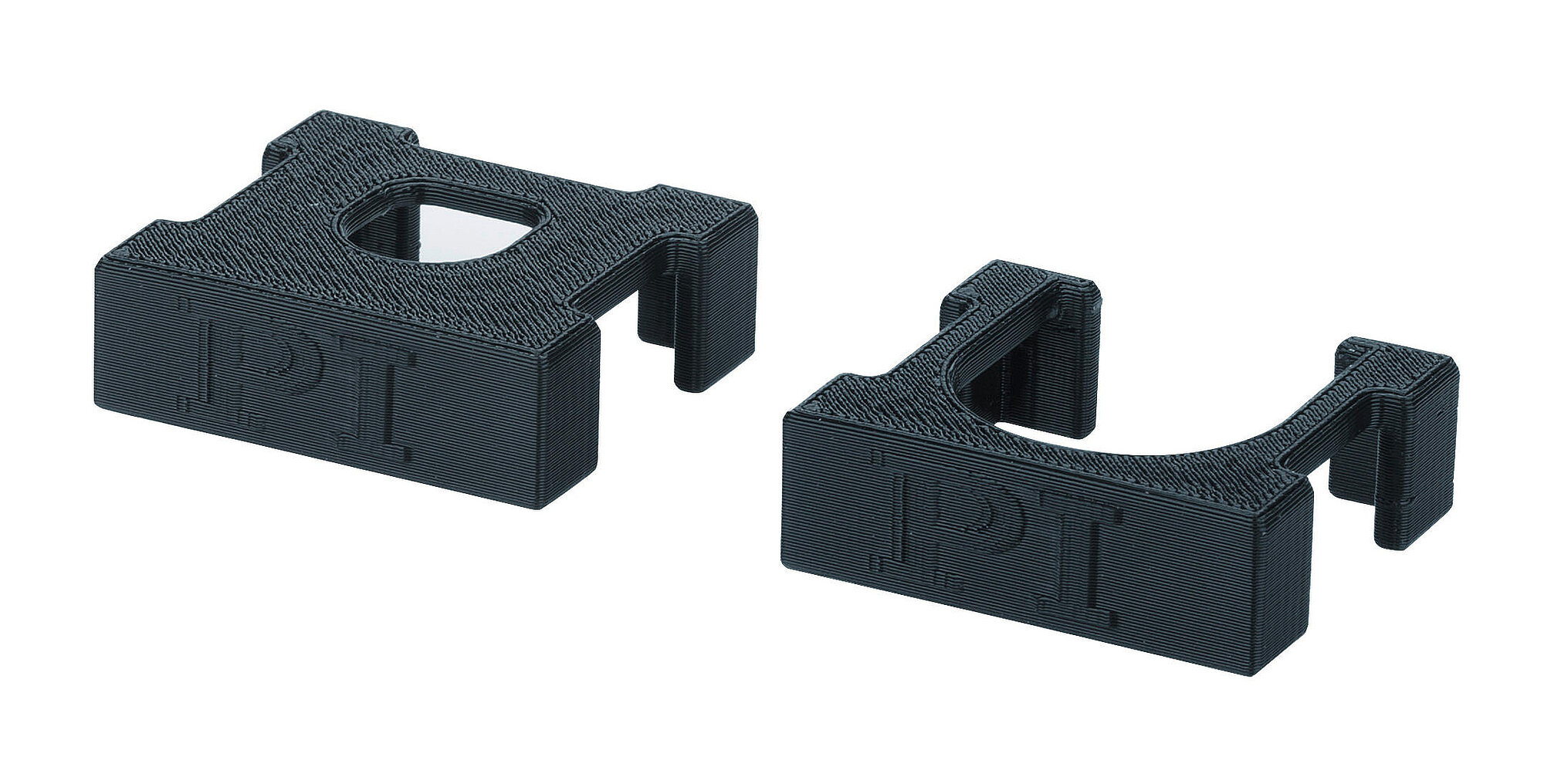

S-335.X Mirror Centering Aids for the S-335

S-335.X Mirror Centering Aids for the S-335

3-D Printed PI Equipment for Gluing Mirrors Yourself

  • Center 0.5" mirrors and 1.0" mirrors reliably
  • 3-D printed component, made of thermoplastic resin (ABS)
  • Inexpensive and also easy to use
to content quote / order

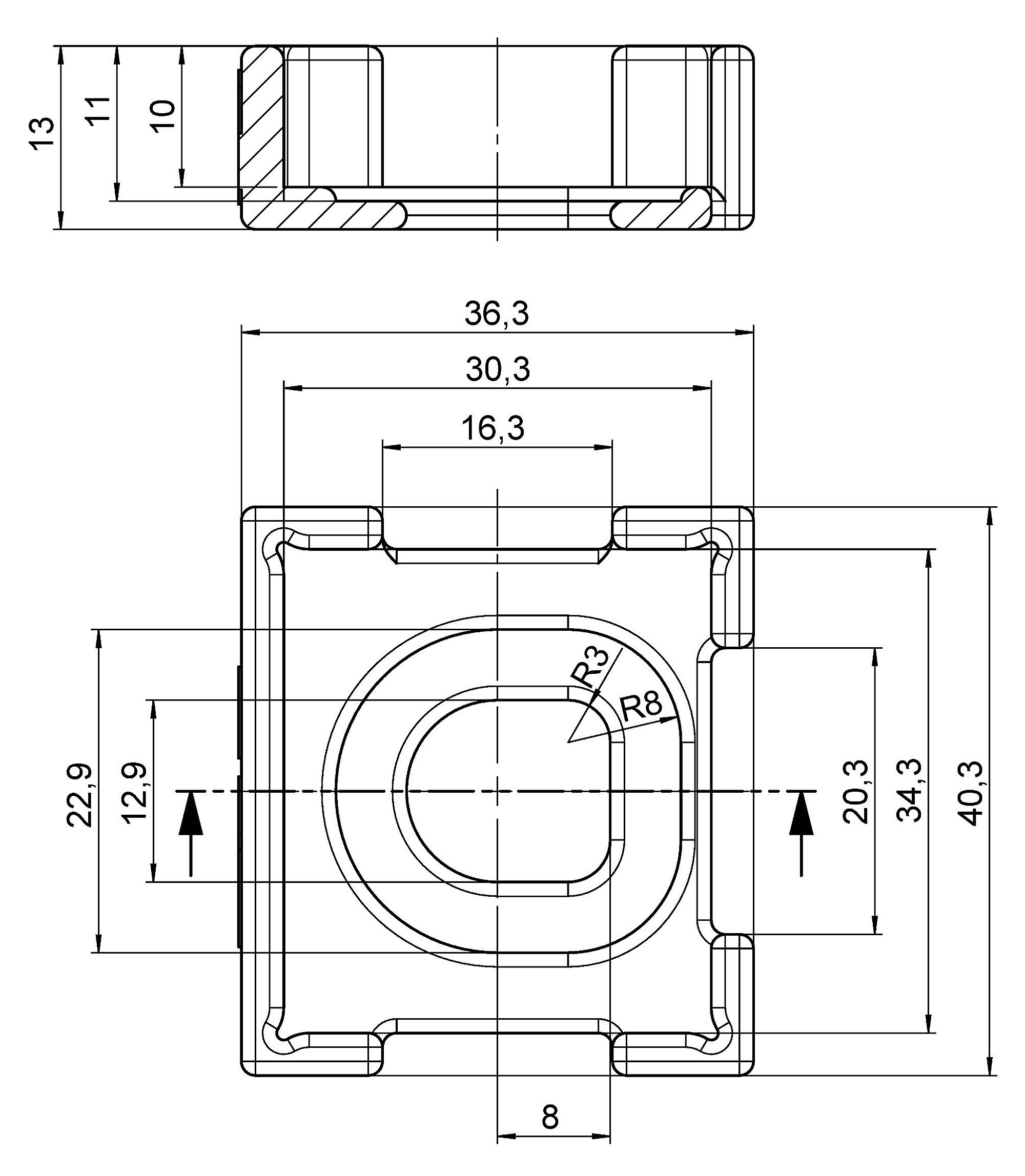

S-335.X1, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

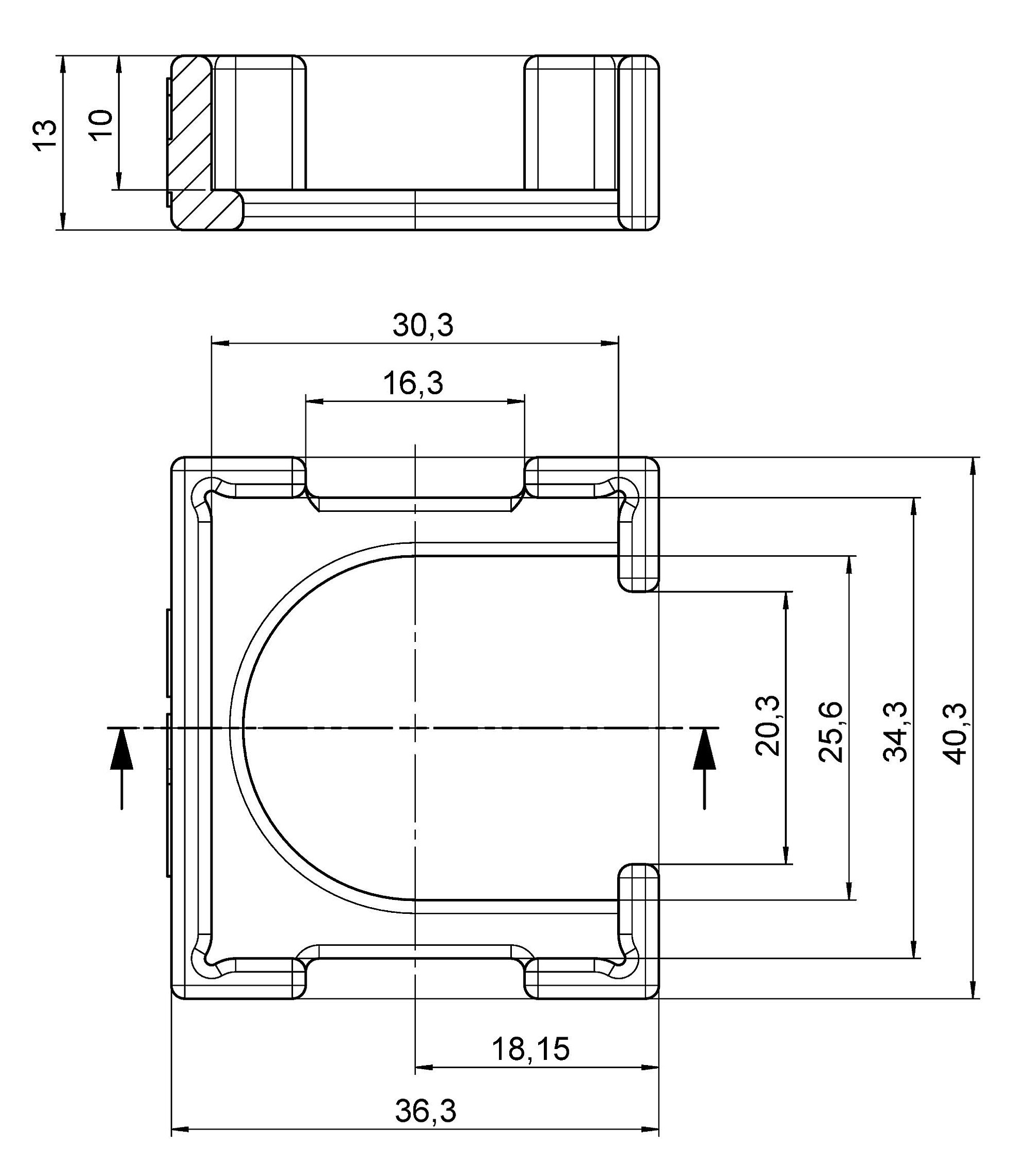

S-335.X2, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

S-335.X Mirror Centering Aids for the S-335
Product Description Downloads Quote / Order

Accessory for S-335 piezo tip/tilt platforms

Centering aids can be used for gluing a mirror onto models from the S-335 series supplied without mirrors. The centering aid holds the mirror at the desired position during gluing.

Download datasheet specifications quote / order

Downloads

Datasheet

Datasheet

Datasheet S-335.X

Version / Date
2025-10-30
pdf - 316 KB
Version / Date
2025-10-30
pdf - 313 KB
Version / Date
2025-10-30
pdf - 525 KB
Download
Download
Download

Documentation

Documentation

Technical Note S330T0024

S330T0024, valid for S-330.X1, S-330.X2, S-335.X1, S-335.X2

pdf - 332 KB
