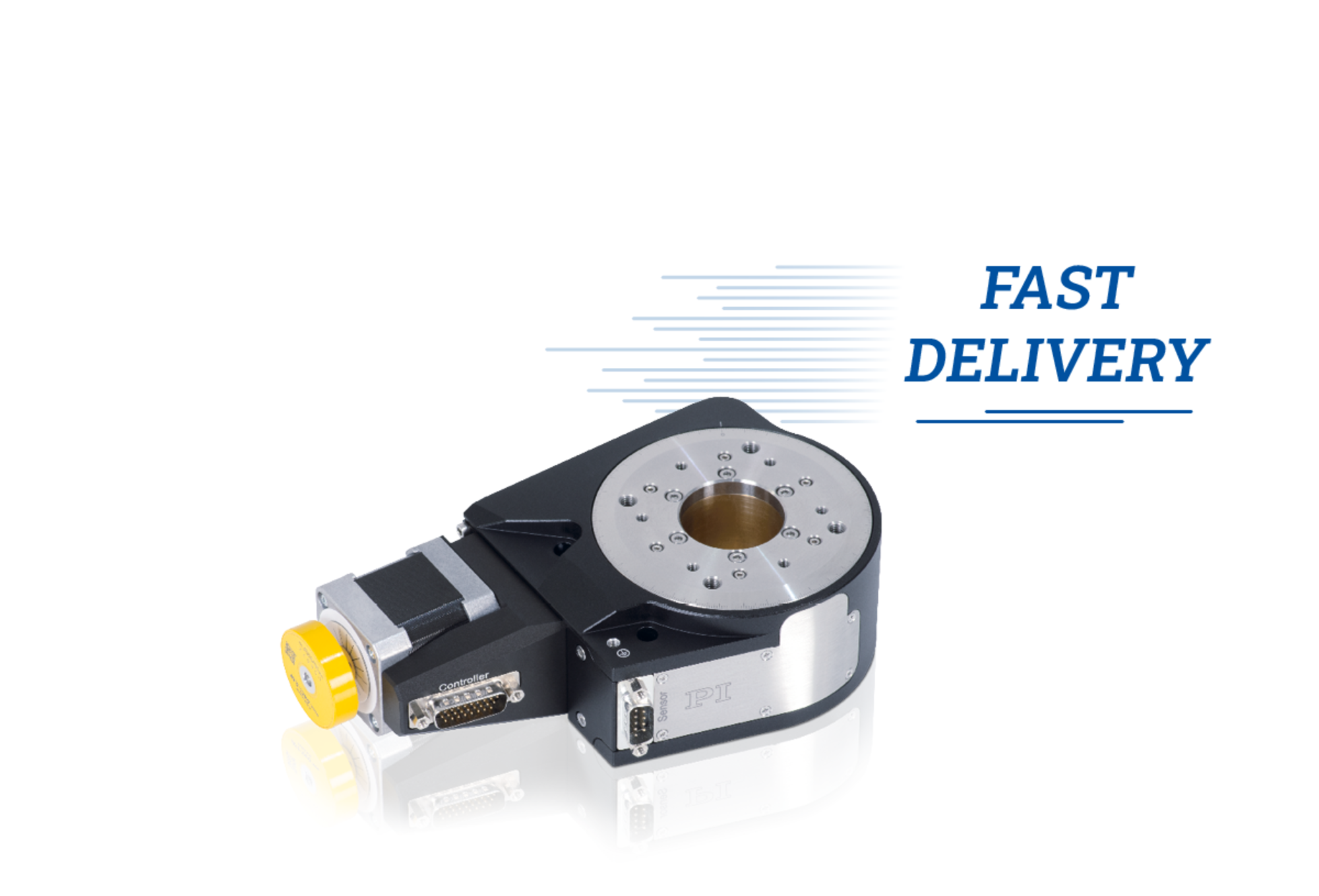

L-611 Precision Rotation Stage

High Travel Accuracy

  • Unlimited travel range
  • Very high resolution
  • Maximum velocity 200°/s
  • DC, BLDC, and stepper motors
  • Direction-sensing reference switch
  • Vacuum-compatible variants available
L-611 Precision Rotation Stage
Product Description Specifications Downloads Quote / Order

Reference-class rotation stage

High-precision positioning due to low-play preloaded worm gear. Preloaded pivot bearings for high travel accuracy. Clear aperture with 35 mm Ø. Unlimited travel range in both directions of rotation. Noncontact reference switch. Compact multi-axis positioning systems possible with L-511 linear stages and L-310 Z stages. Vacuum-compatible product variants on request.

Versions

  • Low-vibration stepper motor
  • DC motor with ActiveDrive
  • DC servo motor
  • Brushless DC motor
  • Additional high-resolution optical angle measuring system, direct measuring

Option: Measurement of the travel accuracy and positioning accuracy

Individual measurement logs available on request for wobble, axial, and radial creep. Please specify when ordering.

Application fields

Medical industry. Sample inspection. Precision microassembly. Measuring technology. Photonics. Vacuum.

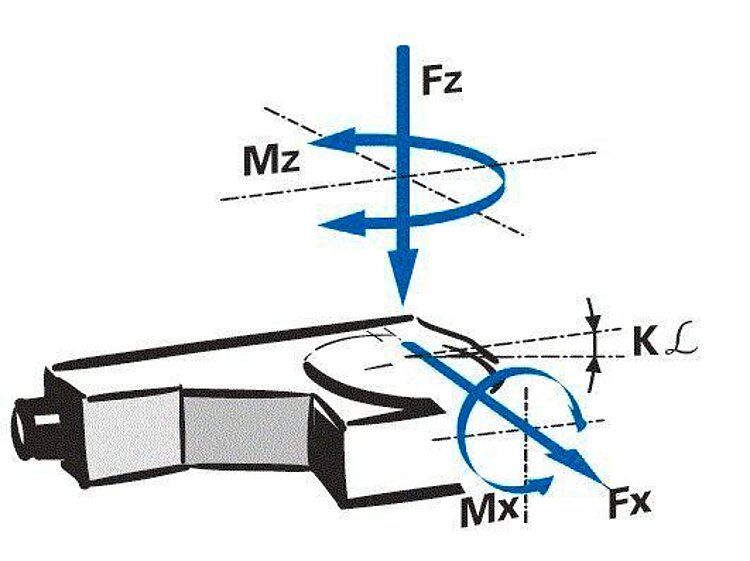

Specifications

Datasheet

Datasheet L-611

Version / Date
2023-04-26
pdf - 2 MB
Version / Date
2023-04-26
pdf - 2 MB
Version / Date
2019-07-31
pdf - 687 KB

Downloads

Product Note

Product Note

Product Change Notification Motor Driven Products

Version / Date
2021-04-19
pdf - 917 KB
English

Datasheet

Datasheet

Datasheet L-611

Version / Date
2023-04-26
pdf - 2 MB
Version / Date
2023-04-26
pdf - 2 MB
Version / Date
2019-07-31
pdf - 687 KB

Documentation

Documentation

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx

Version / Date
3.0.0 2024-01-15
pdf - 261 KB
Version / Date
3.0.0 2024-01-15
pdf - 295 KB
Documentation

User Manual MP154

L-611 Precision Rotation Stage

Version / Date
1.3 2020-06-29
pdf - 2 MB
Version / Date
1.3 2020-06-29
pdf - 2 MB

3-D Models

3-D Models

L-611 3-D model

Version / Date
2021-03-29
zip - 20 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

L-611.90AD

Precision rotation stage; DC motor with ActiveDrive; 360° rotational angle; 100 N load capacity; 200 °/s maximum angular velocity; incremental rotary encoder, 20000 cts./rev. sensor resolution, A/B quadrature, RS-422; 35 mm Ø aperture

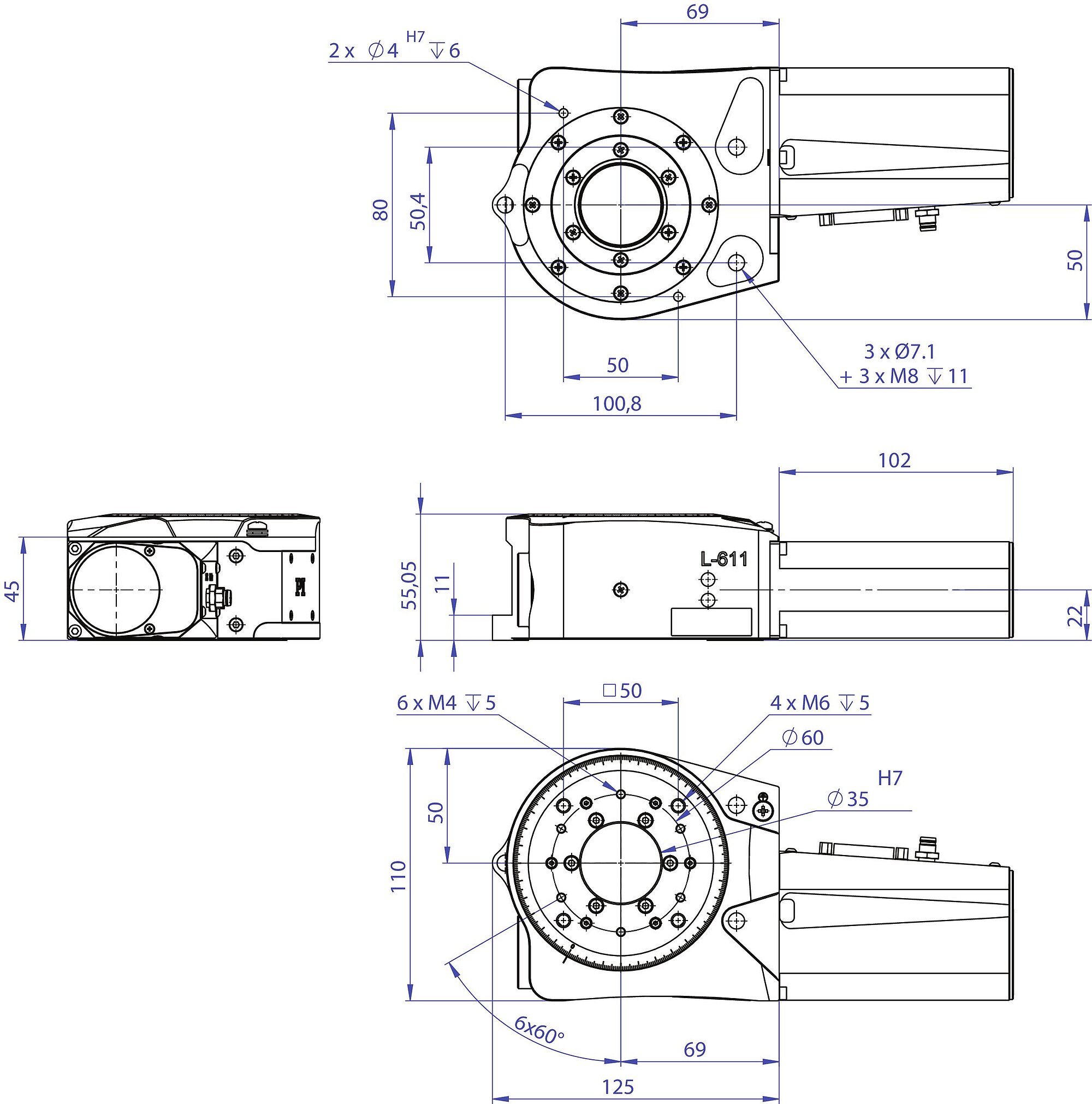

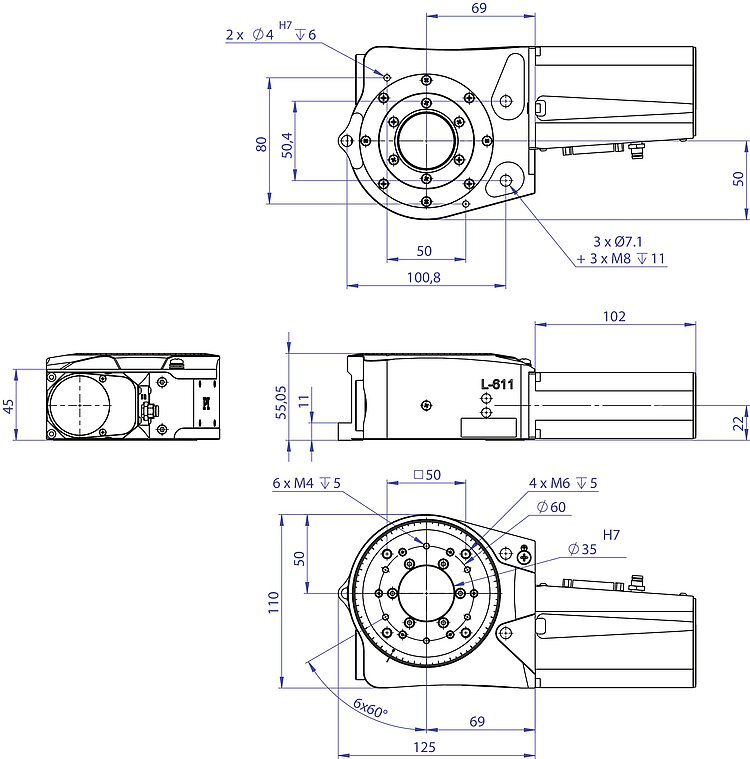

L-611.94AD

Precision rotation stage; DC motor with ActiveDrive; 360° rotational angle; 100 N load capacity; 200 °/s maximum angular velocity; incremental angle measuring system, A/B quadrature, RS-422; 35 mm Ø aperture

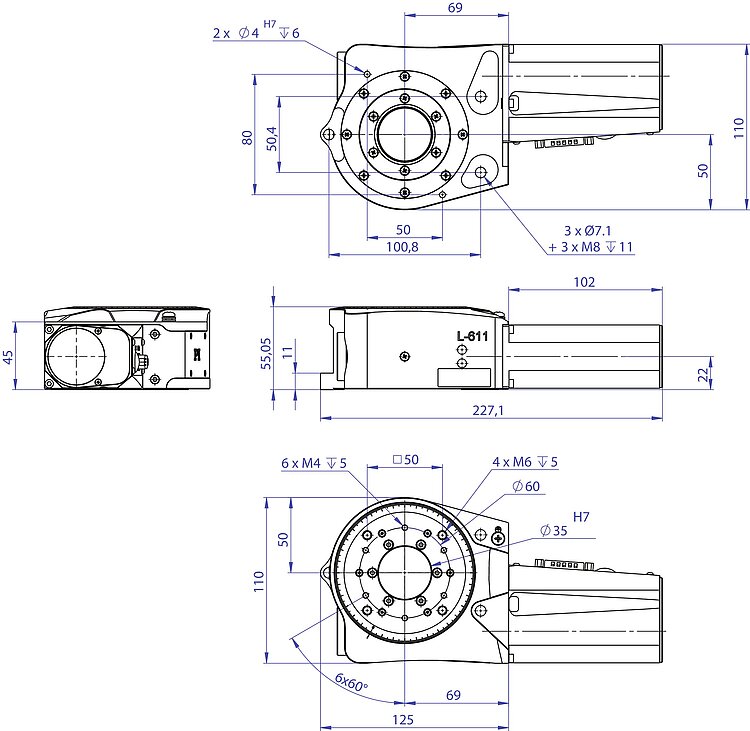

L-611.993232

Precision rotation stage; DC motor; 360° rotational angle; 100 N load capacity; 200 °/s maximum angular velocity; incremental rotary encoder, 20000 cts./rev. sensor resolution, A/B quadrature, RS-422; 35 mm Ø aperture

L-611.993261

Precision rotation stage; DC motor; 360° rotational angle; 100 N load capacity; 200 °/s maximum angular velocity; incremental angle measuring system, sin/cos, 1 V peak-peak; 35 mm Ø aperture

L-611.995232

Precision rotation stage; brushless DC motor; 360° rotational angle; 100 N load capacity; 200 °/s maximum angular velocity; incremental rotary encoder, 20000 cts./rev. sensor resolution, A/B quadrature, RS-422; 35 mm Ø aperture

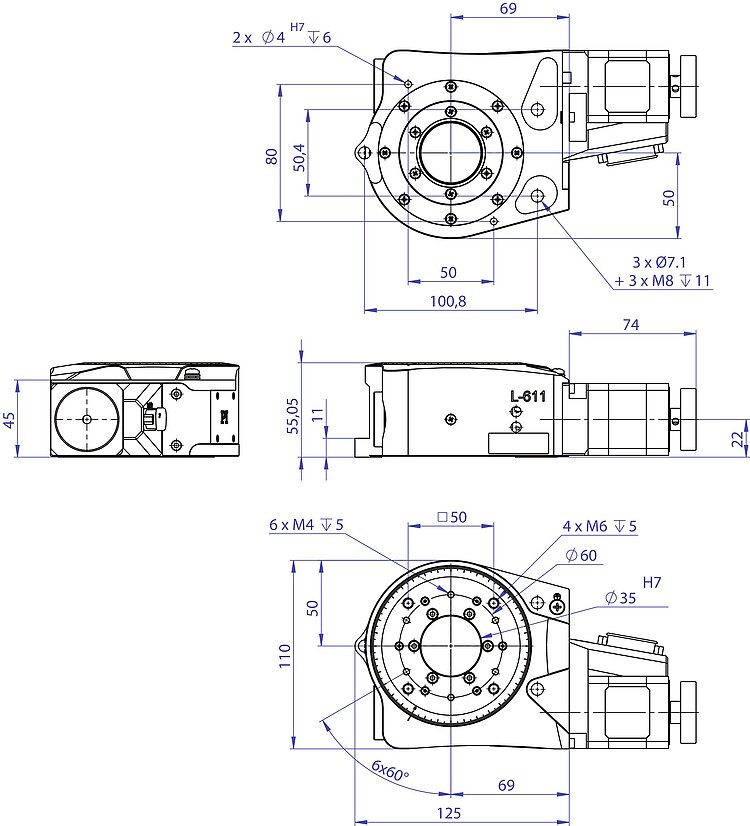

L-611.9ASD

Precision rotation stage; 2-phase stepper motor; 360° rotational angle; 100 N load capacity; 50 °/s maximum angular velocity; incremental angle measuring system, sin/cos, 1 V peak-peak; 35 mm Ø aperture
