PL112 – PL140 PICMA® Bender

All-Ceramic Bending Actuators with High Displacement

PL112 – PL140 PICMA® Bender

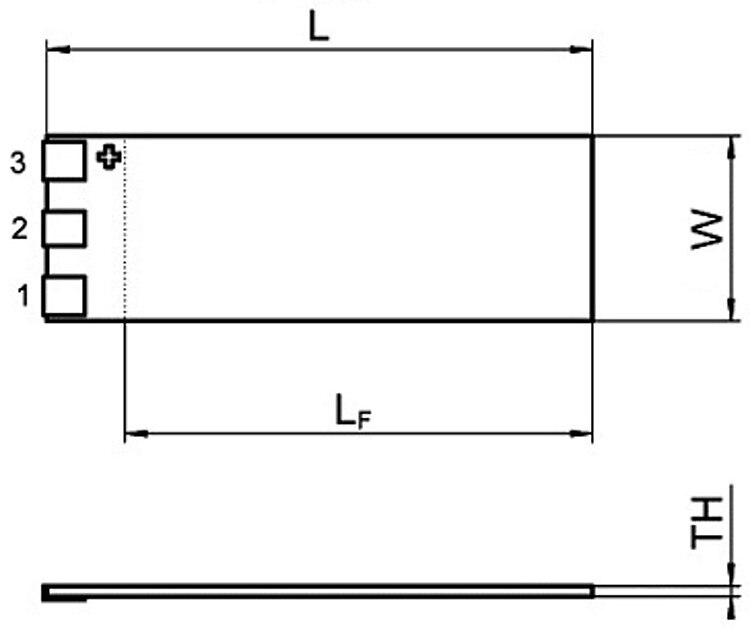

Product Description Specifications Downloads Quote / Order

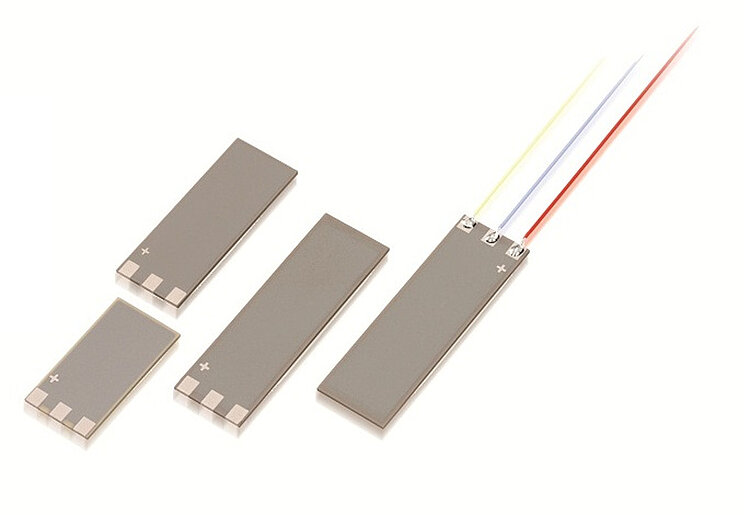

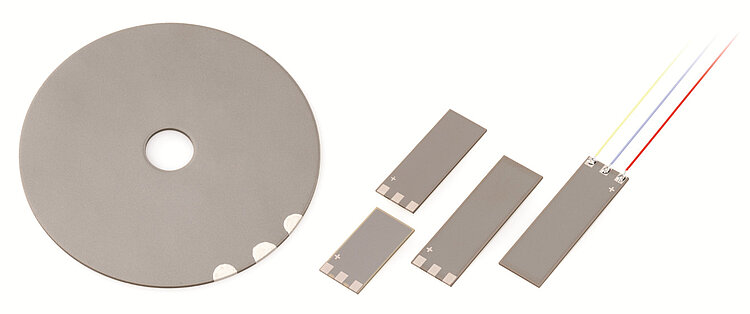

PICMA® multilayer bender elements with high reliability

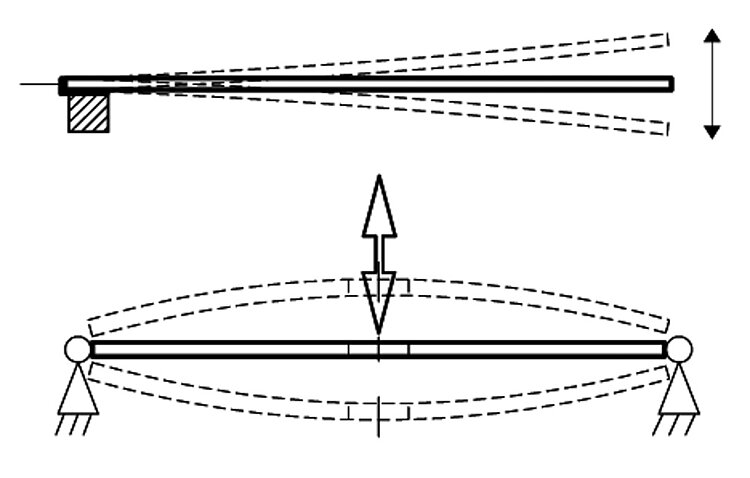

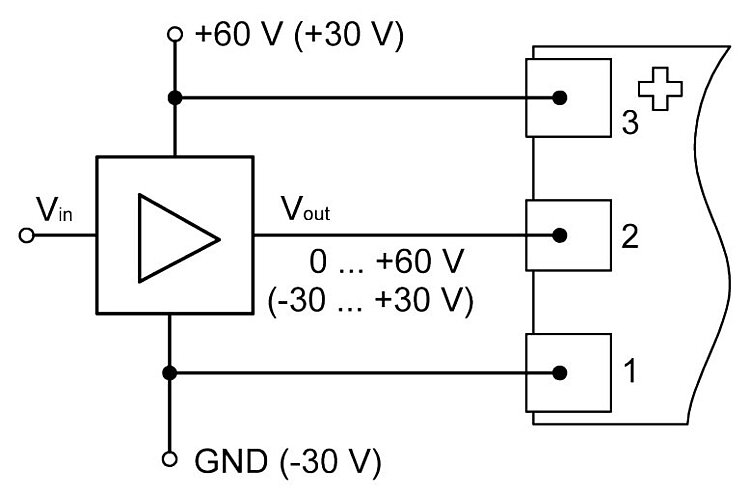

Operating voltage 0 to 60 V. Bidirectional displacement, bimorph design. Ceramic insulation, polymer free. UHV-compatible to 10-9 hPa, no outgassing, high bakeout temperature. Reliable even under extreme conditions.

Application fields

Industry and research, vacuum. For medical technology, laser technology, sensor technology, automation tasks, pneumatic valves.
