- Useable as actuator, sensor or energy generator
- Low voltages to 120 V
- Compact design
- Individual solutions
Functionality as actuator and sensor component. Nominal operating voltages of -20 to 120 V. Power generation for self-sufficient systems possible up to the milliwatt range. Can also be applied to curved surfaces.

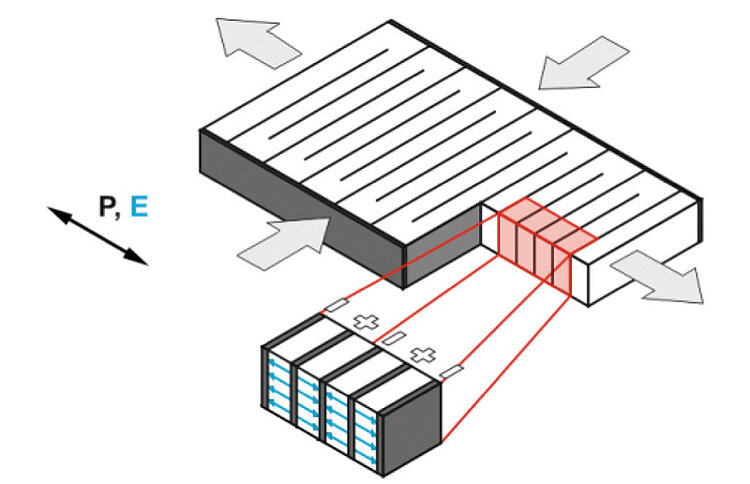

In longitudinal direction, the DuraAct Power uses the high-efficiency d33 effect.
Robust, inexpensive design
Laminated structure consisting of PICMA® multilayer piezo element, electrodes and polymer materials. Manufactured with bubble-free injection method. The polymer coating simultaneously serves as electrical insulation and as mechanical preload, which makes the DuraAct bendable.
Customized versions and other specifications on request
- Flexible choice of size
- Variable design of the electrical connections
- Combined actuator/sensor applications, even with several active piezoceramic layers
Industry and research. Can also be applied to curved surfaces or used for integration in structures. For adaptive systems, energy harvesting, structural health monitoring.
User Manual P876T0001
P-876, P-878 DuraAct and DuraAct Power Patch Transducers
