H-850 6-Axis Hexapod

For Loads up to 250 kg

  • Load capacity to 250 kg
  • Repeatability to ±0.2 µm
  • Travel ranges to ±50 mm / ±30°
  • Works in any orientation
H-850 6-Axis Hexapod
Product Description Specifications Downloads Quote / Order

The H-850 series hexapods position loads of up to 250 kg with high precision and reliability. Heavy-duty precision bearings allow applications with long duty cycles.

The parallel-kinematic design for six degrees of freedom makes it significantly more compact and stiffer than comparable serial kinematic systems. The advantages over serial, i.e., stacked systems, are mainly the much better path accuracy and repeatability. In addition, the moved mass is lower and allows improved dynamics performance and is the same for all motion axes. Cable management is not a problem because cables are not moved.

Use of brushless DC motors (BLDC)

Brushless DC motors are particularly suitable for high rotational speeds. They can be controlled very accurately and ensure high precision. Because they dispense with sliding contacts, they run smoothly, are wear-free and therefore achieve a long lifetime.

Absolute encoder

Absolute encoders supply explicit position information that enables immediate determination of the position. Therefore, no referencing is necessary when switching on and this increases efficiency and safety during operation.

PI Hexapod Simulation Tool

The simulation software simulates the limits of the workspace and load capacity of a hexapod. Therefore, even before purchasing, you can check whether a particular hexapod model can handle the loads, forces, and torques occurring in an application. For this purpose, the simulation tool takes the position and motion of the hexapod as well as the pivot point and several reference coordinate systems into account.

Application fields

Industry and research. For astronomy, optics positioning, aerospace.

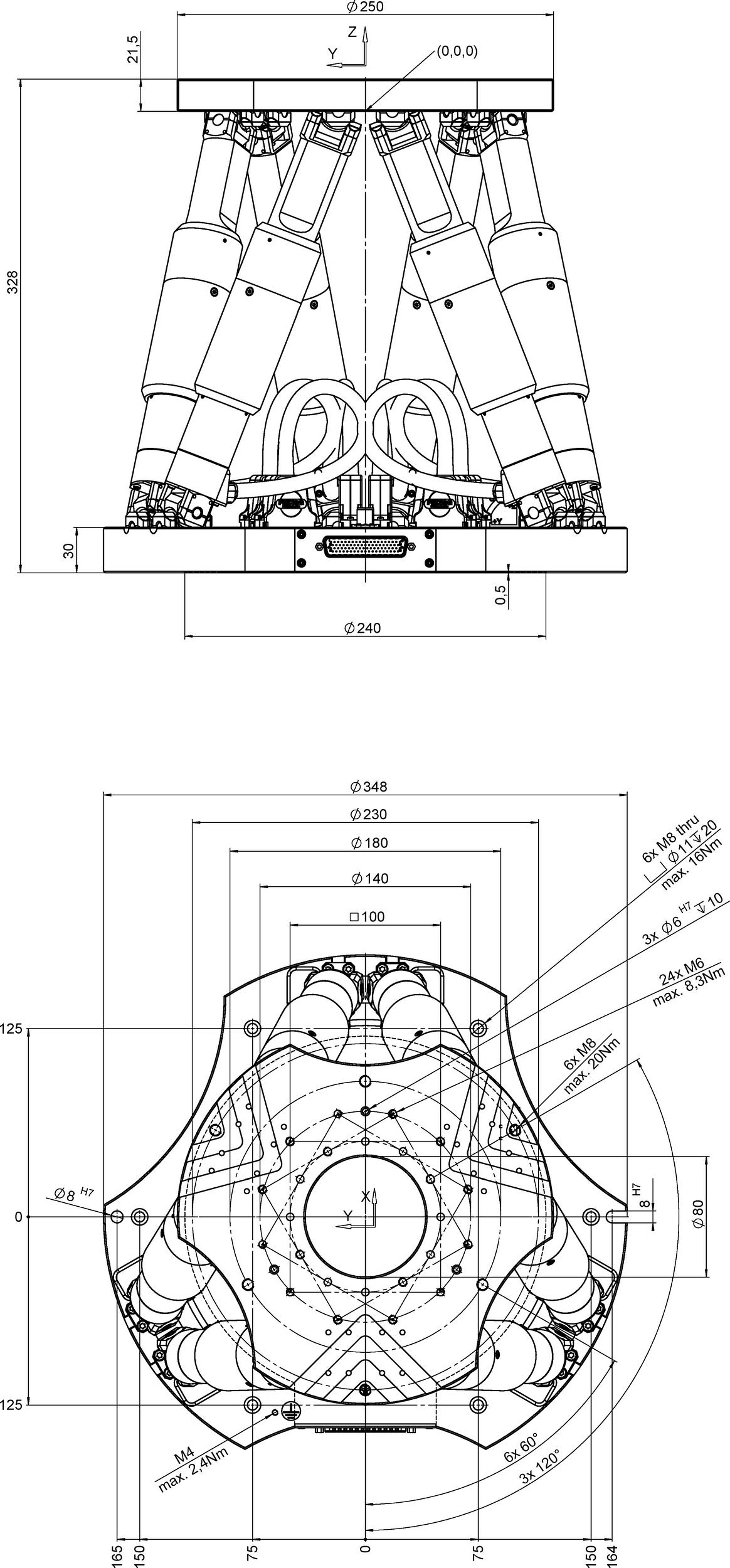

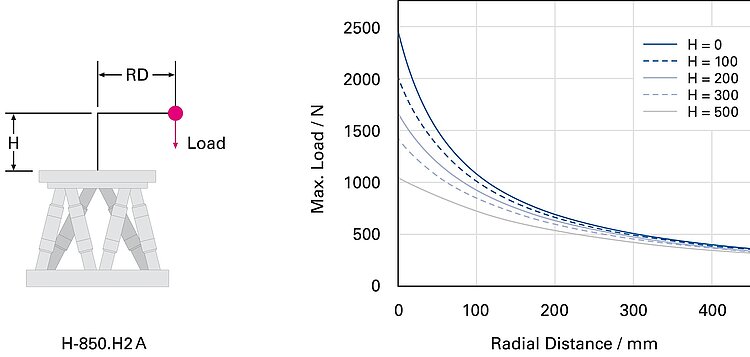

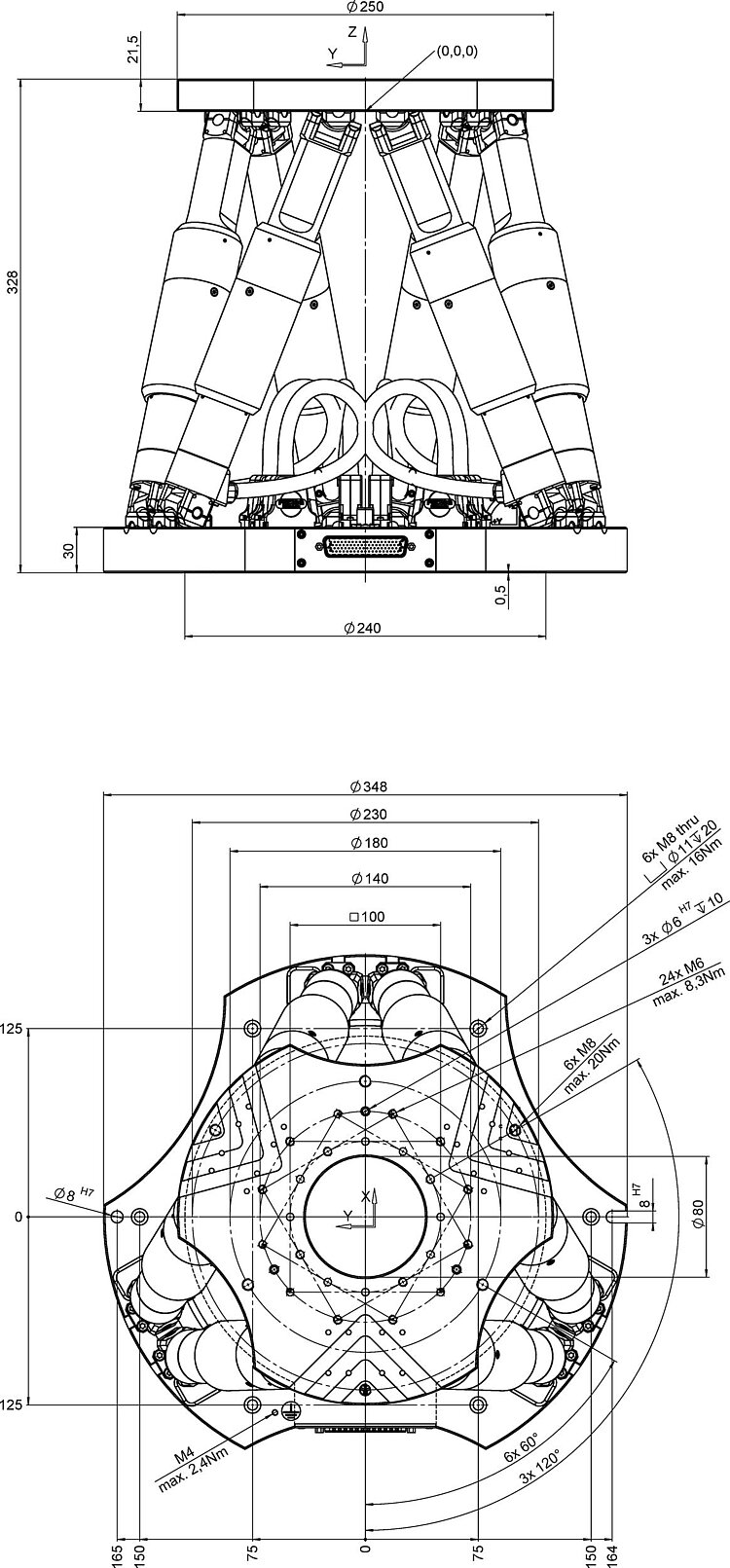

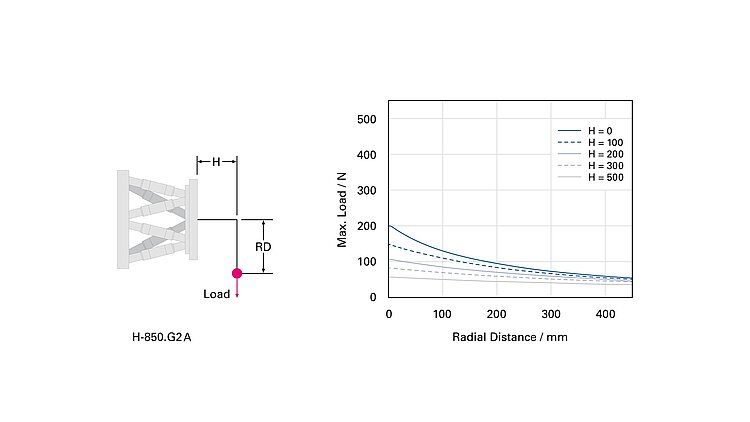

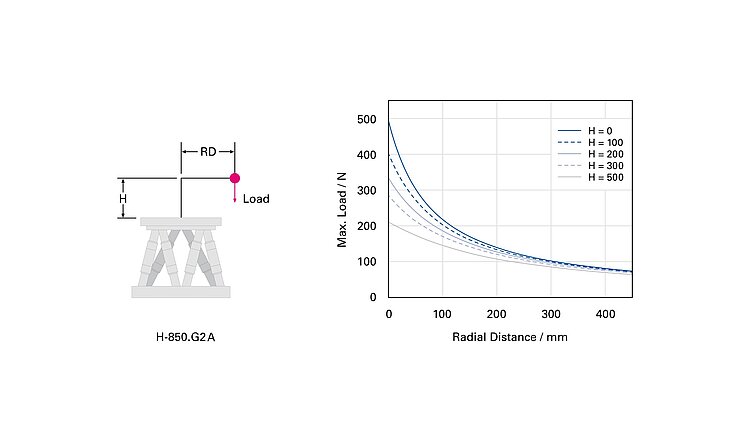

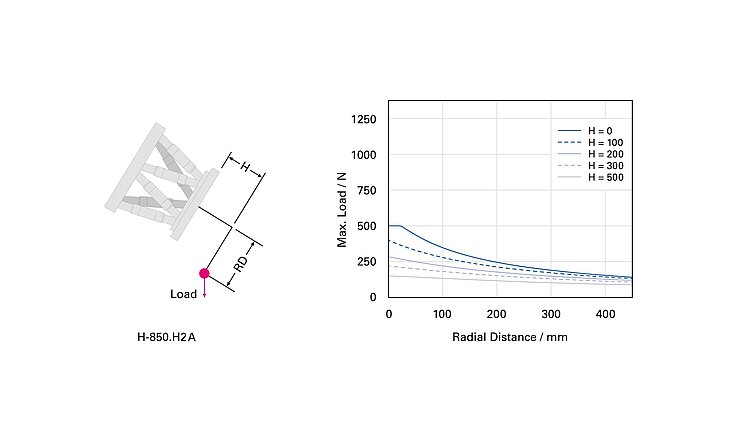

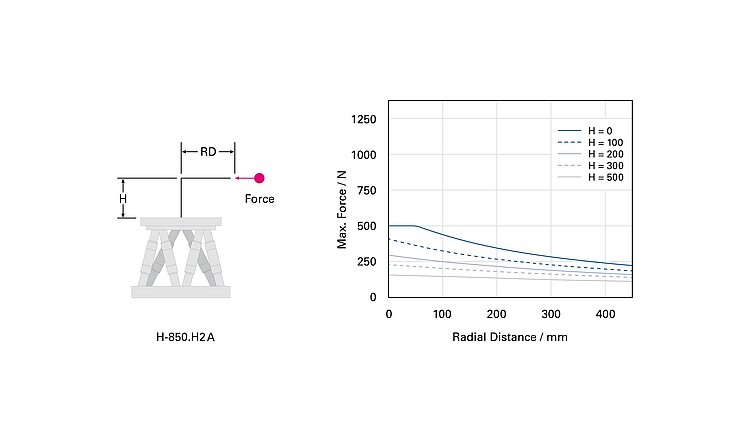

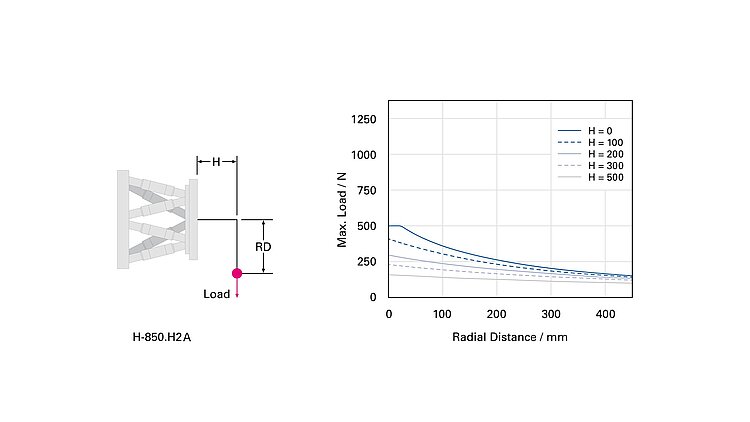

Specifications

Datasheet

Datasheet H-850

Version / Date
2021-07-08
pdf - 5 MB
Version / Date
2021-07-08
pdf - 4 MB

Downloads

Product Note

Product Note

Product Change Notification Motor Driven Products

Version / Date
2021-04-19
pdf - 917 KB
English
Product Note

Product Change Notification H-850.H2, H-850.G2

Version / Date
2021-04-19
pdf - 78 KB
English
Product Note

Product Change Notification Hexapod Cables

Version / Date
2021-01-15
pdf - 186 KB
English
Product Note

Product Change Notification H-206.x1x, H-8xx.x1x, H-8xx.xVx, F-206.S

Version / Date
2019-04-04
pdf - 367 KB
English

Datasheet

Datasheet

Datasheet H-850

Version / Date
2021-07-08
pdf - 5 MB
Version / Date
2021-07-08
pdf - 4 MB

Documentation

Documentation

User Manual C887T0017

C-887.5Bxx Drag-chain capable cable sets for connecting H-206 and most H-8xx hexapod standard models to C-887.5xx controller models

Version / Date
2020-04-09
pdf - 271 KB
English
Documentation

Short Instructions MS247EK

Hexapod Systems: H-xxx Hexapod with C-887.5xx Controller

Version / Date
2.0.0 06/2020
pdf - 2 MB
Version / Date
2.0.0 06/2020
pdf - 2 MB
Documentation

User Manual MS202

H-850 Hexapod Microrobot with Excellent Position Repeatability

Version / Date
2.3.0 2019-12-03
pdf - 2 MB
Version / Date
2.3.0 2019-12-03
pdf - 2 MB

3-D Models

3-D Models

3-D model H-850.x2x

Version / Date
2021-04-20
zip - 5 MB

Software Files

Software Files

Hexapod Simulation Tool

Version / Date
2020-02-10
zip - 4 MB

White Paper

White Paper

Industrial Safety Device for Hexapods

How to Connect a Safety Light Barrier to a Hexapod System

Version / Date
WP4025E 2020-02
pdf - 1 MB
Version / Date
WP4025D 2020-01
pdf - 1 MB
Separate connection cable required for power supply and data transmission. Please refer to the C-815.82xxx datasheet for detailed information. Connecting cables are not in the scope of delivery, although this may be stated otherwise in the manual. The manual is currently being revised.

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

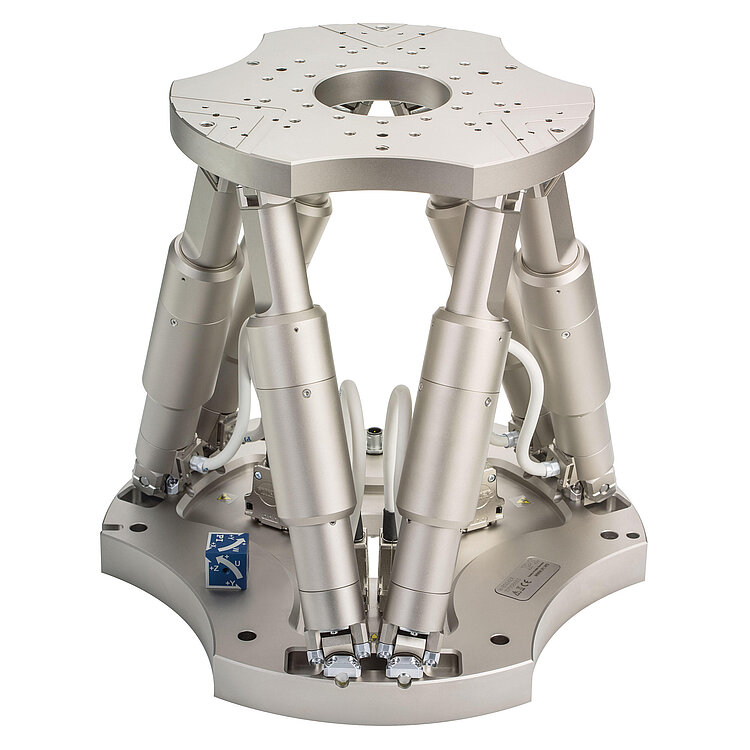

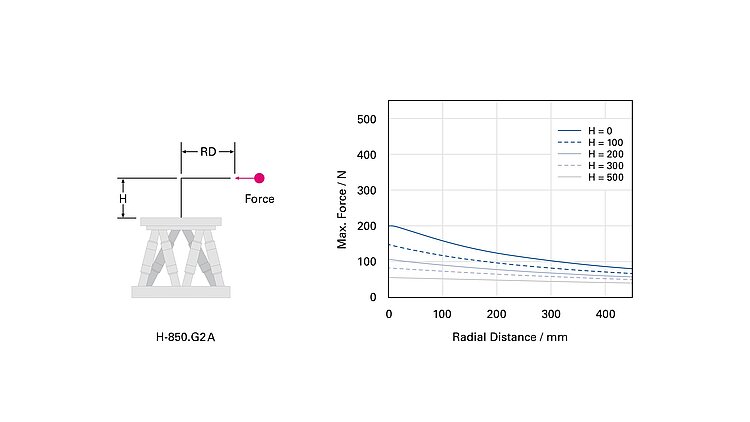

H-850.G2A
Precision Hexapod microrobot, brushless DC gear motor, absolute encoder, 50 kg load capacity, 8 mm/s velocity. Connecting cables are not in the scope of delivery and must be ordered separately.
H-850.H2A
Precision Hexapod microrobot, brushless DC gear motor, absolute encoder, 250 kg load capacity, 0.5 mm/s velocity. Connecting cables are not in the scope of delivery and must be ordered separately.
