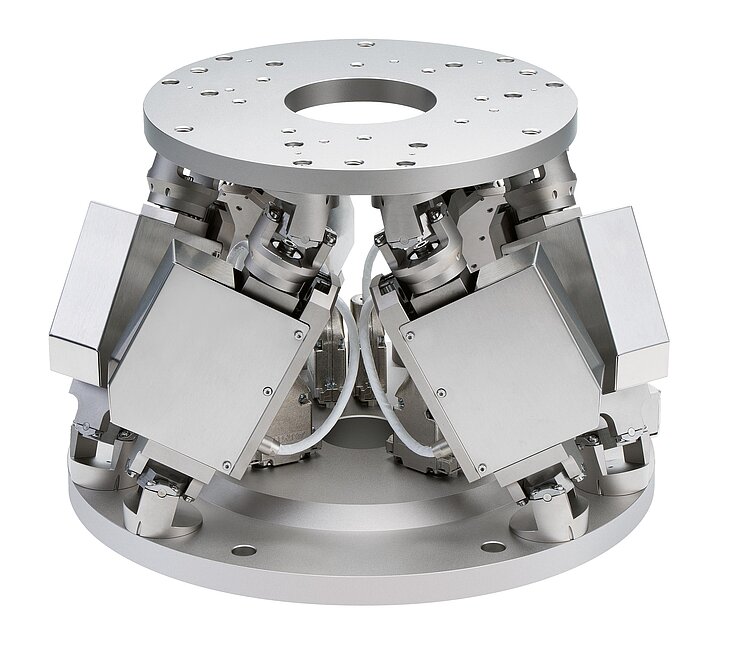

H-824.V Vacuum-Compatible 6-Axis Hexapod

Compact and Precise

  • Load capacity to 5 kg, self-locking version
  • Travel ranges to 45 mm / 25°
  • Min. incremental motion to 0.3 µm
  • Repeatability to ±0.1 µm / ±2 µrad
  • Velocity to 12.5 mm/s
H-824.V Vacuum-Compatible 6-Axis Hexapod
Product Description Specifications Downloads Quote / Order

Precision-class 6-axis positioning system

Parallel-kinematic design for six degrees of freedom making it significantly more compact and stiff than serial-kinematic systems, higher dynamic range, no moved cables: Higher reliability, reduced friction. suitable for vacuum environments to 10-6 hPa.

Compact due to folded drive design

PI Hexapod Simulation Tool

The simulation software simulates the limits of the workspace and load capacity of a hexapod. Therefore, even before making a purchase, you can check whether a particular hexapod model can handle the loads, forces, and torques occurring in an application. For this purpose, the simulation tool takes into account the position and motion of the hexapod as well as the pivot point and several reference coordinate systems.

Fields of application

Research and industry. For micromanipulation, biotechnology, semiconductor manufacturing

Specifications

Datasheet

Datasheet H-824.V

Version / Date
2020-12-10
pdf - 768 KB
Version / Date
2020-12-10
pdf - 755 KB

Downloads

Product Note

Product Note

Product Change Notification Motor Driven Products

Version / Date
2021-04-19
pdf - 917 KB
English
Product Note

Product Change Notification Hexapod Cables

Version / Date
2021-01-15
pdf - 186 KB
English

Datasheet

Datasheet

Datasheet H-824.V

Version / Date
2020-12-10
pdf - 768 KB
Version / Date
2020-12-10
pdf - 755 KB

Documentation

Documentation

User Manual C887T0017

C-887.5Bxx Drag-chain capable cable sets for connecting H-206 and most H-8xx hexapod standard models to C-887.5xx controller models

Version / Date
2020-04-09
pdf - 271 KB
English
Documentation

Short Instructions MS247EK

Hexapod Systems: H-xxx Hexapod with C-887.5xx Controller

Version / Date
2.0.0 06/2020
pdf - 2 MB
Version / Date
2.0.0 06/2020
pdf - 2 MB
Documentation

User Manual MS200

H-824 Compact Microrobot

Version / Date
2.3.0 2019-12-04
pdf - 1 MB
Version / Date
2.3.0 2019-12-04
pdf - 1 MB

3-D Models

3-D Models

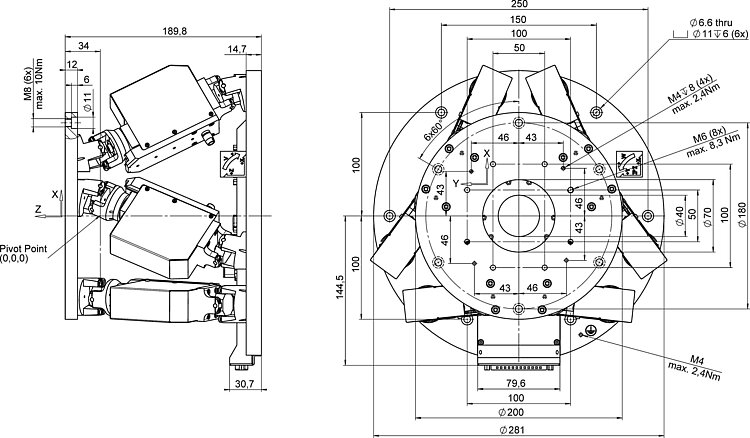

H-824.x2x 3-D model

Version / Date
2020-11-24
zip - 4 MB

Software Files

Software Files

Hexapod Simulation Tool

Version / Date
2020-02-10
zip - 4 MB
Separate connection cable required for power supply and data transmission. Connecting cables are not in the scope of delivery, although this may be stated otherwise in the manual. The manual is currently being revised.

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

H-824.G2V
Compact hexapod microrobot, gearhead, 0.5 mm/s, 5 kg load, vacuum compatible to 10-6 hPa, D-sub connector, cable set 2 m vacuum side, feedthrough. Air side connecting cables are not included in the scope of delivery and must be ordered separately.
H-824.D2V
Compact hexapod microrobot, direct drive, 12.5 mm/s, 2.5 kg load, vacuum compatible to 10-6 hPa, D-sub connector, cable set 2 m vacuum side, feedthrough. Air side connecting cables are not included in the scope of delivery and must be ordered separately.

Data transmission cables in other lengths

Power supply cables in other lengths
