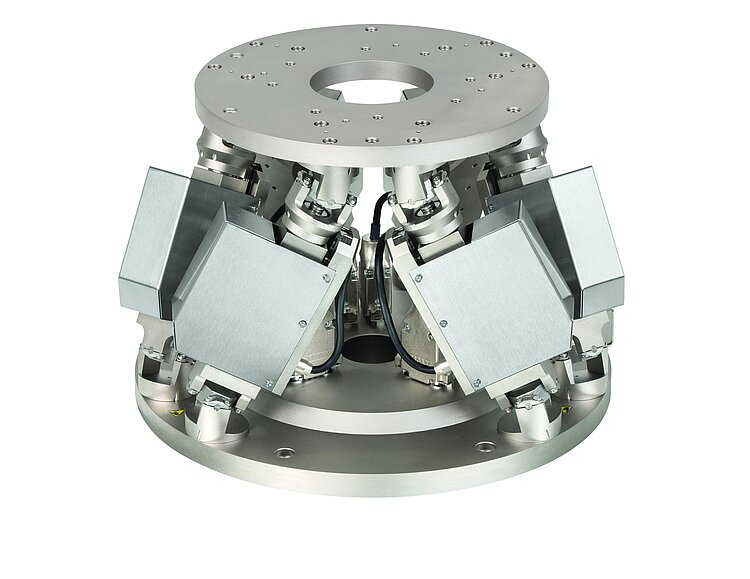

H-824 6-Axis Hexapod

Compact and Precise

H-824 6-Axis Hexapod
Product Description Specifications Downloads Quote / Order
  • Load capacity to 10 kg, self-locking version
  • Travel ranges to 45 mm / 25°
  • Min. incremental motion to 0.3 µm
  • Repeatability to ±0.1 µm / ±2 µrad
  • Velocity to 25 mm/s

Precision-class 6-axis positioning system

Parallel-kinematic design for six degrees of freedom making it significantly more compact and stiff than serial-kinematic systems, higher dynamic range, no moved cables: Higher reliability, reduced friction.

Compact due to folded drive design

PI Hexapod Simulation Tool

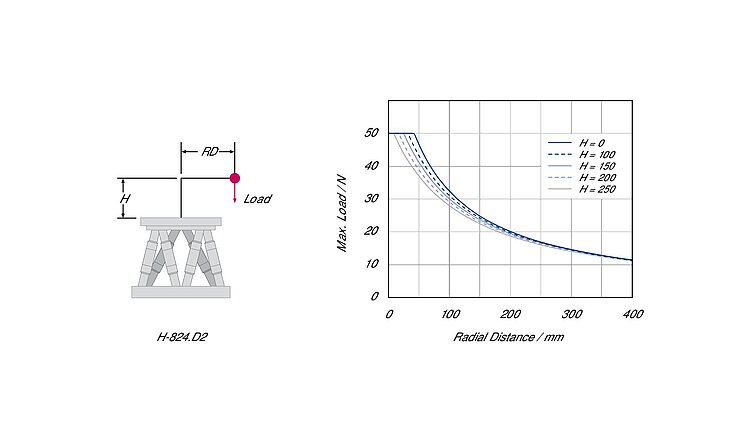

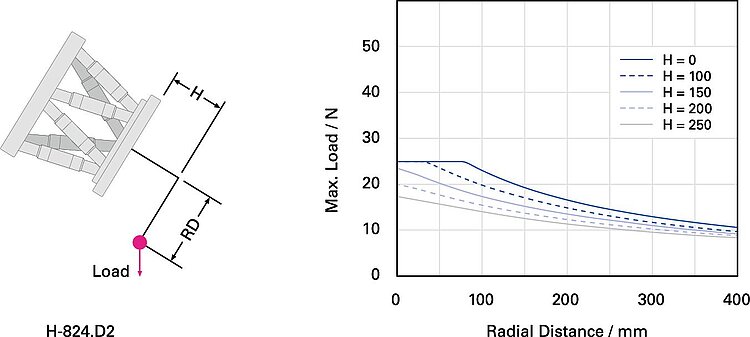

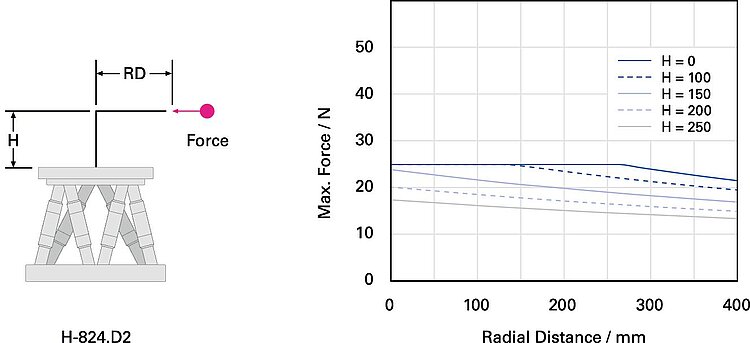

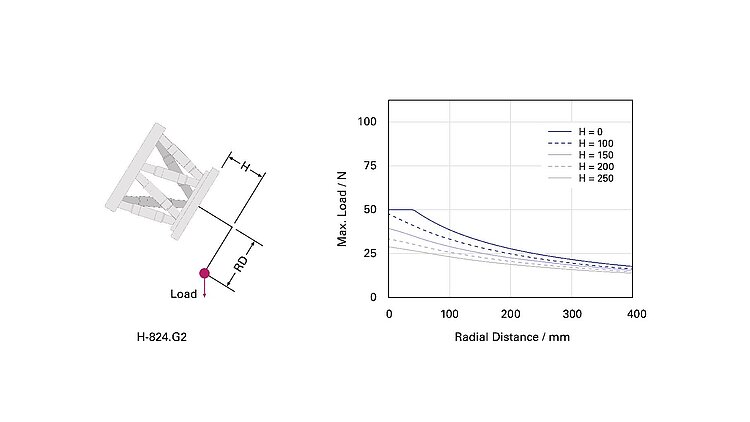

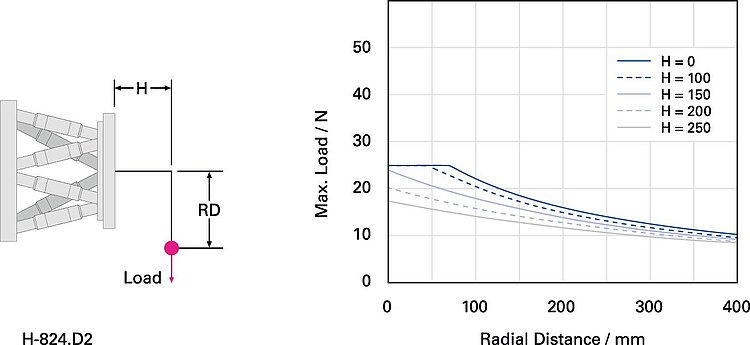

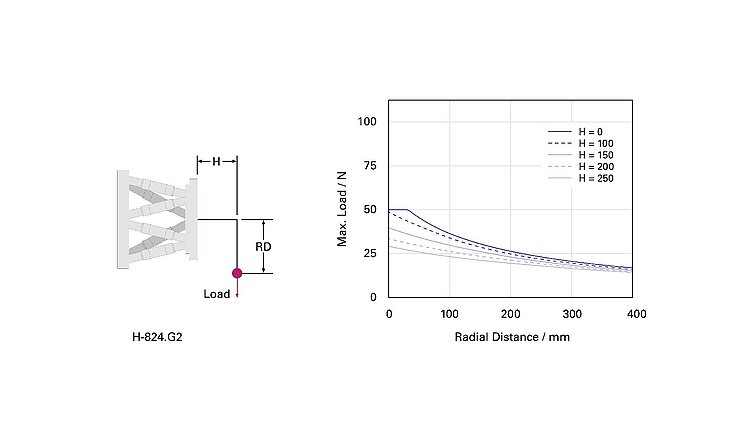

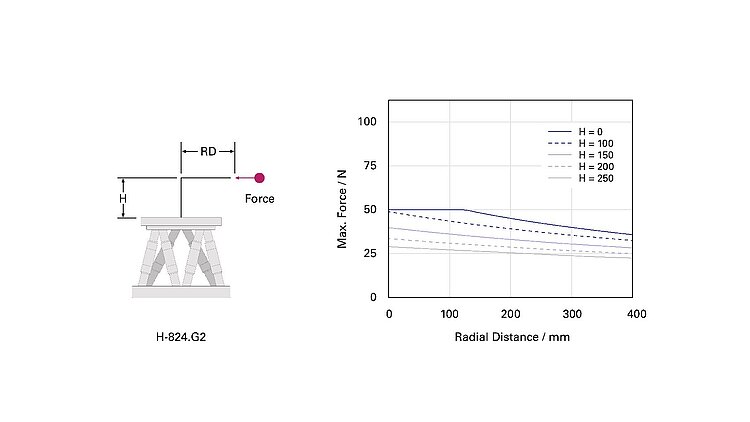

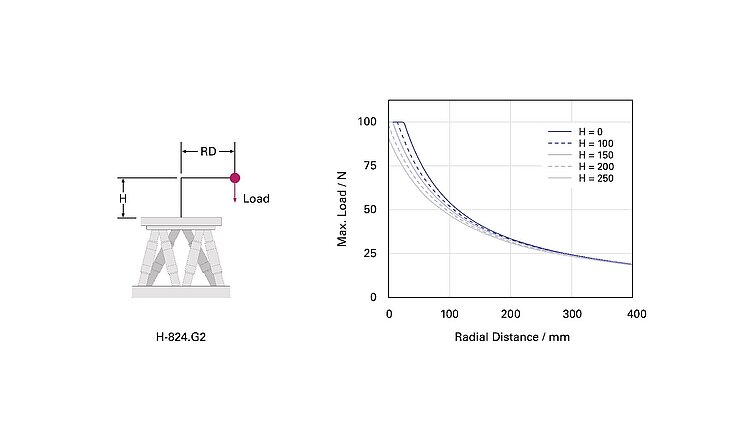

The simulation software simulates the limits of the workspace and load capacity of a hexapod. Therefore, even before making a purchase, you can check whether a particular hexapod model can handle the loads, forces, and torques occurring in an application. For this purpose, the simulation tool takes into account the position and motion of the hexapod as well as the pivot point and several reference coordinate systems.

Fields of application

Research and industry. For micromanipulation, biotechnology, semiconductor manufacturing
