- Travel ranges to ±17 mm / ±21°

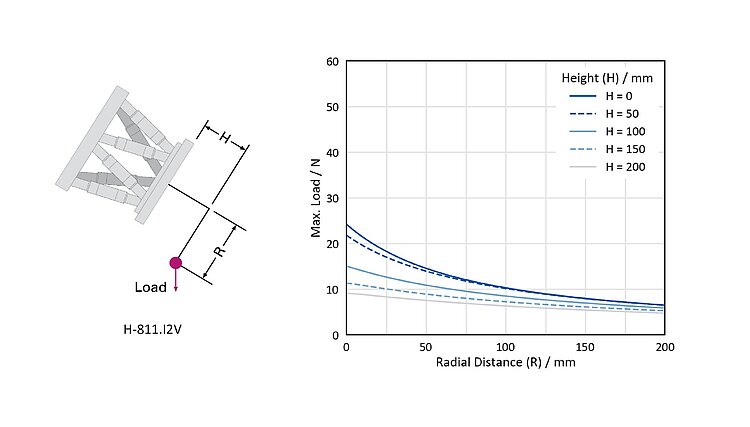

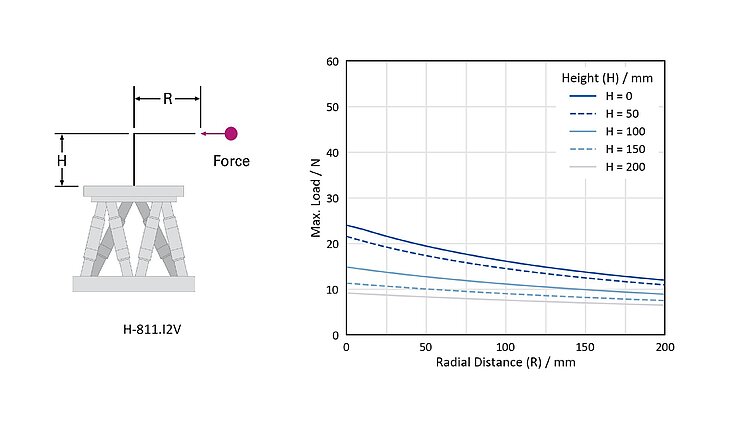

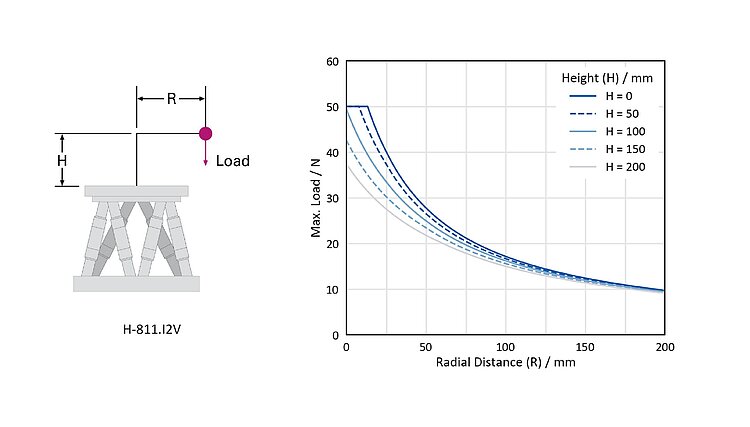

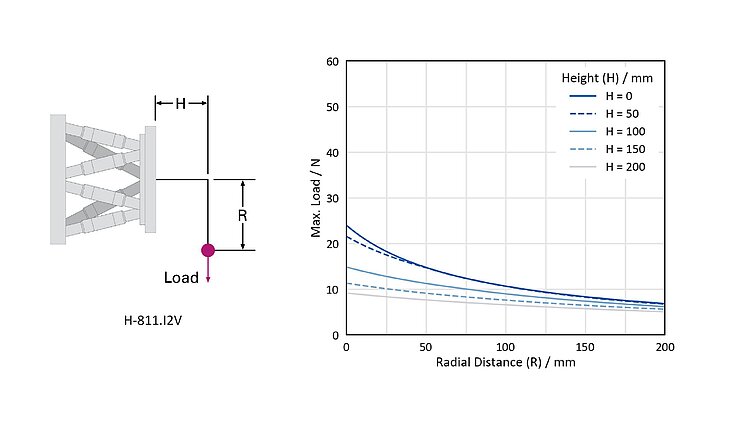

- Load capacity to 5 kg
- Repeatability to ±0.06 µm
- Velocity to 10 mm/s
- Vacuum compatible to 10-6 hPa

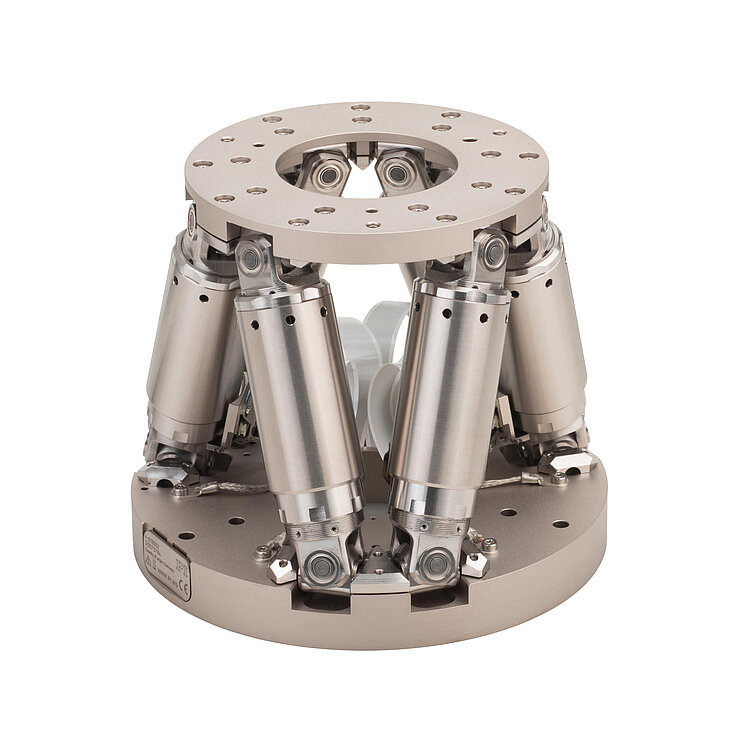

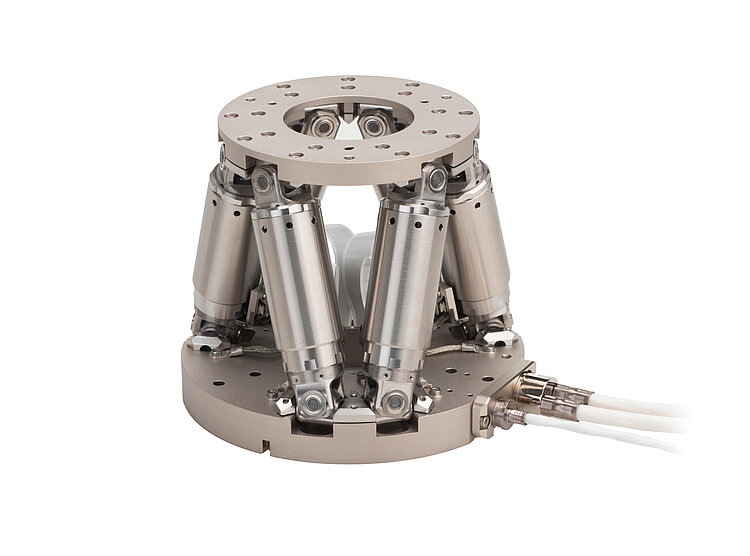

Reference-class 6-axis positioning system

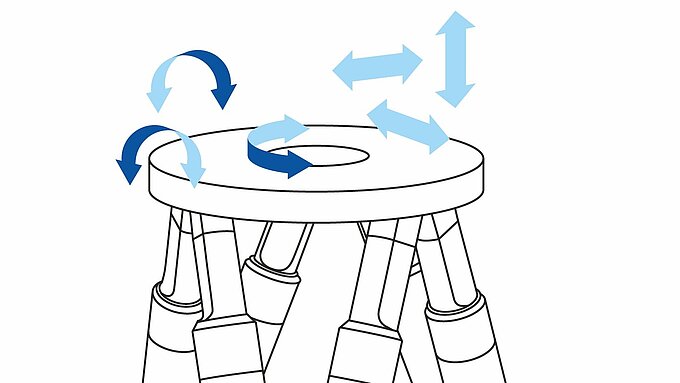

Parallel-kinematic design for six degrees of freedom making it significantly more compact and stiff than serial-kinematic systems, higher dynamic range, no moved cables: Higher reliability, reduced friction. suitable for vacuum environments to 10-6 hPa.
Brushless DC motor (BLDC)
Brushless DC motors are particularly suitable for high rotational speeds. They can be controlled very accurately and ensure high precision. Because they dispense with sliding contacts, they run smoothly, are wear-free and therefore achieve a long lifetime.
PI Hexapod Simulation Tool
The simulation software simulates the limits of the workspace and load capacity of a hexapod. Therefore, even before making a purchase, you can check whether a particular hexapod model can handle the loads, forces, and torques occurring in an application. For this purpose, the simulation tool takes into account the position and motion of the hexapod as well as the pivot point and several reference coordinate systems.
Fields of application
Research and industry, micromanufacturing, medical technology, tool inspection.
Product Change Notification H-811.I2V
Short Instructions MS247EK
Hexapod Systems: H-xxx Hexapod with C-887.5xx Controller
User Manual MS235
H-811.I2, H-811.I2V, H-811.F2, and H-811.S2 miniature hexapods
H-811.x2x 3-D model
Hexapod Simulation Tool
Industrial Safety Device for Hexapods
How to Connect a Safety Light Barrier to a Hexapod System
