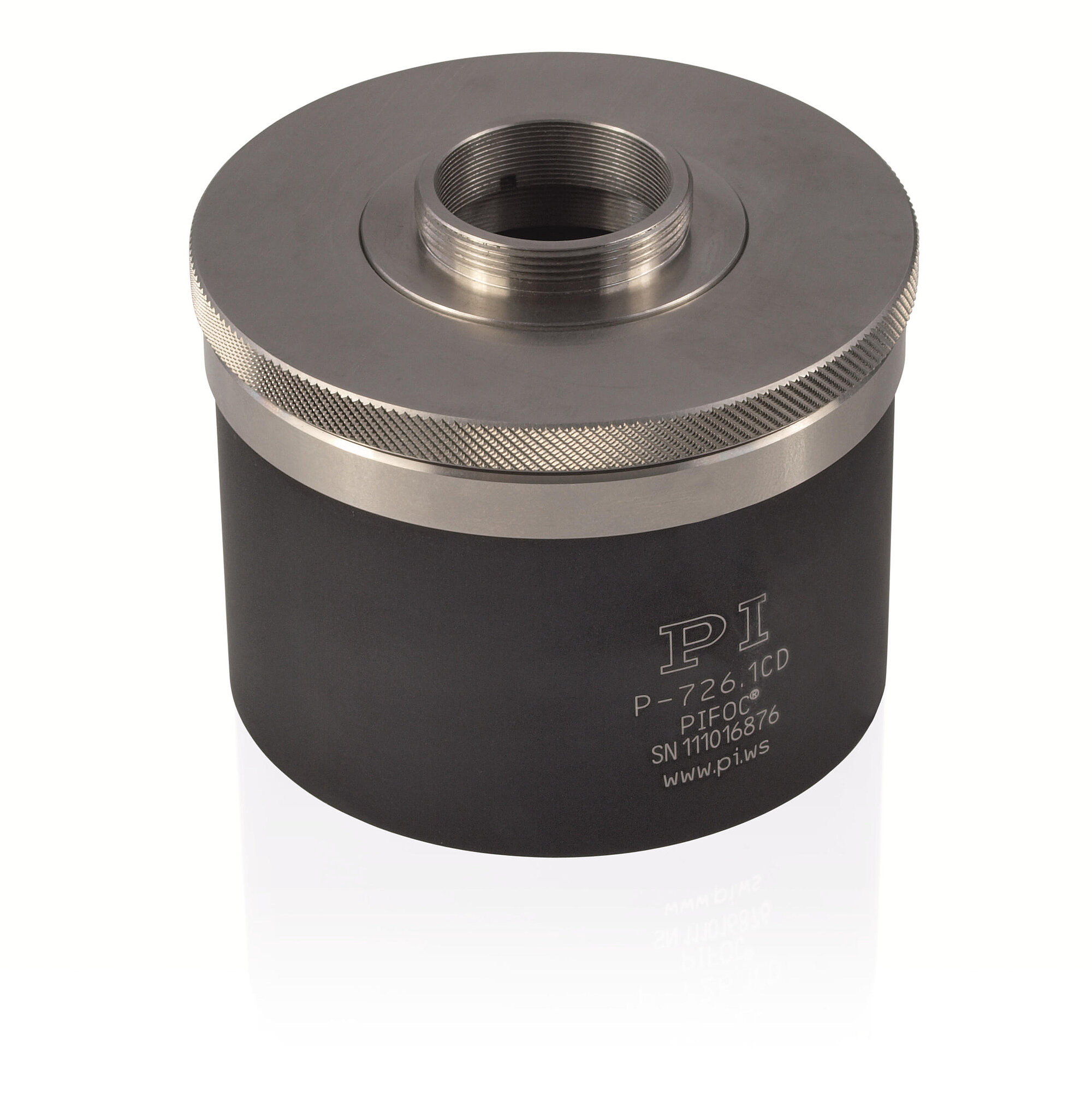

P-726 PIFOC High-Load Focus Scanner

Highly Dynamic Focus Scanner with Long Travel Range for Heavy Objectives

  • Highly dynamic positioning and scanning for large objectives
  • Resonant frequency 1120 Hz; 560 Hz with 210 g objective mass

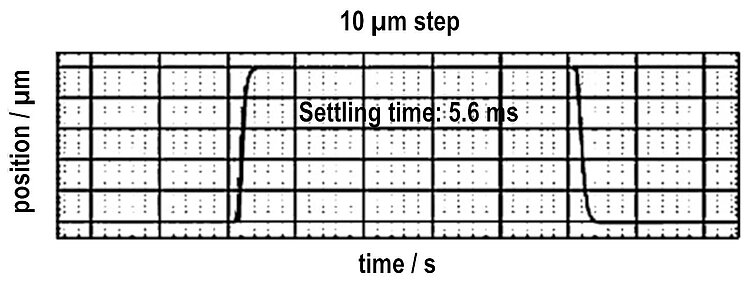

  • Typ. step-and-settle about 6 ms
  • Travel range 100 µm
  • Highest linearity, stability, and control dynamics due to direct-measuring capacitive sensors
  • Resolution 0.3 nm
  • Zero-play, high-precision flexure guide system for better focus stability
P-726 PIFOC High-Load Focus Scanner
Product Description Specifications Downloads Quote / Order

Application fields

  • Super-resolution microscopy
  • Light disk microscopy
  • Confocal microscopy
  • 3-D imaging
  • Screening
  • Interferometry
  • Measuring technology
  • Autofocus systems
  • Biotechnology
  • Semiconductor tests

Outstanding lifetime thanks to PICMA® piezo actuators

The PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

Subnanometer resolution with capacitive sensors

Capacitive sensors measure with subnanometer resolution without contacting. They guarantee excellent linearity of motion, long-term stability, and a bandwidth in the kHz range.

High guiding accuracy due to zero-play flexure guides

Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They work in a wide temperature range.

Automatic configuration and fast component exchange

Mechanics and controllers can be combined as required and exchanged quickly. All servo and linearization parameters are stored in the ID chip of the D-sub connector of the mechanics. The autocalibration function of the digital controllers uses this data each time the controller is switched on.

Maximum accuracy due to direct position measuring

Motion is measured directly at the motion platform without any influence from the drive or guide elements. This allows optimum repeatability, outstanding stability, and stiff, fast-responding control.

Specifications

Datasheet

Datasheet P-726

Version / Date
2023-12-12
pdf - 725 KB
Version / Date
2023-12-12
pdf - 728 KB
Version / Date
2018-10-24
pdf - 858 KB
Version / Date
2018-06-14
pdf - 780 KB

Downloads

Product Note

Product Note

Product Change Notification Piezo Actuator Driven Products

Version / Date
2021-04-19
pdf - 377 KB
English

Datasheet

Datasheet

Datasheet P-726

Version / Date
2023-12-12
pdf - 725 KB
Version / Date
2023-12-12
pdf - 728 KB
Version / Date
2018-10-24
pdf - 858 KB
Version / Date
2018-06-14
pdf - 780 KB

Documentation

Documentation

User Manual P726T0002

P-726.1CD PIFOC® High-Load Objective Scanner

Version / Date
2020-06-10
pdf - 1 MB
English
Documentation

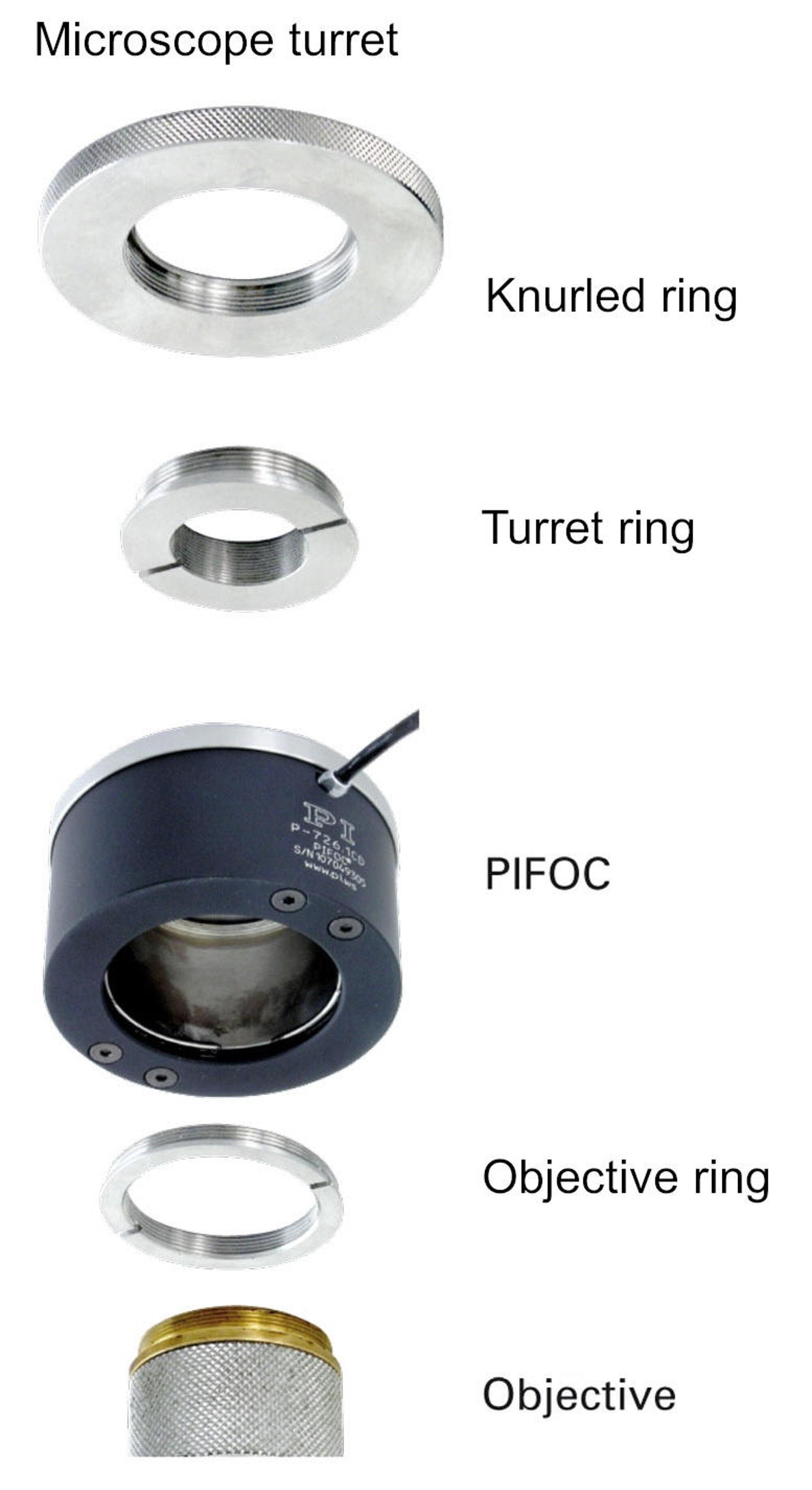

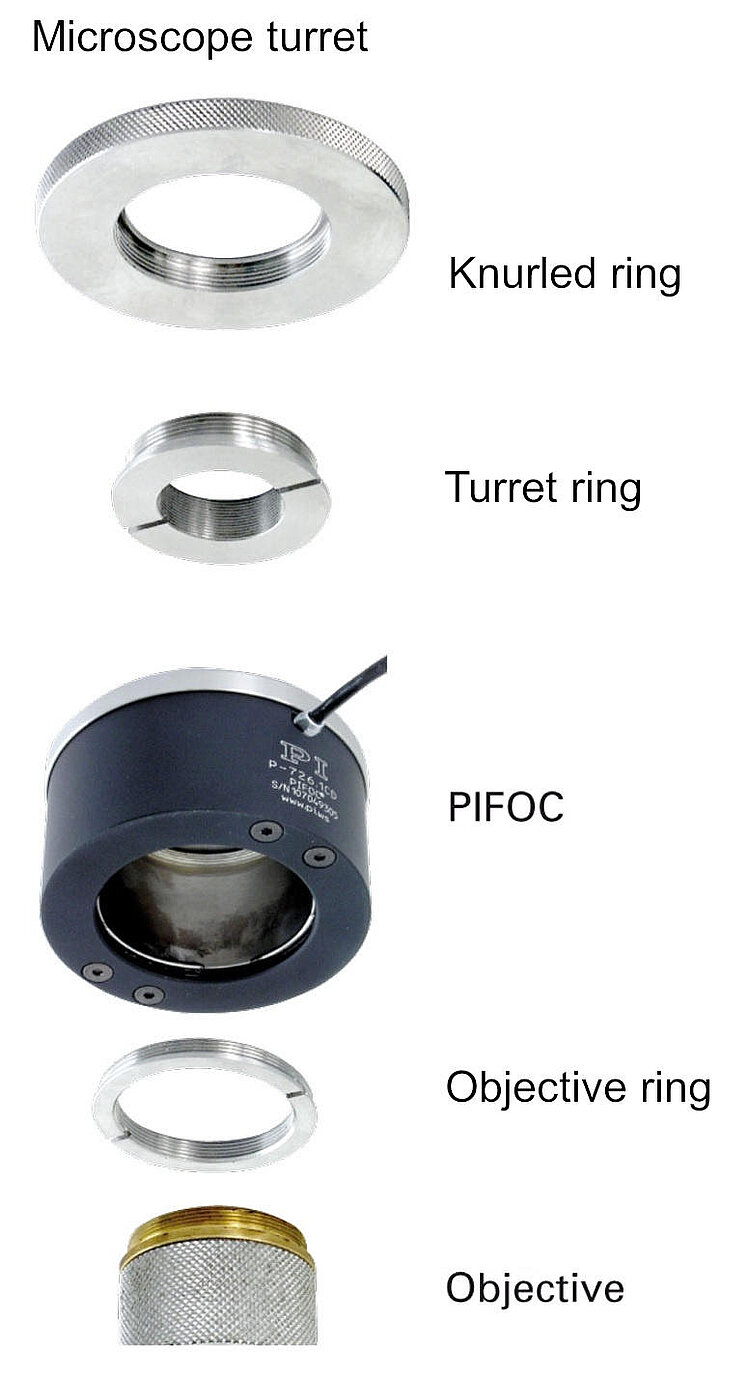

Installation Instructions P726T0001

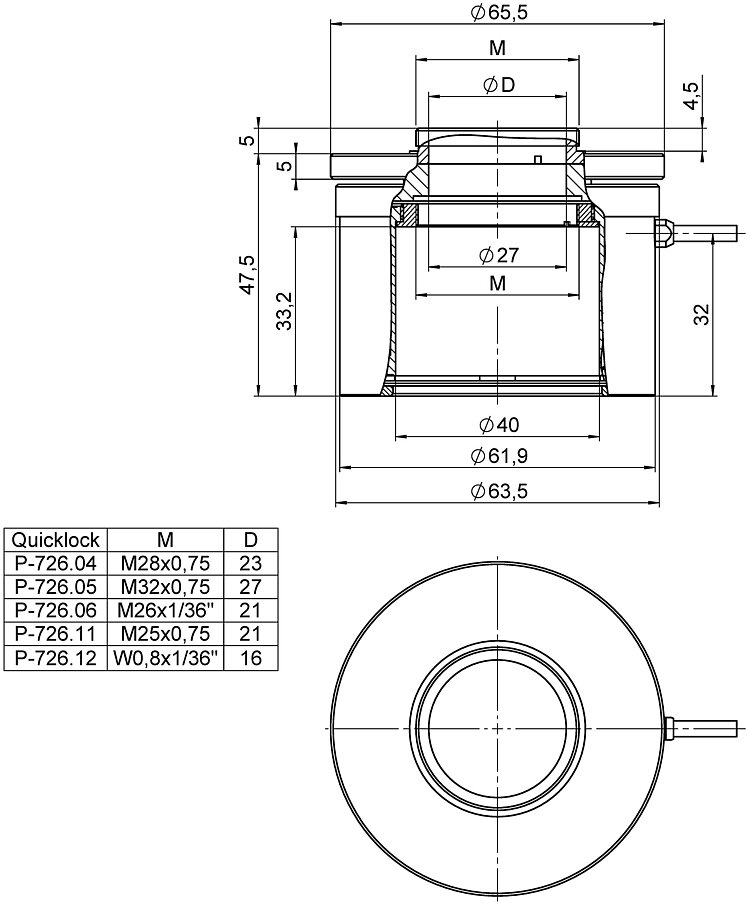

P-726.xx QuickLock Thread Adapters for P-726 PIFOC

Version / Date
2020-02-20
pdf - 736 KB
English
Documentation

Short Instructions PZ240

Piezo Positioning Systems: P-5xx / P-6xx / P-7xx

Version / Date
6.2.0 03/2024
pdf - 561 KB
Version / Date
6.2.0 03/2024
pdf - 595 KB

3-D Models

3-D Models

3-D-model P-726.1CD

zip - 394 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
