E-709.1C1L Compact and Cost-Optimized Digital Piezo Controller

For Capacitive Sensors, 1 Axis, with Monitoring Functionality

Many configuration options for application-optimized dynamics
Active control of device temperature
Extensive safety and monitoring functionalities
Linearity error 0.01 % (max.)

quote / order

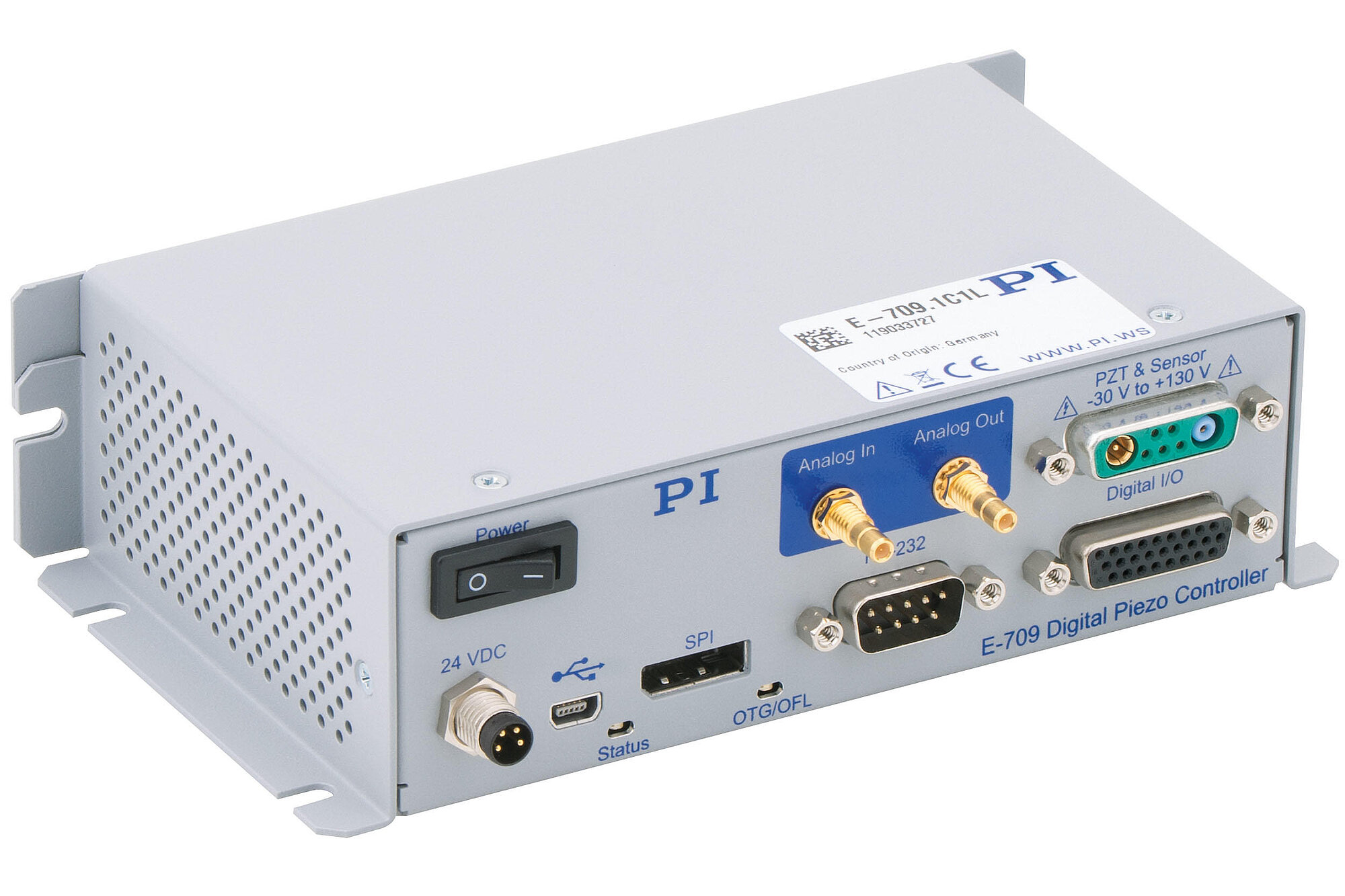

E-709.1C1L digital piezo controller for capacitive sensors, 1 axis

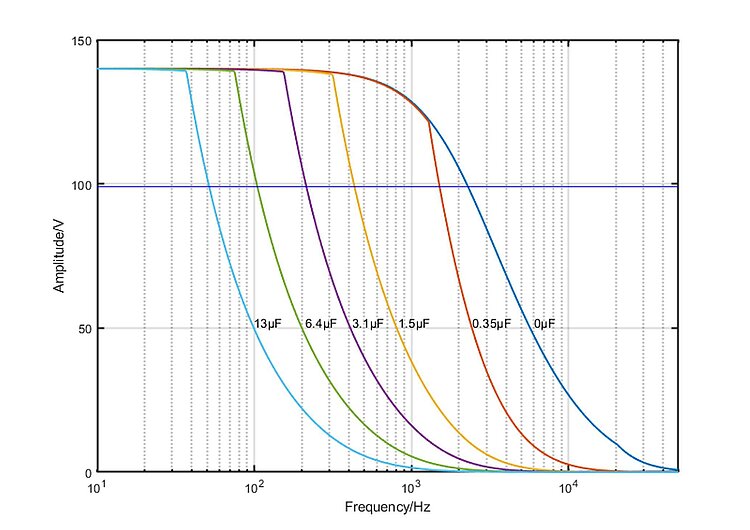

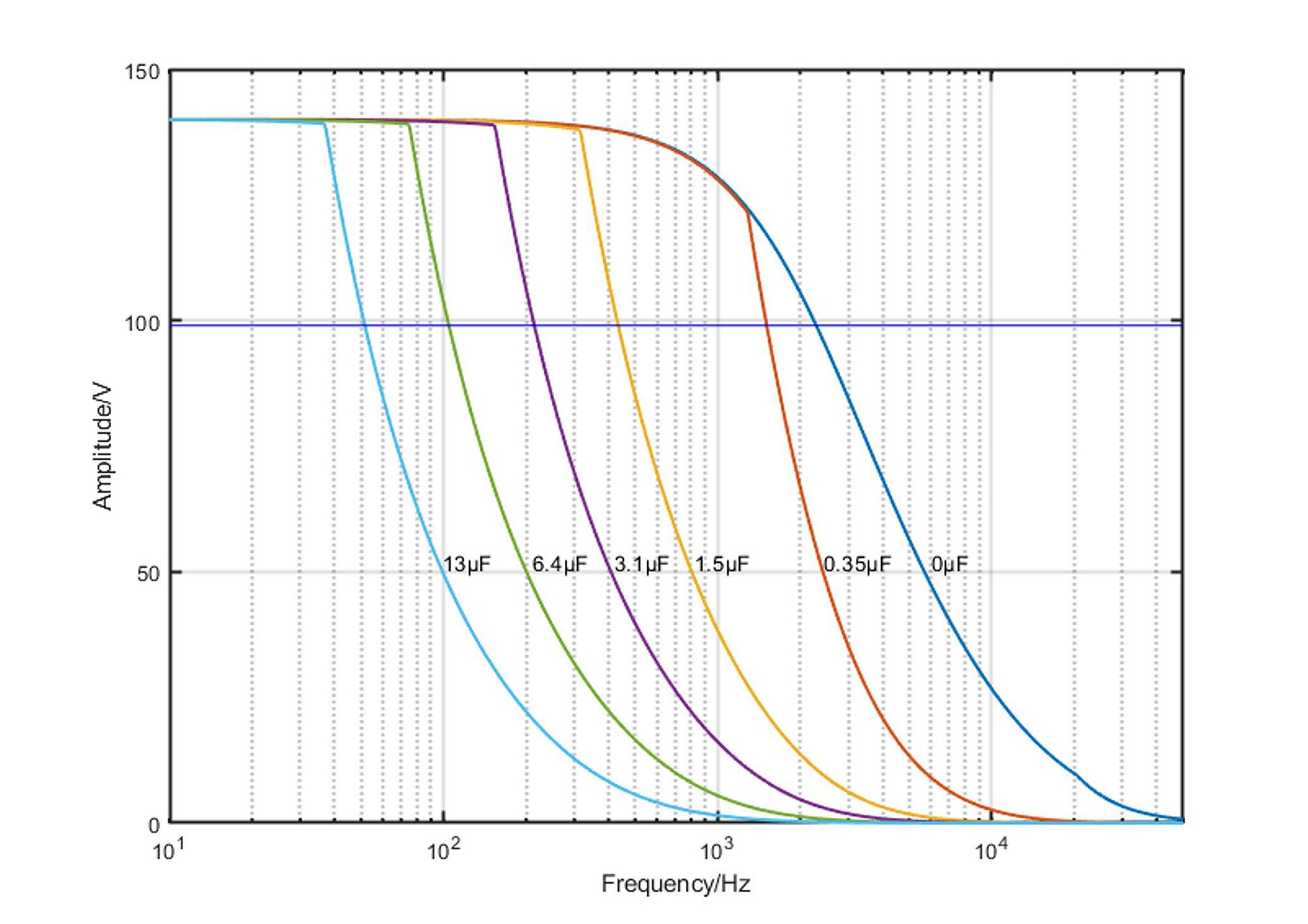

E-709.1C1L: Operatings limits (open loop) with various piezo loads, capacitance values in µF

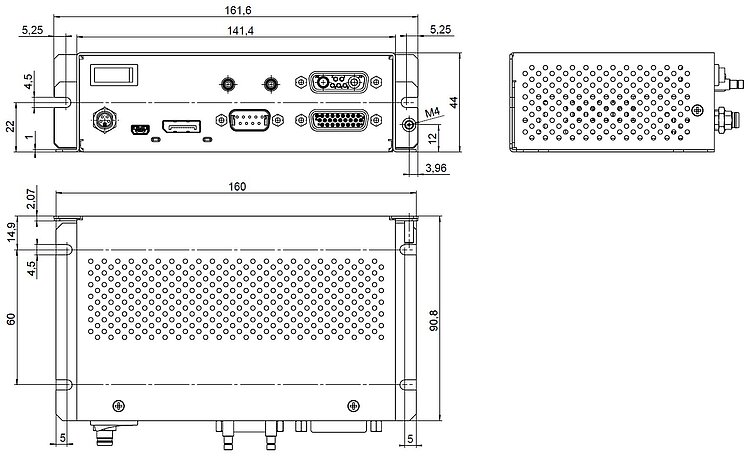

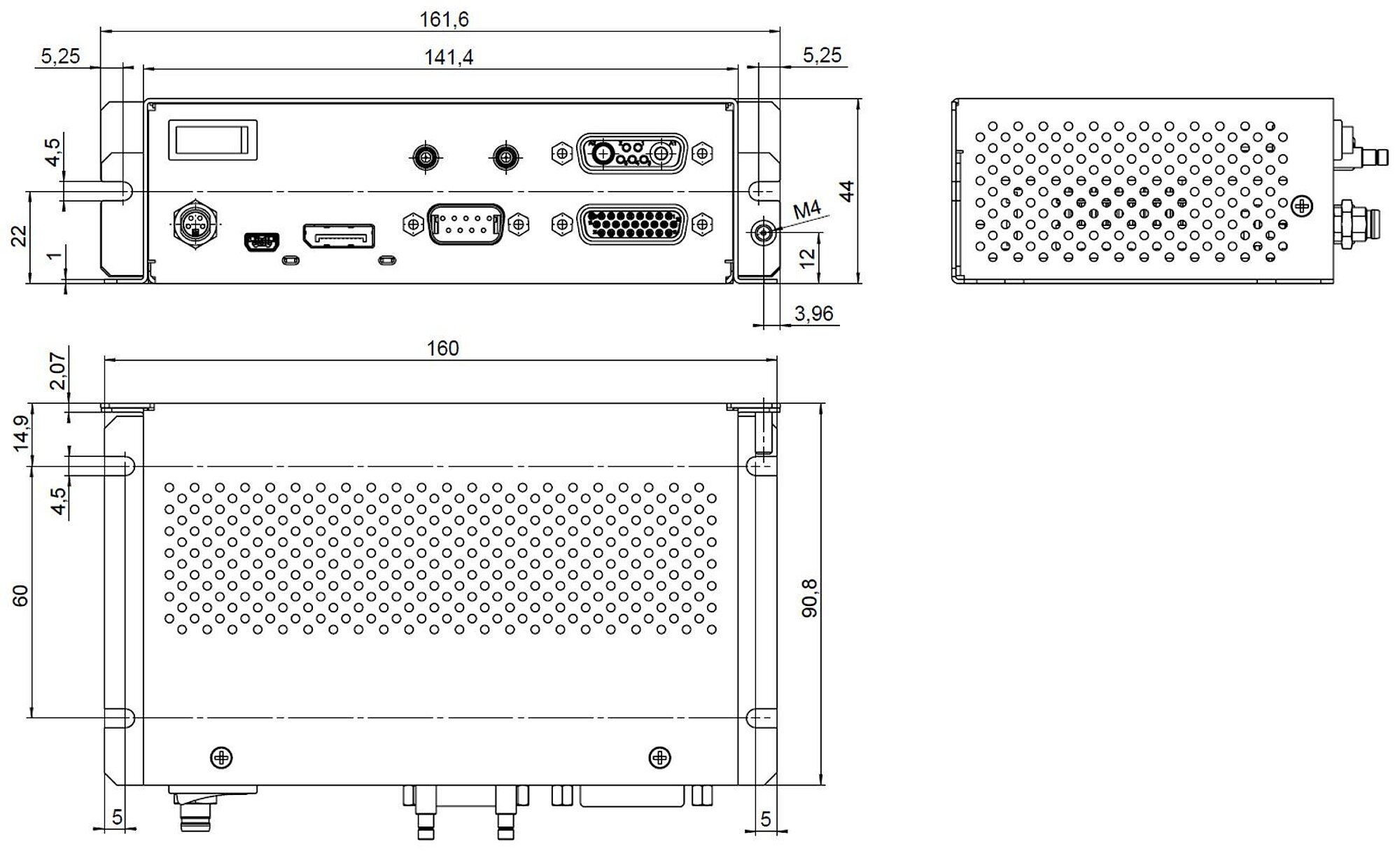

E-709.1C1L: Dimensions in mm

Cost-optimized, high-performance controller

For piezo-based single-axis nanopositioning systems with capacitive sensors. Output voltage -30 V to 130 V. Amplifier and sensor evaluation optimized for dynamic applications. Digital linearization. Digital servo controller can optionally be combined with profile generator and position feedforward control. Wave generator. Data recorder. Autozero. Trigger I/O. Supports all current ID chips from PI. Compact design with functional blocks for an easy derivation of OEM versions.

Temperature management

High position stability of the sensor electronics thanks to active temperature control. Adaptable to a wide variety of operating conditions. Temperature stable in less than 10 minutes after switching on. A short warm-up phase allows continuous operation to be dispensed with, therefore increasing the lifetime of the nanopositioning system while reducing energy requirement.

Safety and monitoring functionalities

Overtemperature protection for amplifier and sensor electronics. Short-circuit proof. Continuous, hardware-based measurement of input and output values such as voltage and current as well as internal temperature. High-frequency measurements for static and dynamic evaluation. Remote diagnostics possible thanks to specific query and recording of values.

Interfaces

USB and RS-232 (optional: RS-485) for commanding via PI General Command Set (GCS). Real-time SPI interface for position specification and query. High-bandwidth analog control input or sensor input. Analog output for sensor monitor or controlling an external amplifier. The servo cycle can be synchronized via differential inputs and outputs and the SPI interface.

Software interfaces

Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python. Compatible with µManager. PIMikroMove user software.

Application fields

Multiphoton microscopy, confocal microscopy
3-D imaging
Screening
Autofocus systems
Surface analysis
Wafer inspection

Download datasheet specifications quote / order

Datasheet

Version / Date

2026-07-03

pdf - 673 KB

Version / Date

2026-07-03

pdf - 678 KB

Version / Date

2026-07-03

pdf - 1 MB

Download

Basics	E-709.1C1L	Tolerance
Housing type	Benchtop device
Drive type	PICMA®
Axes	1
Processor	DSP 32-bit floating point, 200 MHz
Application-related functions	Data recorder
Drive functions	AutoZero
Protective functions	Deactivation of the voltage output in case of internal overheating
Configuration management	Import of parameter files ǀ Reading the ID chip ǀ Manual parameter input
Supported ID chip	ID chip 2.0
Motion and control	E-709.1C1L	Tolerance
Supported sensor signal	analog (cap.)
Control variables	Position
Maximum control frequency (servo cycle)	20000 Hz
Motion types	Point-to-point motion ǀ Point-to-point motion with profile generator ǀ Wave generator
Interfaces and operation	E-709.1C1L	Tolerance
Communication interfaces	RS-232 ǀ SPI ǀ USB 2.0
Motion-dependent inputs and outputs	Digital trigger input ǀ Digital trigger output ǀ Digital output servo cycle ǀ Analog control input ǀ Analog sensor input ǀ Analog control output ǀ Analog output for monitor of axis position
On/off switch	Hardware switch on/off
Display and indicators	Error LED ǀ Power LED ǀ On Target LED ǀ Overflow LED
Command set	GCS 2.0
User software	PIMikroMove
Application programming interfaces	C, C++, C# ǀ MATLAB ǀ NI LabView ǀ Python
Integration with third-party solutions	µManager ǀ Andor iQ
Linearization	4th order polynomials
Analog inputs	1
Analog input signal	-10 to 10 V
Digital resolution of the analog input	19 bit
Analog outputs	1
Analog output signal	-10 to 10 V
Digital resolution of the analog output	24 bit
Digital inputs	4
Digital input signal	TTL
Digital outputs	4
Digital output signal	TTL
Monitoring, recorded parameters	Temperature ǀ Input and output voltages ǀ Current consumption
Monitoring, sample rate	20 kHz
Monitoring, resolution	15 bit
Monitoring, data provision	Query by GCS command ǀ Recording by data recorder
Amplifier	E-709.1C1L	Tolerance
Resolution DAC/voltage resolution	24 bit
Sensor	E-709.1C1L	Tolerance
Digital resolution for the sensor input	19 bit
Sensor bandwidth	6.7 kHz
Sensor scanning frequency	20000 Hz
Electrical properties	E-709.1C1L	Tolerance
Output voltage	-30 to 130 V
Average output power	14 W	min.
Peak output power	28 W
Average output current	100 mA
Peak output current	200 mA
Peak output current, time limit	40 ms
Short-circuit proof	Yes
Miscellaneous	E-709.1C1L	Tolerance
Motor/actuator connector	D-sub 7W2 (f)
Connector analog input	SMB
Connector analog output	SMB
Connector digital input	HD D-sub 26 (f)
Connector digital output	HD D-sub 26 (f)
Connector USB	USB socket Mini-B
Connector RS-232	D-sub 9 (m)
Connector SPI	DisplayPort
Connector for supply voltage	M8 4-pole (m)
Operating voltage	24 V
Power adapter	Included in the scope of delivery ǀ Power adapter 24 V DC
Maximum power consumption	40 W
Operating temperature range	5 to 40 °C
Overall mass	415 g
Maximum warm-up time to 55 °C, at 20 °C ambient temperature	10 min
