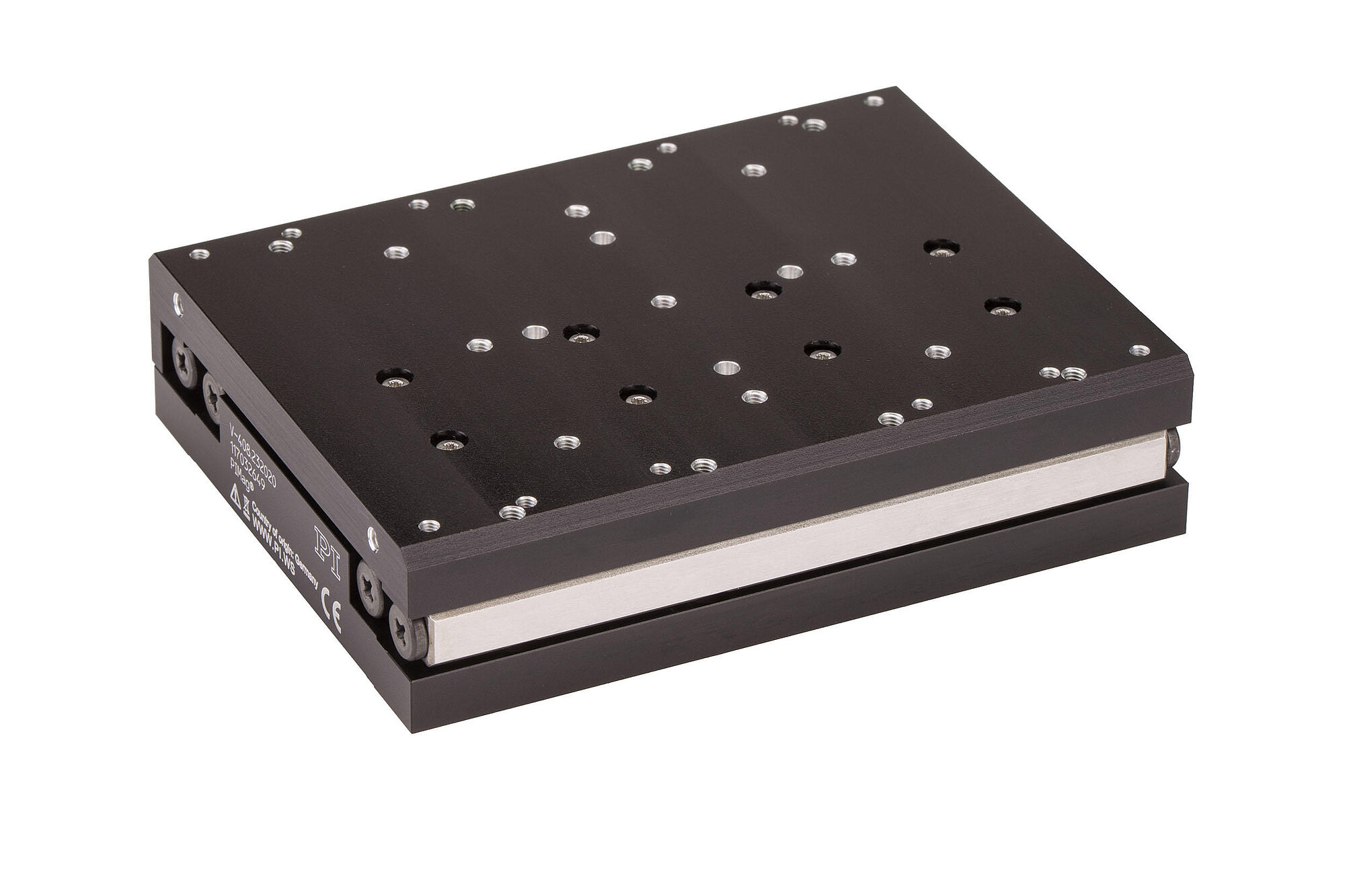

V-408 PIMag® Linear Stage

Inexpensive, with Linear Motor

V-408 PIMag® Linear Stage
Product Description Specifications Downloads Quote / Order
  • Iron core 3-phase linear motor
  • Crossed roller guides for high load capacity
  • Minimum incremental motion 20 nm
  • Bidirectional repeatability ±0.1 µm
  • Compact design
  • Low price

PIMag® magnetic direct drive

3-phase magnetic direct drives do not use mechanical components in the drivetrain, they transmit the drive force to the motion platform directly and without friction. The drives reach high velocities and accelerations. Iron core motors are used when forces and accelerations need to be achieved in a limited installation space. The design with iron cores maximizes the magnetic forces and ensures high thermal stability of the drive.

Crossed roller guide

With crossed roller guides, the point contact of the balls in ball guides is replaced by line contact of the hardened rollers. Consequently, they are considerably stiffer and need less preload, which reduces friction and allows smoother running. Crossed roller guides are also distinguished by high guiding accuracy and load capacity. Force-guided rolling element cages prevent cage creep.

Direct position measurement

Position measuring takes place directly at the motion platform with the highest accuracy so that nonlinearity, mechanical play or elastic deformation have no influence on position measuring.

Application fields

Industry and research. Automation technology with high demands on dynamics and precision.

Specifications

Datasheet V-408

Version / Date
2018-08-08
Version / Date
2018-08-08
Version / Date
2018-09-06
Document language
pdf - 228 KB
pdf - 231 KB
pdf - 750 KB

Downloads

Datasheet

Datasheet V-408

Version / Date
2018-08-08
Version / Date
2018-08-08
Version / Date
2018-09-06
Document language
pdf - 228 KB
pdf - 231 KB
pdf - 750 KB

Documentation

Short Instructions MP163EK

V-408 / V-508 / V-52x / V-551 Stages with PIMag® Drives
Version / Date
2.0.0 December 2017
Document language English
pdf - 619 KB

User Manual V408M0001

V-408.132020 PIMAG® POSITIONERS
Version / Date
2018-08-01
Version / Date
2018-08-01
Document language
pdf - 846 KB
pdf - 860 KB

User Manual V408M0002

V-408.232020 PIMAG® POSITIONERS
Version / Date
2018-08-01
Version / Date
2018-08-01
Document language
pdf - 849 KB
pdf - 862 KB

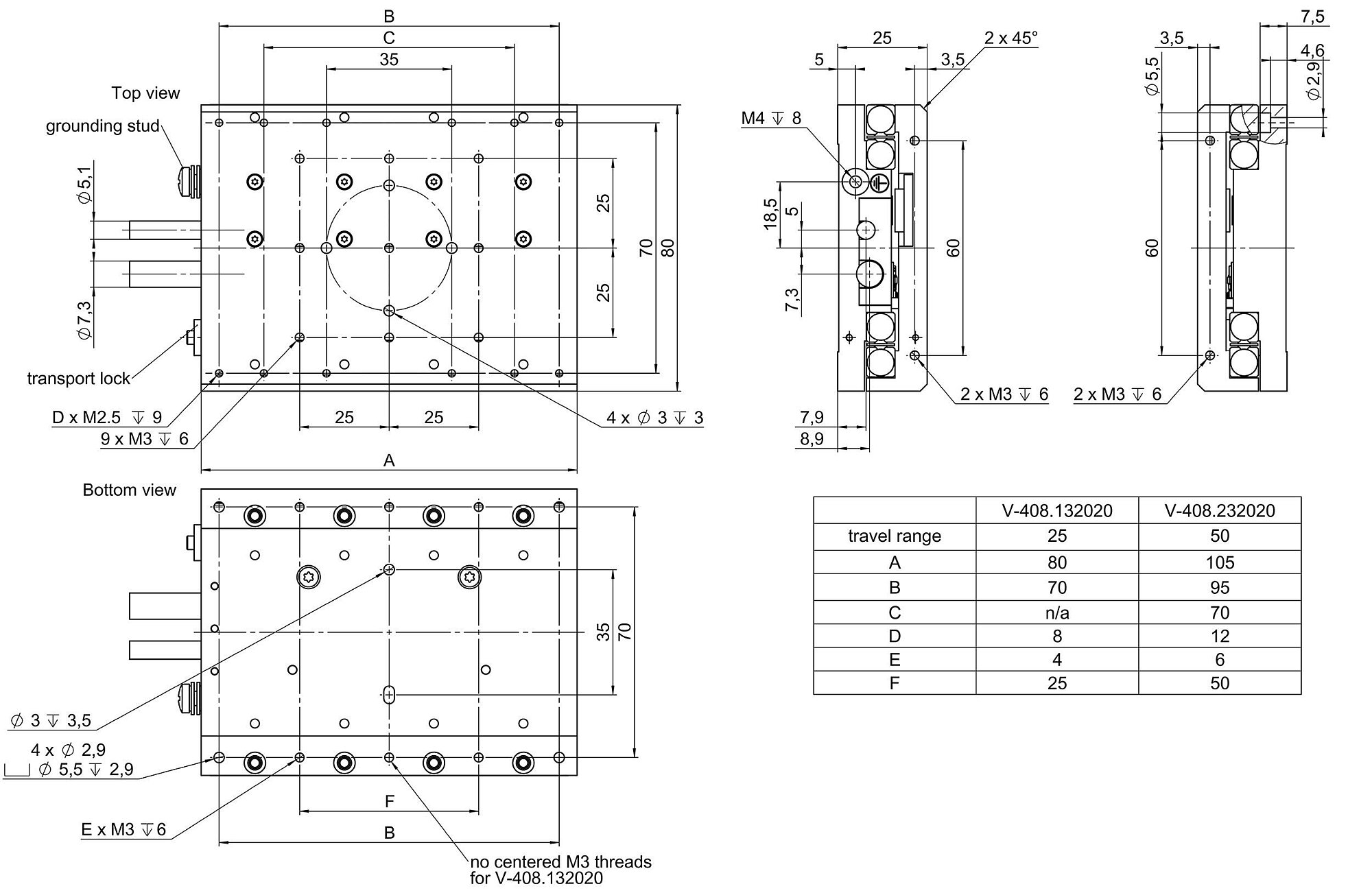

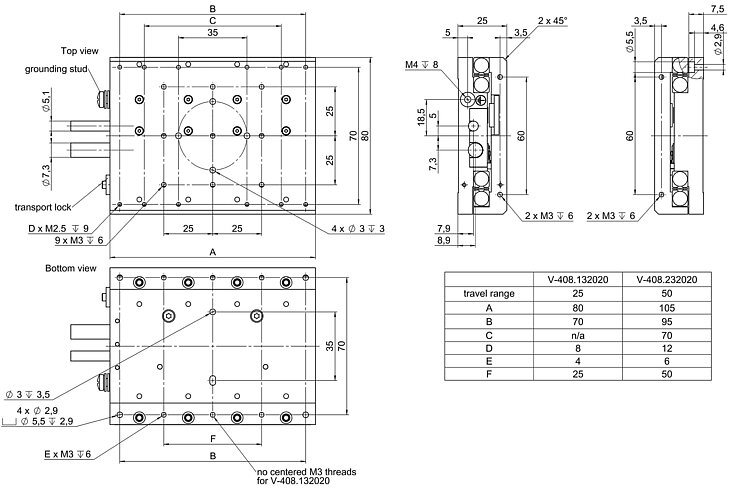

3-D Models

V-408 3-D model

V-408 3-D model

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

V-408.132020 NEW!
PIMag® linear stage, 80 mm width, 25 mm travel range, 80 N load capacity, incremental linear encoder with sin/cos signal transmission, 80 µm sensor signal period, iron core 3-phase linear motor, 48 V
V-408.232020 NEW!
PIMag® linear stage, 80 mm width, 50 mm travel range, 80 N load capacity, incremental linear encoder with sin/cos signal transmission, 80 µm sensor signal period, iron core 3-phase linear motor, 48 V
