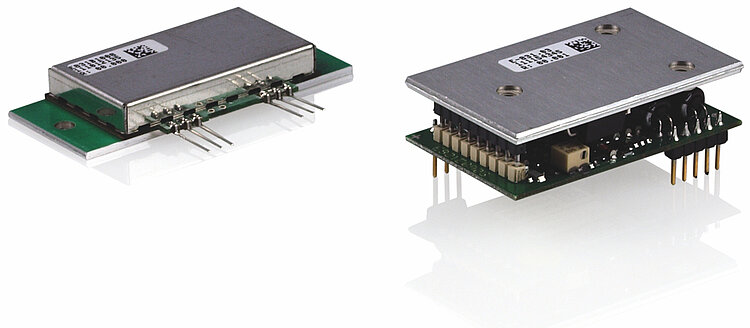

E-831 Piezo Amplifier Module

Low-Cost Module with Separate Power Adapter

E-831 Piezo Amplifier Module
Product Description Specifications Downloads Quote / Order
  • Compact piezo power amplifier
  • Peak current up to 250 mA
  • Inexpensive
  • Low noise, high stability
  • Easy integration
  • Short-circuit proof, full overcurrent and overtemperature protection

Single channel piezo amplifier module

Compact OEM module. Various models for different dynamic requirements. Power supply using external power adapter, also customer's own

Functions

Low-noise power amplifier. Gain value 10. Output voltage range -30 to 130 V, depending on the power adapter used. Monitor output 1 : 100. Overtemperature protection. Solder pins for PCB mounting

Optional power adapter modules

E-841 and E-842 power adapter modules with varied performance ranges. Suitable for supplying up to three E-831 piezo amplifiers. Custom power adapters on request

Specifications

Datasheet

Datasheet E-831

Version / Date
2019-12-12
Version / Date
2019-12-12
Document language
pdf - 804 KB
pdf - 807 KB

Downloads

Datasheet

Datasheet

Datasheet E-831

Version / Date
2019-12-12
Version / Date
2019-12-12
Document language
pdf - 804 KB
pdf - 807 KB

Documentation

Documentation

User Manual PZ143

E-841 / E-842 LVPZT Power Supply Modules
Version / Date
1.3.0 2012-01-16
Document language English
Documentation

User Manual PZ151

E-831.02 OEM Piezo Amplifier Module, 1 Channel
Version / Date
2007-01-31
Document language English
Documentation

User Manual PZ191

E-831.03 OEM Piezo Amplifier Module, 1 Channel
Version / Date
2007-01-29
Document language English
Documentation

User Manual PZ235

E-831.05 Piezo Amplifier, Miniature OEM Module, 1 Channel, -30 to 130 V
Version / Date
2012-03-06
Document language English

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
