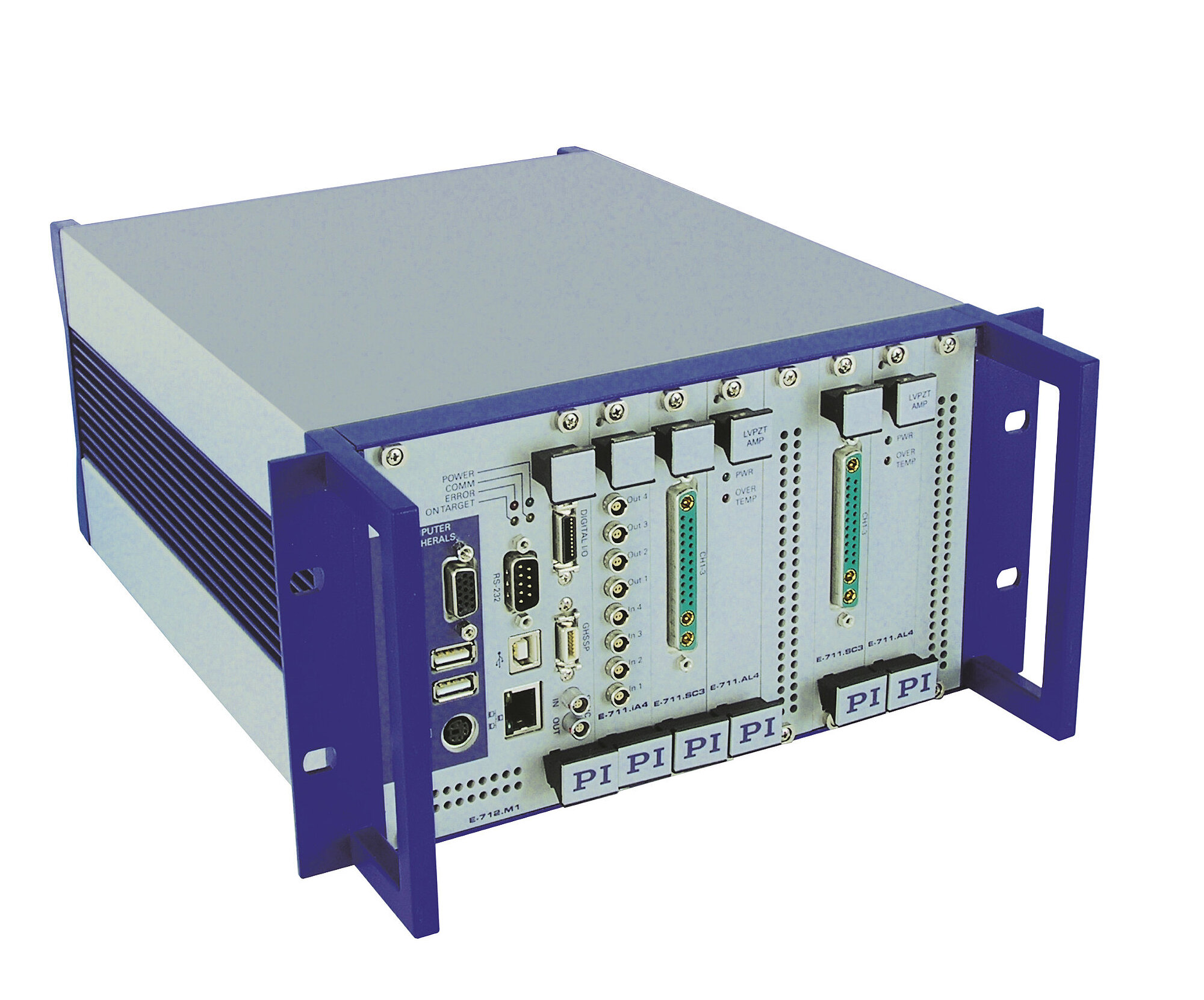

E-712 Digital Piezo Controller

Modular Controller for up to 6 Axes for Highest Precision

  • Up to 50 kHz servo update rate
  • Highly stable 20-bit D/A converter
  • Real-time operating system for excellent trajectory control
  • Autoloading of calibration data from stage ID chip for interchangeability of controller and mechanics
  • Flexible interfaces: TCP/IP, USB, RS-232; optional broadband analog inputs and outputs
  • Extensive software package
E-712 Digital Piezo Controller
Product Description Specifications Downloads Quote / Order

Digital linearization for the highest accuracy

Linearization algorithms based on higher-order polynomials reduce the linearity error to less than 0.01 %. That is typically 10 times better than conventional controllers.

Fast periodic motion and data recording

During fast periodic motion, such as that typical for scanning applications, it is possible to increase the tracking accuracy by up to a factor of three using Dynamic Digital Linearization (DDL). The integrated wave generator can save and output periodic motion profiles. Preconfigured sine and triangle wave profiles are provided to support the user when defining the curve, but any user-defined waveforms are possible. Flexible configuration of the data recorder allows recording of the corresponding data.

Flexible analog inputs and real-time PIO

Each of the four optionally available analog inputs can be configured in two ways. As control input, the voltage applied is linked to one of the axes, e.g., for target values. Configuration as external sensor input allows reading of additional sensor signals, e.g., for autofocusing. Alternatively, the controller can be equipped with a fast 32-bit PIO (parallel I/O) for commanding. The PIO supports a restricted command set with 100,000 read and write commands per second required for motion.

Easy system connection

All parameters can be set and checked via software. Easy startup and system configuration can be done via the PIMikroMove utility program, which is in the scope of delivery. Connection to the customer's software is possible via LabView drivers and DLLs. System programming is identical for all PI controllers – combined control of a variety of different controllers is therefore possible without any problems.

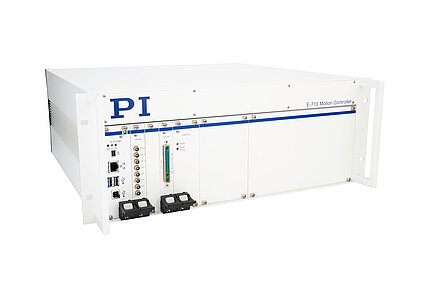

Modular design

PI offers preconfigured controllers for 3- and 6-axis operation. Moreover, customers can put controllers together exactly as required. For this purpose, various types of housings and modules as well as additional accessories are available:

  • E-712.R1, E-712.R3: 9.5" / 19" chassis for piezo voltages to 135 V, 3 to 6 axes

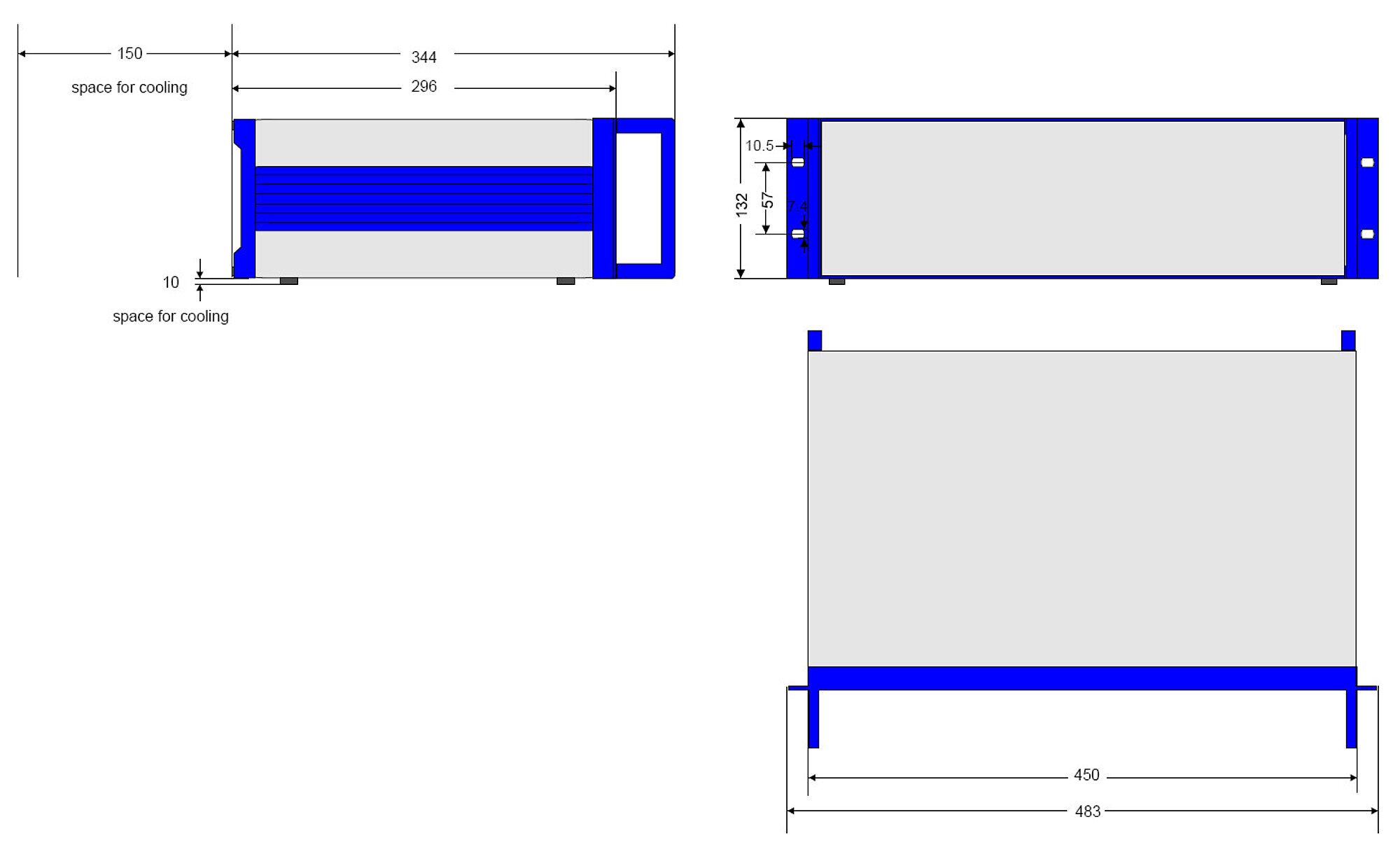

  • E-712.R2, E-712.R4: 19" / 9.5" chassis for piezo voltages to ±250 V, 3 to 6 axes

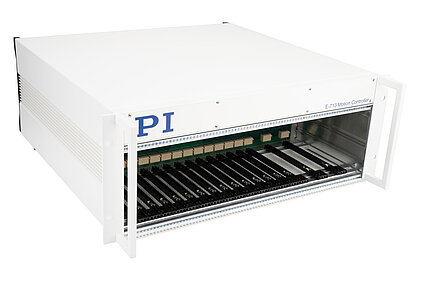

  • E-712.R5: Universal housing 19" 4 HE with CPCI bus
  • E-712.M1, E-712.N1: Digital processor and interface modules, TCP/IP, USB, RS-232 interface

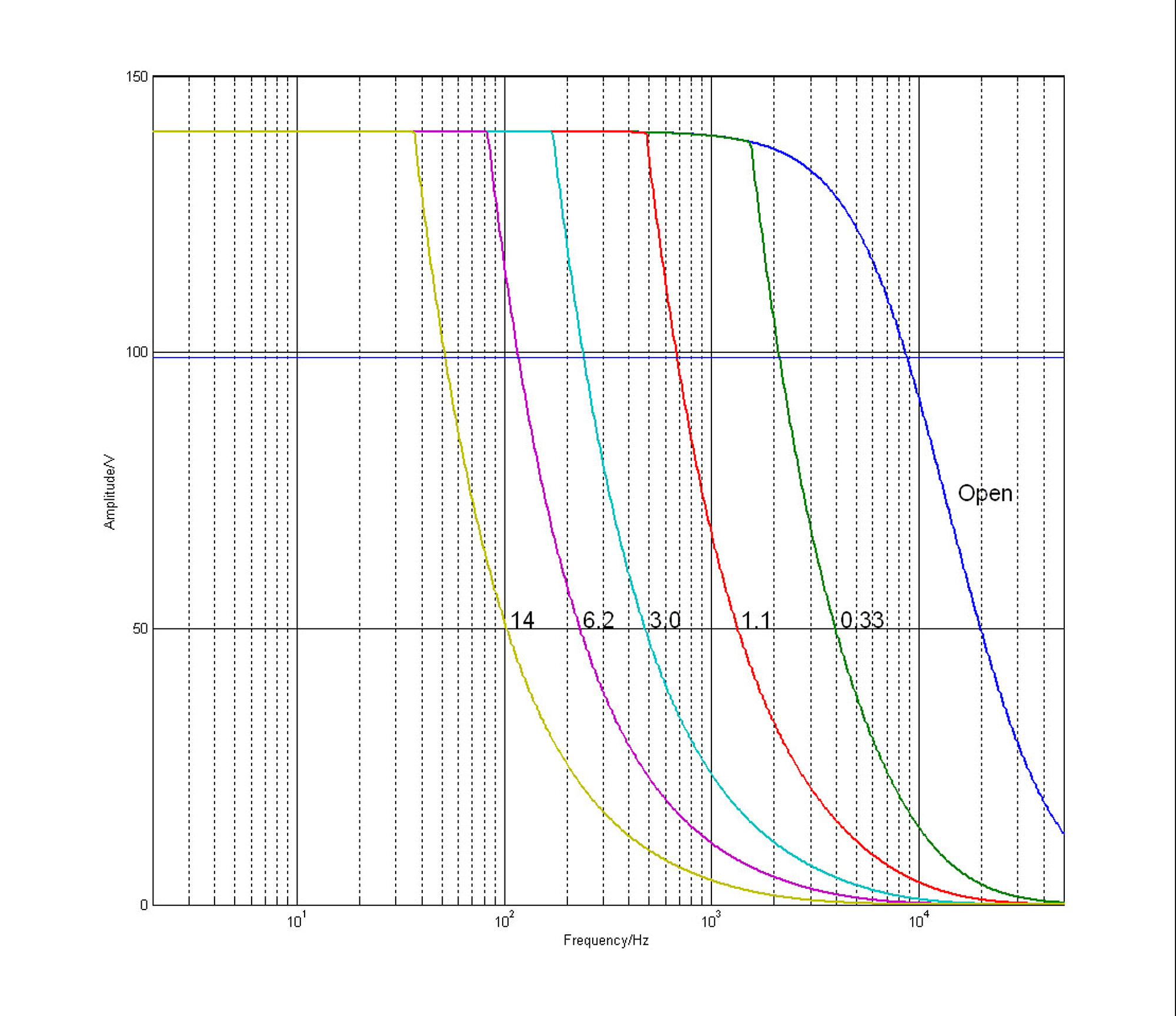

  • E-711.AL4P, E-711.AL41: High-power amplifier modules, 4 channels, 8 W, -30 V to +135 V
  • E-711.AM4, E-711.AM5, E-711.AM6: Amplifier modules for NEXLINE®, -250 to +250 V
  • E-711.AM5A, E-711.AM5B: Amplifier modules for NEXLINE®, -250 V to +250 V, for drives with sensor
  • E-711.AN4, E-711.AN40: Amplifier modules for NEXACT®
  • E-711.C82: DC motor driver module, 2 axes
  • E-711.SA3, E-711.SA6: Modules for incremental sensors
  • E-711.SS3: Module for strain gauge sensors
  • E-711.SC3H, E-711.SE3: Modules for capacitive sensors
  • E-711.S3XC, E-711.0ET, E-711.0ET0: Digital sensor signal transmission, capacitive sensors
  • E-711.0ATS: Sensor box for digital sensor signal transmission, for sensors with BiSS interface
  • E-711.IA4: Analog interface module, 4 inputs and outputs
  • E-711.IP: PIO interface module for fast data exchange
  • E-711.iS3, E-711.iS6: SPI interface modules
  • E-711.SAP, E-711.SAH, E-711.SAN: Sensor signal distributors for incremental sensors
  • E-711.SAX, E-711.SAX1, E-711.SAX2, E-711.SAX5: Cables between digital piezo controller and sensor signal distributor
