M-545 Open-Frame Microscope Stage

Low Profile, Low Drift Design, Long Travel Range

M-545 Open-Frame Microscope Stage
Product Description Specifications Downloads Quote / Order

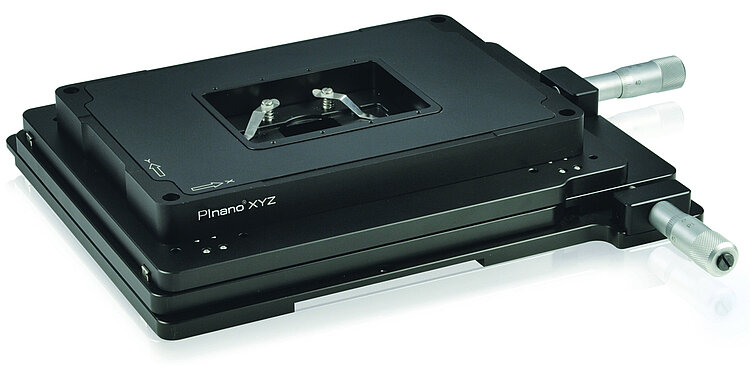

  • Stable platform for P-545 PInano® piezo nanopositioning systems
  • Low profile for easy integration: 30 mm
  • Travel range 25 mm × 25 mm
  • Micrometer screws, motor upgrade available
  • For inverted microscopes made by Nikon, Zeiss, Leica, and Olympus

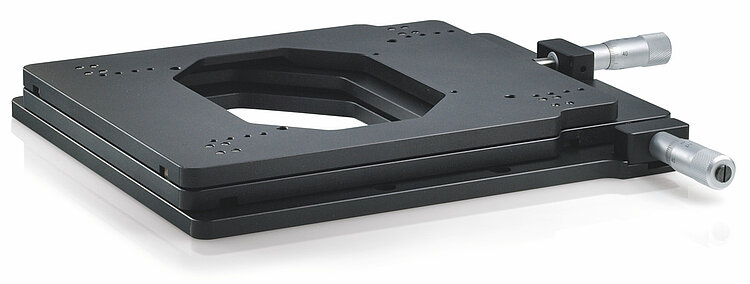

Standard-class, manual XY microscope stage

Coarse adjustment for P-545 piezo nanopositioning systems. Stiff design enables optimal scanning and settling behavior



Micrometer screw or optional stepper motor drive

The stage can be supplemented with motorized actuators, controller and joystick (see accessories)



Field of application

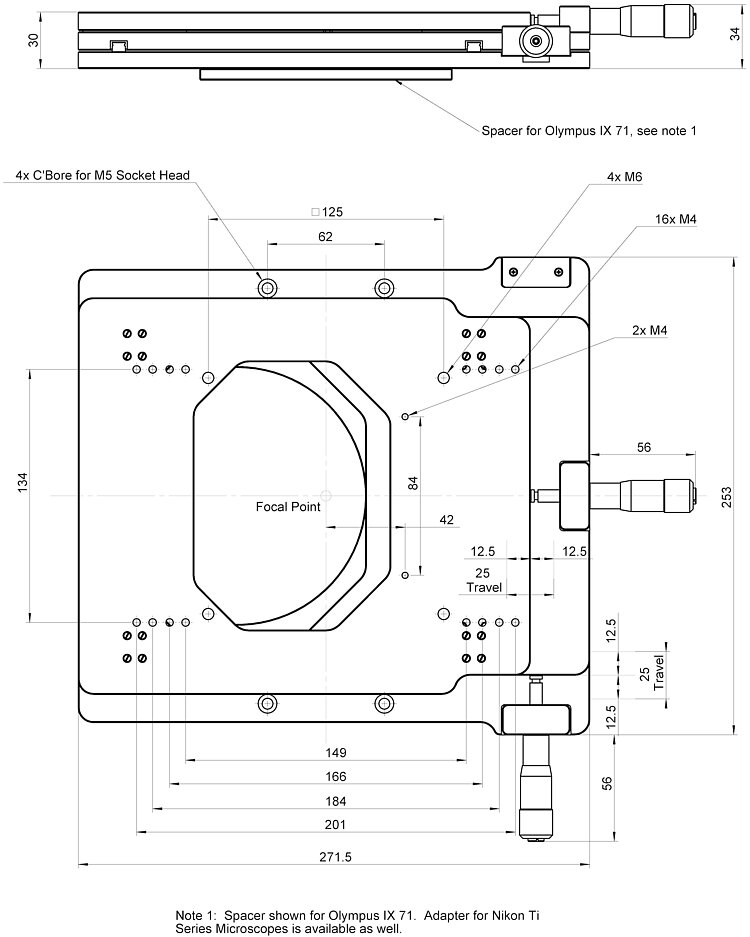

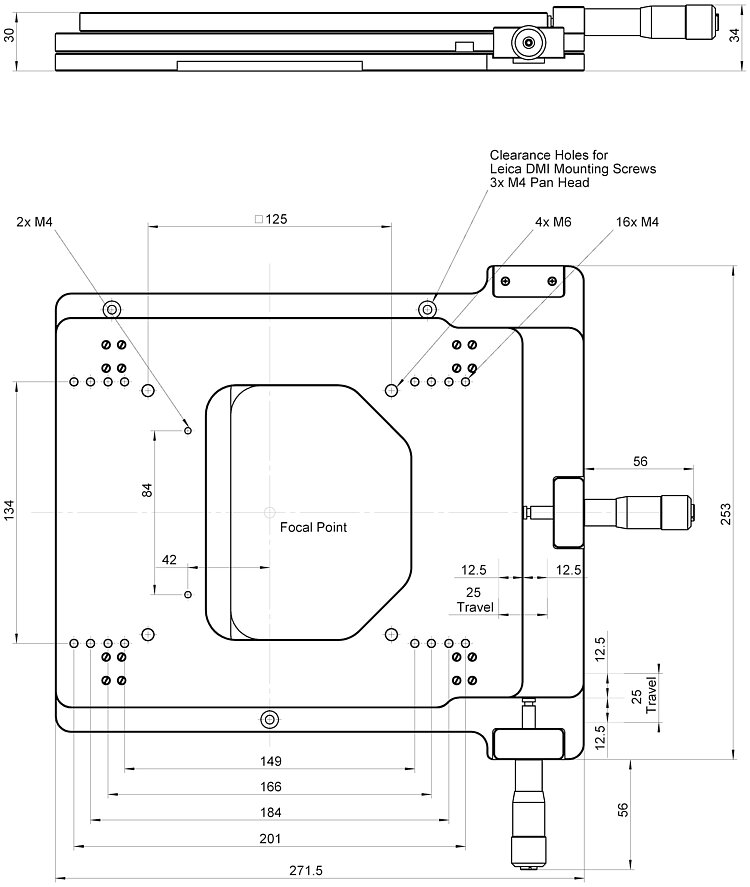

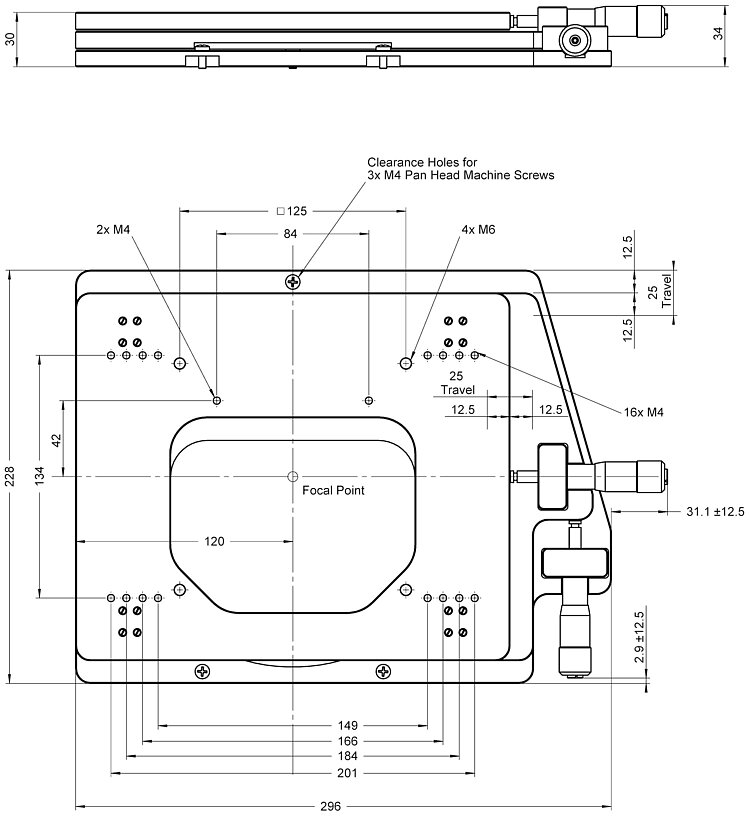

For inverted microscopes made by Nikon (TI), Zeiss (Axio Observer), Leica (DMI), and Olympus (IX2). Versions for other microscopes are available on request



Accessories

M-545.USC Stepper Mike Upgrade for M-545 Stages: Includes Stepper Mikes,Controller and Joystick

M-545.USG Stepper Mike Upgrade for M-545 Stages: Includes Stepper Mikes

M-545.SHP Adapter Plate for Microscope Sample Holder for M-545-XY Microscope Stage



Compatible nanopositioning stages



P-545 PInano® Series

With adapter plate:



Additional accessories and custom designs on request.
