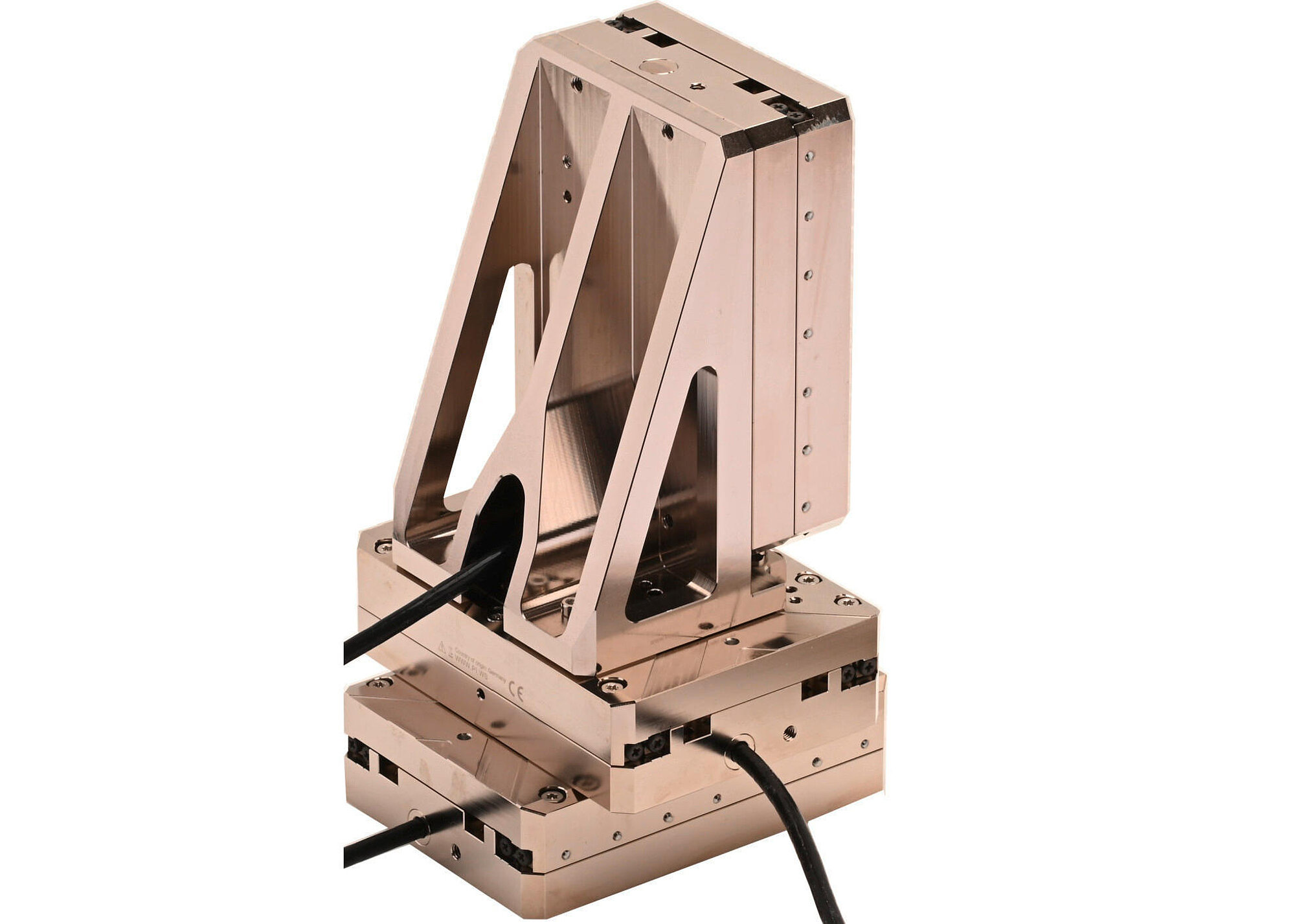

N-332.APxx Mounting Bracket

For Z Mounting in N-332 Multi-Axis Systems

Easy Z mounting of N-332 linear stages
Vacuum-compatible models
Delivery including mounting kit

quote / order

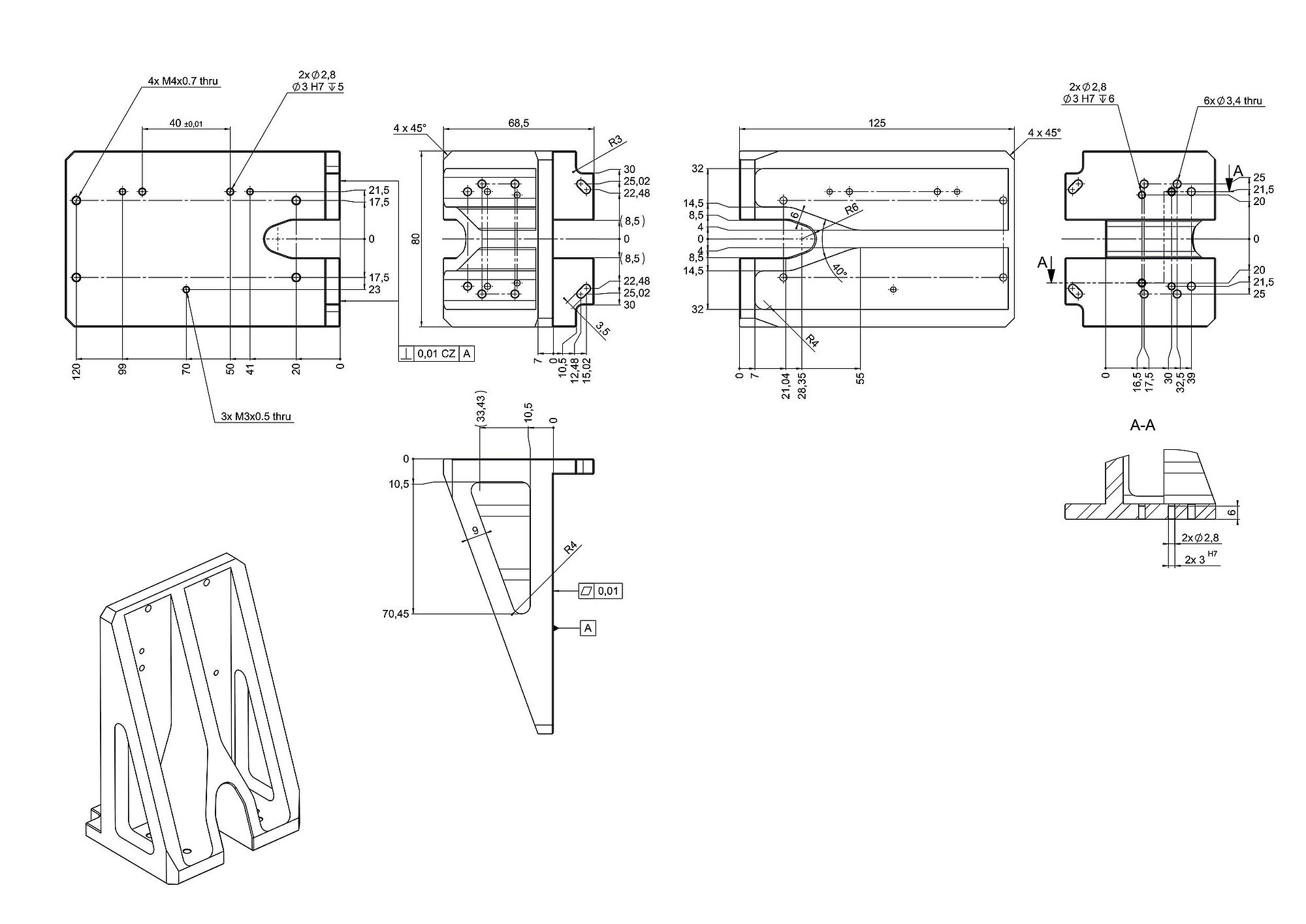

N-332.AP1, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

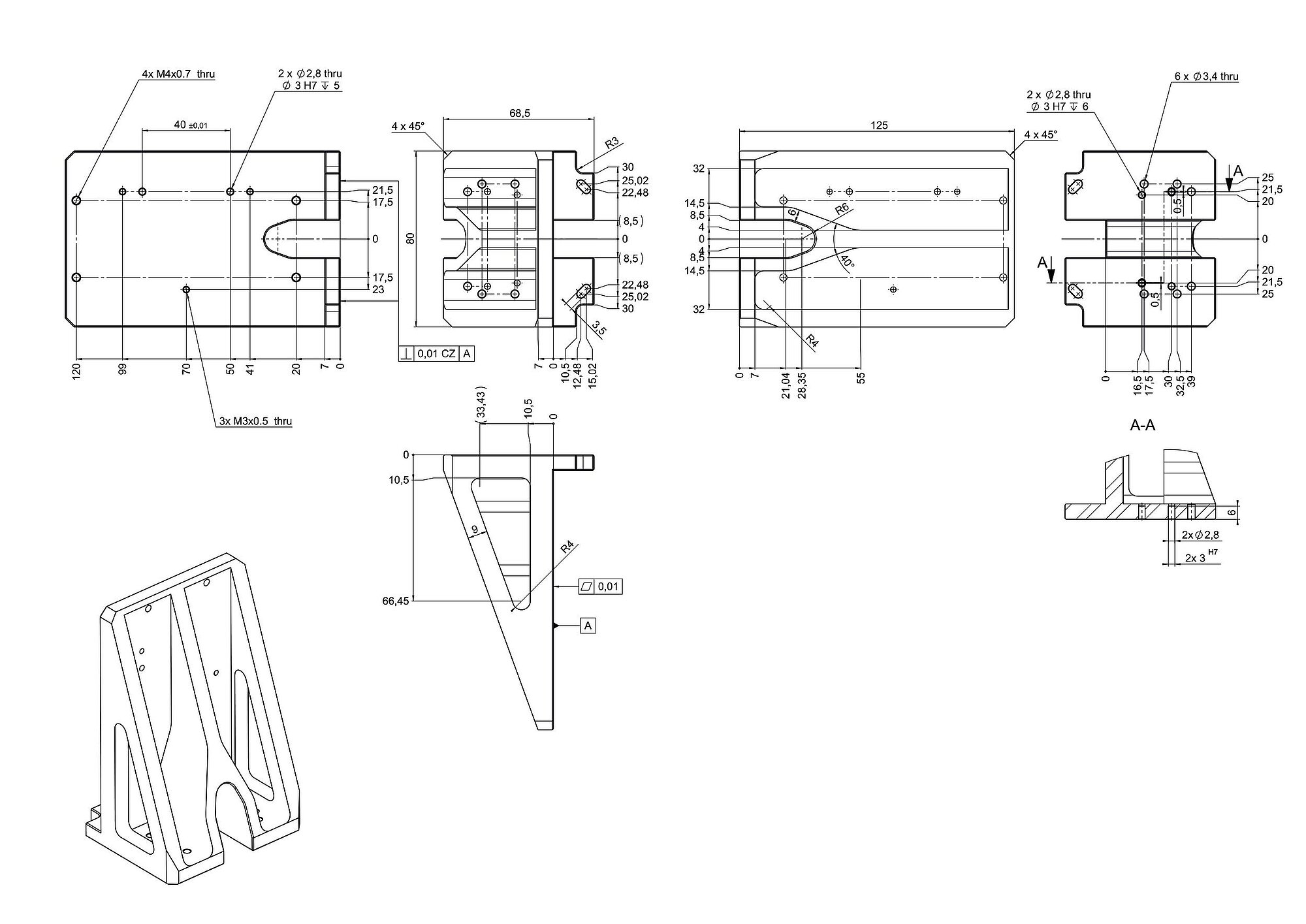

N-332.AP1U, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

N-332.AP2 and N-332.AP2U, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

Download datasheet specifications quote / order

Datasheet

Datasheet N-332.APxx

Version / Date

2025-05-20

pdf - 2 MB

Version / Date

2025-05-20

pdf - 2 MB

Download

	N-332.AP1	N-332.AP1U	N-332.AP2	N-332.AP2U
Material	Aluminum, nickel-plated	Aluminum, nickel-plated	Aluminum, nickel-plated	Aluminum, nickel-plated
Overall mass	405 g	405 g	600 g	600 g
Vacuum class	—	10⁻⁹ ǀ hPa	—	10⁻⁹ ǀ hPa

Download datasheet downloads quote / order

Datasheet

Datasheet N-332.APxx

Version / Date

2025-05-20

pdf - 2 MB

Version / Date

2025-05-20

pdf - 2 MB

Download

3D Models

N-332.APx[U] 3D Model

zip - 509 KB

quote / order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

N-332.AP1

Mounting bracket for Z mounting of the N-332.14(Y) onto a N-332 linear stage; nickel-plated aluminum; including mounting kit

Add to quote list Remove from quote list

N-332.AP1U

Mounting bracket for Z mounting of the N-332.14U(Y) onto a N-332 linear stage; vacuum-compatible to 10^-9 hPa; nickel-plated aluminum; including mounting kit

Add to quote list Remove from quote list

N-332.AP2

Mounting bracket for Z mounting of the N-332.24(Y) onto a N-332 linear stage; nickel-plated aluminum; including mounting kit

Add to quote list Remove from quote list

N-332.AP2U

Mounting bracket for Z mounting of the N-332.24U(Y) onto a N-332 linear stage; vacuum-compatible to 10^-9 hPa; nickel-plated aluminum; including mounting kit

Add to quote list Remove from quote list
