WT-85 Motorized Precision Goniometer

Compact, with Aperture

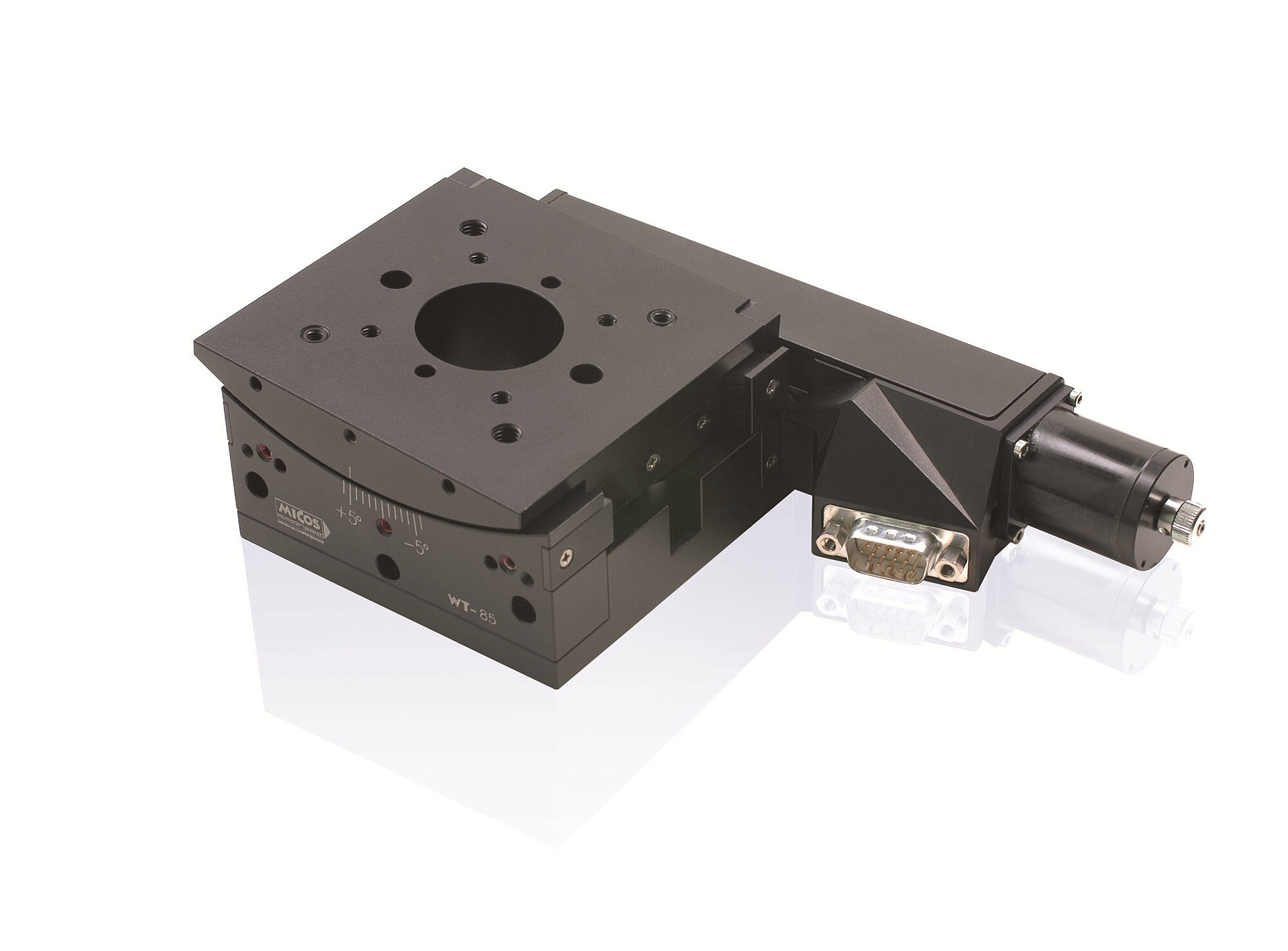

WT-85 Motorized Precision Goniometer
Product Description Specifications Downloads Quote / Order

Precision-class goniometer stage

Drive with high gear ratio for precision positioning. Two limit switches. Large clear aperture with 30 mm diameter. Can be combined with WT-100 for 2-axis motion with common pivot point.

Versions

  • DC servo motor with rotary encoder on the motor shaft
  • Stepper motor
  • Option: High-resolution optical angle measuring system for direct position measurement
  • Vacuum versions available on request

Application fields

Precision microassembly, Metrology, Photonics, Optical alignment

Specifications

Datasheet WT-85

Version / Date
2018-12-11
Version / Date
2018-12-11
Version / Date
2017-07-06
Document language
pdf - 1 MB
pdf - 1 MB
pdf - 884 KB

Downloads

Datasheet

Datasheet WT-85

Version / Date
2018-12-11
Version / Date
2018-12-11
Version / Date
2017-07-06
Document language
pdf - 1 MB
pdf - 1 MB
pdf - 884 KB

Documentation

User Manual WT-85

WT-85 Goniometer
Version / Date
2016-08-11
Version / Date
2016-08-11
Document language
pdf - 701 KB
pdf - 722 KB

3-D Models

WT-85 3-D model

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

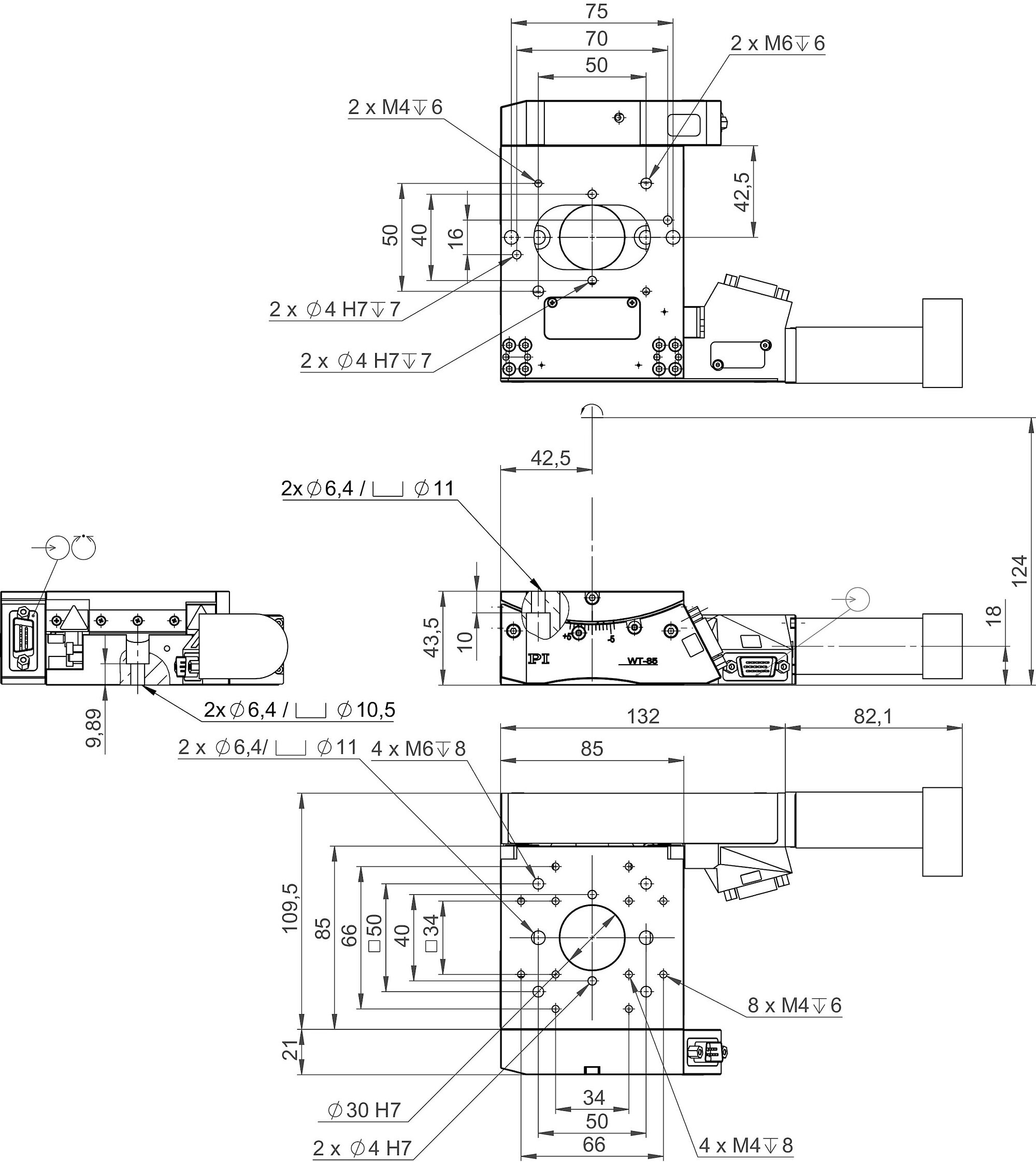

65409101
WT-85 goniometer stage, 85 mm width, DC motor, ±5° rotation range, angle measuring system with A/B quadrature signal transmission, clear aperture 30 mm diameter, mechanical limit switches

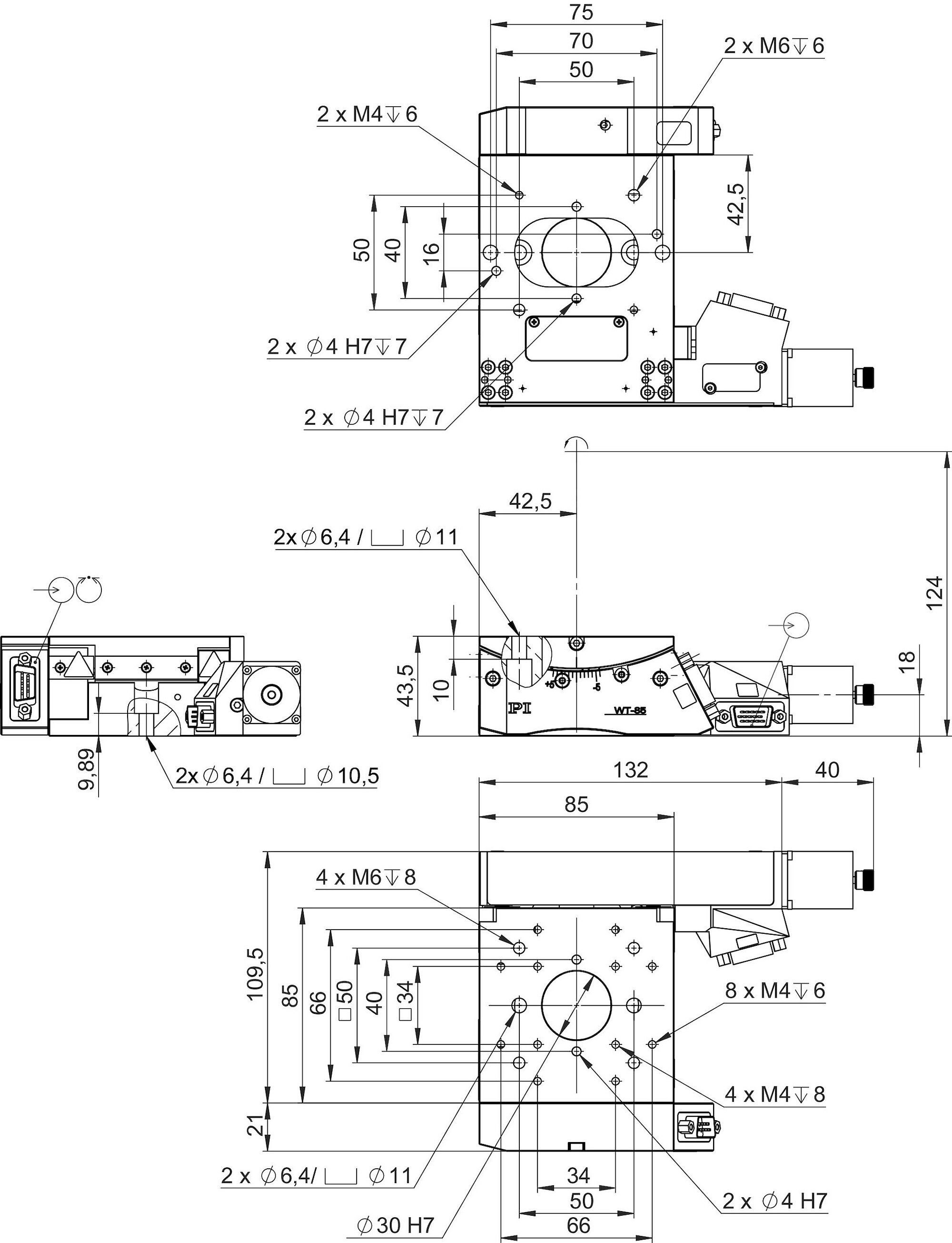

65409201-0001
WT-85 goniometer stage, 85 mm width, stepper motor, ±5° rotation range, angle measuring system with sin/cos signal transmission, clear aperture 30 mm diameter, mechanical limit switches

Accessories, please specify when ordering
