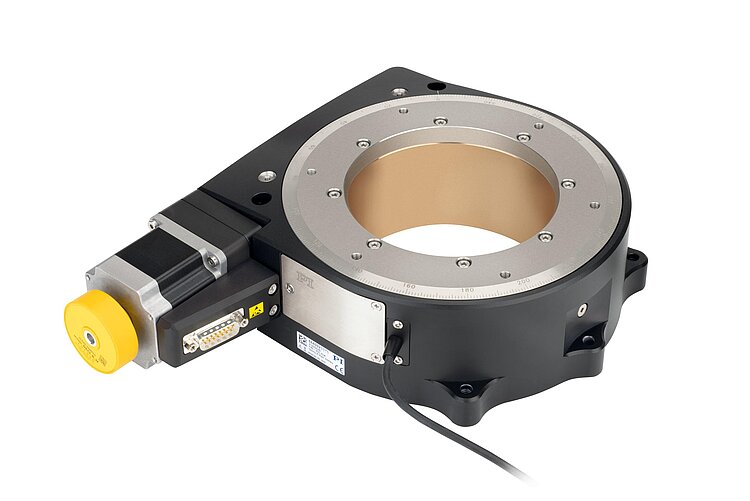

PRS-200 Precision Rotation Stage

Large Aperture, High Travel Accuracy

PRS-200 Precision Rotation Stage
Product Description Specifications Downloads Quote / Order

Reference-class rotation stage

Worm drive with high gear ratio for precision positioning. Excellent flatness and concentricity due to preloaded crossed roller bearings. Large aperture with 120 mm Ø. Two adjustable limit switches.

Versions

  • DC servo motor with rotary encoder on the motor shaft
  • Stepper motor
  • Option: High-resolution optical angle measuring system for direct position measurement
  • Vacuum versions available on request

Option: Measurement of the travel accuracy and positioning accuracy

Individual measurement logs available on request for wobble, axial, and radial creep. Please specify when ordering.

Application fields

Medical industry, Sample inspection, Precision microassembly, Metrology, Photonics, Vacuum

Specifications

Datasheet PRS-200

Version / Date
2018-02-02
Version / Date
2018-02-02
Version / Date
2017-05-09
Document language
pdf - 1 MB
pdf - 1 MB
pdf - 2 MB

Downloads

Datasheet

Datasheet PRS-200

Version / Date
2018-02-02
Version / Date
2018-02-02
Version / Date
2017-05-09
Document language
pdf - 1 MB
pdf - 1 MB
pdf - 2 MB

Documentation

User Manual PRS-200

Precision Rotation Stage
Version / Date
2016-04-06
Version / Date
2016-03-24
Document language
pdf - 800 KB
pdf - 832 KB

Short Instructions MP146EK

Stages with Electric Motors: DT-xx / ES-100 / HPS-170 / L-xxx / LS-xx / LS-xxx / MTS-65 / NPE-200 / PLS-85 / PRS-xxx / RS-40 / UPL-120 / UPM-160 / VT-80
Version / Date
1.5.0 October 2017
pdf - 395 KB

3-D Models

PRS-200 3-D model

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

6449921111
PRS-200 precision rotation stage, Ø 120 mm aperture, stepper motor, >360° rotation range, angle measuring system with sin/cos signal transmission, adjustable magnetic limit switches

For accessories, please specify when ordering
