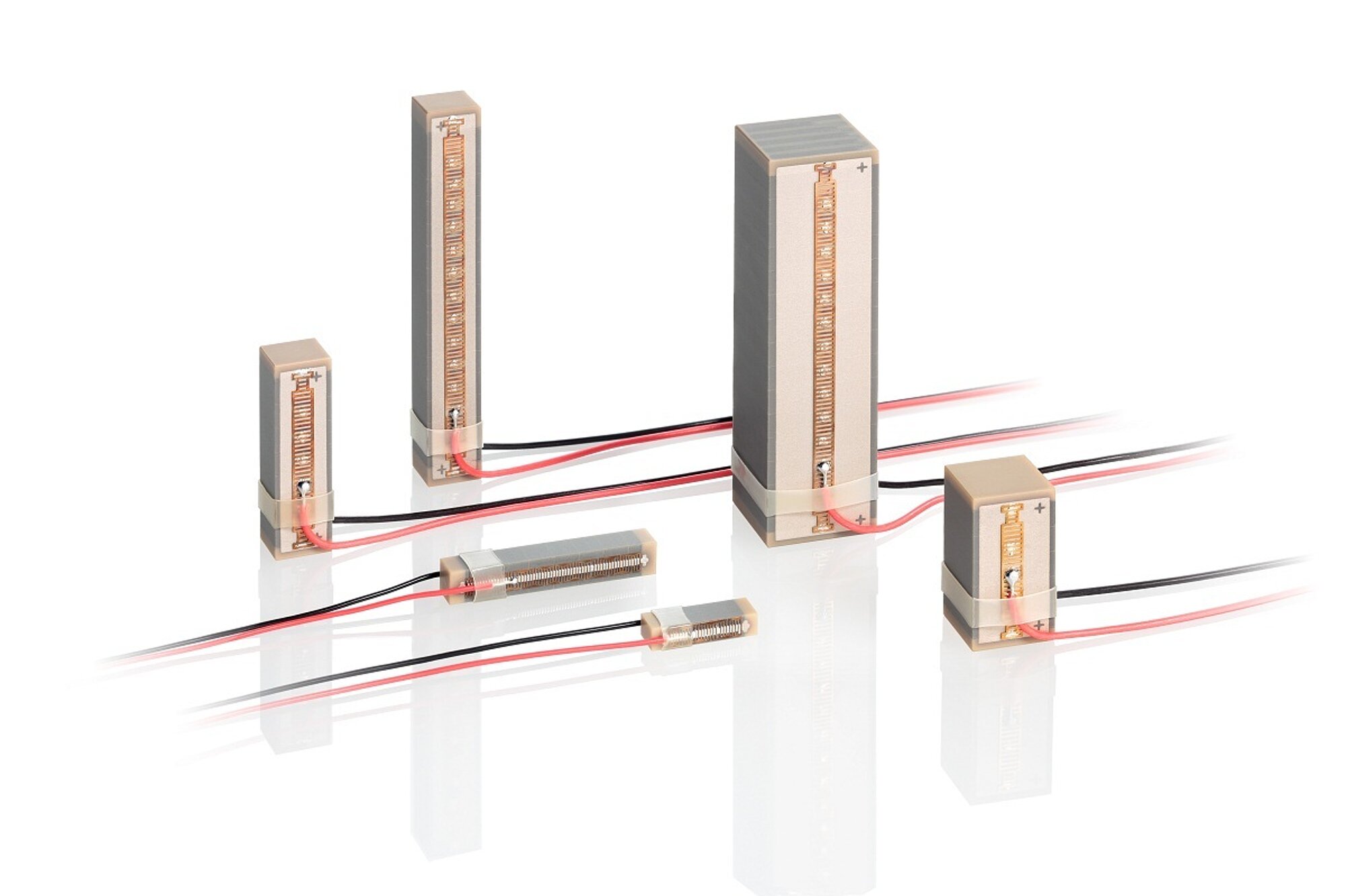

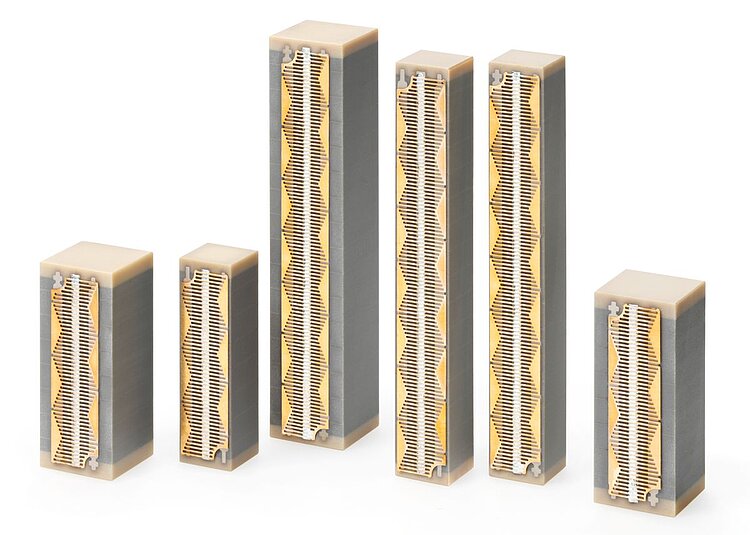

P-882 – P-888 PICMA® Stack Multilayer Piezo Actuators

Ceramic-Insulated High-Power Actuators

  • Superior lifetime
  • High stiffness
  • Microsecond response
  • Subnanometer resolution
  • UHV-compatible to 10-9 hPa
P-882 – P-888 PICMA® Stack Multilayer Piezo Actuators
Product Description Specifications Downloads Quote / Order

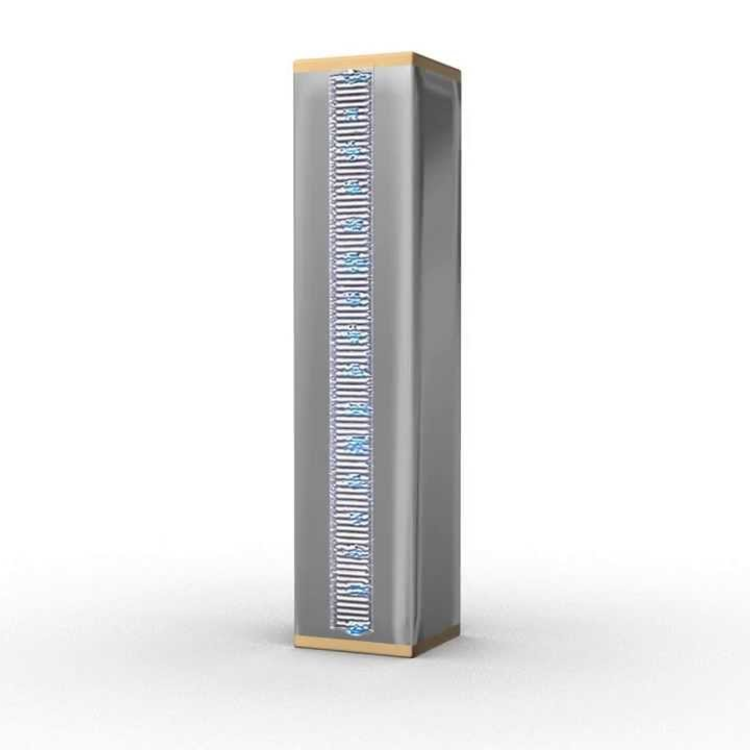

Patented PICMA® Stack multilayer piezo actuators with high reliability

Operating voltage -20 to 120 V. Ceramic insulation, polymer free. Humidity resistance. Excellent temperature stability. UHV-compatible to 10-9 hPa, no outgassing, high bakeout temperature. Ideal for dynamic operation.

Flexible thanks to numerous designs. Encapsulated versions for operation in splash water or oil.



Custom designs with modified specifications

  • For high operating temperature up to 200 °C
  • Special electrodes for currents of up to 20 A

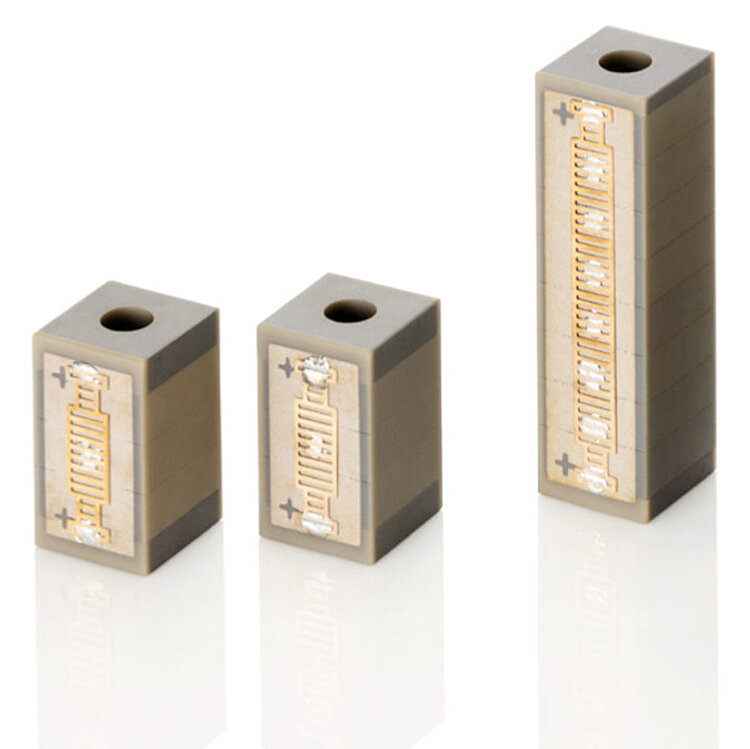

  • Variable geometry: Inner hole, round, rectangular

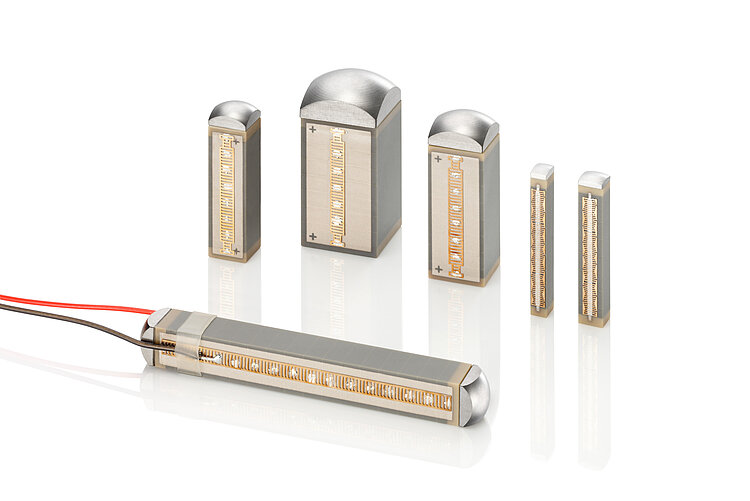

  • Ceramic or metal tips in many versions
  • Applied SGS sensors for positional stability



Fields of application

Industry and research. Cryogenic environment with reduced displacement. For high-speed switching, precision positioning, active and adaptive systems.



Specifications

Datasheet

Datasheet P-882 – P-888

Version / Date
2017-11-30
pdf - 1 MB
Version / Date
2017-11-30
pdf - 1 MB

Downloads

Datasheet

Datasheet

Datasheet P-882 – P-888

Version / Date
2017-11-30
pdf - 1 MB
Version / Date
2017-11-30
pdf - 1 MB

Documentation

Documentation

User Manual PZ259

P-882 – P-888 PICMA® Stack multilayer piezo actuators, P-080 PICMA® Stack multilayer ring actuators with inner hole, P-088 PICMA® Stack multilayer piezo actuators, round cross section

Version / Date
1.1.0 2021-09-27
pdf - 3 MB
Version / Date
1.1.0 2021-09-27
pdf - 3 MB
Documentation

Short Instructions PZ264

PICMA® Multilayer Piezo Actuators: P-08x, P-88x, PD0xx, PD410, PL0xx, PL1xx, PICMA® Stack, PICMA® Chip, PICMA® Bender

Version / Date
3.0.0 04/2020
pdf - 826 KB
Version / Date
3.0.0 04/2020
pdf - 761 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

PICMA® Stack actuators with PTFE-insulated stranded wires

PICMA® Stack actuators with solderable contacts

Custom designs or different specifications on request.

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.

Contact us!
