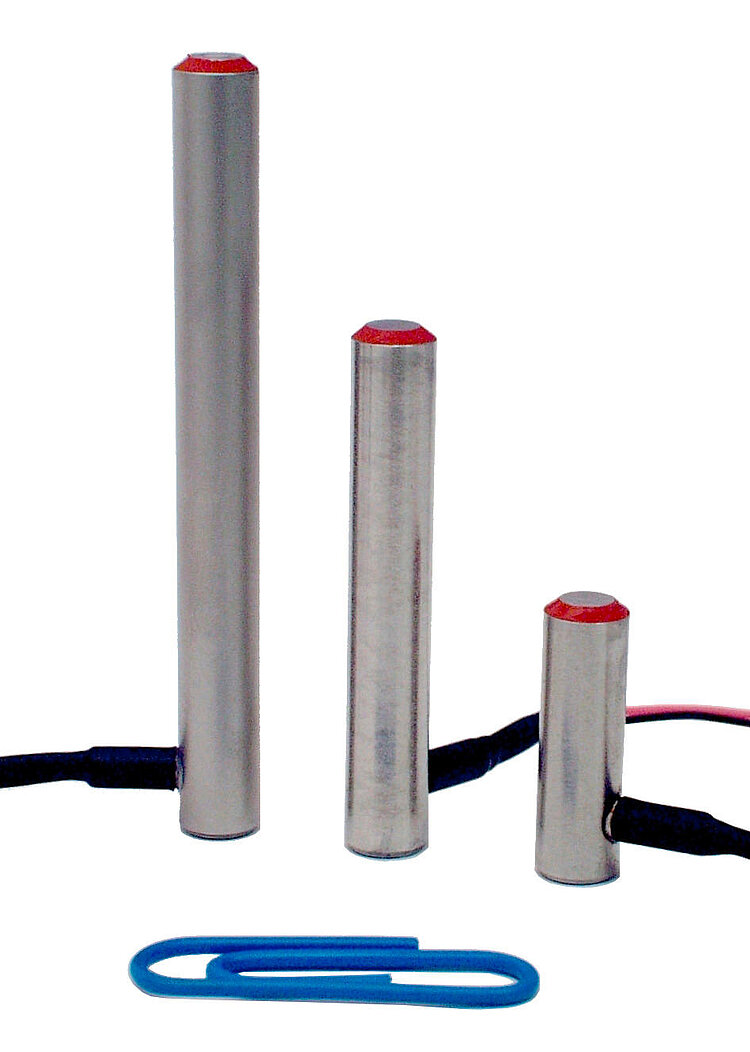

P-810 • P-830 Piezo Actuators

For Light and Medium Loads

  • Outstanding lifetime due to PICMA® piezo actuators
  • Travel range to 60 µm
  • Push force capacity to 1000 N
  • Pull force capacity to 5 N
  • µs response time
  • Subnanometer resolution
P-810 • P-830 Piezo Actuators
Product Description Specifications Downloads Quote / Order

Fields of application

  • Static and dynamic precision positioning
  • Fiber positioning
  • Laser tuning
  • Patch clamp
  • Nanotechnology

Outstanding lifetime thanks to PICMA® piezo actuators

The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

Specifications

Datasheet

Datasheet P-810 • P-830

Version / Date
2019-10-21
pdf - 206 KB
Version / Date
2019-10-21
pdf - 208 KB
Version / Date
2018-06-14
pdf - 641 KB

Downloads

Datasheet

Datasheet

Datasheet P-810 • P-830

Version / Date
2019-10-21
pdf - 206 KB
Version / Date
2019-10-21
pdf - 208 KB
Version / Date
2018-06-14
pdf - 641 KB

Documentation

Documentation

Short Instructions PZ303

Housed PICMA® Actuators to 100 V

Version / Date
1.2.0 11/2020
pdf - 958 KB
Version / Date
1.2.0 11/2020
pdf - 961 KB
Documentation

User Manual P810T0004

P-810, P-830 Piezo Actuators

Version / Date
2019-10-16
pdf - 640 KB
English

3-D Models

3-D Models

P-830 3-D model

zip - 44 KB
3-D Models

P-810 3-D model

zip - 33 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
