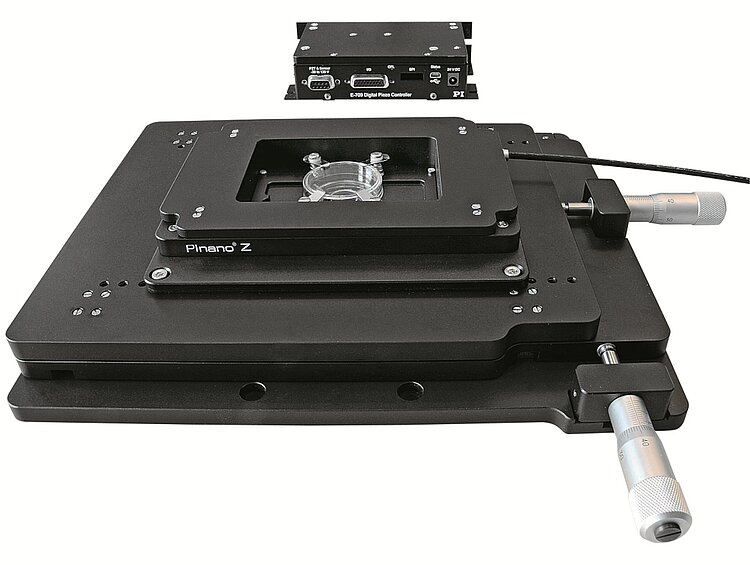

P-736 PInano® Z Microscope Scanner

Inexpensive, with Low Profile

  • Step-and-settle to 5 ms
  • Low overall height of 20 mm for easy integration
  • Travel range 100 µm or 200 µm

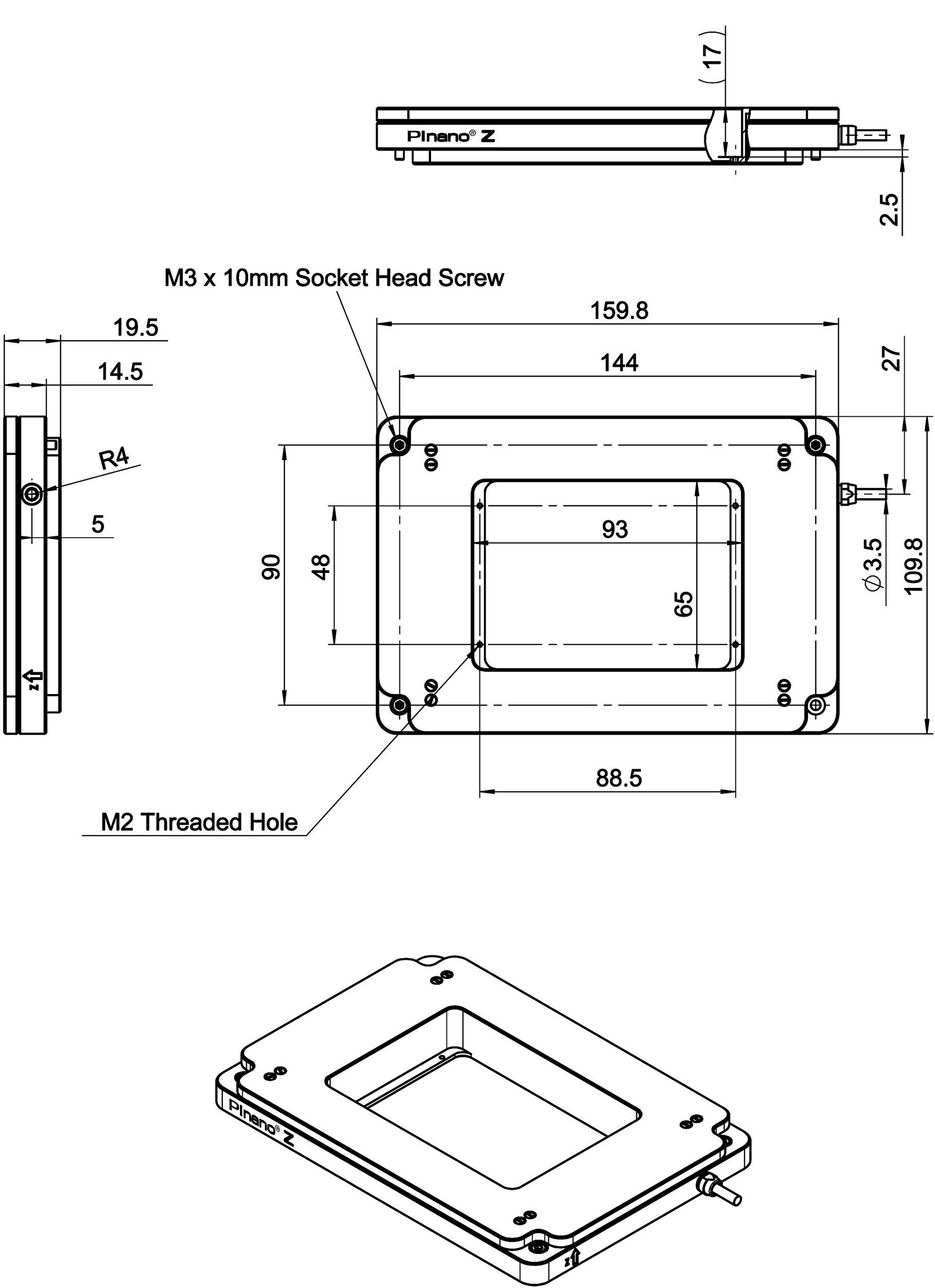

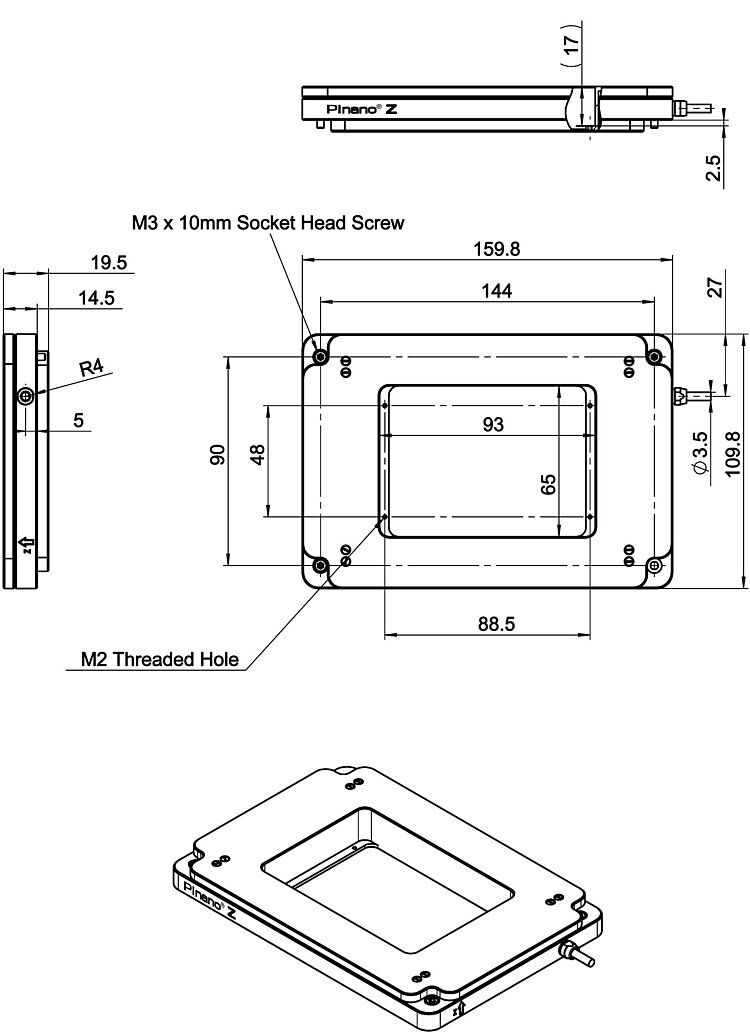

  • Clear aperture 93 mm × 65 mm

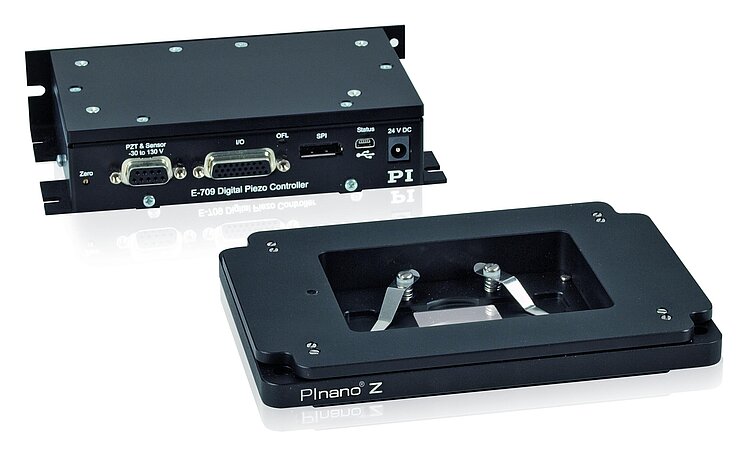

  • E-709 digital piezo servo controller in the scope of delivery
  • USB, RS-232, analog interfaces
  • Compatible with MetaMorph imaging software
P-736 PInano® Z Microscope Scanner
Product Description Specifications Downloads Quote / Order

Application fields

  • Super-resolution microscopy
  • Light disc microscopy
  • Confocal microscopy
  • 3-D imaging
  • Screening
  • Interferometry
  • Measuring technology
  • Autofocus systems
  • Biotechnology
  • Semiconductor tests

Outstanding lifetime thanks to PICMA® piezo actuators

The PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

High guiding accuracy due to zero-play flexure guides

Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They work in a wide temperature range.

Automatic configuration and fast component exchange

Mechanics and controllers can be combined as required and exchanged quickly. All servo and linearization parameters are stored in the ID chip of the D-sub connector of the mechanics. The autocalibration function of the digital controllers uses this data each time the controller is switched on.

Extensive software for rapid start of productive operation

Thanks to support of MATLAB and NI LabVIEW as well as all common operating systems (Windows, Linux, and macOS), integration succeeds in virtually every environment – quickly and efficiently. Sophisticated programming examples and software tools such as PIMikroMove shorten the time to productive operation considerably.
