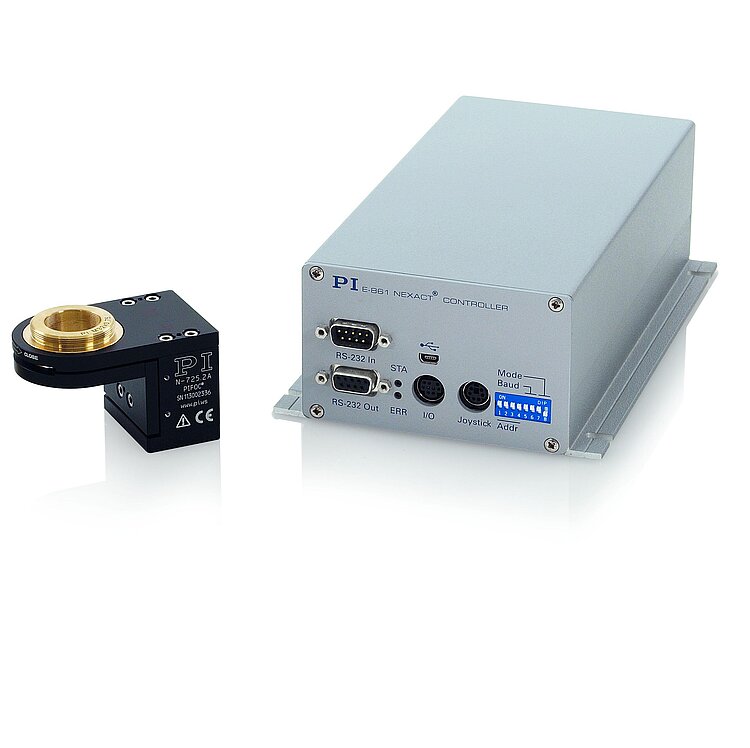

- Complete system with digital controller, software, and M32 QuickLock thread adapter
- USB, RS-232
- Sensor resolution 0.5 nm
- Highly dynamic step-and-settle for Z stacks
- Further thread adapters as optional accessory
- Compatible with µManager, MetaMorph, and MATLAB
- Parameter changing during operation
- Two-photon microscopy
- Confocal microscopy
- 3-D imaging
- Laser technology
- Autofocus for long travel ranges
Nanometer precision and high feed force with PiezoWalk® walking drives
Several piezo actuators perform a walking motion in the PiezoWalk® walking drive that leads to forward feed of a runner. Control of the actuators allows the smallest step and forward feed motion at a resolution of well under one nanometer.
Highly accurate position measuring with incremental linear encoder
Noncontact optical encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement.
Extensive software for rapid start of productive operation
Thanks to support of MATLAB and NI LabVIEW as well as all common operating systems (Windows, Linux, and macOS), integration succeeds in virtually every environment – quickly and efficiently. Sophisticated programming examples and software tools such as PIMikroMove shorten the time to productive operation considerably.
Product Change Notification Motor Driven Products
Installation Instructions P721T0002
P-721 Thread Adapters for P-721 / P-725.xxx PIFOC Objective Scanners
User Manual N725T0002
N-725.2A PIFOC Z Drive with NEXACT® Linear Motor
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
