- Width 116 mm, travel range to 610 mm
- Precision ball screw
- Incremental and absolute rotary encoders
- Additional linear encoder options
- Precision recirculating ball bearings, load capacity to 400 N
- Covering strip on the side for protection against particles

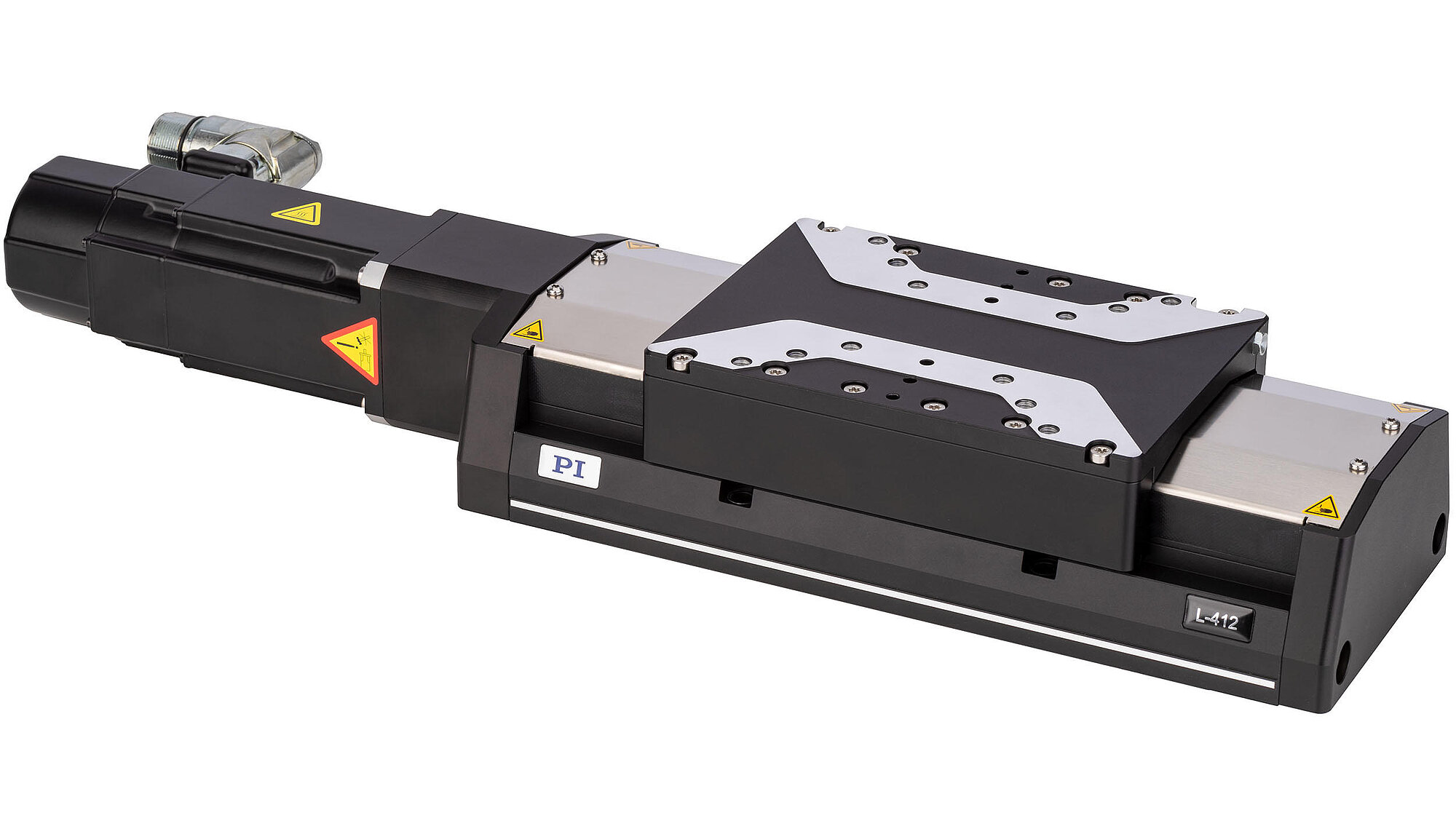

Powerful linear stage for use in demanding industrial applications
Precision ball screws, high-performance synchronous servo motors, heavy-duty recirculating ball bearings, and precision rotary and linear encoders enable continuous and reliable operation under high load. The optional holding brake allows use as Z axis. The ball screw can be relubricated from the outside without disassembling to ensure high reliability and long lifetimes. It is also possible to integrate into a customer's central lubrication system. The covering strip on the side and the purge air connector prevent contamination by particles.
The recirculating ball bearings of the L-412 series are designed for high load capacity and dynamics. The high resolution of the motors allows improved tracking performance, smaller tracking error, and improved settling times.
- Holding brake (L-412.xxxxxxB)
- Various rotary and linear encoders, absolute and incremental

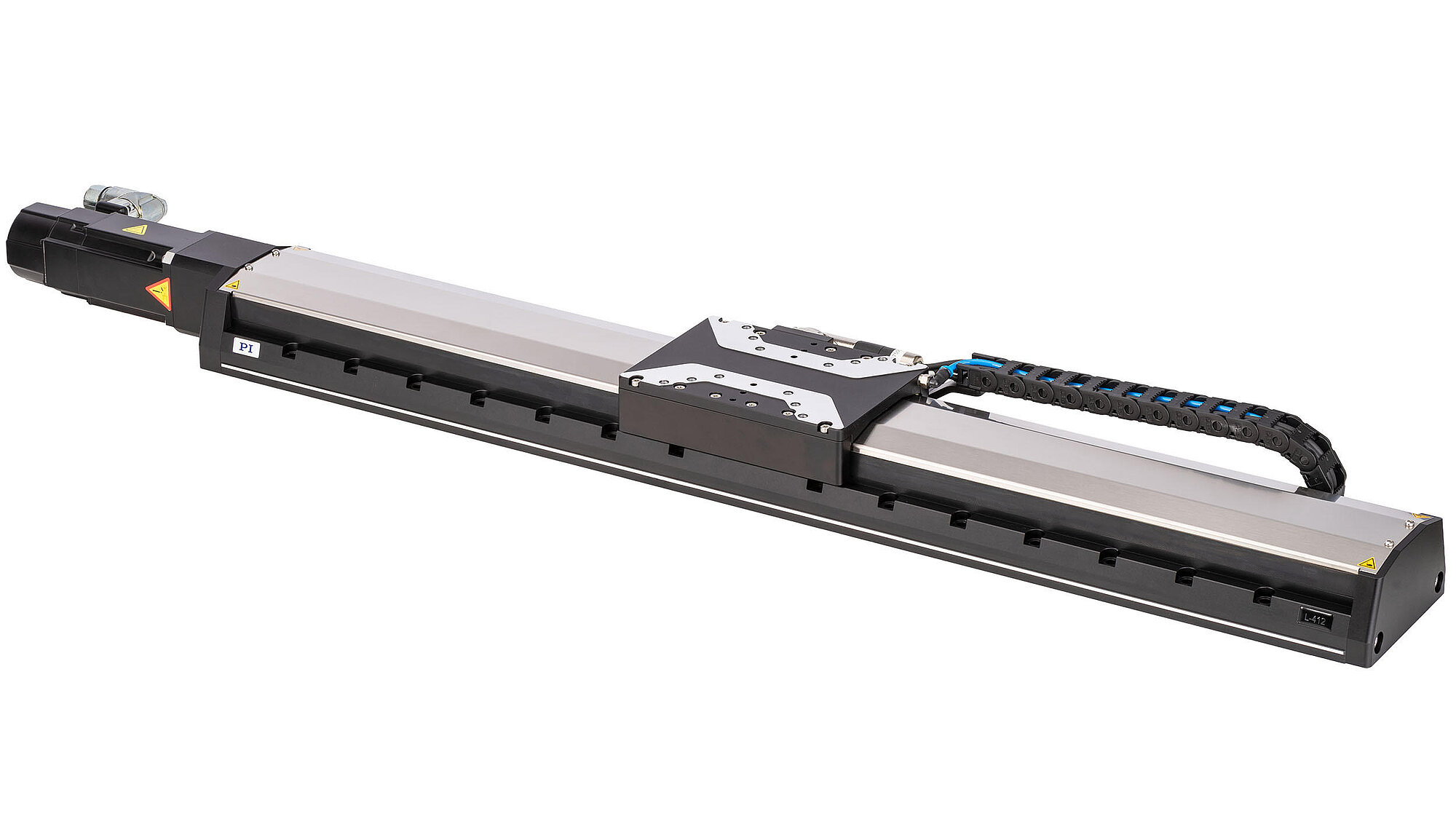

- Versions with linear encoder with drag chain and connection box (L-412.xxxxxxE1).
- On request: Folded drivetrain with belt drive. This modification reduces the overall length.
- On request: Calibration and certification
Synchronous servo motor
These motors have high positioning accuracy and high overload capacity over a large rotation speed range. High torque and low inertia ensure the high dynamics of the drives. The long lifetime, high performance, and robustness of these motors allow excellent results in industrial automation applications.
Laser cutting. Electronics production. AOI (Automatic Optical Inspection). Automation. Applications with high demands on dynamics, precision, smooth motion, short settling times, and low tracking errors.
