NEW

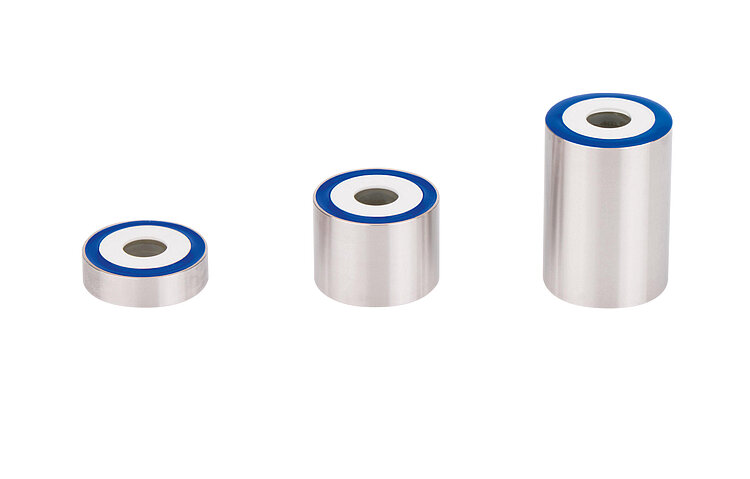

P-131 PIRest Actuators

Active Shims with Nanometer Resolution and Long-Term Stability

Long-term stability without permanent power supply
Easy readjustment of machines at inaccessible locations
Avoids time-consuming manual adjusting processes
Nanometer resolution and micrometer displacement
Load capacity up to 4000 N per actuator
Temperature sensor

Fields of application

  • Set-and-forget applications
  • Adaptive mechanics
  • Drift compensation
  • Alignment of optical components
  • Precision mechanics
  • Static precision positioning
  • Metrology / interferometry

Long-term stable positioning without permanent power supply

Once displaced, actuators with PIRest technology hold their position stable without permanent control voltage. Nanometer precision, maintenance-friendly and inexpensive adjustments are possible even at inaccessible locations.

High user-friendliness due to automatic configuration

Important operating parameters are stored on the mechanic's ID chip and are read out automatically when the electronics are switched on.

Specifications

Datasheet P-131

Version / Date
2018-04-16
Version / Date
2018-04-16
Document language
pdf - 755 KB
pdf - 757 KB

Drawings / Images

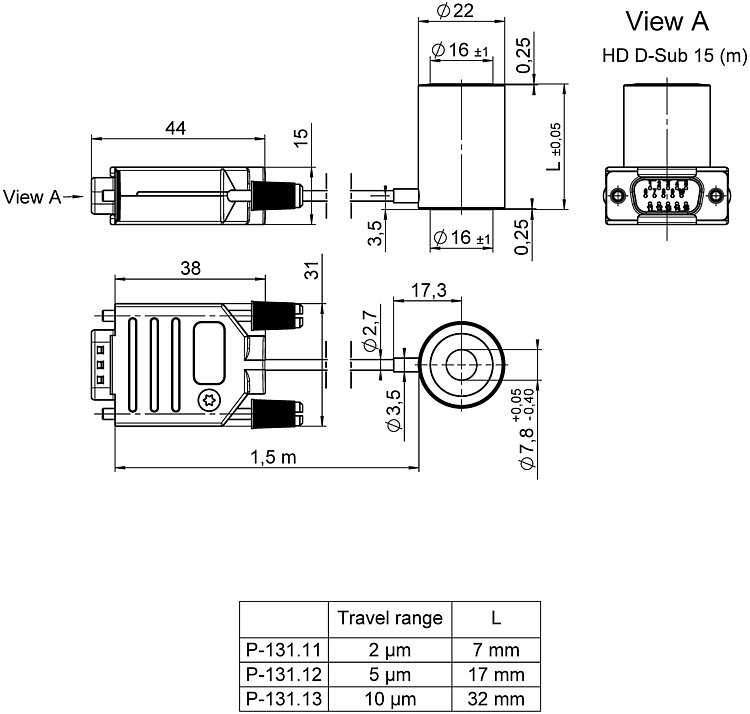

P-131.1x: dimensions in mm
E-815.AK300: PIRest adapter cable, 3 channels, 0.5 m
E-815.AK200: PIRest adapter cable, 2 channels, 0.5 m
E-815.AK100: PIRest adapter cable, 1 channel, 0.5 m

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

PIRest active shims

Accessories required (please order separately)
