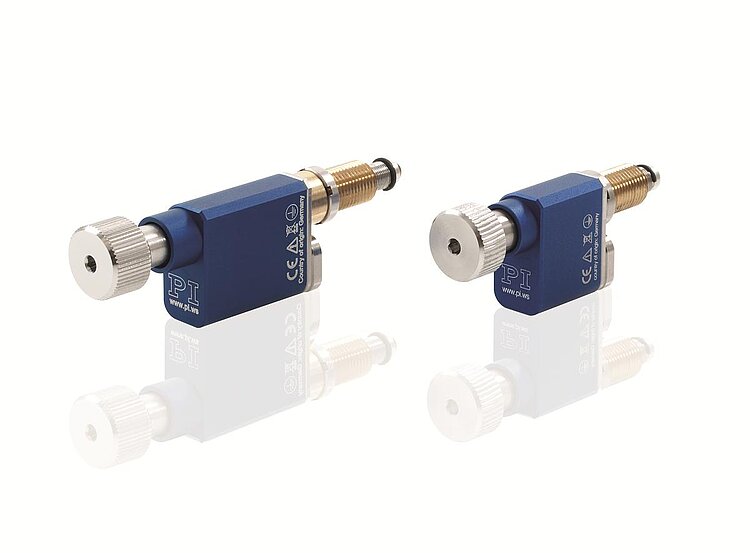

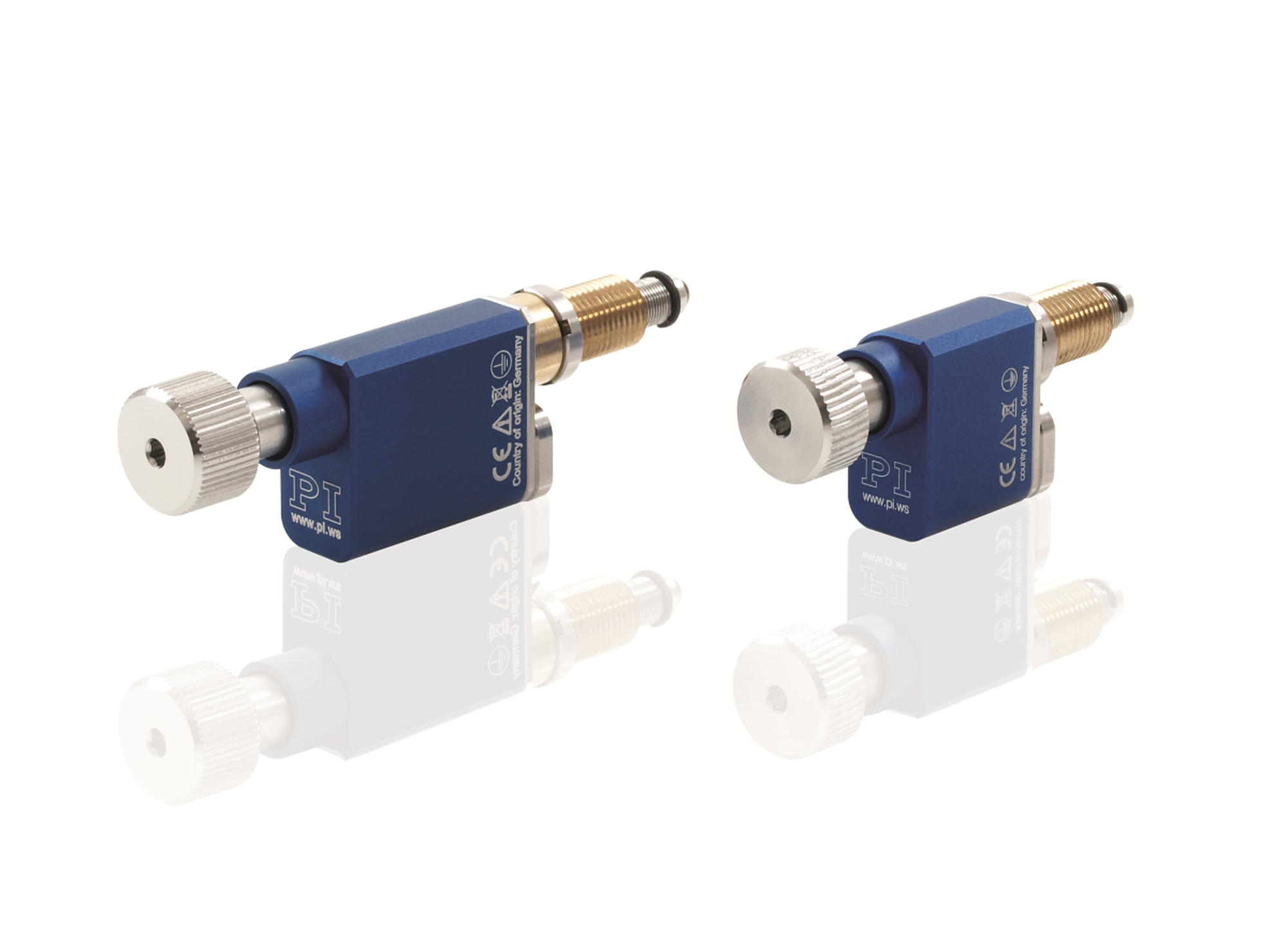

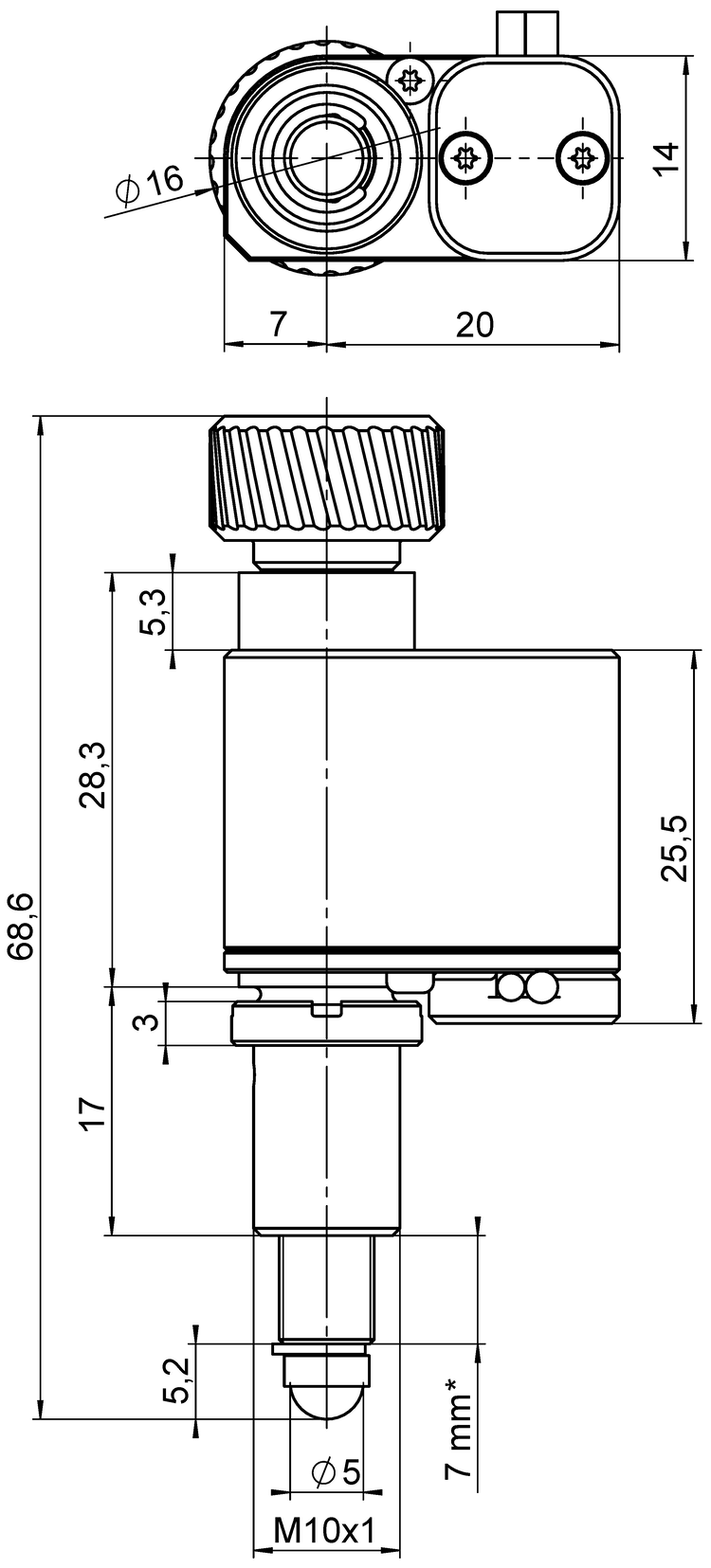

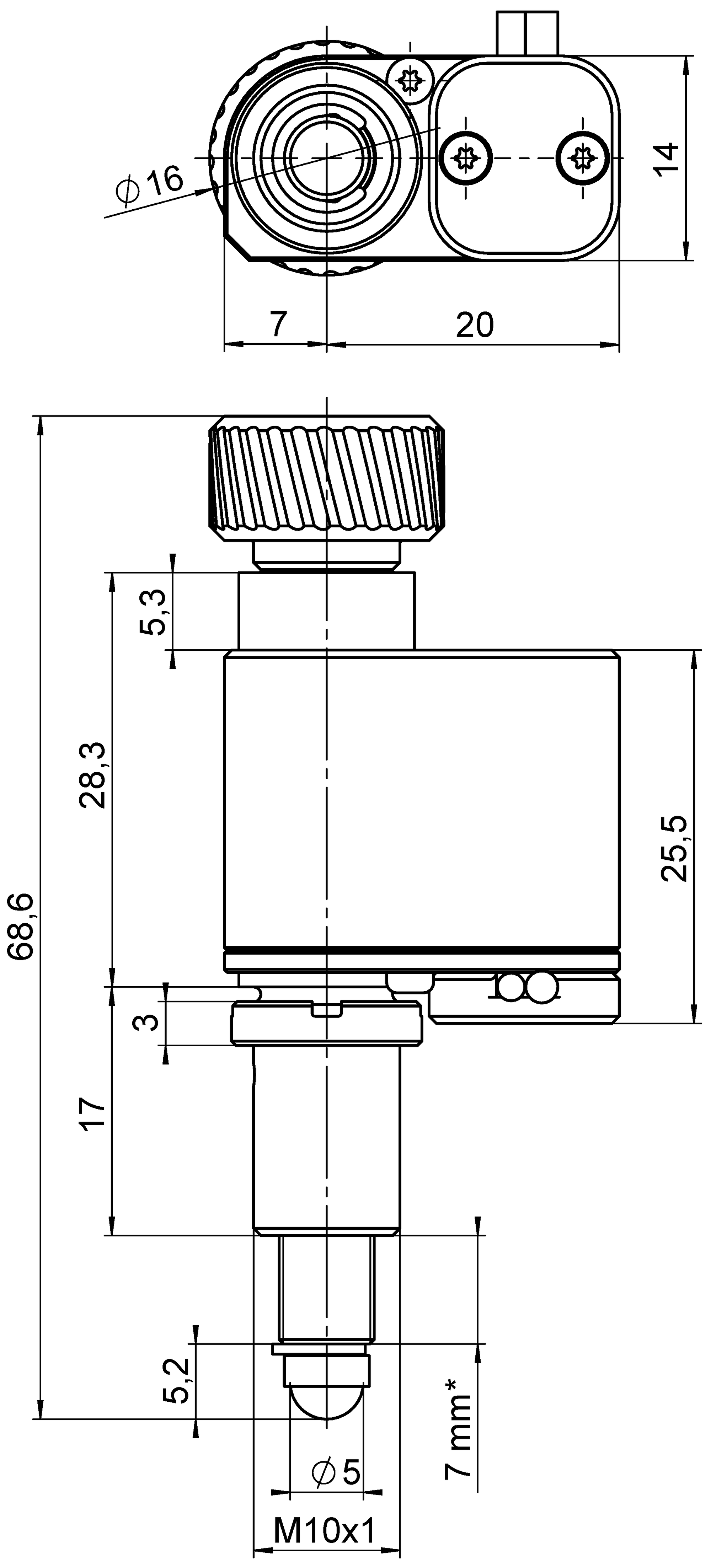

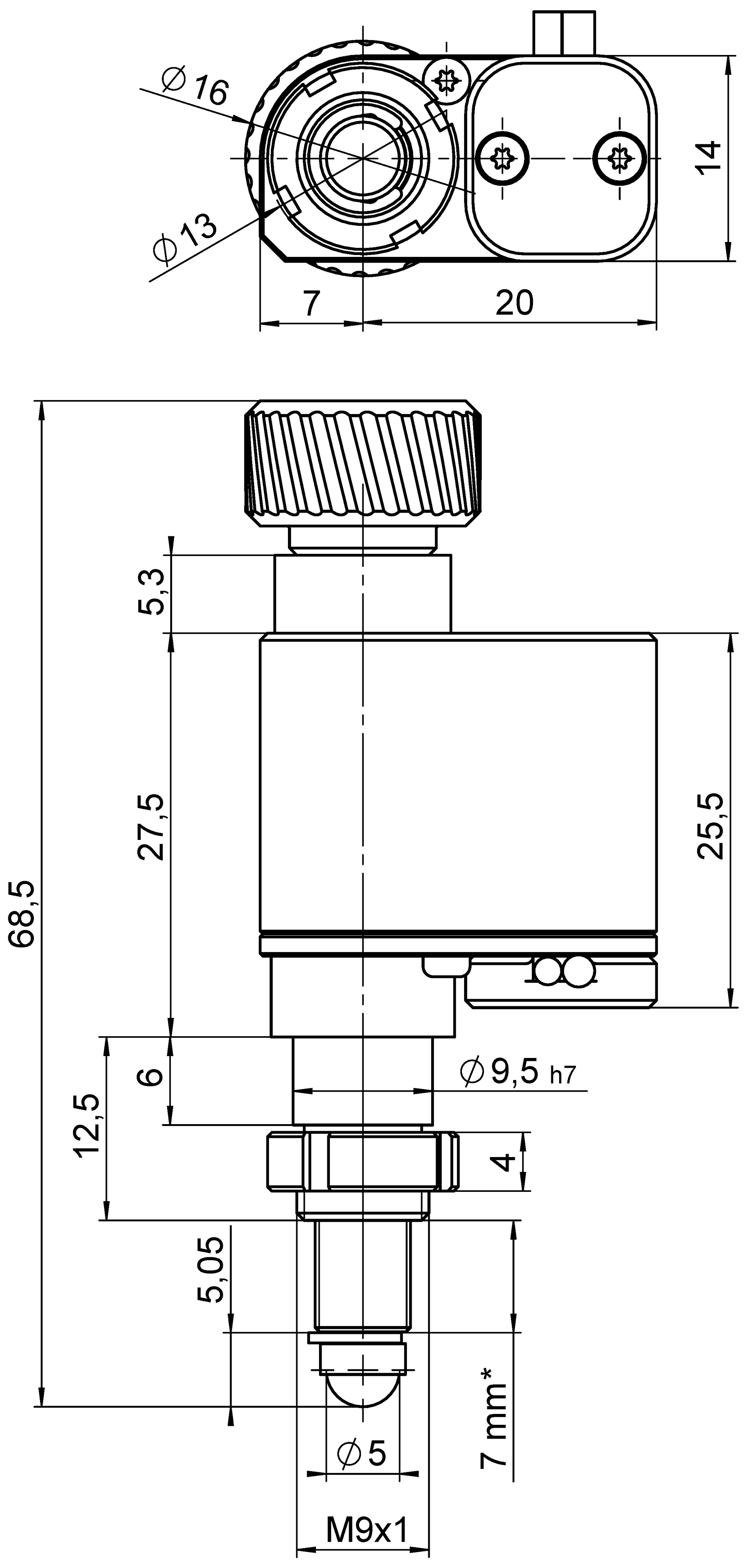

N-472 PiezoMike Linear Actuator

With Position Sensor for Closed-Loop Operation

  • High stability and holding force 100 N
  • Self-locking at rest even when closed-loop control is switched off
  • Compact design with integrated incremental encoder
  • Feed force 22 N
  • Lifetime >1,000,000,000 steps
N-472 PiezoMike Linear Actuator
Product Description Specifications Downloads Quote / Order

Inertia drive

Compact, inexpensive inertia drive principle (stick-slip). At rest, the drive is self-locking, requires no current, and does not generate any heat. It holds the position with maximum force.

Integrated position sensor

An incremental encoder measures the relative motion to a freely definable reference position.

Alignment of mechanical and optomechanical components

Stable alignment of optical paths. Long-term positioning stability: High stability at target position, reliable startup even after longer downtimes. High holding force and resolution by combining piezo actuators with mechanical thread translation. Vacuum-compatible versions to 10-6 hPa available.
