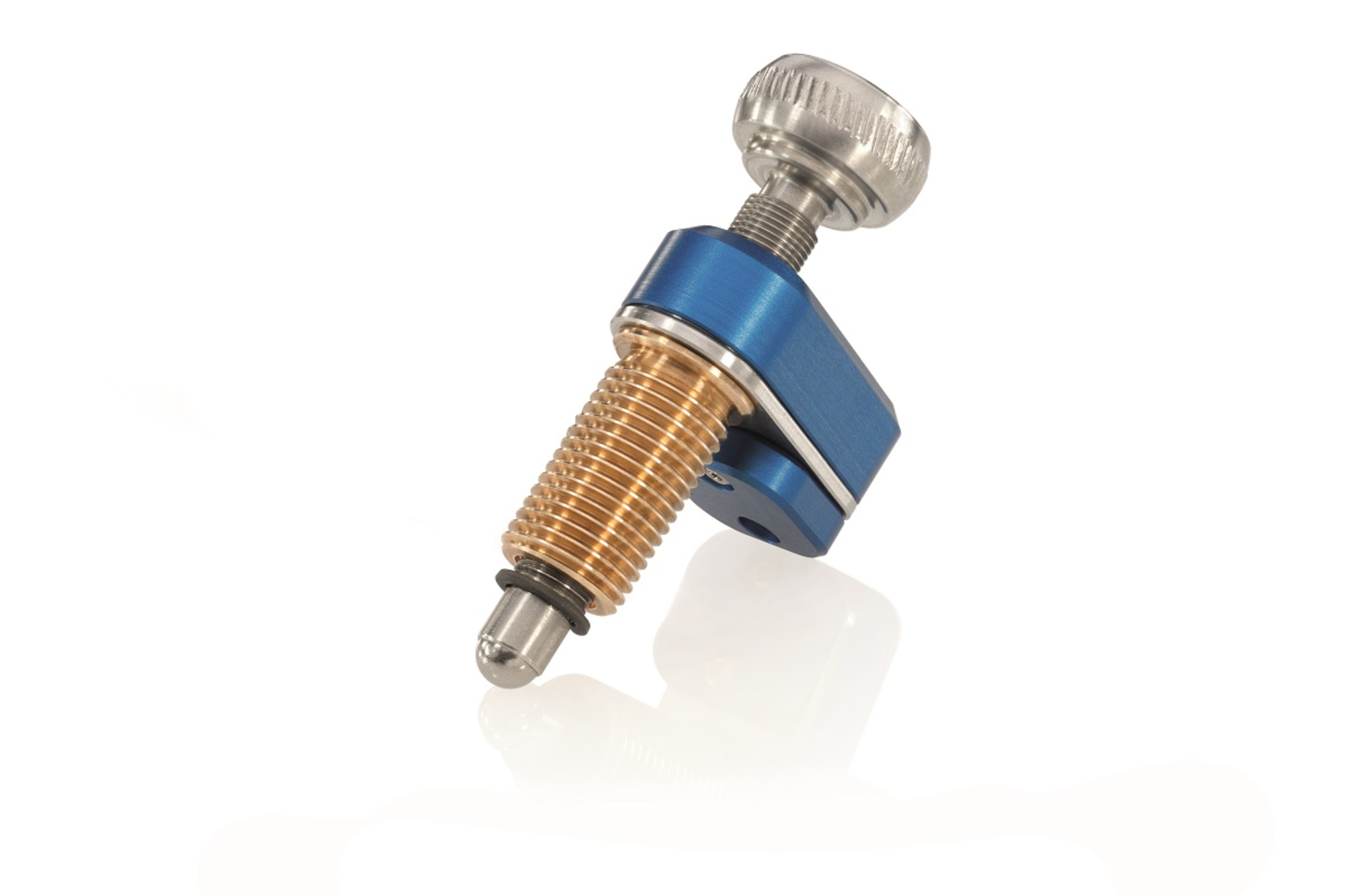

N-470 PiezoMike Linear Actuator

Minimum Dimensions, High Forces, Stable Positioning

  • Holding force 100 N, feed force 22 N
  • Step size 20 nm
  • Travel range 7 mm to 13 mm
  • Compact design
  • Lifetime >1,000,000,000 steps
  • Self-locking, no heat generation at rest
N-470 PiezoMike Linear Actuator
Product Description Specifications Downloads Quote / Order

Linear actuator with piezo motors

Linear screw-type actuator with piezo inertia drive for high-resolution and stable positioning.

Piezo motors

Compact, inexpensive inertia drive principle (stick-slip). The drive is self-locking at rest, requires no current, and does not generate any heat. It holds the position with maximum force.

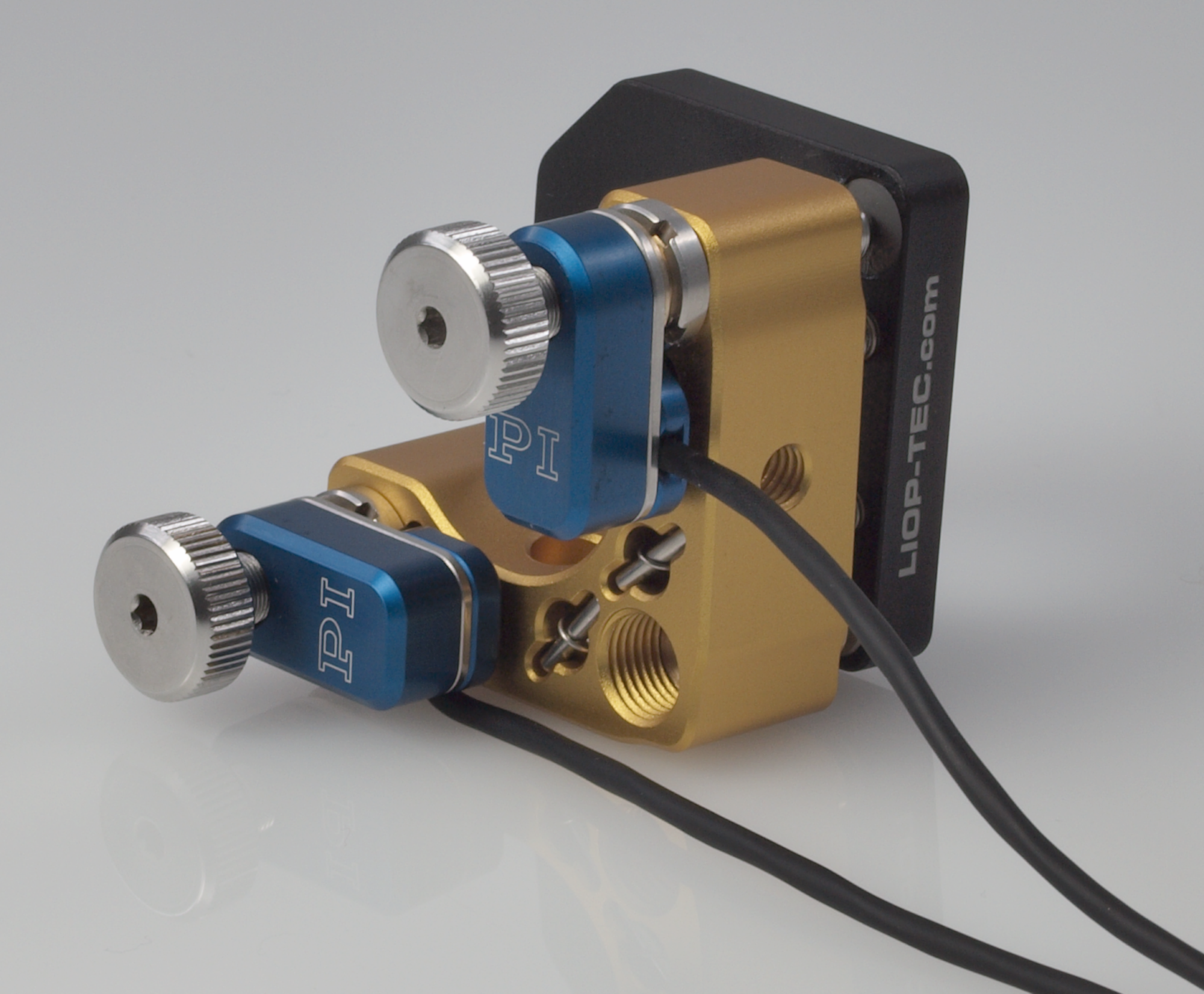

Alignment of mechanical and optomechanical components

Stable adjustment in optical paths. Long-term positioning: High stability at target position, reliable startup even after longer downtimes. High holding force and resolution by combining piezo actuators with mechanical thread translation.

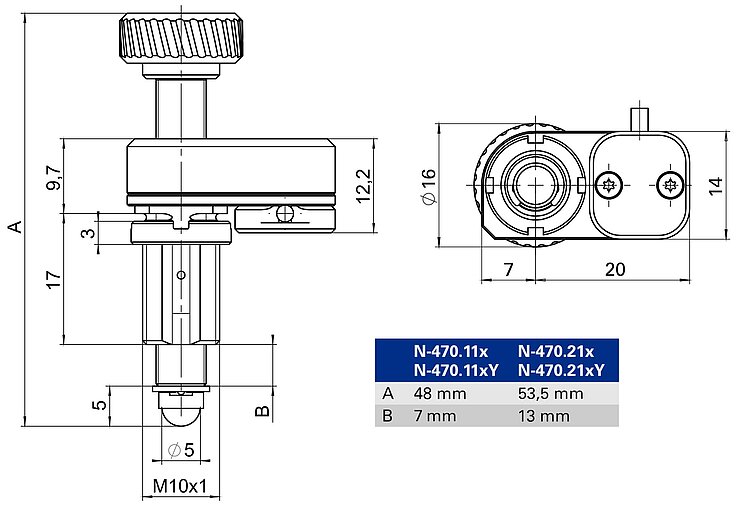

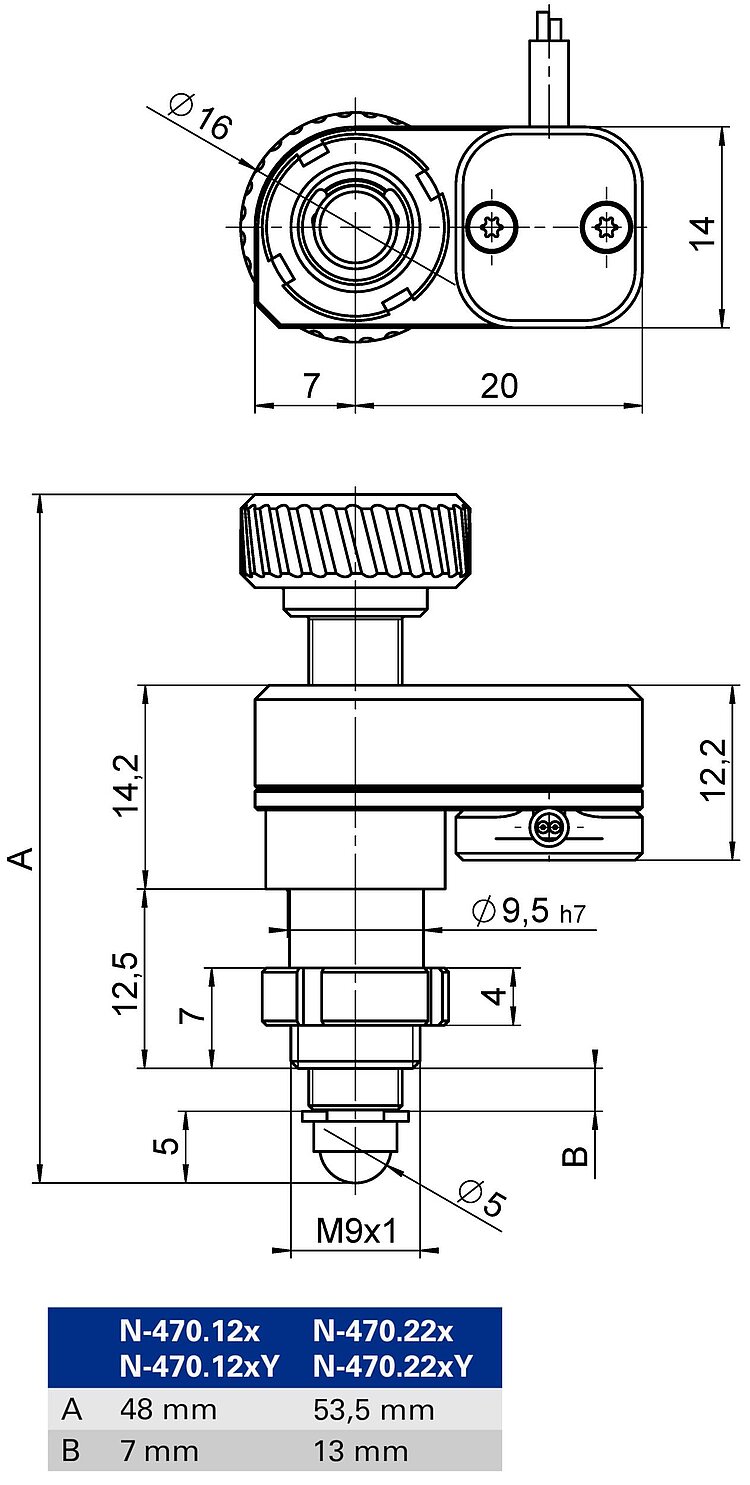

Specifications

Datasheet

Datasheet N-470

Version / Date
2020-11-11
pdf - 875 KB
Version / Date
2020-11-11
pdf - 884 KB

Downloads

Product Note

Product Note

Product Change Notification N-47x.xxx

Version / Date
2020-05-20
pdf - 225 KB
English

Datasheet

Datasheet

Datasheet N-470

Version / Date
2020-11-11
pdf - 875 KB
Version / Date
2020-11-11
pdf - 884 KB

Documentation

Documentation

Short Instructions MP171EK

PiezoMike Linear Actuators: N-45x / N-47x / N-48x

Version / Date
1.1.0 03/2020
pdf - 1 MB
Version / Date
1.1.0 03/2020
pdf - 1 MB
Documentation

User Manual MP125

N-470 PiezoMike Linear Actuator

Version / Date
1.4.0 2020-04-17
pdf - 2 MB
Version / Date
1.4.0 2020-04-17
pdf - 2 MB

3-D Models

3-D Models

N-470 3-D model

zip - 2 MB
