M-232 High-Resolution Linear Actuator with DC Motor

Compact due to Folded Drive

  • Travel range 17 mm
  • Min. incremental motion 0.1 µm
  • Velocity to 1.5 mm/s
  • Closed-loop DC motors
  • MTBF >5000 h
M-232 High-Resolution Linear Actuator with DC Motor
Product Description Specifications Downloads Quote / Order

Compact precision-class linear drive

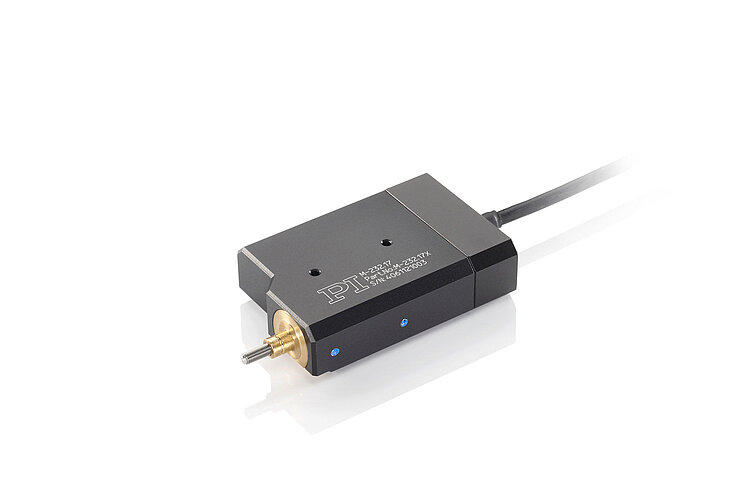

High-resolution linear actuator, DC motor. Compact design due to folded drive. Rotating end piece, rotating pusher. Position-controlled DC motors with a gearhead and high-resolution rotary encoders allow for incremental motion and repeatability of just 100 nm

Fits on the M-105 microtranslation stage.

High-quality components

Extremely low-friction and backlash-free construction. Noncontact limit switches protect the mechanical system. Closed-loop variants with differential encoder driver for a safe position signal transmission at distances up to 10 m

Application fields

Precision alignment, motorized replacement for micrometer screws.
