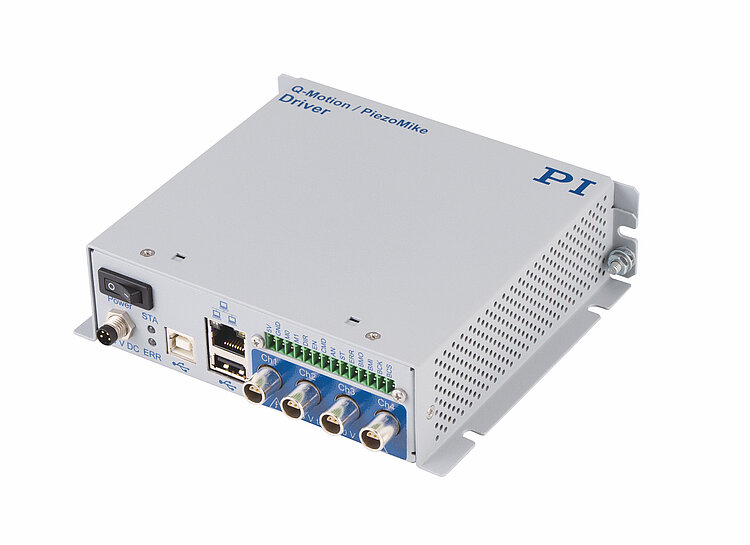

E-872.401 Q-Motion® Piezo Motor / PiezoMike Drive Electronics

Drives up to 4 Linear Actuators, Benchtop Device

  • For positioners with Q-Motion® piezo inertia drives and PiezoMike linear actuators
  • Inexpensive, scalable multi-channel concept
  • Integrated interfaces: TCP/IP, USB, USB for joystick, digital I/O
  • Extensive software support
E-872.401 Q-Motion® Piezo Motor / PiezoMike Drive Electronics
Product Description Specifications Downloads Quote / Order

Drive electronics for 4 piezo mechanics

Drivers for inertia drives (Q-Motion® and PiezoMike) without position sensor (open-loop operation). Drives up to 4 linear actuators: The integrated amplifier drives one axis at a time; switching between the channels is done via commands. Special variant is possible on request for operating up to 64 channels via external module.

Features

Full-step and linear mode. Interfaces: TCP/IP, USB, USB for joystick, digital I/O.

Extensive functions, software support

Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone operation with autostart macro. Data recorder. ID chip detection for fast startup. Extensive software support, e.g., for LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.

Specifications

Datasheet

Datasheet E-872.401

Version / Date
2018-02-22
pdf - 95 KB
Version / Date
2018-02-22
pdf - 96 KB
Version / Date
2018-05-24
pdf - 488 KB

Downloads

Datasheet

Datasheet

Datasheet E-872.401

Version / Date
2018-02-22
pdf - 95 KB
Version / Date
2018-02-22
pdf - 96 KB
Version / Date
2018-05-24
pdf - 488 KB

Documentation

Documentation

User Manual PZ279

E-872.401 Driver for piezo inertia drives

Version / Date
2021-10-21
pdf - 6 MB
Version / Date
2021-10-21
pdf - 6 MB
Documentation

Short Instructions MS242EK

Digital Motor Controllers and Drivers: C-663 / C-863 / C-867 / C-877 / C-884 / E-861 / E-871 / E-872.401 / E-873

Version / Date
3.1.0 02/2021
pdf - 2 MB
Version / Date
3.1.0 02/2021
pdf - 2 MB

3-D Models

3-D Models

3-D model E-872.401

zip - 703 KB

General Software Documentation

General Software Documentation

Software Manual SM158

PI GCS2 Driver Library for NI LabVIEW

Version / Date
7.0.1 202-03-03
pdf - 3 MB
English
General Software Documentation

Software Manual SM151E

PI GCS2 DLL

Version / Date
2.10.0 2019-08-26
pdf - 1 MB
English
General Software Documentation

Software Manual SM148

PIMikroMove

Version / Date
2.14.0 2020-01-30
pdf - 6 MB
English
General Software Documentation

Software Manual SM155

PI MATLAB Driver GCS 2.0

Version / Date
1.1.0 2016-02-29
pdf - 1 MB
Version / Date
1.1.0 2016-02-29
pdf - 1 MB
General Software Documentation

Software Manual SM156

PIStages3Editor for editing the PIStages3 database

Version / Date
2.1.0 2020-08-03
pdf - 2 MB
Version / Date
2.1.0 2020-08-03
pdf - 2 MB
General Software Documentation

User Manual A000T0028

Updating PI Software with PIUpdateFinder

Version / Date
2020-05-20
pdf - 482 KB
Version / Date
2020-05-20
pdf - 488 KB
General Software Documentation

Software Manual SM157

PIPython - Programming PI Controllers with Python

Version / Date
2020-01-17
pdf - 3 MB
Version / Date
2020-01-17
pdf - 3 MB
General Software Documentation

Software Manual SM146

GCS Array Data Format

Version / Date
1.2.1
pdf - 153 KB
