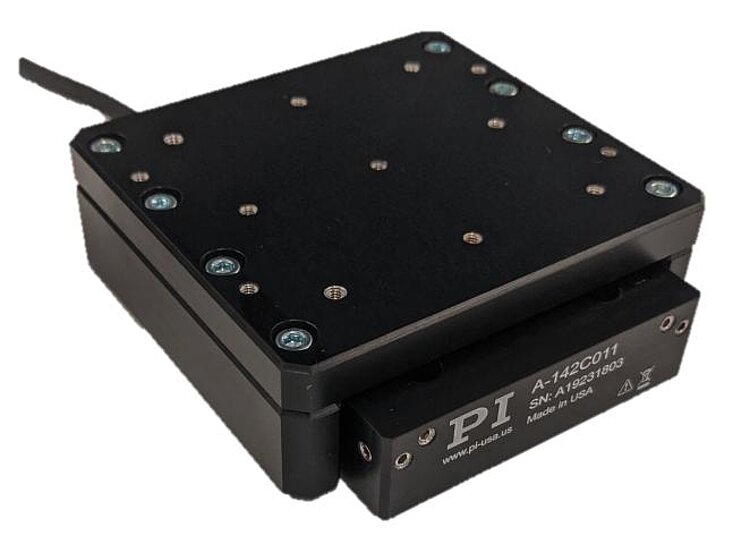

A-142 PIglide Voice Coil Linear Stage with Air Bearings

High Performance • Cleanroom-Compatible • Option for Vertical Mounting

  • Size of the motion platform 75 mm × 80 mm
  • Low overall height of 27 mm
  • Travel range to 10 mm
  • Load capacity to 3 kg
  • Velocity to 450 mm/s
  • Acceleration to 20 m/s2
A-142 PIglide Voice Coil Linear Stage with Air Bearings
Product Description Specifications Downloads Quote / Order

Product overview

High-performance compact voice coil linear stage featuring air bearing guides. Maintenance free with unlimited lifetime, perfect for highly dynamic applications with high duty cycles and tight volumetric constraints.

Integrated counterbalance option to enable operation in vertical orientation.

Accessories and options

  • PIglide filter and air preparation kits
  • Pneumatic counterbalance for vertical mounting

Application fields

The linear stage is ideally suited for high-precision applications, such as metrology, photonics alignment systems, optics positioning, and scanning. The noncontact design is ideal for cleanroom applications. Electrical cables are not moved.

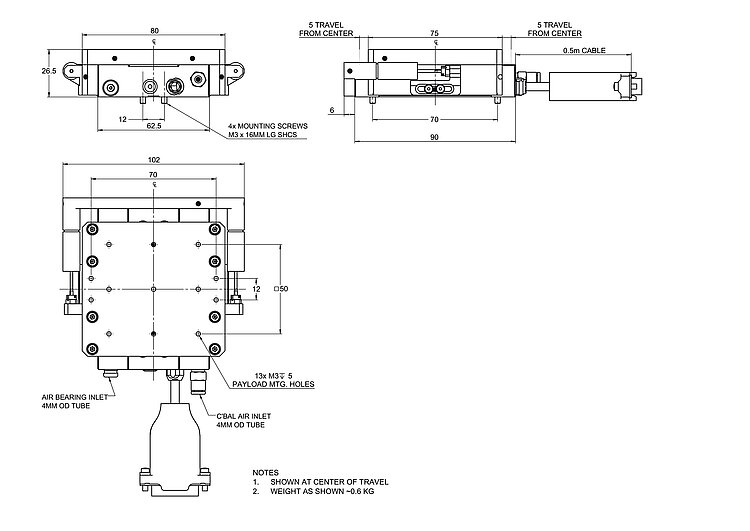

Specifications

Datasheet

Datasheet A-142

Version / Date
2021-06-14
pdf - 720 KB
Version / Date
2021-06-14
pdf - 726 KB

Downloads

Datasheet

Datasheet

Datasheet A-142

Version / Date
2021-06-14
pdf - 720 KB
Version / Date
2021-06-14
pdf - 726 KB

Documentation

Documentation

User Manual A142D001

A-142 Series Miniature Linear Air Bearing Stage with Voice Coil Drive

Version / Date
2021-03-22
pdf - 1,022 KB
English

3-D Models

3-D Models

3-D model A-142

Version / Date
2021-03-22
zip - 826 KB

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

A-142.010A1 NEW!
PIglide voice coil miniature linear stage with air bearings; Voice coil; 10 mm travel range; 30 N load capacity; 450 mm/s maximum velocity; Incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak; ; 0.5 m cable length
A-142.010A2 NEW!
PIglide voice coil miniature linear stage with air bearings; voice coil; 10 mm travel range; 30 N load capacity; 450 mm/s maximum velocity; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak; 0.5 m cable length; pneumatic counterweight for vertical mounting
