XY Stages

Stability, precision and dynamics are crucial in the application fields of PI’s XY stages. They are the basis of high throughput rates and reliable operation.

PI makes use of own developments in the fields of PIMag® magnetic linear motors and PIglide air bearings. Industrial production and quality control benefit from PI’s high-load XY stages and planar scanners.

For microscopy applications e.g. in the field of topology measurement, fast, repeatable scanning is combined with best velocity constancy by PIline® driven sample stages. Their low profile is outstanding in this field. Combination with piezo flexure sample stages makes them very versatile.

Buy PI Products Online

Buy PI Products Online

Order PI’s stages, controllers, and matching accessories for your project in our online shop.

XY Metrology Stages

A-351 MGS Gantry System with Linear Motors

Robust Compact Design with Recirculating Ball Bearing Guides for High Load Capacity.
PIglide HGS Hybrid Gantry System

A-341 PIglide HGS Hybrid Gantry System

Hybrid Guide Design with Air Bearings and Recirculating Ball Bearing Guides for High Precision with Low Profile.

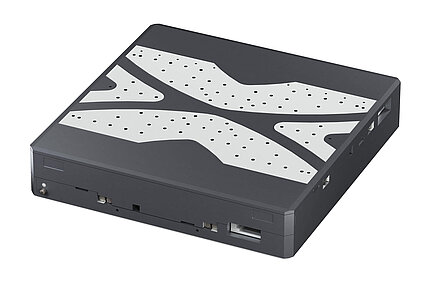

V-741 High-Precision XY Stage

High Travel Accuracy and Stability, 305 mm × 305 mm Travel Range, Linear Motors

L-741 Precision XY Stage

High Travel Accuracy and Stability, 305 × 305 mm Travel Range

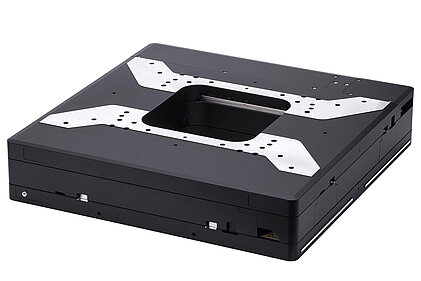

L-738 Precision XY Stage

Clear Aperture, High Travel Accuracy, and Stability

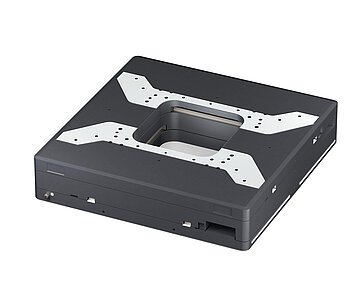

V-738 High-Precision XY Stage

Clear Aperture, High Travel Accuracy and Stability, Linear Motors

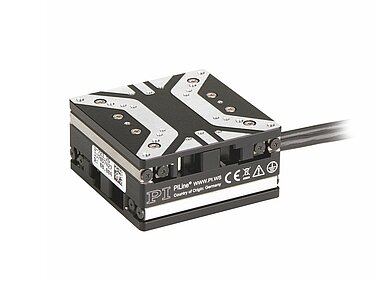

U-723 PILine® XY Stage

Compact XY Stage with Ultrasonic Piezo Motors

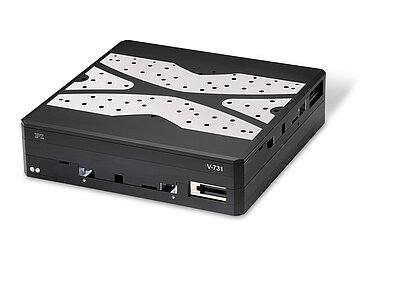

V-731 High-Precision XY Stage

High Travel Accuracy and Stability, Linear Motor

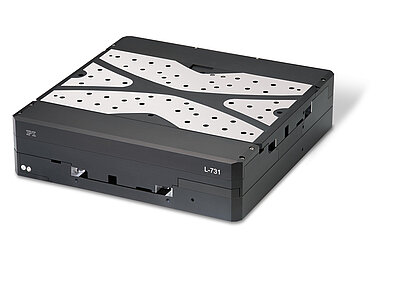

L-731 Precision XY Stage

High Travel Accuracy and Stability

A-322 PIglide HS Planar Scanner with Air Bearing

XY Positioning System with 1 nm Resolution

A-311 PIglide IS Planar Scanner with Air Bearing

High-Performance, Compact XY Nanopositioning System

XY & XYZ Sample Stages for Microscopy

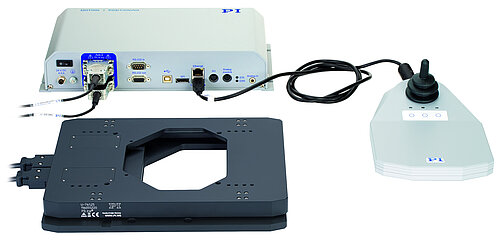

U-760 PILine® XY Stage System with Controller and Joystick

Compact, low vibration, low profile
NEW

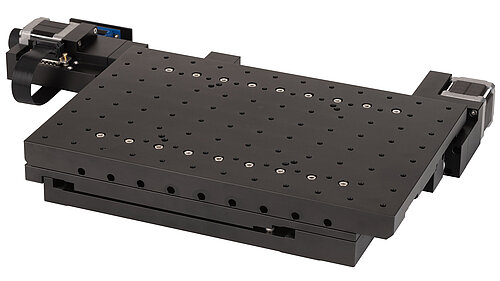

M-971 Motorized OEM XY Stage

Low Price with High Quantities

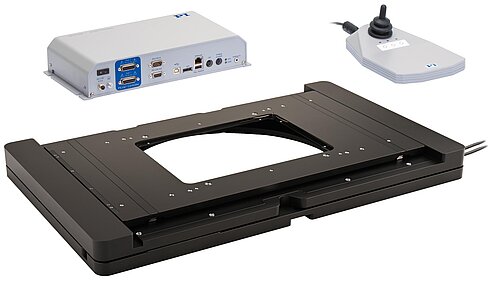

U-780 PILine® XY Stage System with Controller and Joystick

Stable, Dynamic, Low Profile

U-751.24 XY Stage with Piezomotors

Low-Profile and Fast, Direct Position Measurement

P-545.xR8S PInano® XY(Z) Piezo System

Inexpensive Nanopositioning System for High-Resolution Microscopy

P-545.xC8S PInano® Cap XY(Z) Piezo System

Capacitive Position Measuring for Super-Resolution Microscopy

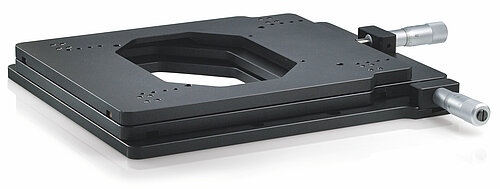

M-545 Microscope XY Stage

Compact, Stable, Long Travel Range

XY Motion Systems

NEW

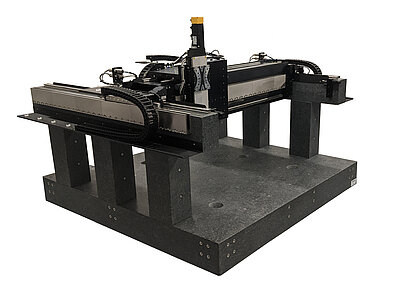

A-352 MGS Large Format Gantry System with Linear Motors

Robust Compact Design with Recirculating Ball Bearing Guides for High Load Capacity.
NEW

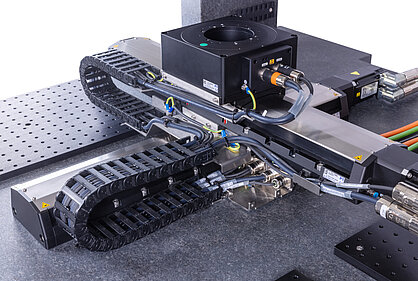

X-417 Integrated Multi-Axis System

XY(Z) Positioning System with Controller • Quickly Available
