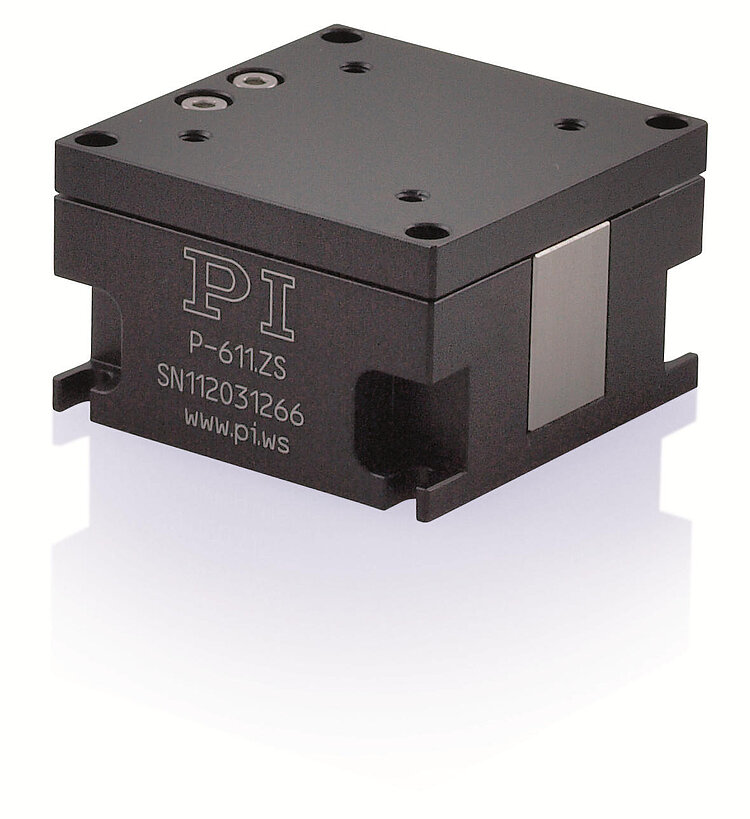

P-611.Z Piezo Z Stage

Compact Nanopositioner

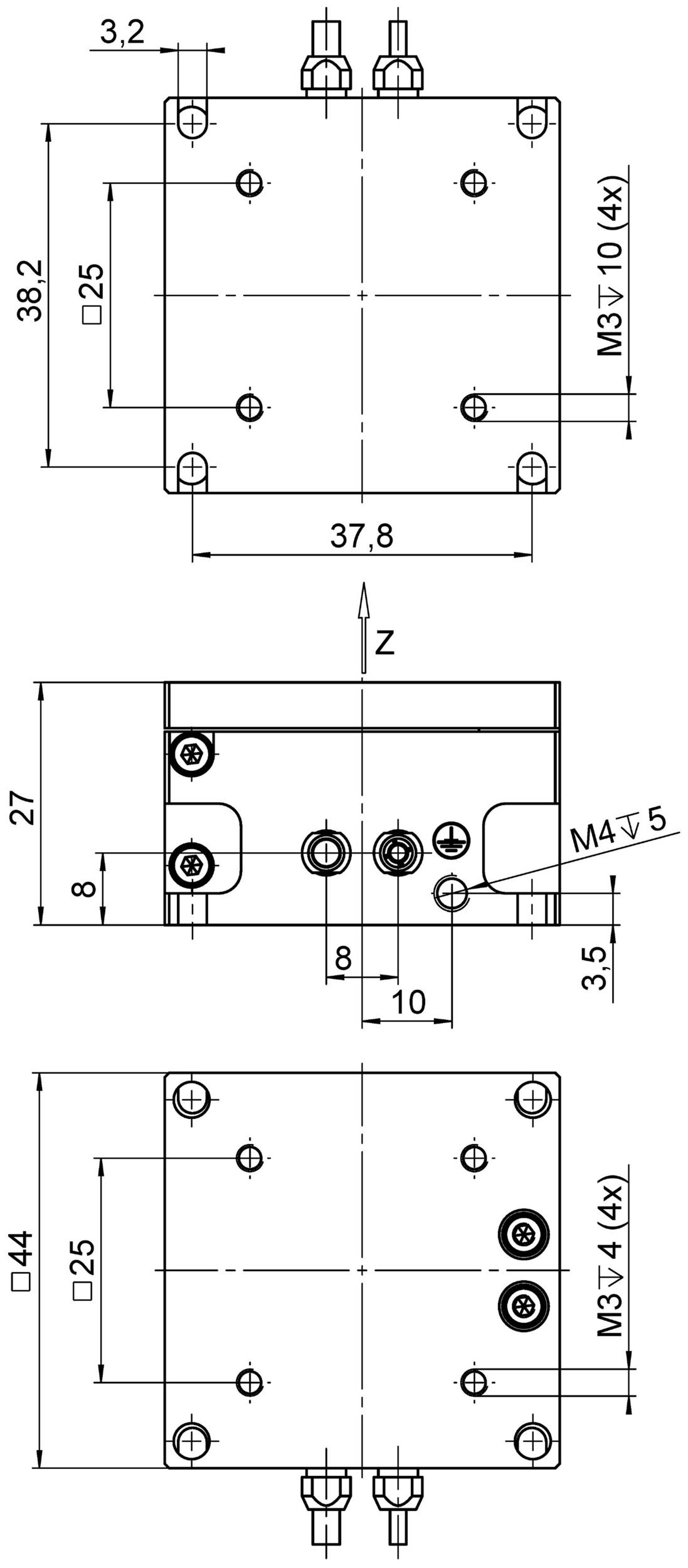

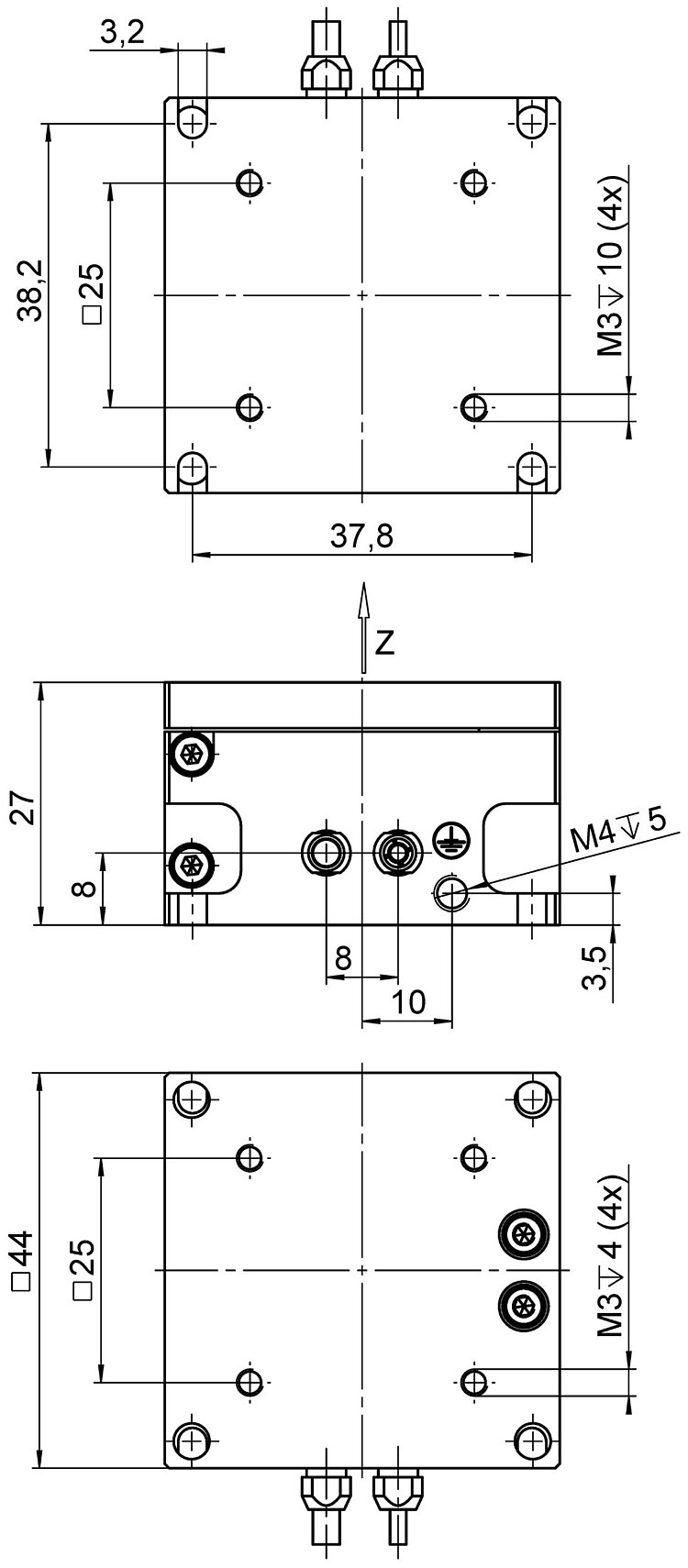

  • Compact: Surface only 44 mm × 44 mm
  • Travel range 100 µm
  • Resolution to 0.2 nm
  • Particularly inexpensive systems (mechanics and controller)
  • Zero-play, high-precision flexure guide system
  • Outstanding lifetime due to PICMA® piezo actuators
  • X, XY, XZ and XYZ versions
P-611.Z Piezo Z Stage
Product Description Specifications Downloads Quote / Order

Application fields

  • Micromachining
  • Photonics
  • Fiber positioning
  • Test procedures and quality assurance

Outstanding lifetime thanks to PICMA® piezo actuators

The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

High guiding accuracy due to zero-play flexure guides

Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They are 100 % vacuum compatible and work in a wide temperature range.

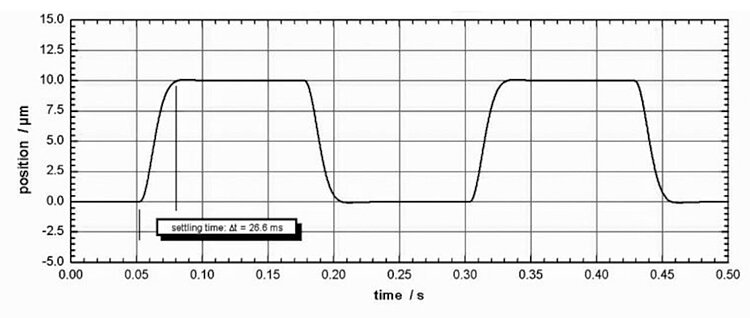

Specifications

Datasheet

Datasheet P-611.Z

Version / Date
2019-01-18
pdf - 646 KB
Version / Date
2019-01-18
pdf - 656 KB
Version / Date
2019-01-18
pdf - 718 KB
Version / Date
2019-01-18
pdf - 800 KB

Downloads

Datasheet

Datasheet

Datasheet P-611.Z

Version / Date
2019-01-18
pdf - 646 KB
Version / Date
2019-01-18
pdf - 656 KB
Version / Date
2019-01-18
pdf - 718 KB
Version / Date
2019-01-18
pdf - 800 KB

Documentation

Documentation

User Manual PZ253

P-611 Nanopositioning Systems with Strain Gauge Sensors / without Sensor

Version / Date
1.2.0 2021-04-13
pdf - 3 MB
Version / Date
1.2.0 2021-04-13
pdf - 3 MB
Documentation

Unpacking Instructions P611T0006

Unpacking and Handling of P-611 Positioners

Version / Date
2018-01-24
pdf - 768 KB
English
Documentation

Short Instructions PZ240

Piezo Positioning Systems: P-5xx / P-6xx / P-7xx

Version / Date
6.1.0 10/2019
pdf - 1 MB
Version / Date
6.1.0 10/2019
pdf - 1 MB

3-D Models

3-D Models

P-611.Z 3-D model

zip - 200 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
