- Long travel ranges (to 800 mm) with narrow profile (100 mm width)
- Highly dynamic, maintenance-free linear motor with velocities up to 4 m/s
- Robust industrial design for a long lifetime
- High-precision incremental or absolute linear encoder
- Permanent load capacity to 600 N
- Ideal for gantry systems
Compact industrial design for applications with low power requirements

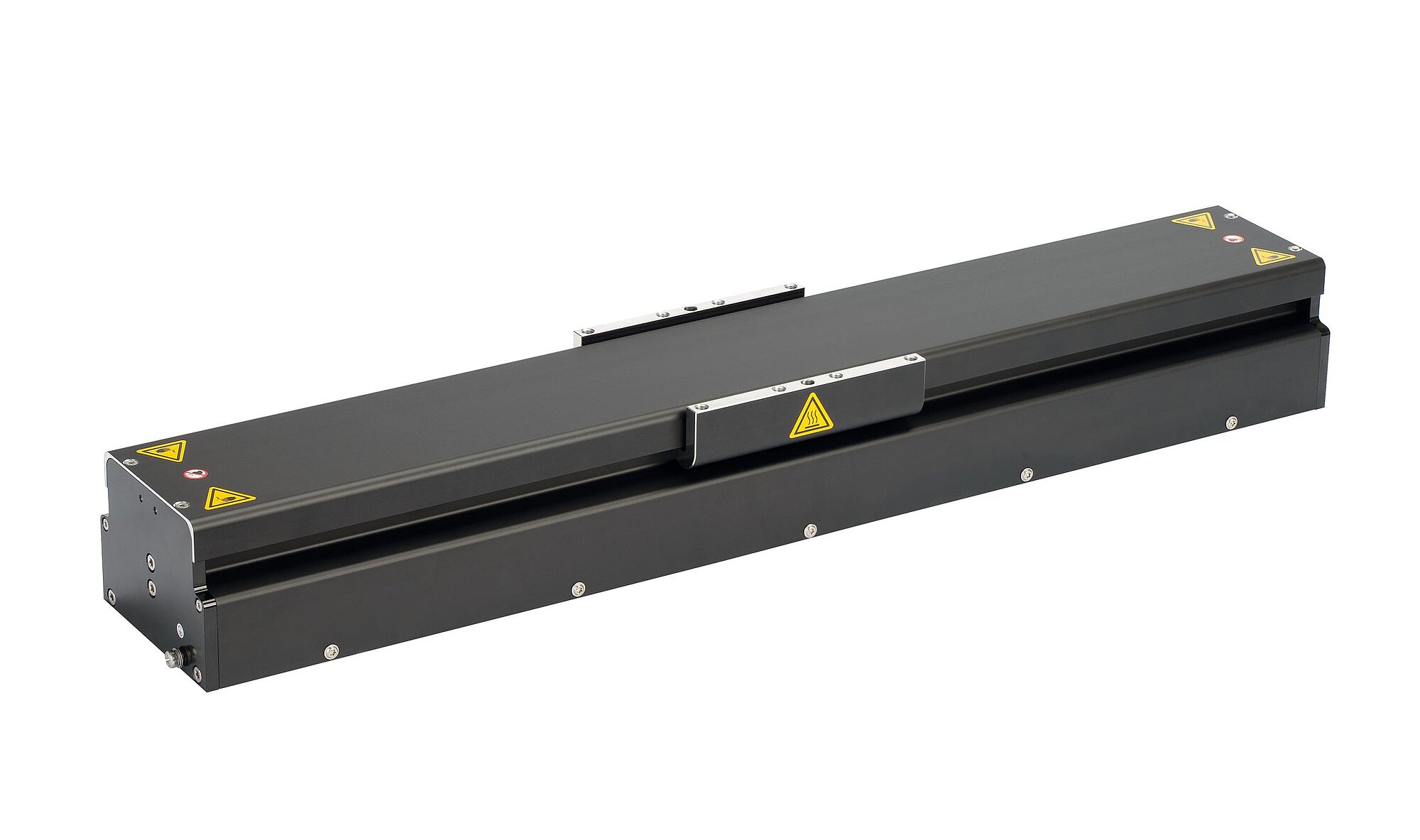

The V-855 is a heavy-duty and highly dynamic linear stage for industrial applications. Its design is consistently geared to demanding industrial conditions and it is characterized by high stiffness and the use of high-quality components: recirculating ball bearing guides, 3-phase linear motor, incremental or absolute linear encoder. The high resolution of the encoders allows an excellent tracking performance, small tracking errors, and short settling times. The optional motion platform offers versatile assembly options with a triple M6 hole pattern.
Linear motor with direct drive
3-phase magnetic direct drives do not use mechanical components in the drivetrain, they transmit the drive force to the motion platform directly and without friction. The drives reach high velocities and accelerations. Ironless motors are particularly suitable for positioning tasks with the highest demands on precision because there is no undesirable interaction with the permanent magnets. This allows smooth running even at the lowest velocities and at the same time, there is no vibration at high velocities. Nonlinearity in control behavior is avoided and any position can be controlled easily. The drive force can be set freely.
- Electronics manufacturing: PCB manufacturing, printed electronics
- Test & inspection: Noncontact 2D measurement, sensor & camera placement for inspection, position sensor testing, vibration & acceleration testing
- Advanced manufacturing: Robotic manipulation and microassembly, industrial inkjet printing
User Manual V855UM0001
V-855.5x6023E0 High-Speed Linear Stage
User Manual V855UM0002
V-855.5x6211E0 High-Speed Linear Stage
3-D model V-855.576xxxxx
3-D model V-855.566xxxxx
Animated 3-D Models
Animated 3-D Model V-855.576xxxxx
Animated 3-D Model V-855.566xxxxx
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
