E-836 Compact Piezo Amplifier / OEM Module

Cost-Effective, Low-Noise Piezo Amplifiers for Dynamic Piezo Actuator Operation

  • OEM module and benchtop device
  • Peak current up to 100 mA
  • Easy integration
  • Power on/off without voltage spikes
  • 24 V operating voltage
E-836 Compact Piezo Amplifier / OEM Module
Product Description Specifications Downloads Quote / Order

Single-channel piezo amplifier: OEM module or benchtop device

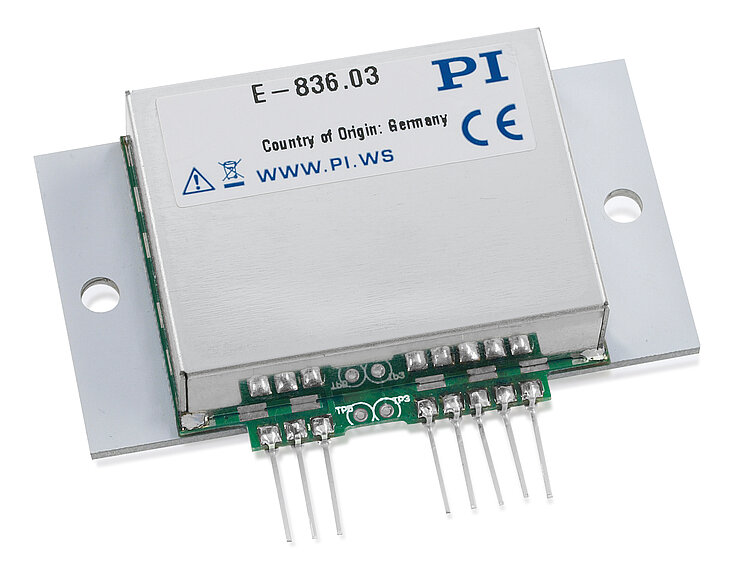

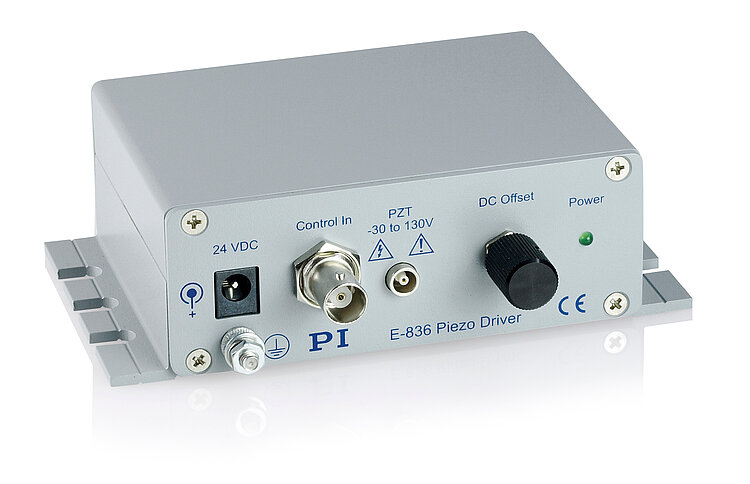

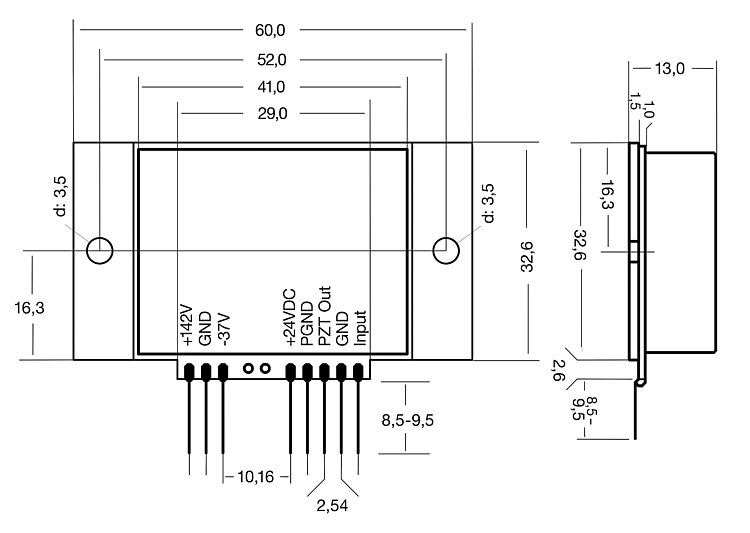

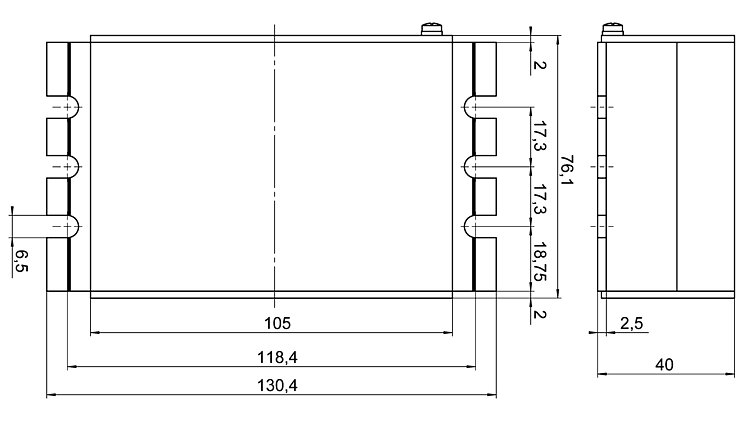

Compact OEM module in shielded metal housing; easy integration with soldering pins for mounting on boards; ideally suited for assembling multi-channel solutions. Benchtop device for laboratory applications and fast startup. 24 V operating voltage, piezo voltage and other supply voltages are generated internally.

Functions

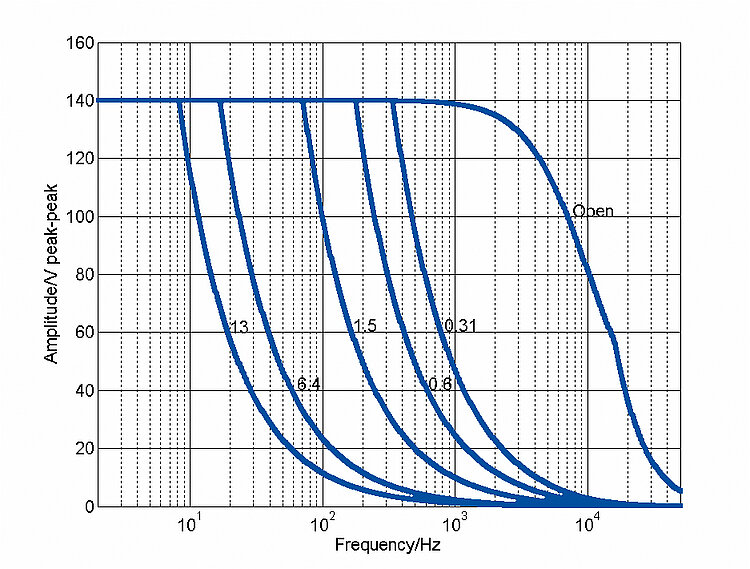

Low-noise power amplifier. Gain value 10. Output voltage range -30 to 130 V. Short-circuit proof, full overcurrent and overtemperature protection.

Fields of application

Inexpensive control of PICMA® Stack or PICMA® Chip piezo actuators in OEM applications.
