E-873 Q-Motion® Servo Controller, 1 Axis

For Piezoelectric Inertia Drives, SPI, TCP/IP, USB, RS-232 Interfaces

E-873 Q-Motion® Servo Controller, 1 Axis
Product Description Specifications Downloads Quote / Order
  • Broadband encoder input
  • Macro programmable for stand-alone functionality
  • Fast startup due to ID chip detection
  • Data recorder
  • Digital I/O ports (TTL)
  • Joystick for manual operation

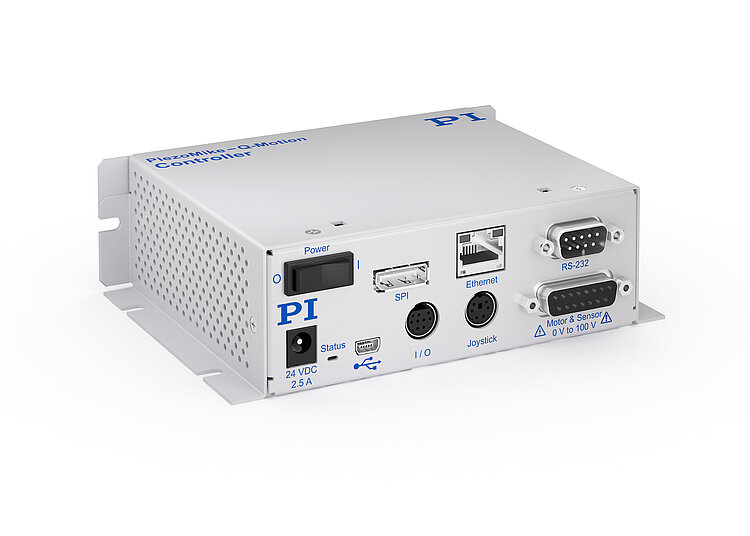

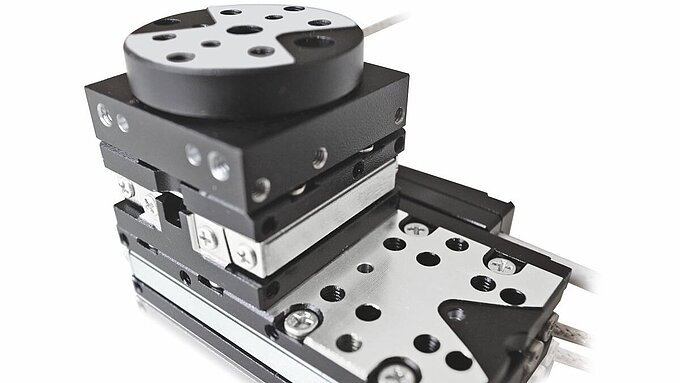

Digital servo controller for piezo inertia drives

Integrated power amplifier and voltage generator for piezo inertia drives. Point-to-point motion, trapezoidal velocity profile, actuator mode for nanometer precision positioning at the target position. 1 axis.

Encoder inputs

Differential signal transmission for digital (A/B) or analog (sin/cos) encoder signals. BiSS interface for absolute encoders. TTL inputs for limit and reference point switches.

Interfaces

USB, RS-232, TCP/IP, and SPI for commanding. I/O lines (analog/digital) for automation. Connector for analog joystick.

Extensive functions, software support

Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone operation with autostart macro. Data recorder. ID chip detection for fast startup. PID controller, parameter changing during operation. Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.
