U-780 PILine® XY Stage System with Controller and Joystick

Stable, Dynamic, Low Profile

  • High velocity constancy at 10 µm/s
  • Velocity to 120 mm/s, resolution 0.1 µm
  • Travel ranges to 135 mm × 85 mm (depending on model type)
  • For inverted microscopes, freely revolving nosepiece
  • Compact, low-profile design: Unrestricted access to the sample
  • Extensive accessories
U-780 PILine® XY Stage System with Controller and Joystick
Product Description Specifications Downloads Quote / Order

Reference-class microscope XY stage

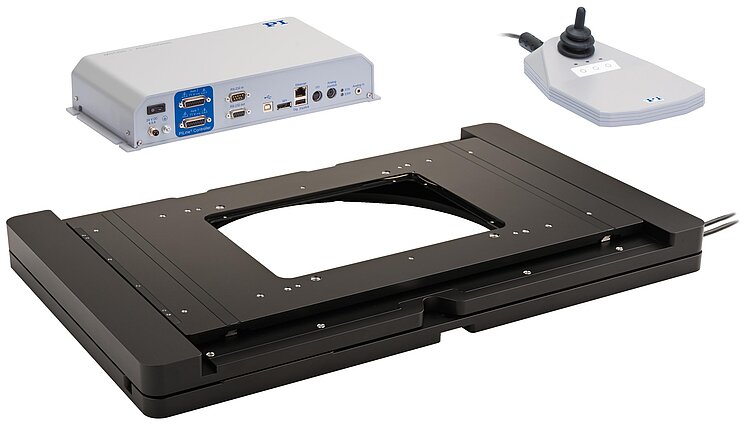

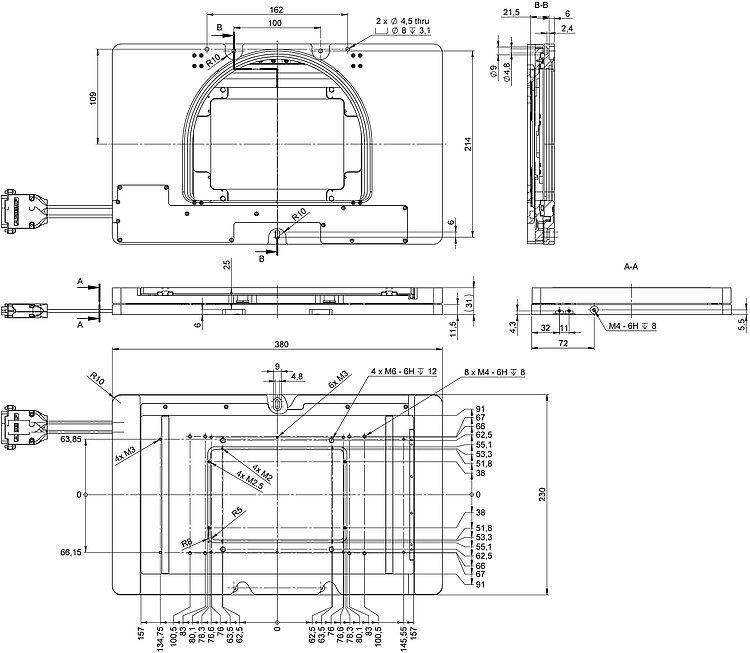

System consisting of XY stage, controller, USB joystick, and appropriate cables. Large clear aperture 160 mm × 110 mm.

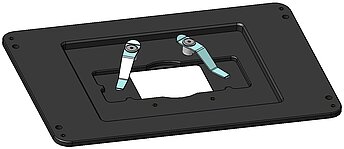

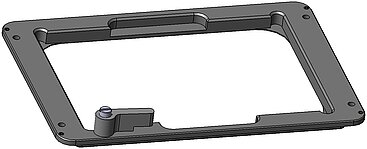

Accessories necessary: Sample holder, fine positioning stages, and Z stages

You will find matching fine positioning stages (X / Y / Z / ΘX / ΘY / ΘZ), sample holders (microscope slide, holder for Petri dishes, and microtiter plates), as well as any adapter plates necessary in our "Microscope Stage Configurator" brochure.

Suitable for the following inverted microscopes:

  • Nikon Eclipse Ti / Ti2
  • Olympus IX / IX2 / IX3
  • Leica DMI6000 / DMI8

High-resolution PILine® piezo linear drive

Self-locking at rest. Low noise. Highest stability due to low thermal load and no lubricants. Large dynamics range of 10 µm/s to 120 mm/s, ideal for operating with joystick and automated high-content processes.

Highly accurate position measuring with incremental linear encoder

Noncontact optical encoders measure the actual position directly at the motion platforms with the greatest accuracy so that nonlinearity, mechanical play or elastic deformation have no influence on position measuring.

User software

PIMikroMove. PI General Command Set (GCS). Drivers for NI LabVIEW. Compatible with µManager, MetaMorph, Andor iQ, MATLAB.

Application fields

For inverted microscopes from Nikon, Olympus and Leica, versions for other microscopes available on request. For super-resolution microscopy, tiling, automated scanning microscopy.

Specifications

Datasheet

Datasheet U-780

Version / Date
2020-02-25
pdf - 696 KB
Version / Date
2020-02-25
pdf - 705 KB

Downloads

Datasheet

Datasheet

Datasheet U-780

Version / Date
2020-02-25
pdf - 696 KB
Version / Date
2020-02-25
pdf - 705 KB

Documentation

Documentation

User Manual MP100

M-687.UN XY Microscope Stage for Inverted Nikon Microscopes, with PILine® Linear Drives

Version / Date
2016-09-12
pdf - 4 MB
Version / Date
2016-09-12
pdf - 4 MB
Documentation

User Manual MP107

M-687.UO XY Microscope Stage for Inverted Olympus Microscopes, with PILine® Linear Drives

Version / Date
1.2.0 2016-09-12
pdf - 3 MB
Version / Date
1.2.0 2016-09-12
pdf - 3 MB
Documentation

User Manual MP111

M-687.UL XY stage for inverted Leica microscopes, with PILine® linear drives

Version / Date
2016-09-12
pdf - 2 MB
Version / Date
2016-09-12
pdf - 2 MB
Documentation

User Manual MS231

C-867.2U2 Piezomotor Controller / Driver, Networkable, 2 Axes, for PILine® Systems with Sub-D Connector

Version / Date
2.1.3 2021-07-21
pdf - 3 MB
Version / Date
2.1.3 2021-07-21
pdf - 3 MB
Documentation

Short Instructions MP121EK

PILine® Positioners: M-66x, M-68x, U-521, U-62x, U-651, U-7xx

Version / Date
5.1.0 03/2021
pdf - 993 KB
Version / Date
5.1.0 03/2021
pdf - 1,011 KB
Documentation

Short Instructions MS242EK

Digital Motor Controllers and Drivers: C-663 / C-863 / C-867 / C-877 / C-884 / E-861 / E-871 / E-872.401 / E-873

Version / Date
3.1.0 02/2021
pdf - 2 MB
Version / Date
3.1.0 02/2021
pdf - 2 MB

3-D Models

3-D Models

U-780 3-D model

zip - 3 MB

Brochure

Brochure

Microscope Stage Configurator

Sample Stages and Holders for Inverted Microscopes

Version / Date
BRO70E R3D
pdf - 4 MB
English

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

Accessories

P-736.UHN
Universal holder for microscope slides and Petri dishes, for P-736.ZxN2 PInano® Z piezo scanner for inverted Nikon microscopes with large aperture for microtiter plates
