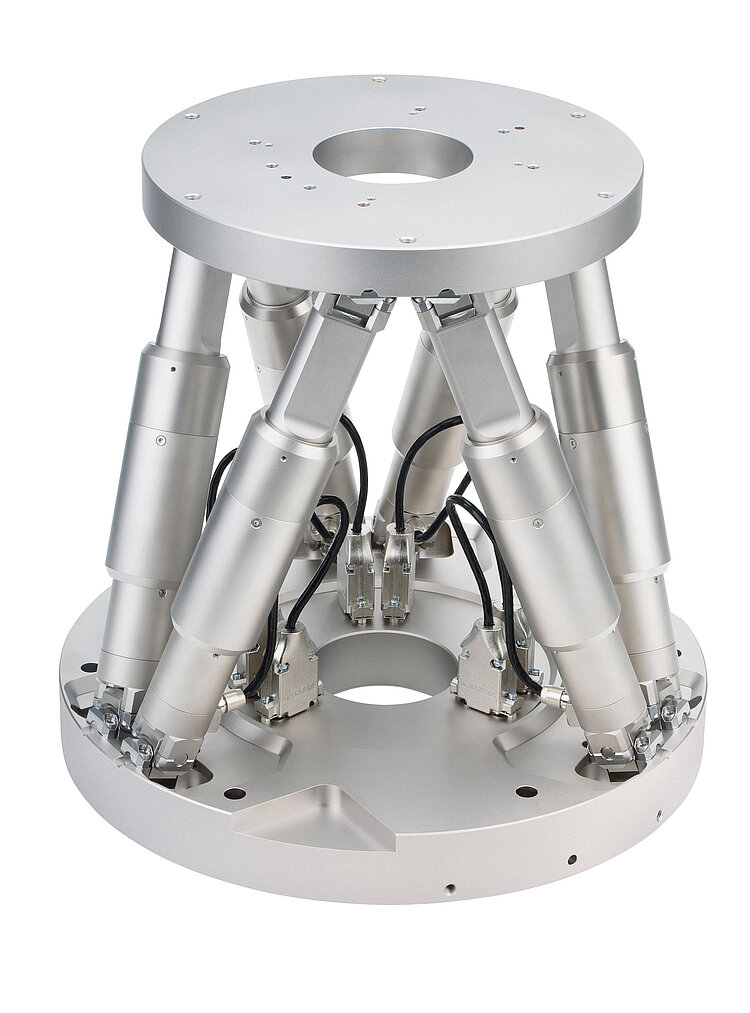

H-850.V Vacuum-Compatible 6-Axis Hexapod

For Loads to 80 kg

  • Load capacity to 80 kg
  • Repeatability to ±0.2 µm
  • Travel ranges to ±50 mm / ±30°
  • Works in any orientation
H-850.V Vacuum-Compatible 6-Axis Hexapod
Product Description Specifications Downloads Quote / Order

The H-850 series hexapods position heavy loads up to 80 kg with high precision and reliability. Heavy-duty precision bearings allow applications with long duty cycles.

The H-850.V are suitable for vacuum environments to 10-6 hPa.

The parallel-kinematic design for six degrees of freedom makes it significantly more compact and stiffer than comparable serial kinematic systems. Their advantages over serial, i.e., stacked systems, are mainly the much better path accuracy and repeatability. In addition, the moved mass is lower and allows improved dynamics performance and is the same for all motion axes. Cable management is not a problem because cables are not moved.

PI Hexapod Simulation Tool

The simulation software simulates the limits of the workspace and load capacity of a hexapod. Therefore, even before making a purchase, you can check whether a particular hexapod model can handle the loads, forces, and torques occurring in an application. For this purpose, the simulation tool takes into account the position and motion of the hexapod as well as the pivot point and several reference coordinate systems.

Fields of application

Research and industry. For astronomy, optics positioning, aerospace

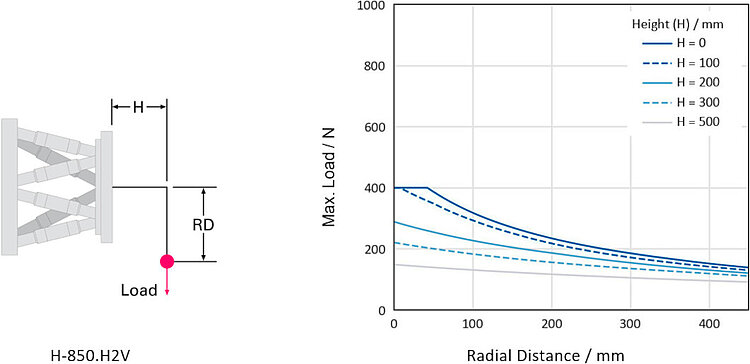

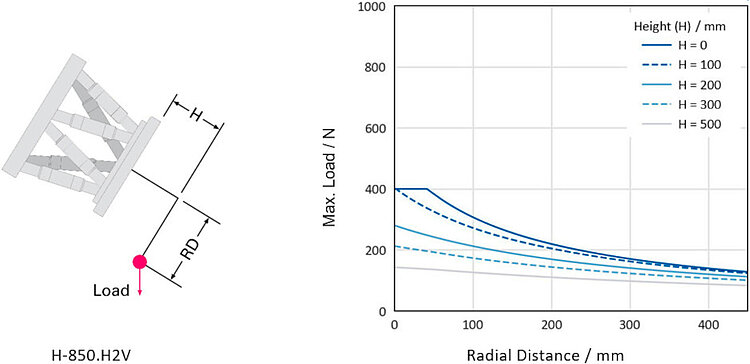

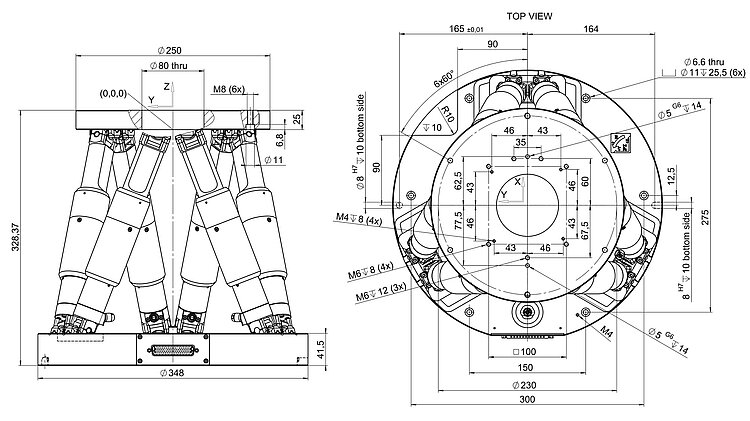

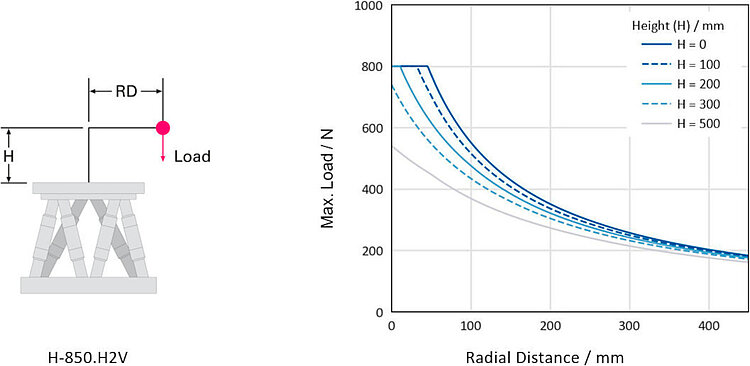

Specifications

Datasheet

Datasheet H-850.V

Version / Date
2020-12-10
pdf - 363 KB
Version / Date
2020-12-10
pdf - 360 KB

Downloads

Product Note

Product Note

Product Change Notification Hexapod Cables

Version / Date
2021-01-15
pdf - 186 KB
English
Product Note

Product Change Notification H-206.x1x, H-8xx.x1x, H-8xx.xVx, F-206.S

Version / Date
2019-04-04
pdf - 367 KB
English

Datasheet

Datasheet

Datasheet H-850.V

Version / Date
2020-12-10
pdf - 363 KB
Version / Date
2020-12-10
pdf - 360 KB

Documentation

Documentation

Short Instructions MS247EK

Hexapod Systems: H-xxx Hexapod with C-887.5xx Controller

Version / Date
2.0.0 06/2020
pdf - 2 MB
Version / Date
2.0.0 06/2020
pdf - 2 MB
Documentation

User Manual C887T0017

C-887.5Bxx Drag-chain capable cable sets for connecting H-206 and most H-8xx hexapod standard models to C-887.5xx controller models

Version / Date
2020-04-09
pdf - 271 KB
English

3-D Models

3-D Models

H-850.x2V 3-D model

Version / Date
2021-04-20
zip - 5 MB

Software Files

Software Files

Hexapod Simulation Tool

Version / Date
2020-02-10
zip - 4 MB

White Paper

White Paper

Industrial Safety Device for Hexapods

How to Connect a Safety Light Barrier to a Hexapod System

Version / Date
WP4025E 2020-02
pdf - 1 MB
Version / Date
WP4025D 2020-01
pdf - 1 MB
Separate connection cable required for power supply and data transmission. Please refer to the C-815.82xxx datasheet for detailed information. Connecting cables are not in the scope of delivery, although this may be stated otherwise in the manual. The manual is currently being revised.

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

H-850.G2V
Precision Hexapod microrobot, DC gear motor, rotary encoder, 25 kg load capacity, 2.5 mm/s velocity, vacuum compatible to 10-6 hPa, cable set 2 m vacuum side, feedthrough. Air side connecting cables are not included in the scope of delivery and must be ordered separately.
H-850.H2V
Precision Hexapod microrobot, DC gear motor, rotary encoder, 80 kg load capacity, 0.15 mm/s velocity, vacuum compatible to 10-6 hPa, cable set 2 m vacuum side, feedthrough. Air side connecting cables are not included in the scope of delivery and must be ordered separately.

Data transmission cables in other lengths

Power supply cables in other lengths
