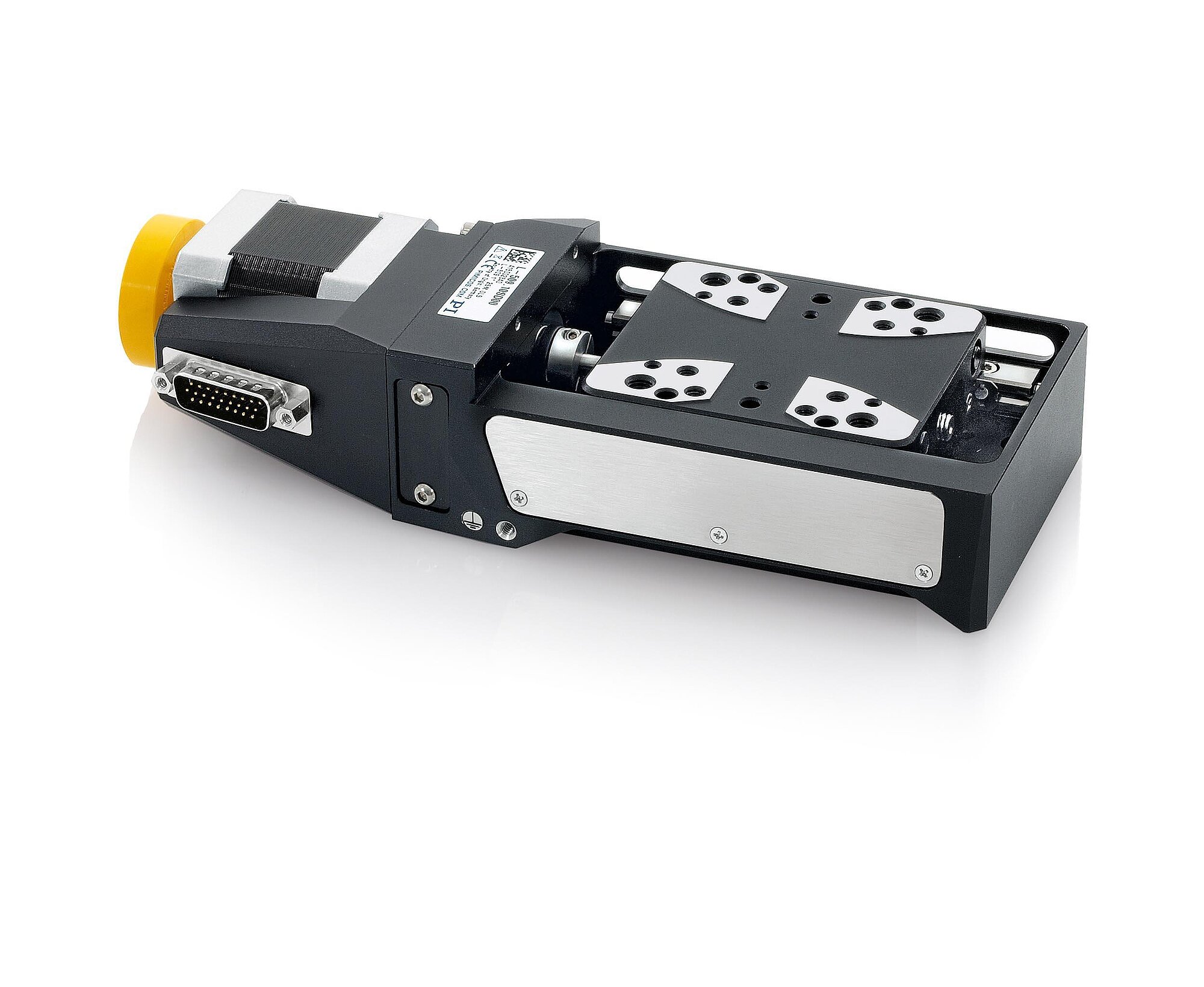

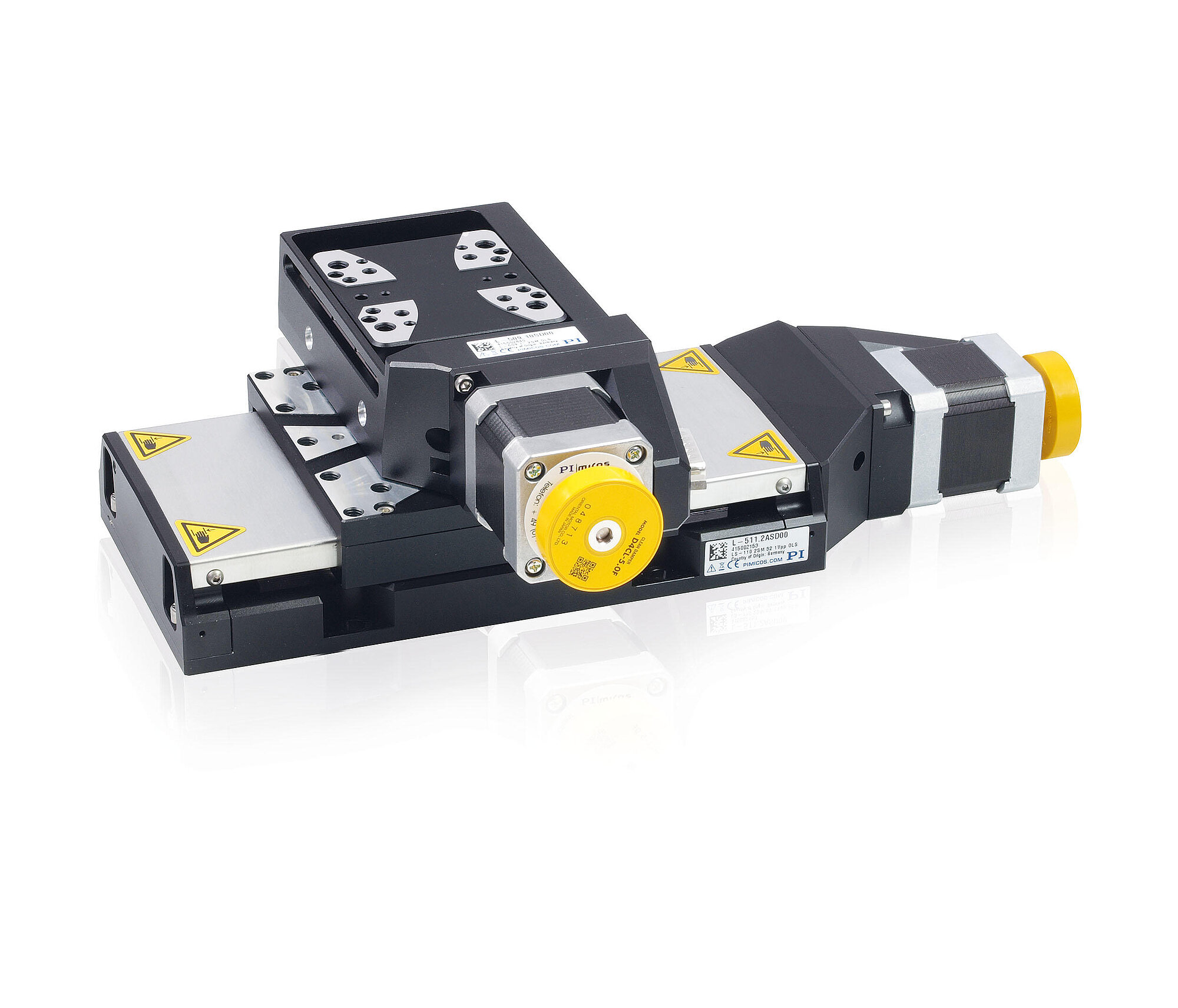

L-509 Precision Linear Stage

Compact Design, for Loads to 10 kg

L-509 Precision Linear Stage
Product Description Specifications Downloads Quote / Order

Product overview

High travel accuracy and load capacity due to crossed roller guides with anti-creep system. Precision ball screw with 1 mm pitch. Compact design. Stress-relieved aluminum base for highest stability. Noncontact optical limit switches. Noncontact optical reference switch with direction sensing in the middle of the travel range.

Motor types available

  • ActiveDrive DC motor for high velocity: Control via pulse-width-modulated (PWM) signals, the operating voltage is achieved via an amplifier integrated in the motor housing
  • DC servo motor with gearhead for high torques and resolution at low motor power
  • 2-phase stepper motor for low velocity and high resolution
  • Brushless DC motor: For applications with a high duty cycle. Use a controller with sine commutation for an exceptionally smooth synchronous motion and low vibrations even at a very low velocity.

Types of position measuring

  • Without encoder (open loop)
  • Rotary encoder integrated on the motor shaft
  • Incremental linear encoder

Highly accurate position measuring with incremental linear encoder

Noncontact optical encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement.

Application fields

Autofocus. Laser cutting. Research. Biotechnology. Automation. Optical alignment.

Separate connection cable required for motor and sensor connection respectively.

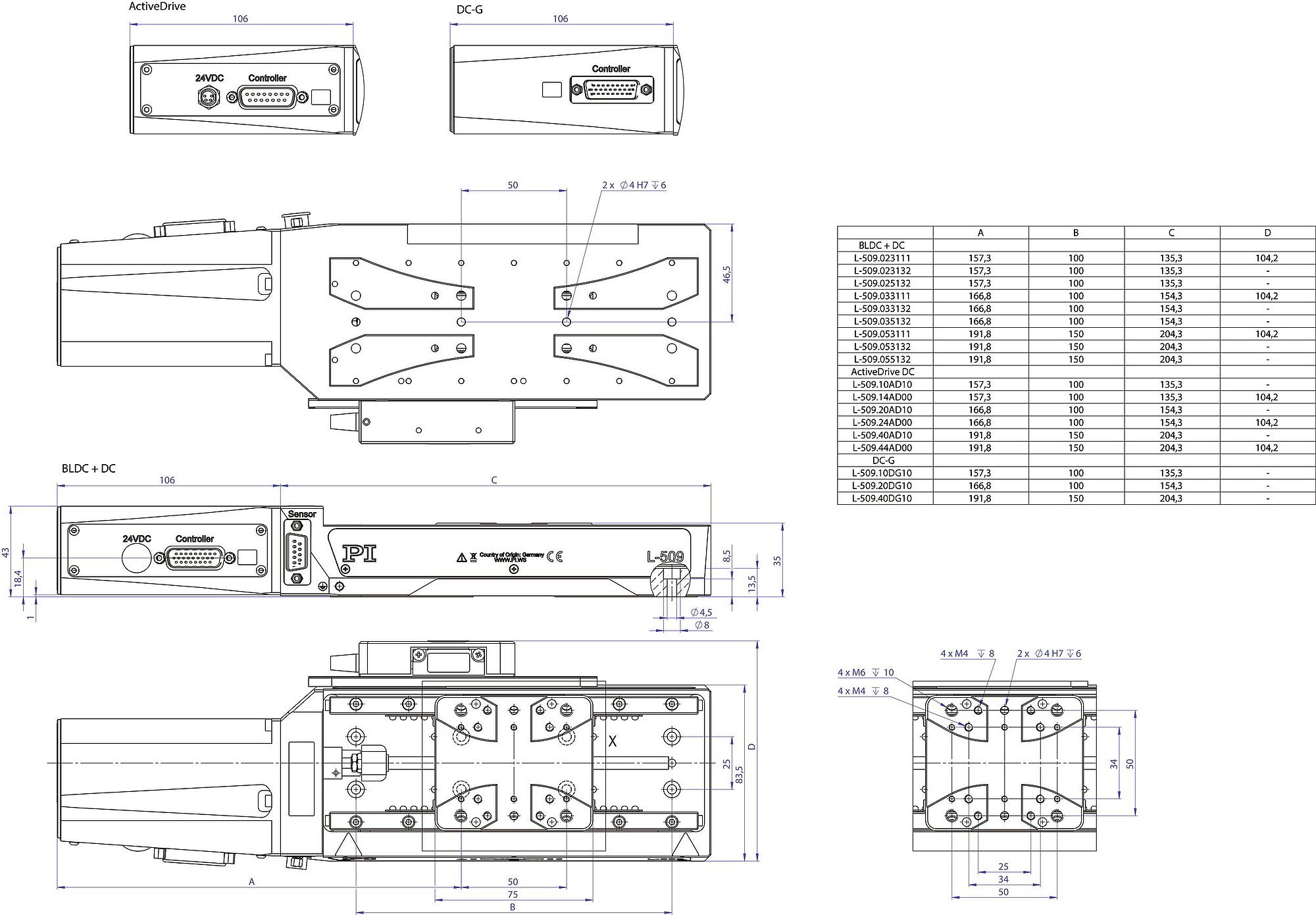

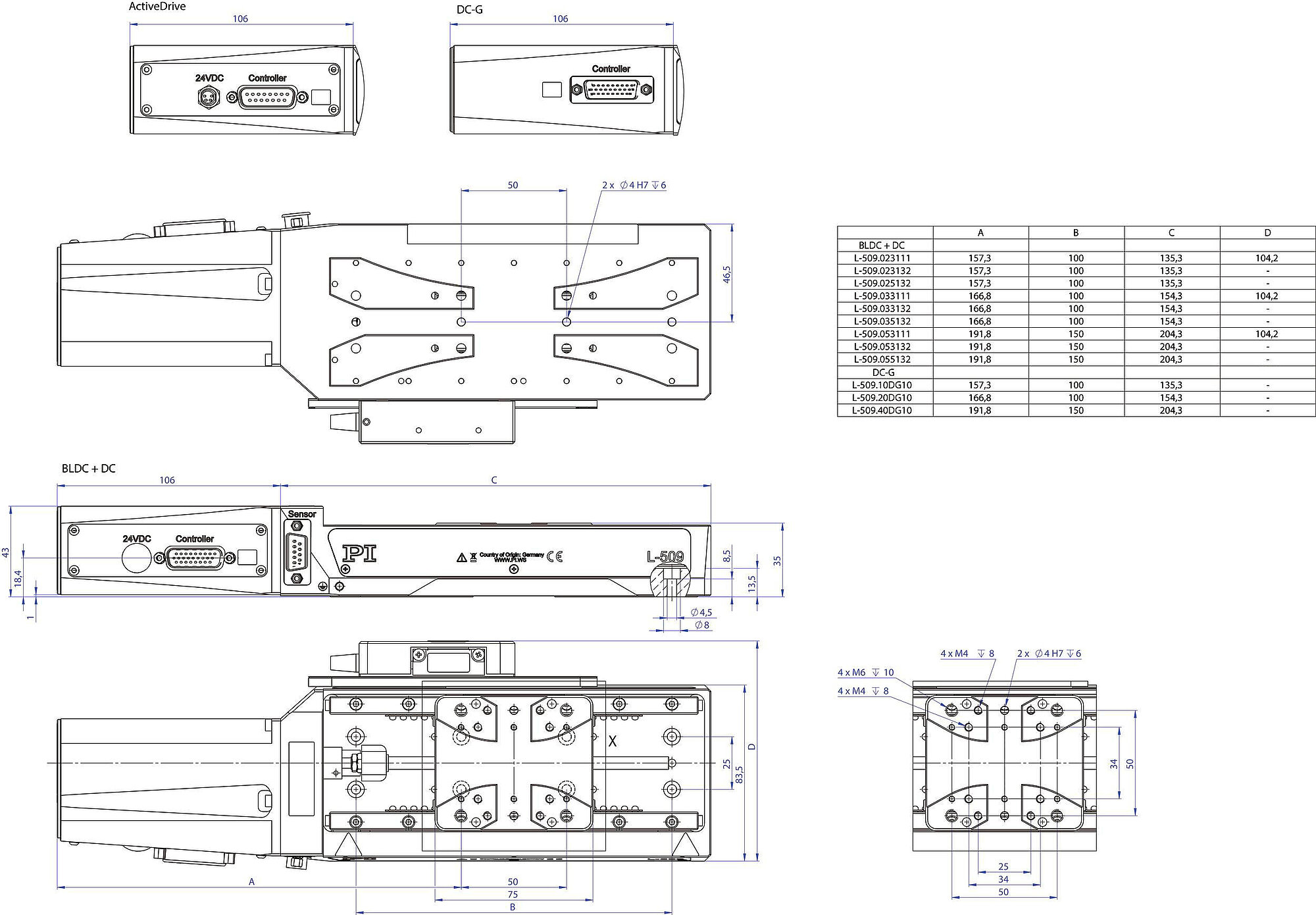

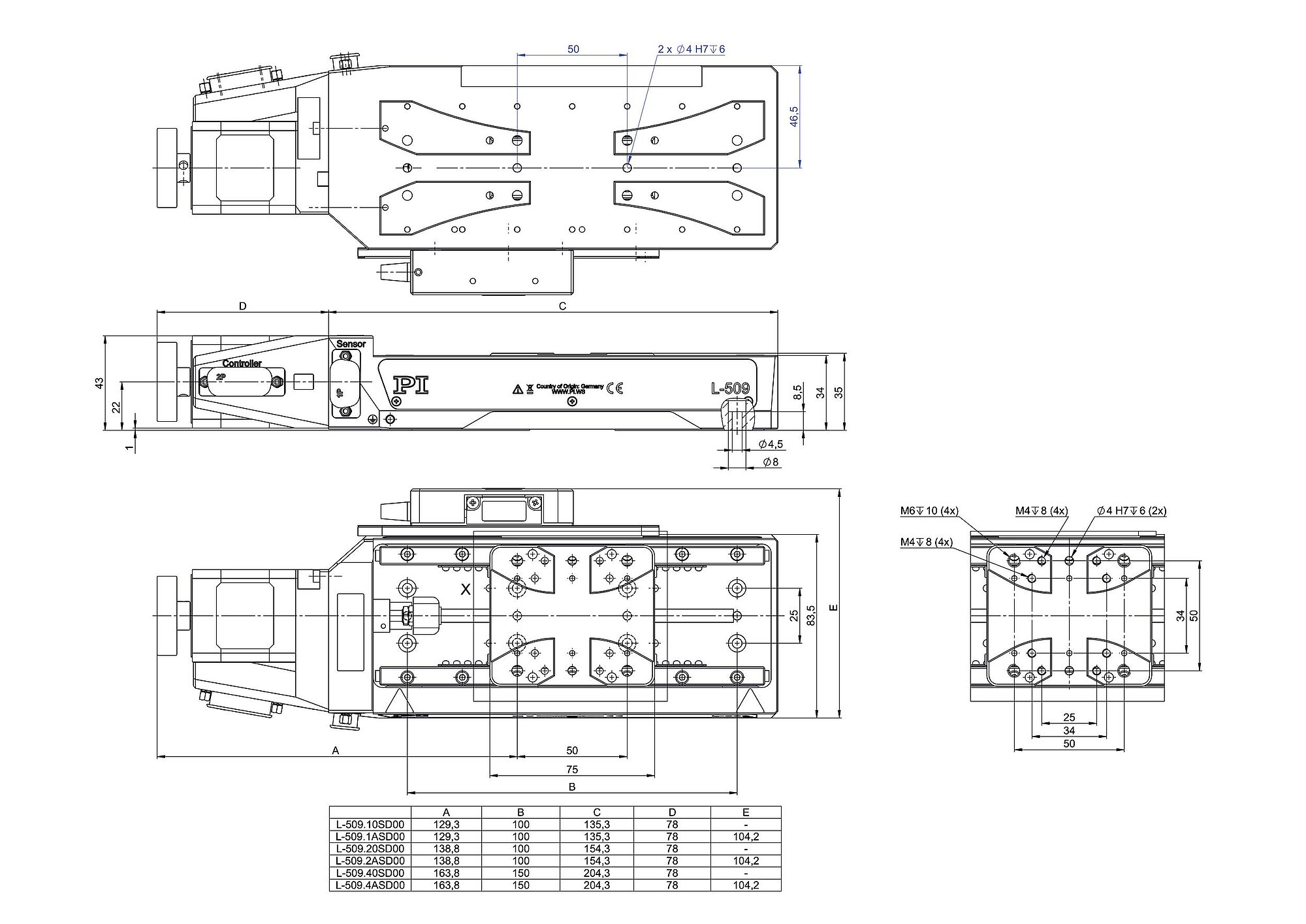

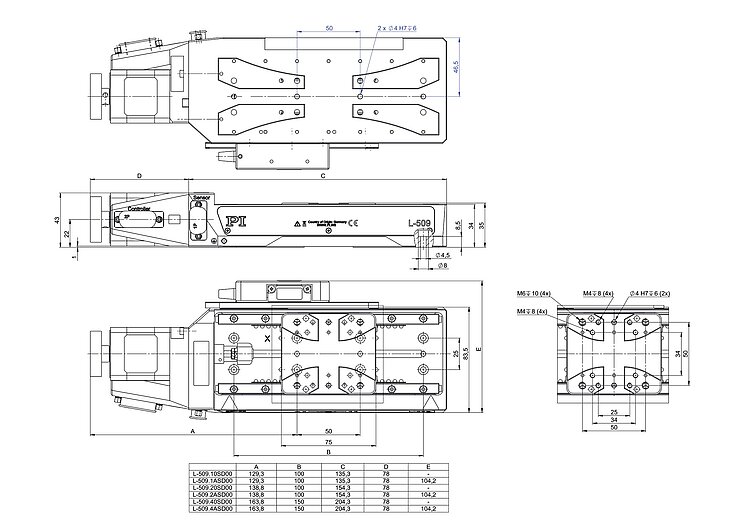

Specifications

Datasheet

Datasheet L-509

Version / Date
2021-03-24
Version / Date
2021-03-24
Version / Date
2021-01-21
Document language
pdf - 2 MB
pdf - 2 MB
pdf - 1 MB

Downloads

Product Note

Product Note

Product Change Notification Motor Driven Products

Version / Date
2021-04-19
Document language English
pdf - 917 KB

Datasheet

Datasheet

Datasheet L-509

Version / Date
2021-03-24
Version / Date
2021-03-24
Version / Date
2021-01-21
Document language
pdf - 2 MB
pdf - 2 MB
pdf - 1 MB

Documentation

Documentation

3-D model L-509.xxSD00

Version / Date
2017-11-08
Request download link
Documentation

User Manual L509T0018

L-509 Vacuum-Compatible Precision Linear Positioner (1E-9 hPa)
Version / Date
2020-06-29
Document language English
Request download link
Documentation

User Manual MP141

L-509 Precision Linear Stage, 85 mm Width
Version / Date
1.5 2020-06-30
Version / Date
1.5 2020-06-30
Document language
Request download link
Documentation

User Manual MP174

L-509 Vacuum-Compatible Precision Linear Stage (1 E-6 hPa)
Version / Date
1.2 2020-06-30
Version / Date
1.2 2020-06-30
Document language
Request download link
Documentation

User Manual MP186

This document describes the following precision linear positioner, vacuum-compatible 1 E-7 hPa: L-509.0x1300V7; L-509.0x1311V7
Version / Date
1.2 2020-06-29
Document language English
Request download link
Documentation

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / MTS-65 / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx
Version / Date
2.0.0 01/2020
Version / Date
2.0.0 01/2020
Document language
pdf - 736 KB
pdf - 749 KB

3-D Models

3-D Models

3-D model L-509.x0DG10

Version / Date
2017-11-08
Request download link
3-D Models

3-D model L-509.0xx132

Version / Date
2017-06-09
Request download link
3-D Models

3-D model L-509.xxADx0

Version / Date
2017-11-07
Request download link

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

L-509.025132
Precision linear stage; brushless DC motor; 26 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev sensor resolution, A/B quadrature, RS-422
L-509.035132
Precision linear stage; brushless DC motor; 52 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev sensor resolution, A/B quadrature, RS-422
L-509.055132
Precision linear stage; brushless DC motor; 102 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev sensor resolution, A/B quadrature, RS-422
L-509.10AD10
Precision linear stage; DC motor with ActiveDrive; 26 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental rotary encoder, 16384 counts/rev sensor resolution, A/B quadrature, RS-422
L-509.14AD00
Precision linear stage; DC motor with ActiveDrive; 26 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental linear encoder, 0.05 nm sensor resolution, A/B quadrature, RS-422
L-509.1ASD00
Precision linear stage; 2-phase stepper motor; 26 mm travel range; 100 N load capacity; 20 mm/s maximum velocity; ball screw; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak
L-509.20AD10
Precision linear stage; DC motor with ActiveDrive; 52 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental rotary encoder, 16384 counts/rev sensor resolution, A/B quadrature, RS-422
L-509.24AD00
Precision linear stage; DC motor with ActiveDrive; 52 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental linear encoder, 0.05 nm sensor resolution, A/B quadrature, RS-422
L-509.2ASD00
Precision linear stage; 2-phase stepper motor; 52 mm travel range; 100 N load capacity; 20 mm/s maximum velocity; ball screw; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak
L-509.40AD10
Precision linear stage; DC motor with ActiveDrive; 102 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental rotary encoder, 16384 counts/rev sensor resolution, A/B quadrature, RS-422
L-509.40DG10
Precision linear stage; DC gear motor; 102 mm travel range; 100 N load capacity; 3 mm/s maximum velocity; ball screw; incremental rotary encoder, 4096 counts/rev sensor resolution, A/B quadrature, RS-422
L-509.44AD00
Precision linear stage; DC motor with ActiveDrive; 102 mm travel range; 100 N load capacity; 50 mm/s maximum velocity; ball screw; incremental linear encoder, 0.05 nm sensor resolution, A/B quadrature, RS-422
L-509.4ASD00
Precision linear stage; 2-phase stepper motor; 102 mm travel range; 100 N load capacity; 20 mm/s maximum velocity; ball screw; incremental linear encoder, 20 µm sensor signal period, sin/cos, 1 V peak-peak
