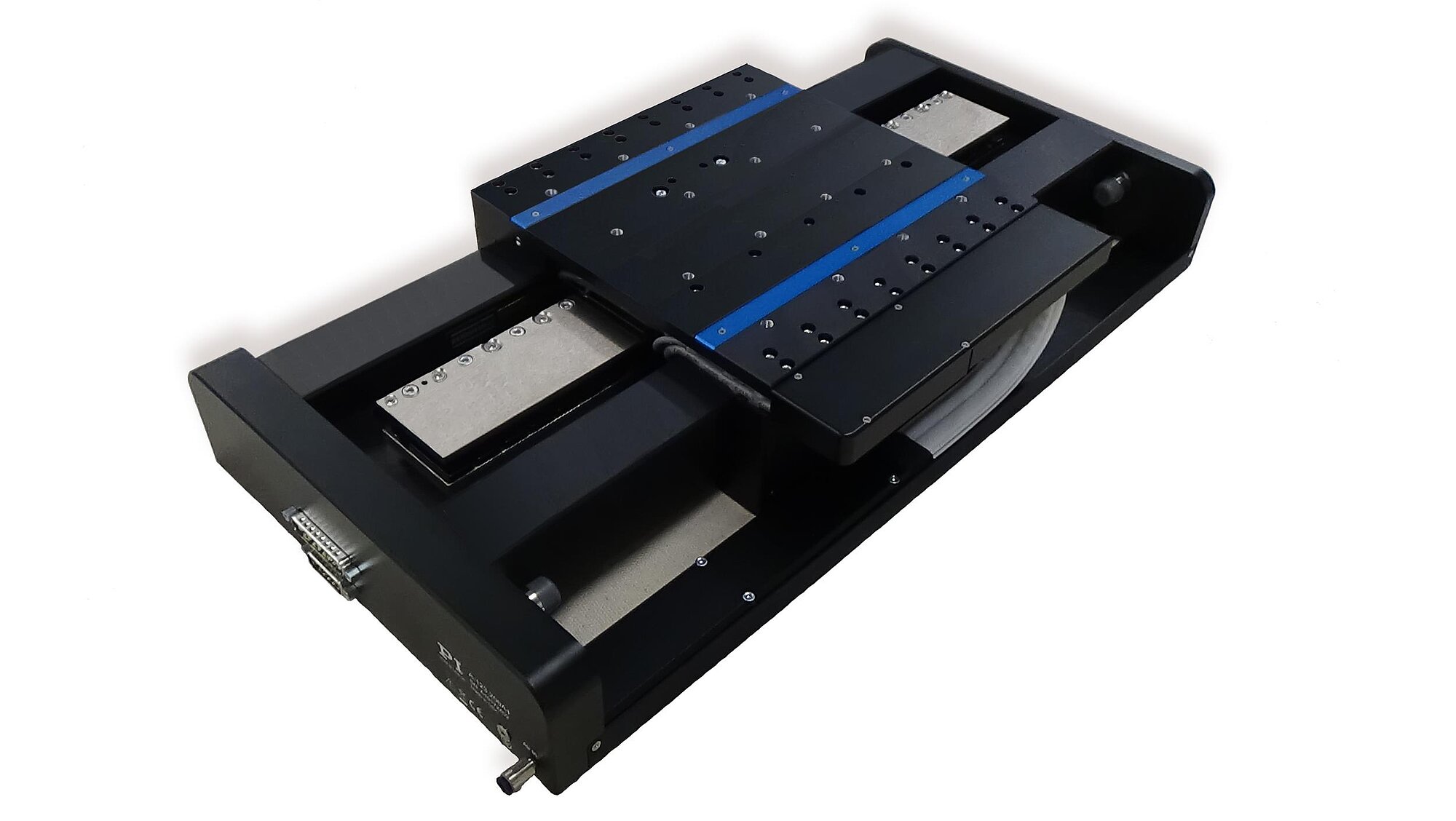

A-123 PIglide AT3 Linear Stage with Air Bearings

High Performance Nanopositioning Stage

  • Ideal for scanning applications or high-precision positioning
  • Cleanroom compatible
  • Size of the motion platform 210 mm × 210 mm
  • Travel ranges 50 mm to 750 mm
  • Resolution to 1 nm
A-123 PIglide AT3 Linear Stage with Air Bearings
Product Description Specifications Downloads Quote / Order

Product overview

The stages in the PIglide are equipped with a servo drive linear motor with preloaded air bearings and integrated linear encoder. The combination of these noncontact components results in a frictionless motion platform that offers the highest performance, quality, and lifetime.

A high-force linear motor can drive the stage to top speed within a few milliseconds, and the high-capacity bearings can support payloads up to 60 kg. The laterally opposed, actively preloaded air bearing design in this model allows mounting in any orientation.

Accessories and options

  • Encoder
  • PIglide Filter and Air Preparation Kits
  • Single and multi-axis motion controller
  • Pneumatic lock/unlock option
  • XY setups and individual configurations
  • Cable track variations
  • Options with counterweight for vertical (Z) orientation
  • Customizations available
  • Base plates made of granite and systems for reducing vibration

Application fields

PIglide positioning systems are ideally suited for many high-precision applications such as metrology, photonics, and precision scanning in semiconductor or flat panel display manufacturing.

Thanks to the friction-free motion, no particles are formed, which makes PIglide stages ideal for cleanroom applications.

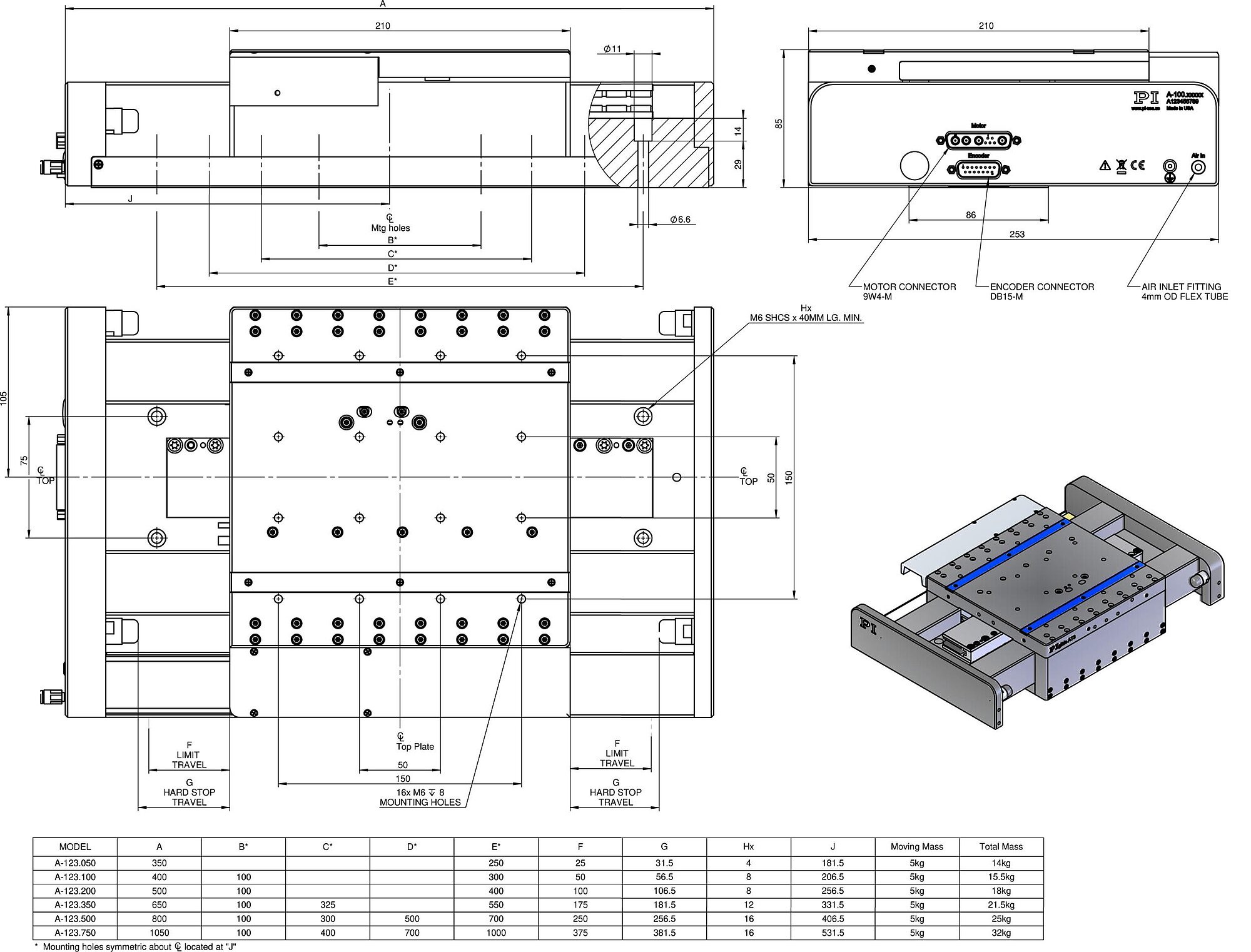

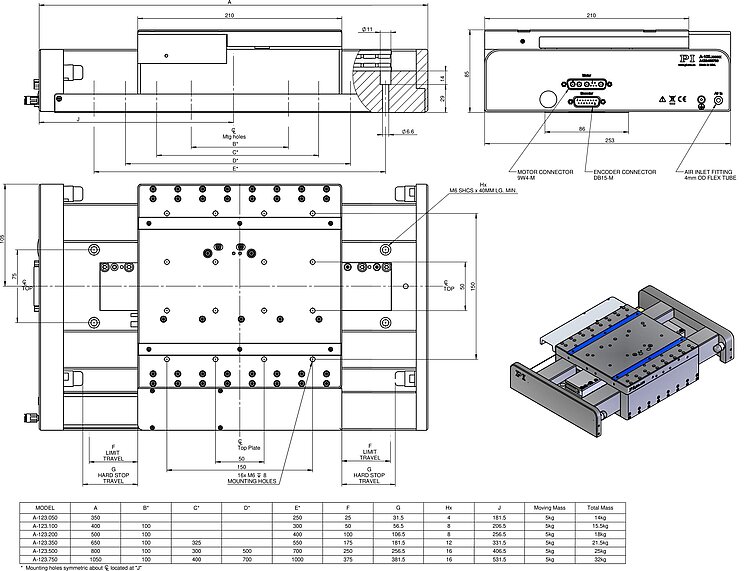

Specifications

Datasheet

Datasheet A-123

Version / Date
2021-06-08
pdf - 1 MB
Version / Date
2021-06-08
pdf - 2 MB
Version / Date
2021-01-15
pdf - 495 KB
Version / Date
2019-07-18
pdf - 844 KB

Downloads

Product Note

Product Note

Product Change Notification A-xxx.*C1

Version / Date
2018-08-02
pdf - 71 KB
English

Datasheet

Datasheet

Datasheet A-123

Version / Date
2021-06-08
pdf - 1 MB
Version / Date
2021-06-08
pdf - 2 MB
Version / Date
2021-01-15
pdf - 495 KB
Version / Date
2019-07-18
pdf - 844 KB

Documentation

Documentation

User Manual A123D0001

A-123 PIglide AT3 Series Linear Air Bearing Stage, Linear Motor Driven with Encoder Feedback

Version / Date
2021-05-17
pdf - 1 MB
English

3-D Models

3-D Models

A-123 3-D model

Version / Date
2020-04-13
zip - 22 MB

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

A-123.050A1

PIglide AT3 linear stage, air bearings, 50 mm travel range, incremental linear encoder with sin/cos signal transmission, 20 µm sensor signal period, ironless 3-phase linear motor, 48 V

A-123.050B1

PIglide AT3 linear stage, air bearings, 50 mm travel range, absolute linear encoder with BiSS-C signal transmission, 1 nm sensor resolution, ironless 3-phase linear motor, 48 V

A-123.100A1

PIglide AT3 linear stage, air bearings, 100 mm travel range, incremental linear encoder with sin/cos signal transmission, 20 µm sensor signal period, ironless 3-phase linear motor, 48 V

A-123.100B1

PIglide AT3 linear stage, air bearings, 100 mm travel range, absolute linear encoder with BiSS-C signal transmission, 1 nm sensor resolution, ironless 3-phase linear motor, 48 V

A-123.200A1

PIglide AT3 linear stage, air bearings, 200 mm travel range, incremental linear encoder with sin/cos signal transmission, 20 µm sensor signal period, ironless 3-phase linear motor, 48 V

A-123.200B1

PIglide AT3 linear stage, air bearings, 200 mm travel range, absolute linear encoder with BiSS-C signal transmission, 1 nm sensor resolution, ironless 3-phase linear motor, 48 V

A-123.350A1

PIglide AT3 linear stage, air bearings, 350 mm travel range, incremental linear encoder with sin/cos signal transmission, 20 µm sensor signal period, ironless 3-phase linear motor, 48 V

A-123.350B1

PIglide AT3 linear stage, air bearings, 350 mm travel range, absolute linear encoder with BiSS-C signal transmission, 1 nm sensor resolution, ironless 3-phase linear motor, 48 V

A-123.500A1

PIglide AT3 linear stage, air bearings, 500 mm travel range, incremental linear encoder with sin/cos signal transmission, 20 µm sensor signal period, ironless 3-phase linear motor, 48 V

A-123.500B1

PIglide AT3 linear stage, air bearings, 500 mm travel range, absolute linear encoder with BiSS-C signal transmission, 1 nm sensor resolution, ironless 3-phase linear motor, 48 V

A-123.750A1

PIglide AT3 linear stage, air bearings, 750 mm travel range, incremental linear encoder with sin/cos signal transmission, 20 µm sensor signal period, ironless 3-phase linear motor, 48 V

A-123.750B1

PIglide AT3 linear stage, air bearings, 750 mm travel range, absolute linear encoder with BiSS-C signal transmission, 1 nm sensor resolution, ironless 3-phase linear motor, 48 V
