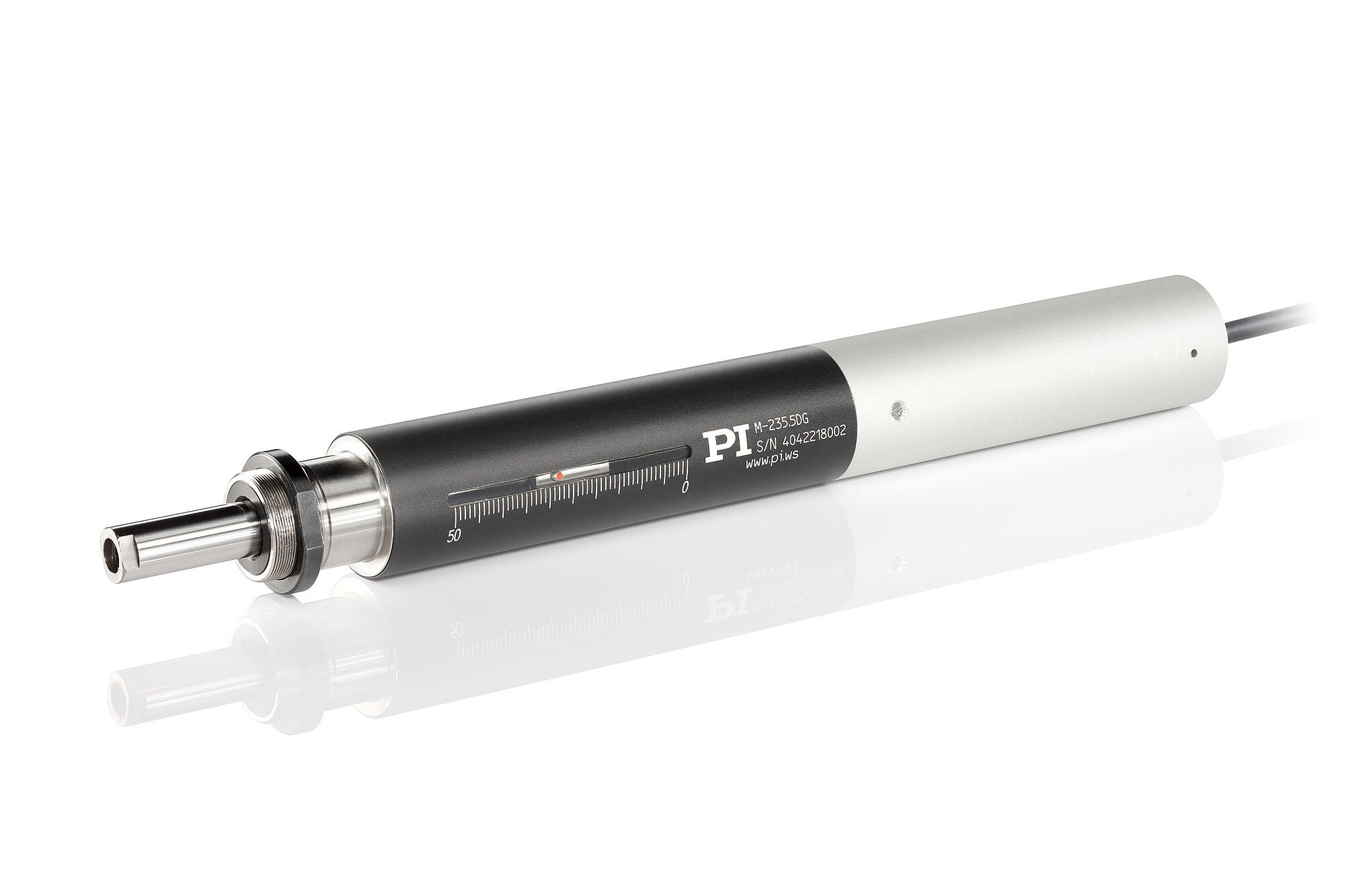

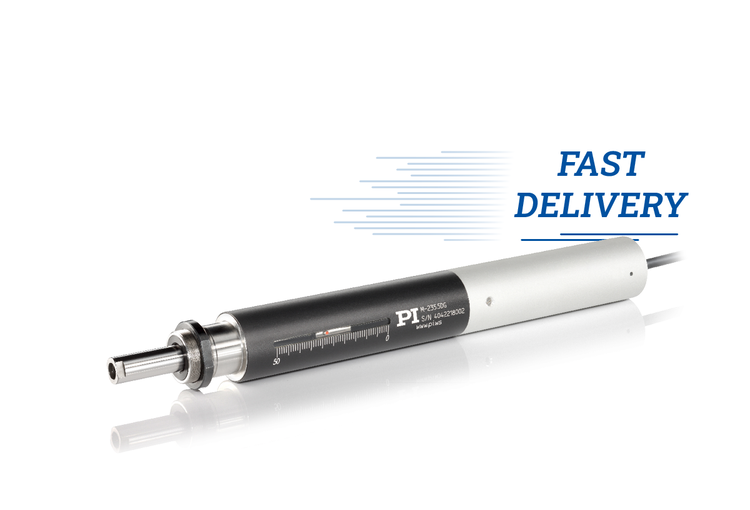

M-235 High-Resolution Linear Actuator with DC Motor

Highly Dynamic, High Forces up to 120 N

  • Travel ranges 20 and 50 mm
  • Min. incremental motion to 0.1 µm
  • DC motor allows high velocities
  • Push / pull force capacity to 120 N
  • MTBF >10000 h
M-235 High-Resolution Linear Actuator with DC Motor
Product Description Specifications Downloads Quote / Order

Reference-class linear drive

Combines high precision, high forces, and high dynamics.

High-quality components

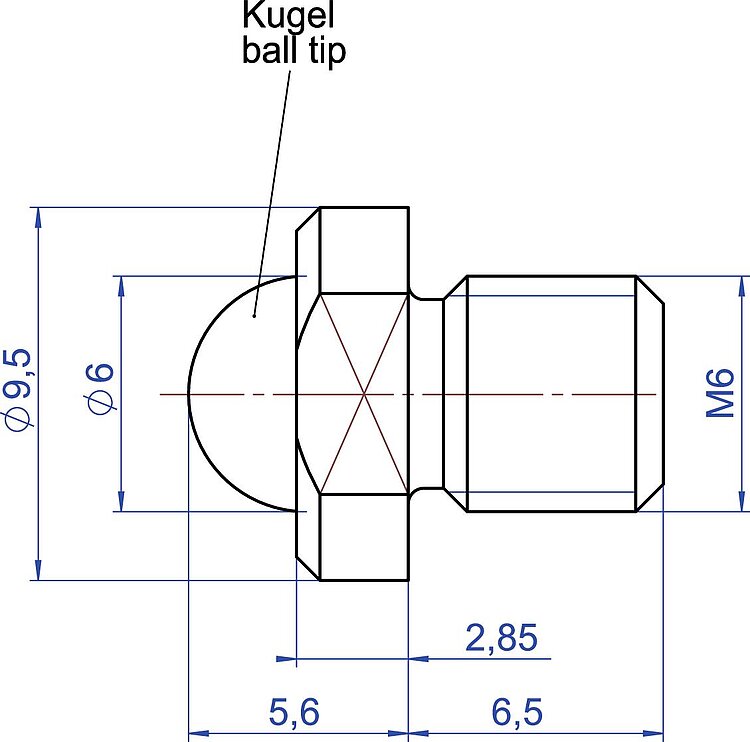

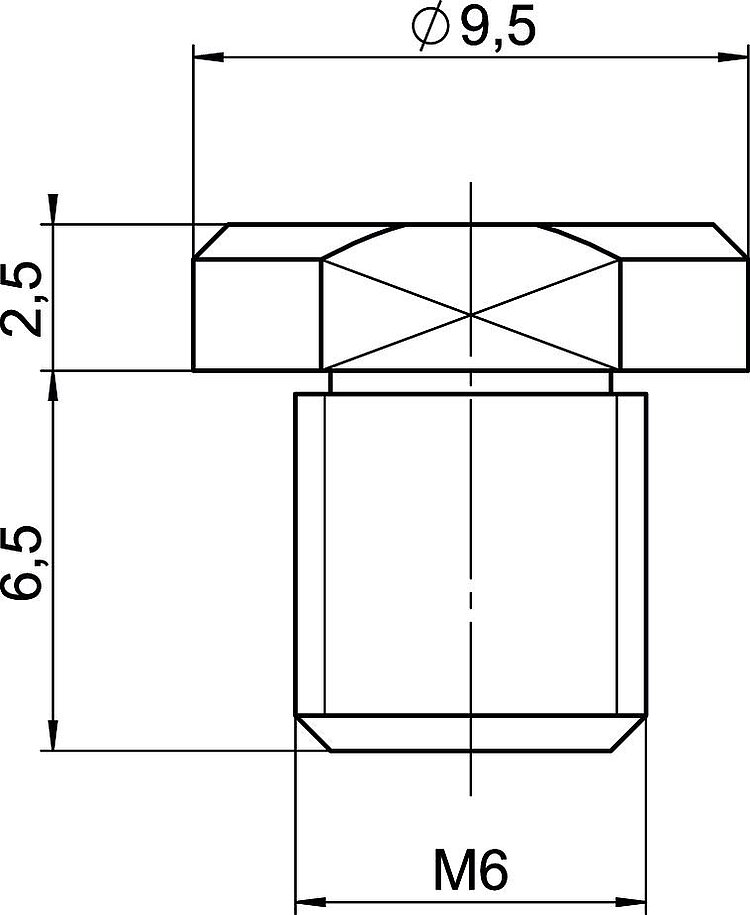

Recirculating ball screw provides high velocity and long lifetime. Nonrotating end piece for uniform motion prevents wobble, torque, and wear at the point of contact. Includes flat and spherical end piece for decoupling of lateral and tilt forces. Noncontact limit switches protect the mechanical system. A direction-sensing reference switch supports automation applications. Closed-loop variants with differential encoder driver for a safe position signal transmission at distances up to 10 m.

Motor variants

  • Highly dynamic, closed-loop DC motors reach high velocities
  • Position-controlled DC motors with a gearhead and high-resolution rotary encoders allow for incremental motion of just 100 nm

Application fields

Precision adjustment. External drive element for guided systems.

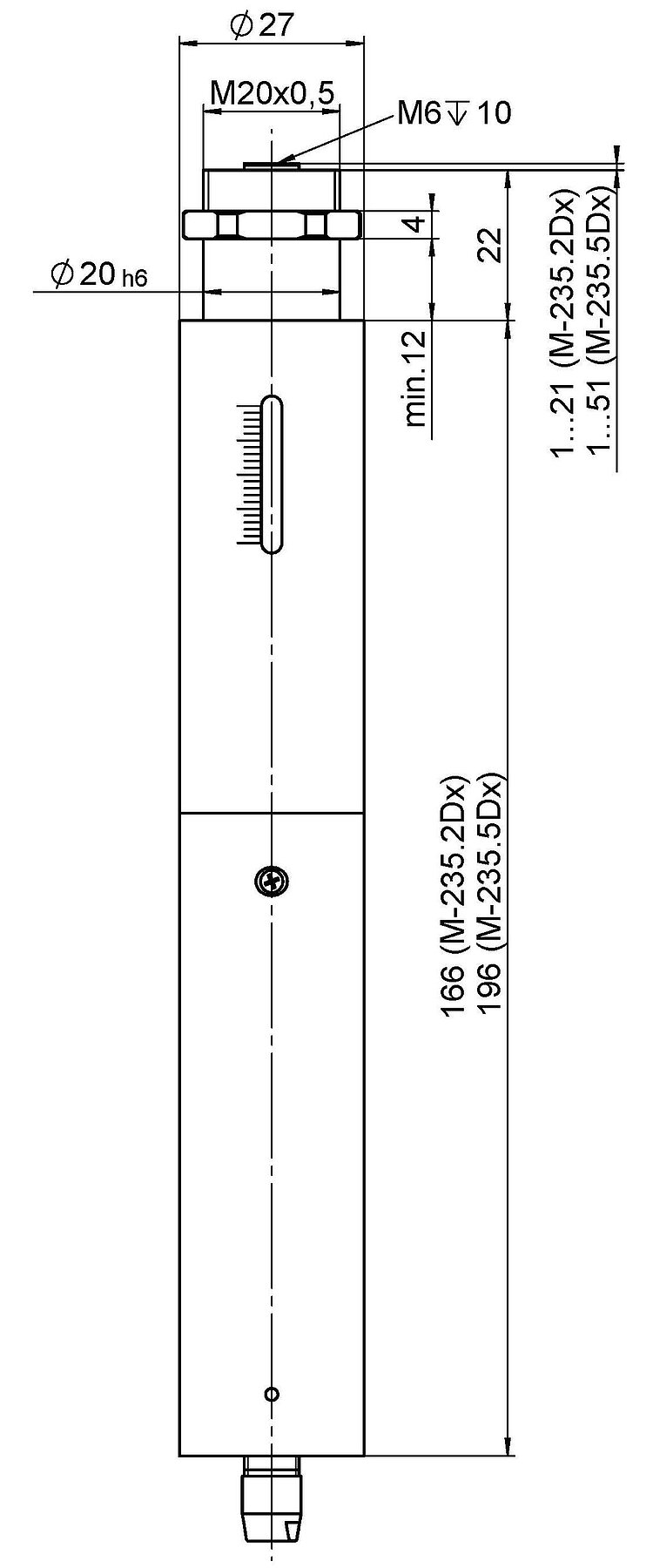

Specifications

Datasheet

Datasheet M-235

Version / Date
2020-06-29
pdf - 369 KB
Version / Date
2020-06-29
pdf - 373 KB

Downloads

Product Note

Product Note

Product Change Notification Lable Change M-products

Version / Date
2019-10-01
pdf - 230 KB
English
Product Note

Product Change Notification M-Portfolio Streamlining 2

M-227.10S, M-230.10V, M-230.25V, M-232.17S, M-235.22S, M-235.2VD, M-235.2VG, M-235.52S, M-235.5VD, M-235.5VG

Version / Date
2019-04-05
pdf - 71 KB
English

Datasheet

Datasheet

Datasheet M-235

Version / Date
2020-06-29
pdf - 369 KB
Version / Date
2020-06-29
pdf - 373 KB

Documentation

Documentation

Short Instructions MP122EK

Linear Actuators: M-168 / M-22x / M-23x

Version / Date
5.0.0 10/2020
pdf - 812 KB
Version / Date
5.0.0 10/2020
pdf - 824 KB
Documentation

User Manual MP106

M-235 Linear Actuators

Version / Date
1.2 2020-08-31
pdf - 691 KB
Version / Date
1.2 2020-08-31
pdf - 860 KB

3-D Models

3-D Models

M-235 3-D model

zip - 1 MB
Separate connection cable required for motor and sensor connection respectively.
