L-220 V6 High-Resolution Linear Actuator Suitable for Vacuum

Suitable for High Cycle Numbers

L-220 V6 High-Resolution Linear Actuator Suitable for Vacuum
Product Description Specifications Downloads Quote / Order

Reference-class linear drive

Combines high precision, high forces, and high dynamics. High-performance and low-vibration 2-phase stepper motor with gear ratio allows precise positioning even without position sensor.

High-quality components

Ball screw for smooth feed. Nonrotating tip for uniform motion prevents wobble, torque, and wear at the point of contact. Incl. flat and spherical tip for decoupling forces. Noncontact limit switches protect the mechanics. A direction-sensing reference switch supports automation applications.

Reduced outgassing especially for use in vacuum environments

Most notably, for the lubrication of the guides and the drive screw a material with particularly low outgassing is used. This allows a bakeout temperature of up to 80° C. With this and other modifications of the PI V6 vacuum class, this positioner can be used up to 10-6hPa.

Application fields

Vacuum chambers. Research. Beamline instrumentation. Microscopy. Electronics assembly and inspection.

Specifications

Datasheet

Datasheet L-220 V

Version / Date
2021-10-26
pdf - 730 KB
Version / Date
2021-10-26
pdf - 736 KB
Version / Date
2021-01-15
pdf - 365 KB

Downloads

Datasheet

Datasheet

Datasheet L-220 V

Version / Date
2021-10-26
pdf - 730 KB
Version / Date
2021-10-26
pdf - 736 KB
Version / Date
2021-01-15
pdf - 365 KB

Documentation

Documentation

User Manual L220T0020

L-220.02A200V6 Precision linear actuator with stepper drive and gear for vacuum applications (1 E-6 hPa)

Version / Date
2021-04-01
pdf - 267 KB
English

3-D Models

3-D Models

3-D model L-220.02A200V6

Version / Date
2020-04-24
zip - 2 MB

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.

Contact us!
Compatible Electronics Related Products

Applications

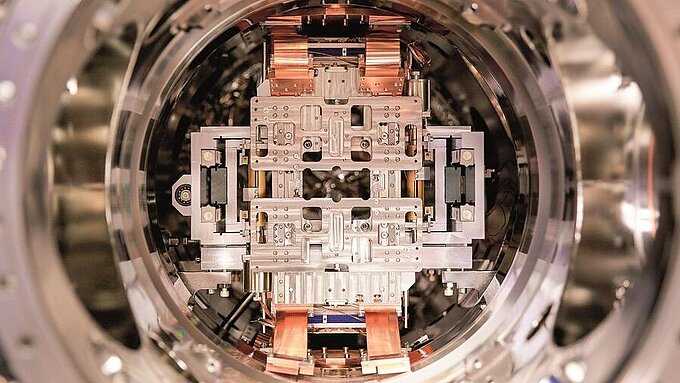

Beamline Instrumentation

Beamline Instrumentation

Scientific experiments pose their own challenges, and beamline X-ray experiments are even more special in themselves. However, the need for precision equipment is universal.

IsoView Light Sheet Microscope

IsoView Light Sheet Microscope

Light Sheet Microscopy is a fascinating technology with a huge application potential in life sciences and biotechnology. IsoView is a brilliant interpretation of this technology, especially intended for imaging fast cellular dynamics across large specimens over several hours. Specimen positioning and objective translation plays a major role in the design of IsoView.

Flamingo Lightsheet Fluorescence Microscopy

Flamingo Lightsheet Fluorescence Microscopy

Light Sheet Fluorescence Microscopy (LSFM), also called Single Plane Illumination Microscopy (SPIM ) is a very powerful microscopy technology for gentle in vivo imaging offering low phototoxicity and fast image acquisition.

Positioning Solutions for Total Internal Reflection Fluorescence Microscopy

GATTAscope (TIRFM)

Linear stages adjust the laser beam in the TIRF microscope. Precision positioning of the sample is possible by combining two XY stages.

system for beam preparation

Multi-Axis Beam Preparation

DESY-XYZ-Stage-Granite

X-Ray Scanning Microscope

The Hard X-ray Micro/Nano-Probe beamline P06 at PETRA III provides advanced visualisation with micro/nanoscopic spatial resolution using different X-ray techniques.

PI-Tomography-Stage

Cryogenic Samples

The setup of the x-ray tomography stage, located at the P06 beamline of PETRA III at DESY (Germany) allows to investigate samples that require both cooling and vacuum environment.

Diamond-Light-Source-Beamline-I07

Sample Adjustment

At Diamond Light Source, UK, beamline I07 is a high-resolution X-ray diffraction beamline dedicated to investigate the structure of surfaces and interfaces.

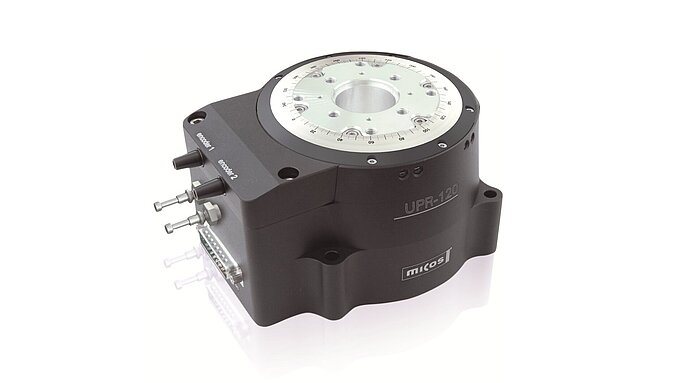

PI UPR-120

Positioning for Micro-CT

The BAMline is intended for X-ray fluorescence analysis, micro-computed tomography, X-ray topography, detector calibration and reflectometry.

SSRF-Photon-Delivery-System

Slit Control

XZ positioning systems control x-xay slits at the the Shanghai Synchrotron Radiation Facility, Shanghai (SSRF).

PI-4-Axis-Positioning

Long-Term Positioning

High-Precision at 10-7 hPa, beamline experiments at the Swiss Light Source (SLS).

SURFACE Sample Manipulator

High Vacuum Positioning

Investigation of the structural properties of thin films under high-vacuum conditions.

PI-Vacuum-Chamber-PI-Hexapod

Vacuum Chamber

Positioning the Vacuum Chamber for X-ray Diffraction Experiment

Cryo Sample Positioning with SpaceFAB

Sample Positioning in High-Vacuum

Sample Manipulators in High-Vacuum

Positioning for Laminography

Positioning for Laminography

High-Precision Spatial Positioning of Flat, Extended Objects

Tomography and Holography

Tomography and Holography

Sample positioning setup inside tomography and holography endstations.

Optics Hutch Instrumentation

Optics Hutch Instrumentation

At DESY in Hamburg, the P05 Imaging Beamline is operated by the HZG.

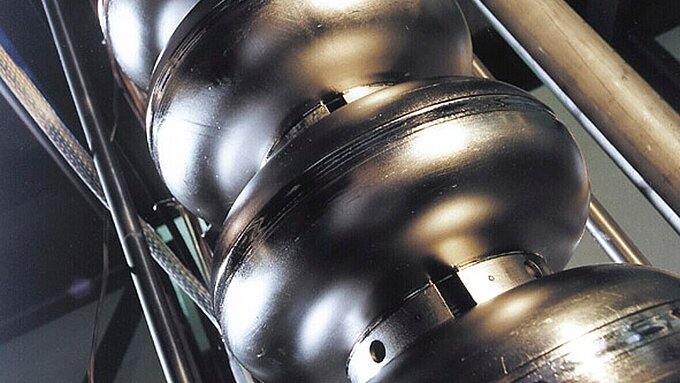

Accelerator Technology
