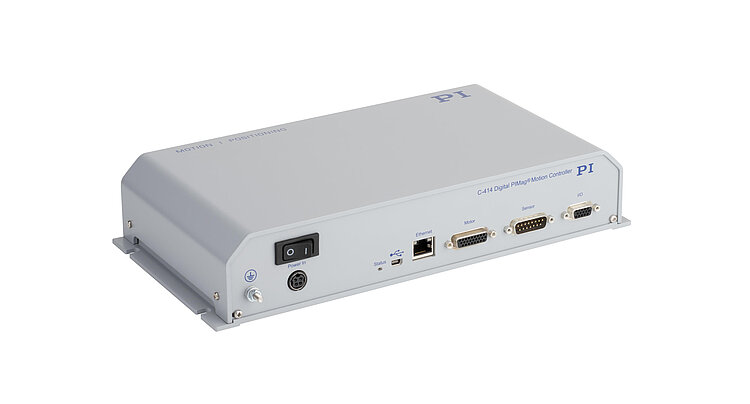

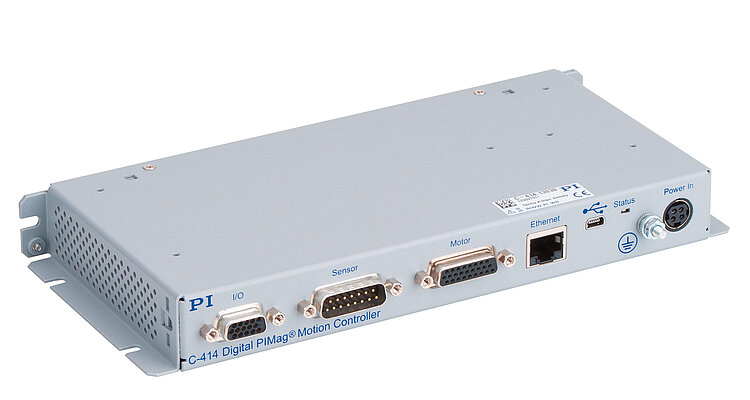

C-414 PIMag® Motion Controller

Control of Position and Velocity for Voice Coil Drives

  • Output current up to 5 A, closed loop
  • TCP/IP and USB interfaces for commanding and configuration
  • Digital inputs and outputs, analog input and output
  • Autozero function for holding current
  • Data recorder
  • Wave generator
C-414 PIMag® Motion Controller
Product Description Specifications Downloads Quote / Order

Digital motion controller for PIMag® voice coil drives

PID controller for position and velocity. Servo update rate 20 kHz.

Protection of the mechanics

The autozero function defines the holding current at which the drive generates a force of 0 N in open-loop operation, e.g., to compensate for the weight force. An I2t monitoring prevents the drive from overheating due to overcurrent.

Extensive functions, software support

Data recorder for recording operating data such as motor current, velocity, position, or position error. Wave generator for the output of periodic motion profiles. Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.

Interfaces

Commanding via TCP/IP, USB. Digital inputs and outputs for automation. Analog input and output, e.g., for sensors, commanding, or position feedback.

Specifications

Datasheet

Datasheet C-414

Version / Date
2020-08-11
pdf - 214 KB
Version / Date
2020-08-11
pdf - 216 KB
Version / Date
2021-01-15
pdf - 345 KB

Downloads

Datasheet

Datasheet

Datasheet C-414

Version / Date
2020-08-11
pdf - 214 KB
Version / Date
2020-08-11
pdf - 216 KB
Version / Date
2021-01-15
pdf - 345 KB

Documentation

Documentation

User Manual MS254

C-414.13030 PIMag® motion controller, 1 axis, 48 V, 5 A, benchtop device, TCP/IP and USB interface

Version / Date
1.0.0 2020-08-11
pdf - 4 MB
Version / Date
1.0.0 2020-07-30
pdf - 4 MB
