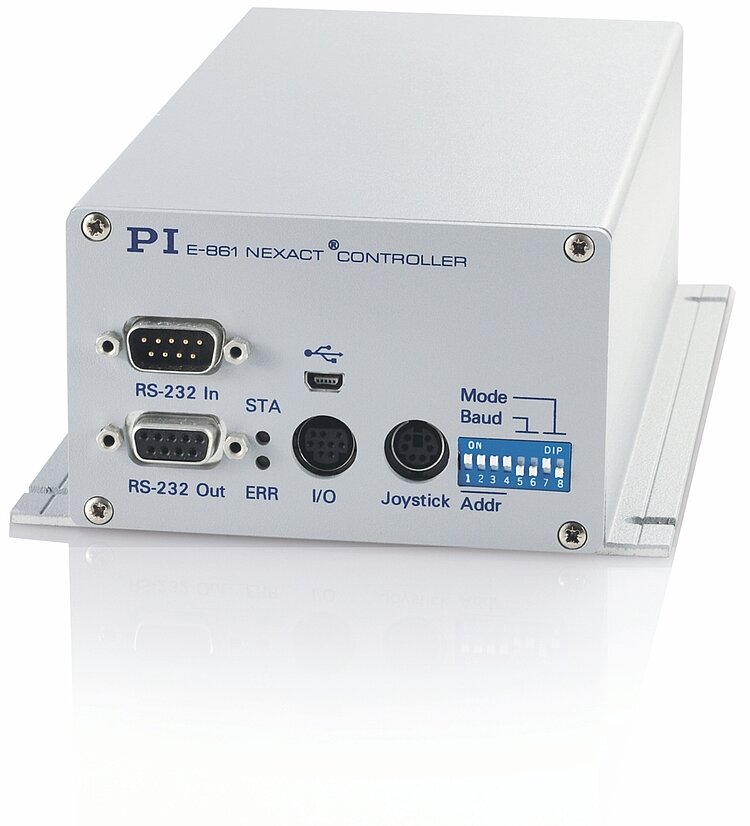

E-861 PiezoWalk® NEXACT® Controller

Networkable Controller for NEXACT® Linear Drives and Positioners

  • High-speed encoder input
  • Macro programmable for stand-alone functionality
  • Data recorder
  • Nonvolatile EEPROM for macros and parameters
  • Daisy chain networking
E-861 PiezoWalk® NEXACT® Controller
Product Description Specifications Downloads Quote / Order

Digital servo controller for NEXACT® piezo motors

1 axis. Supports motion types of the PiezoWalk® drives: Nanostepping mode for longer distances. Highly dynamic positioning within one step with resolutions below one nanometer.

Interfaces and communication

USB and RS-232 interfaces for commanding. A/B quadrature encoder input. TTL inputs for limit and reference point switches. I/O lines (analog/digital) for automation. Interface for analog joystick. Daisy chain networking for up to 16 axes operated via a common computer interface.

Extensive functions, software support

Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone operation with autostart macro. Data recorder. PID controller, parameter changing during operation. Extensive software support, e.g., for LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.

Fields of application

  • 2-photon microscopy, confocal microscopy
  • 3-D imaging
  • Laser technology
  • Interferometry
  • Biotechnology
  • Micromanipulation
  • Autofocus with high demands on travel range

Specifications

Datasheet

Datasheet E-861

Version / Date
2018-03-09
pdf - 107 KB
Version / Date
2018-03-09
pdf - 109 KB
Version / Date
2018-06-06
pdf - 500 KB

Downloads

Datasheet

Datasheet

Datasheet E-861

Version / Date
2018-03-09
pdf - 107 KB
Version / Date
2018-03-09
pdf - 109 KB
Version / Date
2018-06-06
pdf - 500 KB

Documentation

Documentation

Short Instructions MS242EK

Digital Motor Controllers and Drivers: C-663 / C-863 / C-867 / C-877 / C-884 / E-861 / E-871 / E-872.401 / E-873

Version / Date
3.1.0 02/2021
pdf - 2 MB
Version / Date
3.1.0 02/2021
pdf - 2 MB
Documentation

Technical Note N310T0011

NEXACT® Technology

Version / Date
2017-02-07
pdf - 1 MB
English
Documentation

User Manual PZ205

E-861 NEXACT® Controller

Version / Date
2010-07-26
pdf - 3 MB
English

General Software Documentation

General Software Documentation

User Manual A000T0067

Information on the PIStages3 database. What must be considered when changing from PIStages2 to PIStages3.

Version / Date
2020-01-13
pdf - 543 KB
English
General Software Documentation

Software Manual SM156

PIStages3Editor for editing the PIStages3 database

Version / Date
2.1.0 2020-08-03
pdf - 2 MB
Version / Date
2.1.0 2020-08-03
pdf - 2 MB
General Software Documentation

Software Manual SM146

GCS Array Data Format

Version / Date
1.2.1
pdf - 153 KB
English
General Software Documentation

Software Manual SM155

PI MATLAB Driver GCS 2.0

Version / Date
1.1.0 2016-02-29
pdf - 1 MB
Version / Date
1.1.0 2016-02-29
pdf - 1 MB
General Software Documentation

User Manual A000T0028

Updating PI Software with PIUpdateFinder

Version / Date
2020-05-20
pdf - 482 KB
Version / Date
2020-05-20
pdf - 488 KB
General Software Documentation

Software Manual SM148

PIMikroMove

Version / Date
2.14.0 2020-01-30
pdf - 6 MB
English
General Software Documentation

Software Manual SM151E

PI GCS2 DLL

Version / Date
2.10.0 2019-08-26
pdf - 1 MB
English
General Software Documentation

Software Manual SM158

PI GCS2 Driver Library for NI LabVIEW

Version / Date
7.0.1 202-03-03
pdf - 3 MB
English

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
